Stop, Tail, Indicator.

’E11’ Marked

These lights have an overall diameter of 122mm (4¾")and mount through a 112mm hole.

34mm depth behind lens.

Either bond them in or make a simple U bracket to hold them in place.

You can even surface mount them with the two M6 integral studs.

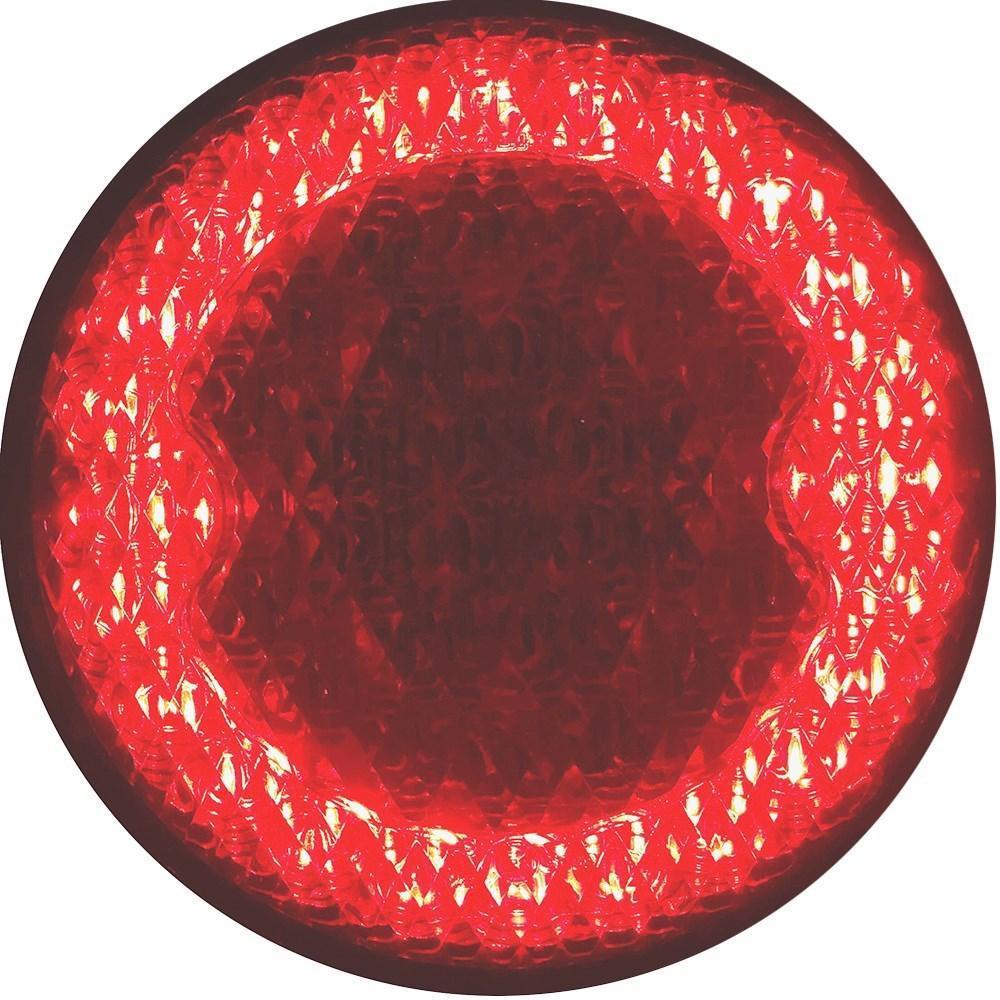

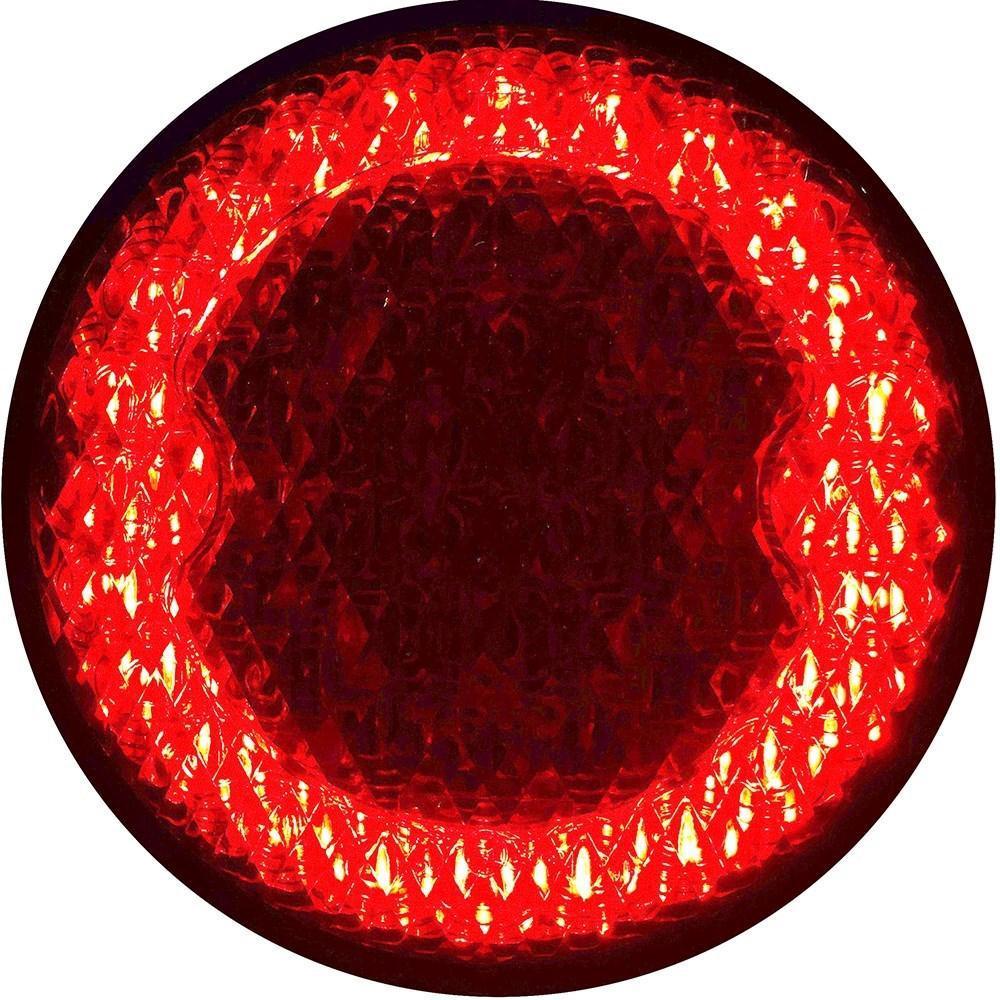

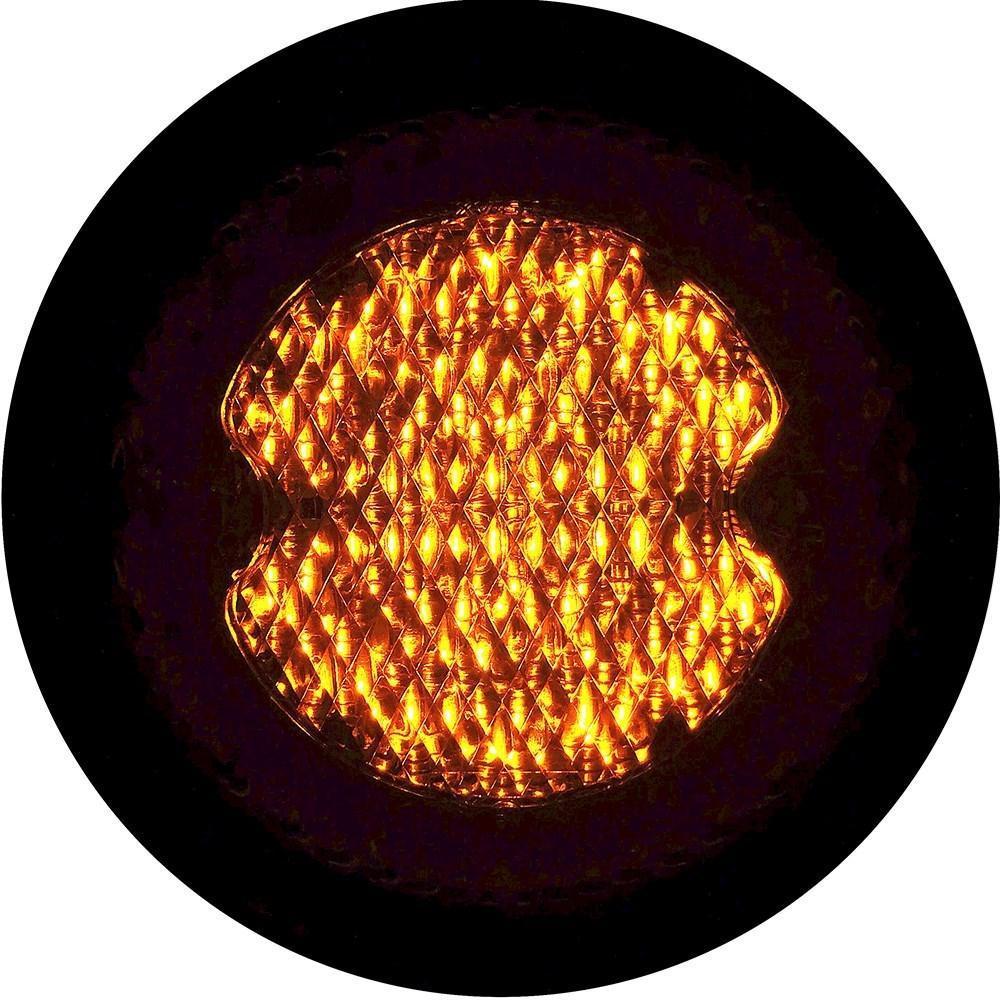

Super bright LED's give the red stop/tail outer and amber indicator centre.

STOP - 4 Watt

TAIL -  1 Watt

INDICATOR -. 4 Watt

Pre-wired and sealed with 300mm flyleads.

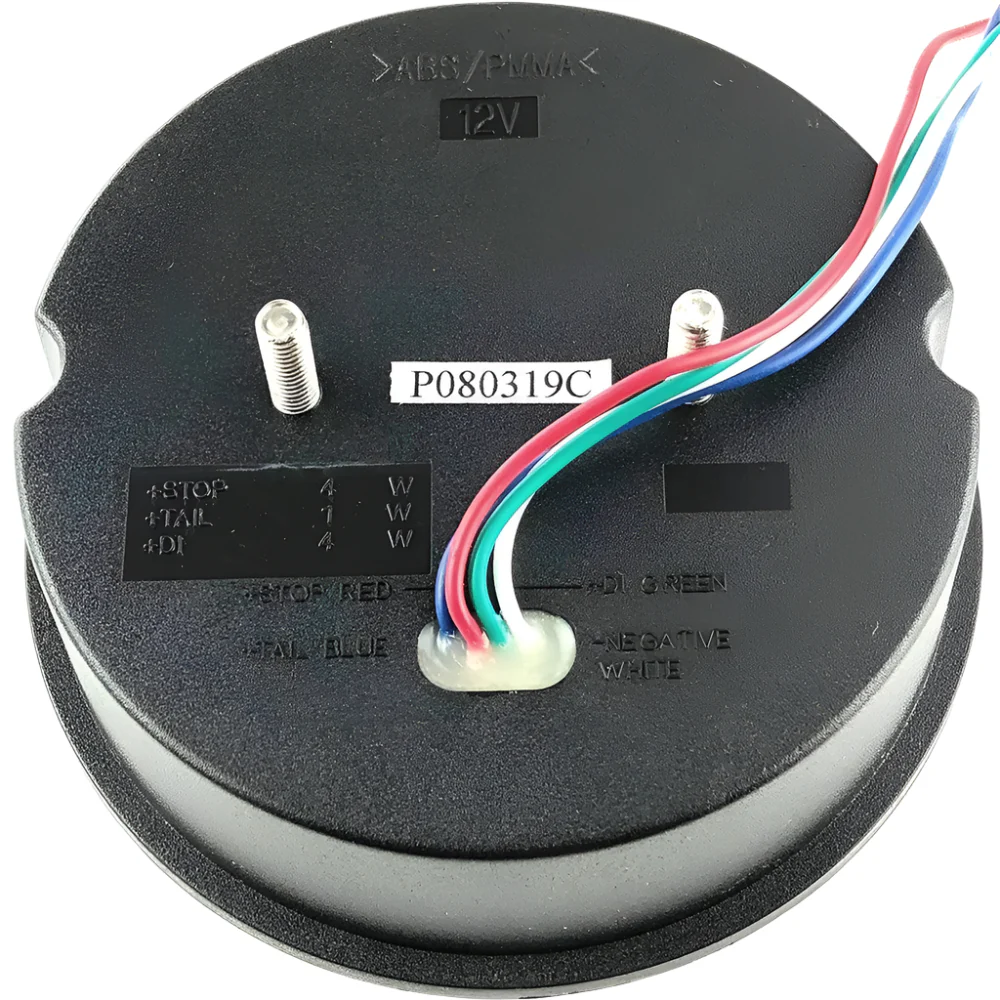

WIRING:

WHITE - EARTH

RED - STOP

BLUE - TAIL

GREEN - INDICATOR

122mm LED STOP TAIL AND INDICATOR PAIR #RL127
