‘E20’ Marked.

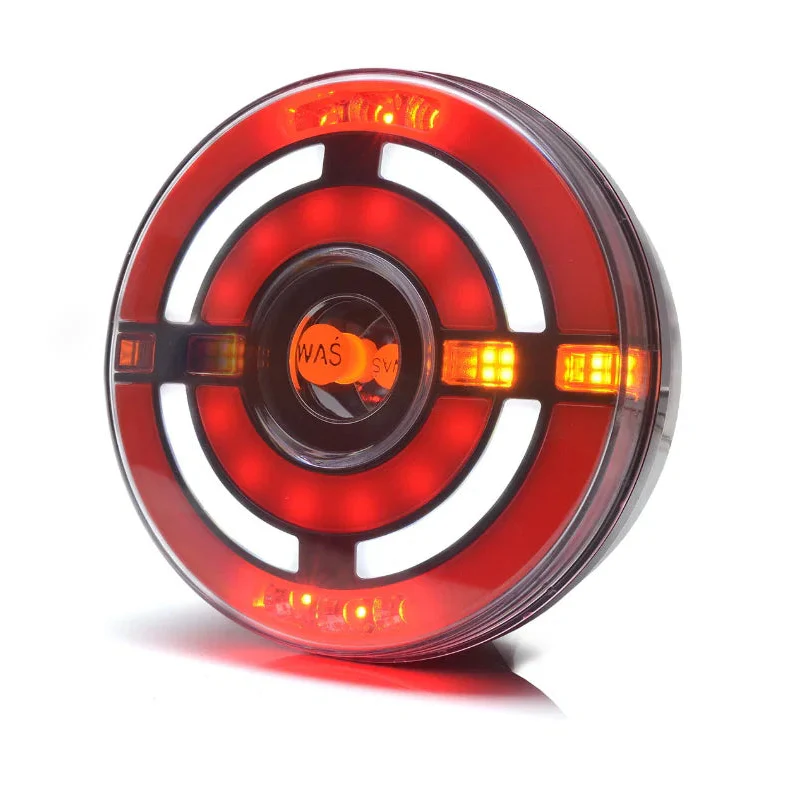

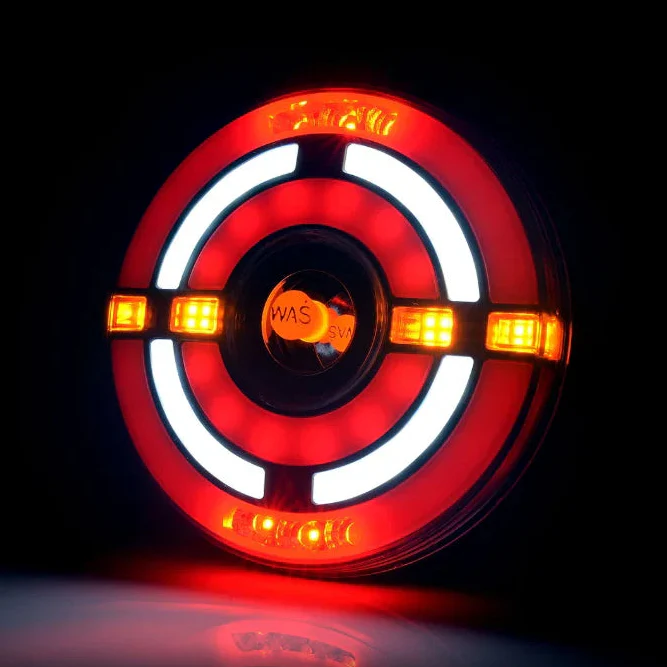

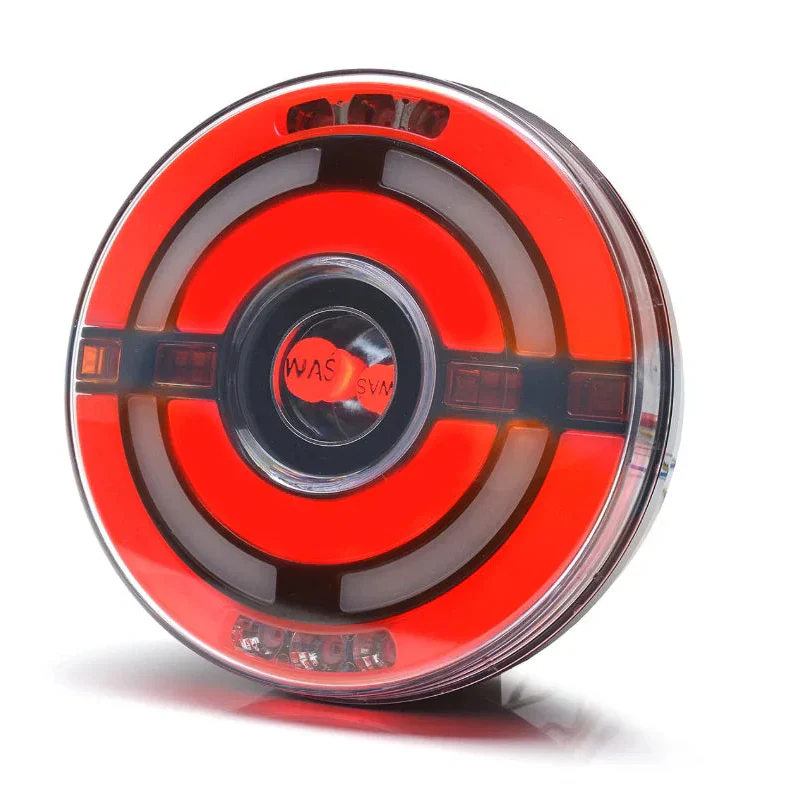

This unusual lamp has five function.   Neon-like glowing red  tail lamp, a two-bar red LED ‘stop’ lamp and a sequencing amber LED strip across the centre.

Also the white ring reverse light and single bar rear fog.

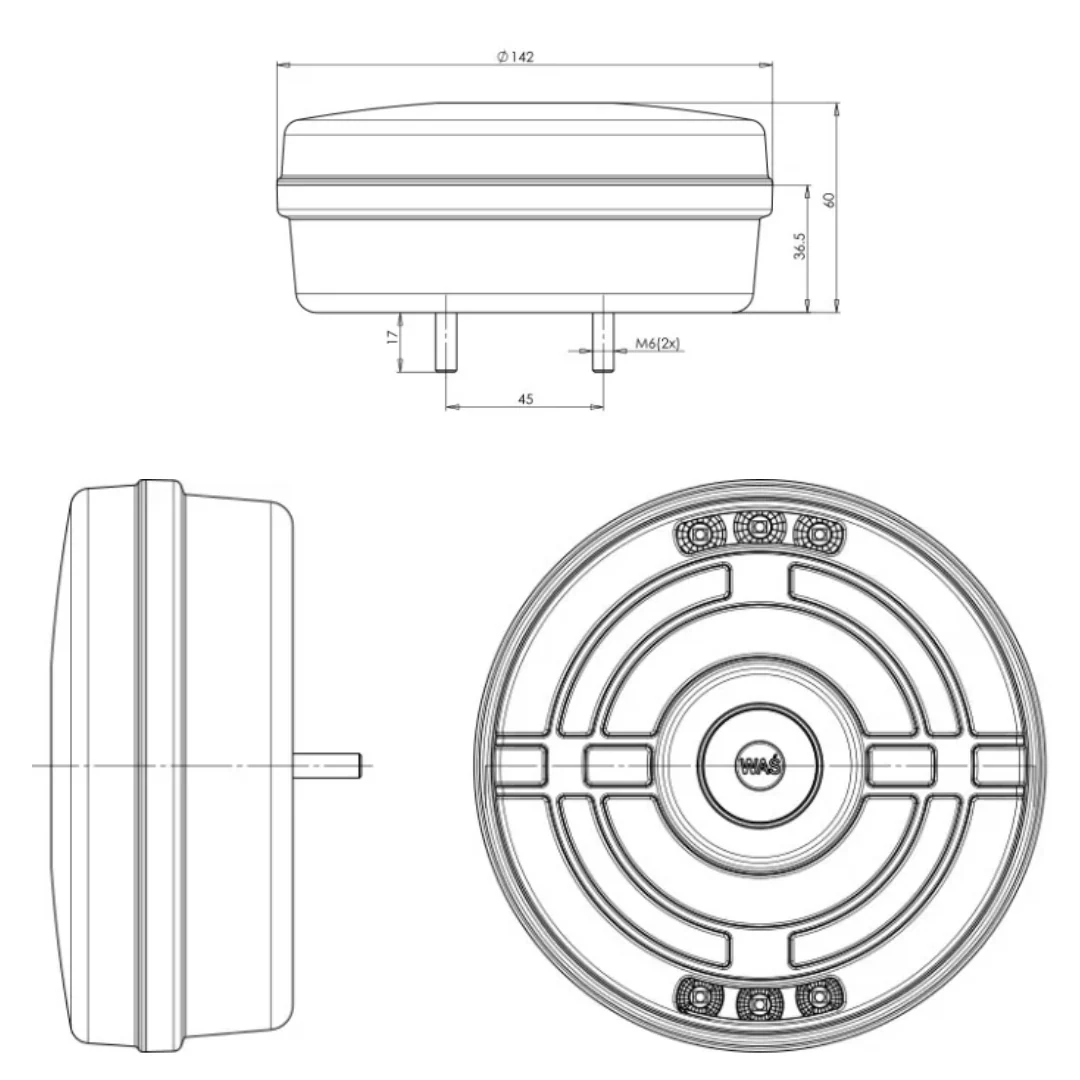

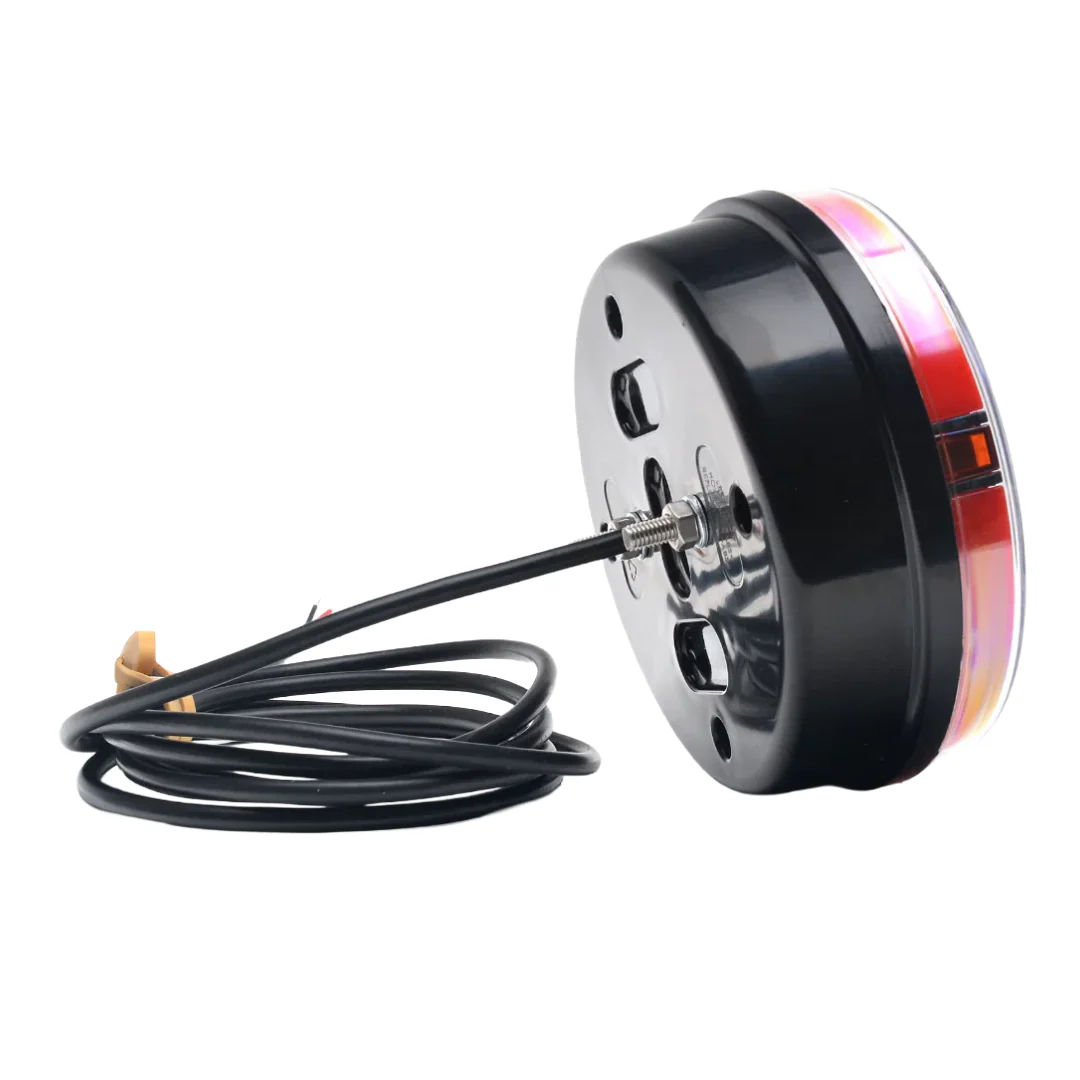

It mounts on a flat surface with two M6 studs at 45mm centres.

Maximum 142mm maximum diameter x 60mm deep.

WIRING:

WHITE  - neg.12 volt Earth.

RED - Stop

BLACK - Tail

YELLOW - Indicator

BLUE - Fog

GREY - Reverse

POWER CONSUMPTION:

INDICATOR - 2.6W

TAIL - 2.4W

STOP - 4W

12 volt / 24 volt.

Weight 475gms each.

NOTE: The internal sequencing electronics of the indicator in this lamp needs no additional relay.

Your existing indicator relay is all you need.

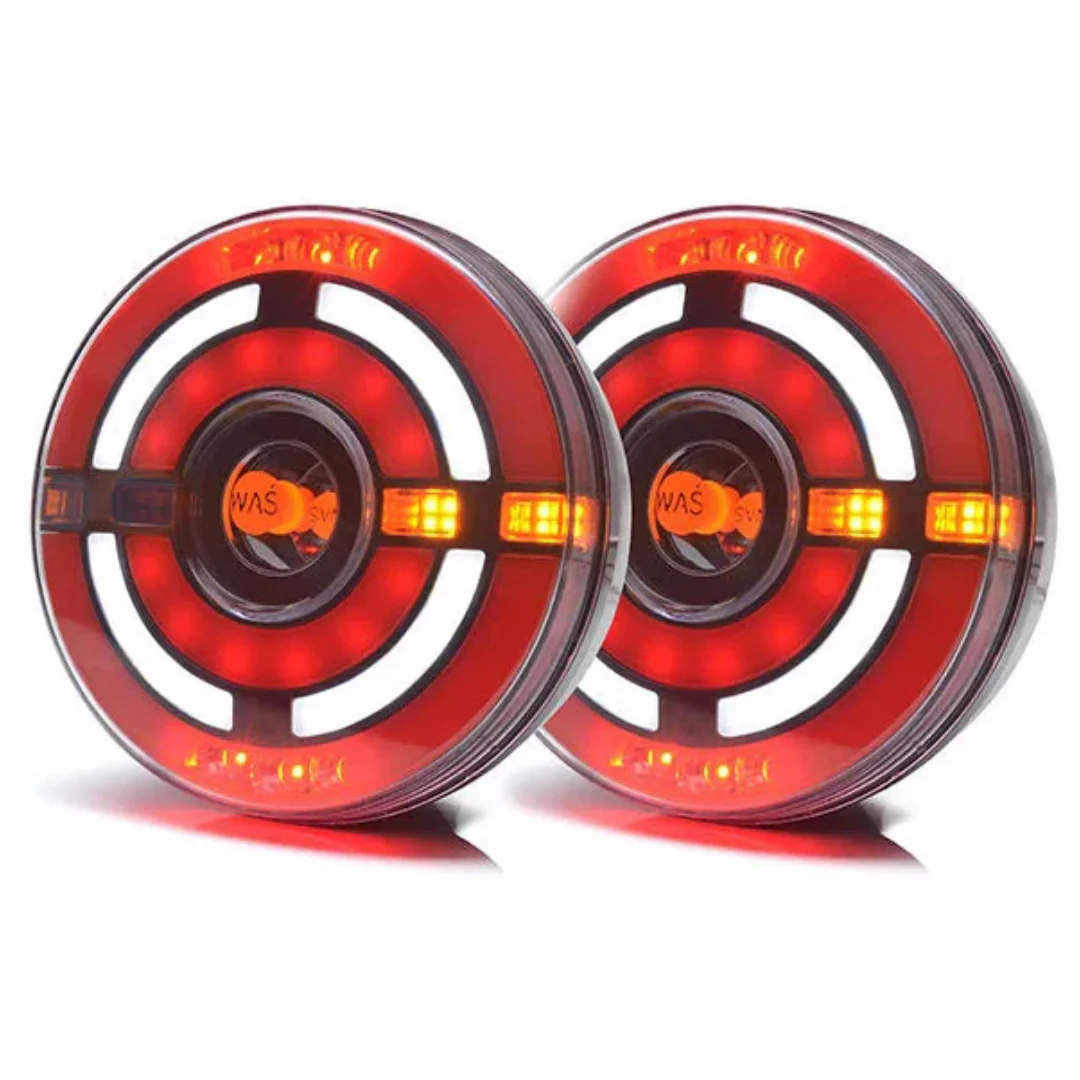

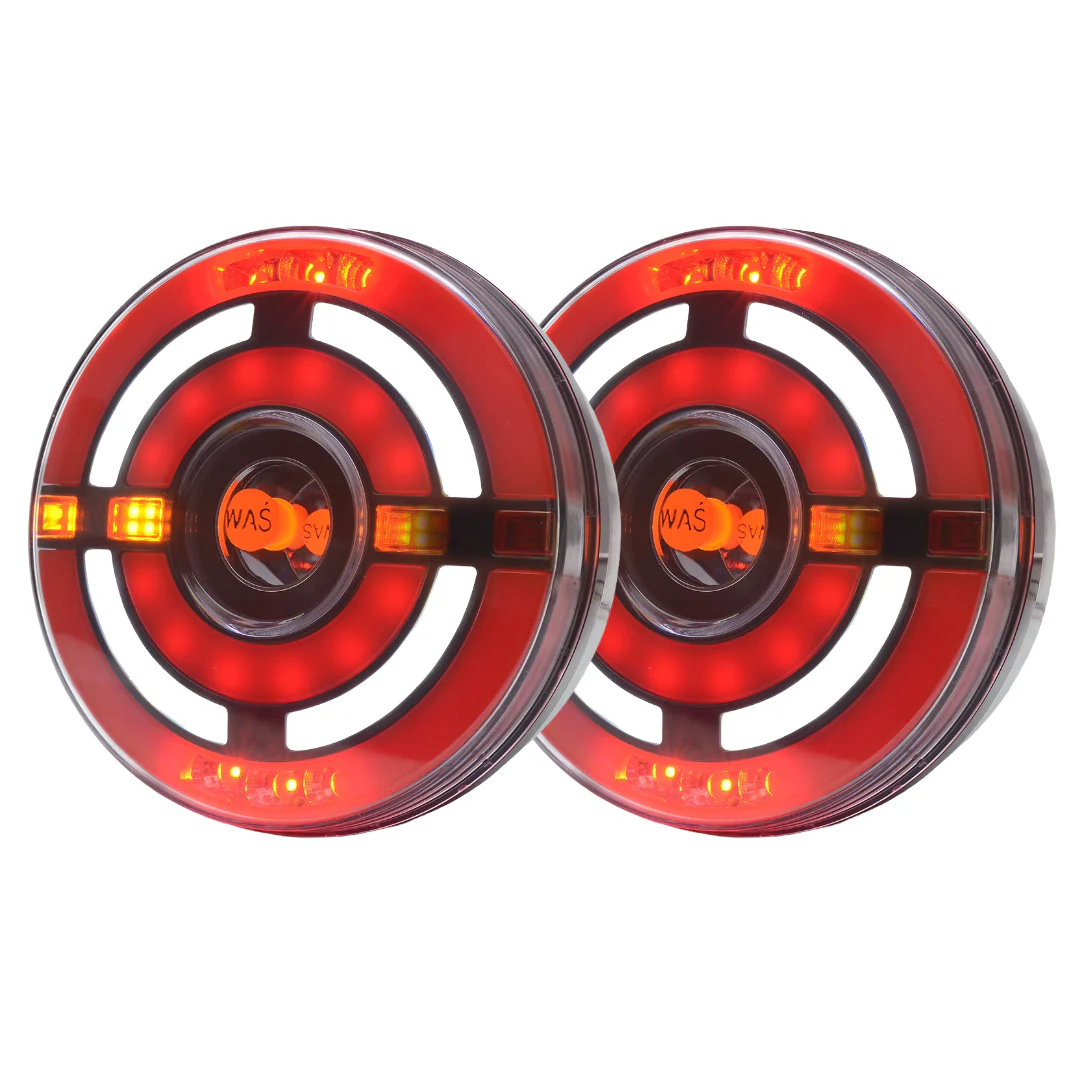

142mm LED ROUND 5 FUNCTION REAR LAMP PAIR #RL169
