Stainless steel construction. No internal parts to go wrong.

A metal-impregnated, lightweight float rises up and down the sender tube as the fluid level changes.

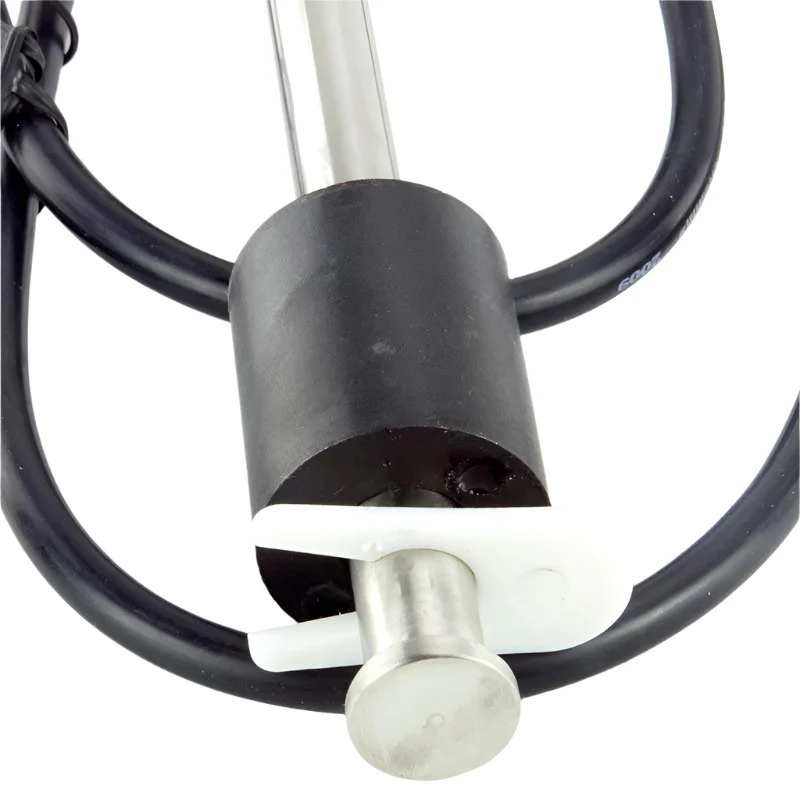

A simple (white) adjustable clip allows you to set the bottom float position.

800mm heavy two core flex lead.

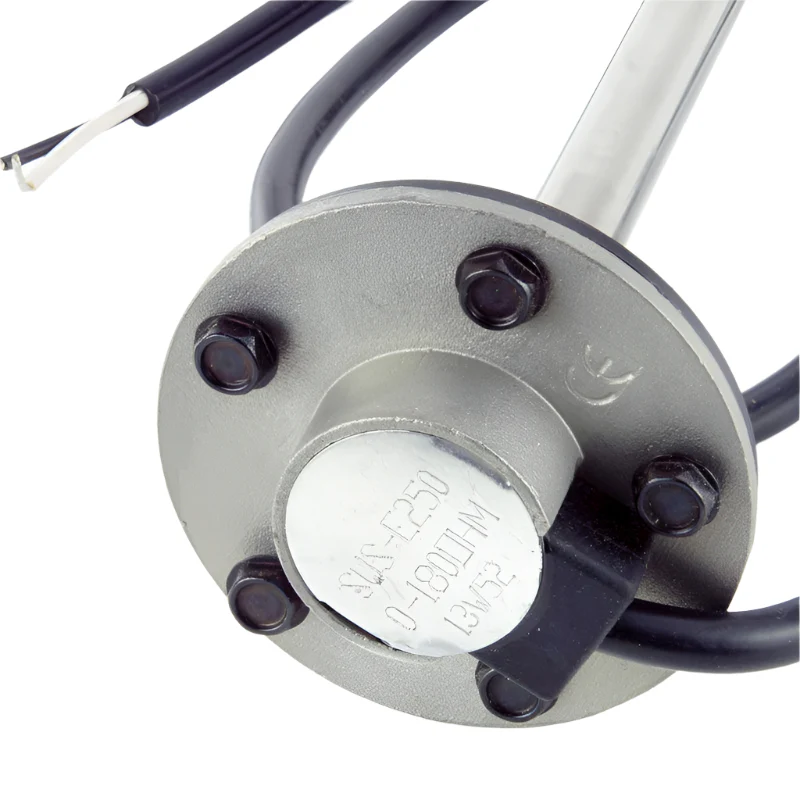

Flange diameter 69mm.

Five, 5.4mm holes on  54mm PCD.

Fits through a 33mm hole.

290mm measured from the underside of the flange to the end of the tube.

20mm projection above mounting surface.

3mm thick fuel-proof rubber gasket.

5 Screws supplied 10-24 UNC

Resistance 0 - 180 ohm range.  (180 Full)

NOTE: If your instrument does not match the resistance of this sender you may get inaccurate readings.

290mm FUEL TANK SENDER #FUSEND290
