Can be used as an Accessory / Ignition switch (no start position).

Fits in a 19mm hole in a panel up to 12mm thick.

Bezel diameter 30mm.

Body diameter 32mm.

Maximum rear projection 41mm.

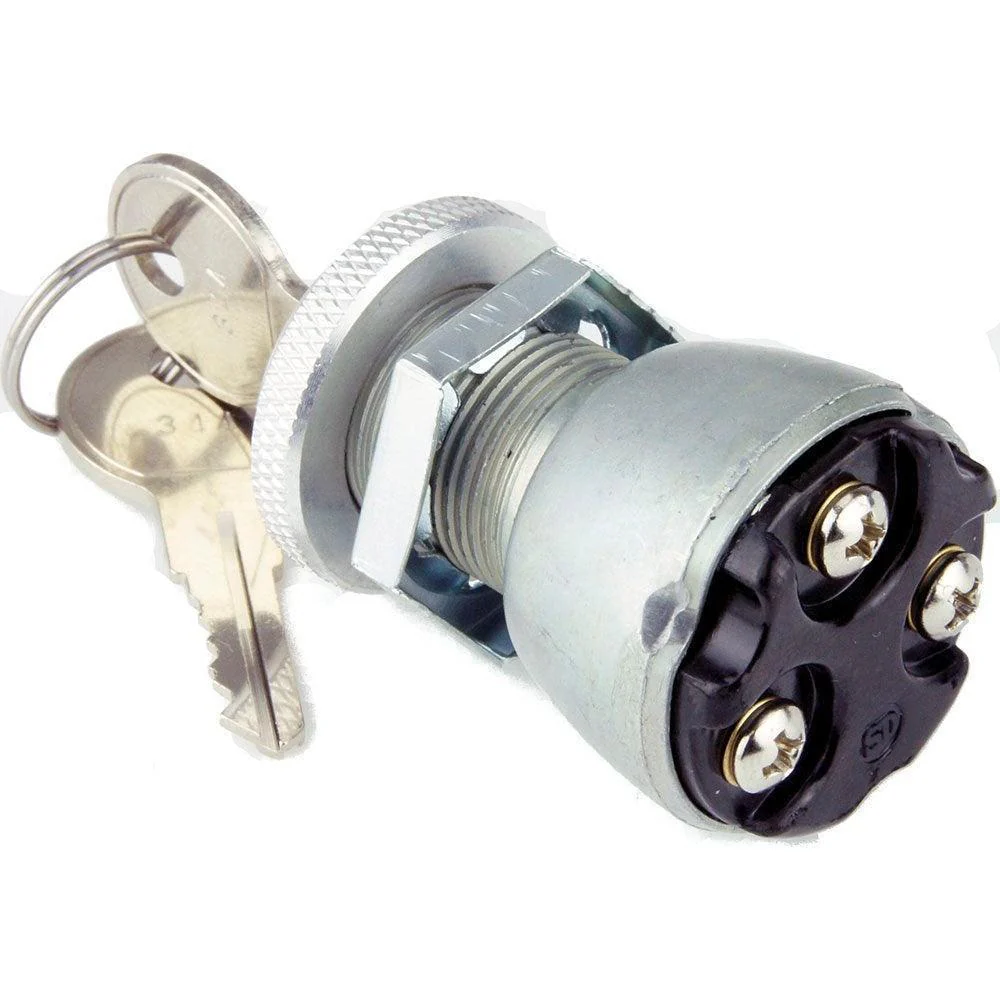

Three screw terminals on rear.

Two keys supplied

Weight 95gms.

20 Amps @ 12v.

NOTE:

Centre - OFF.

Left - Accessory terminal only connected.

Right - Accessory and Ignition terminals connected.

TERMINALS ARE NOT NUMBERED SO CHECK

THE SWITCHING FUNCTIONS WITH A MULTIMETER BEFORE CONNECTING

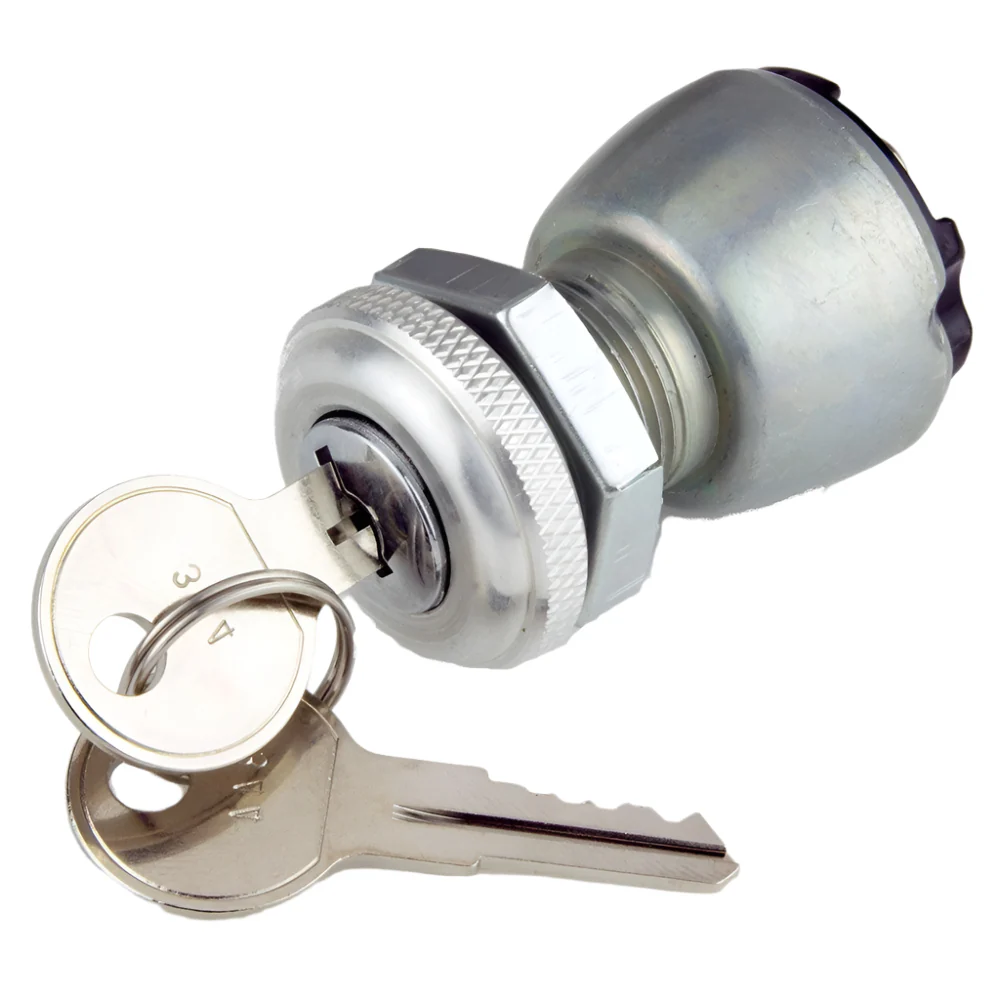

THREE POSITION KEY SWITCH #KEYSW3
