BUSBOX3 300 AMPS

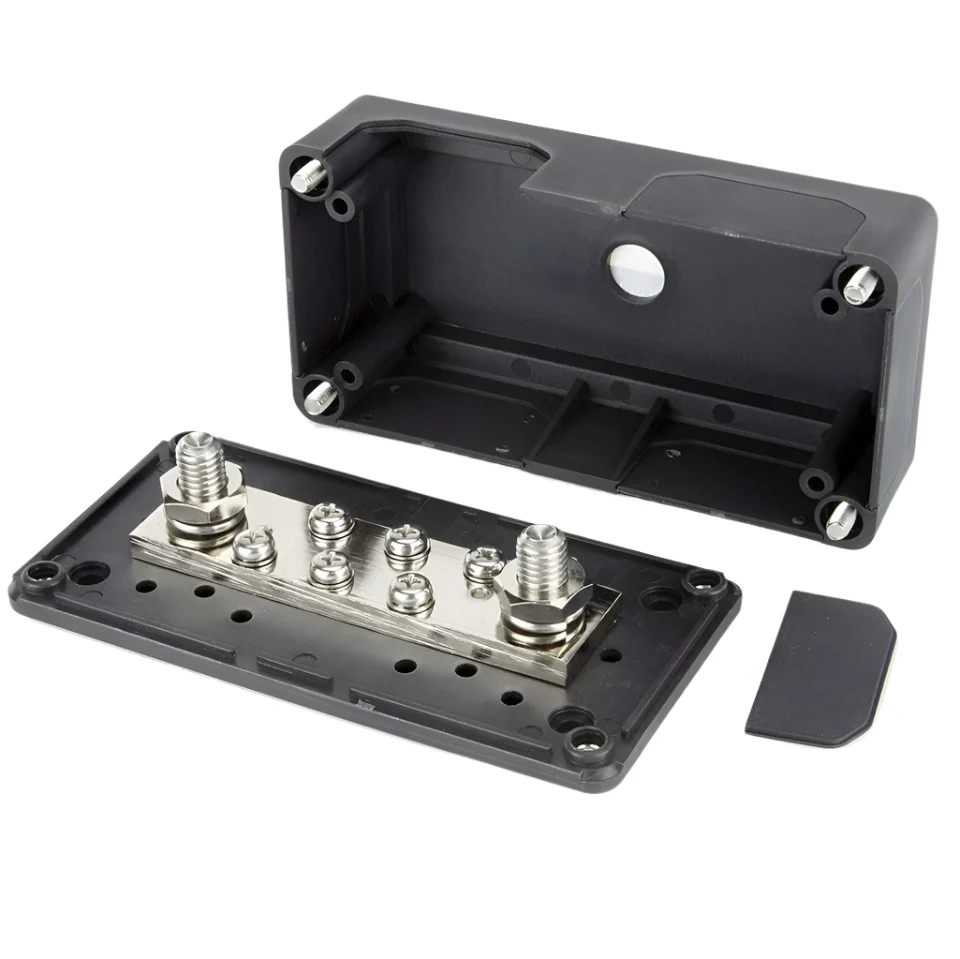

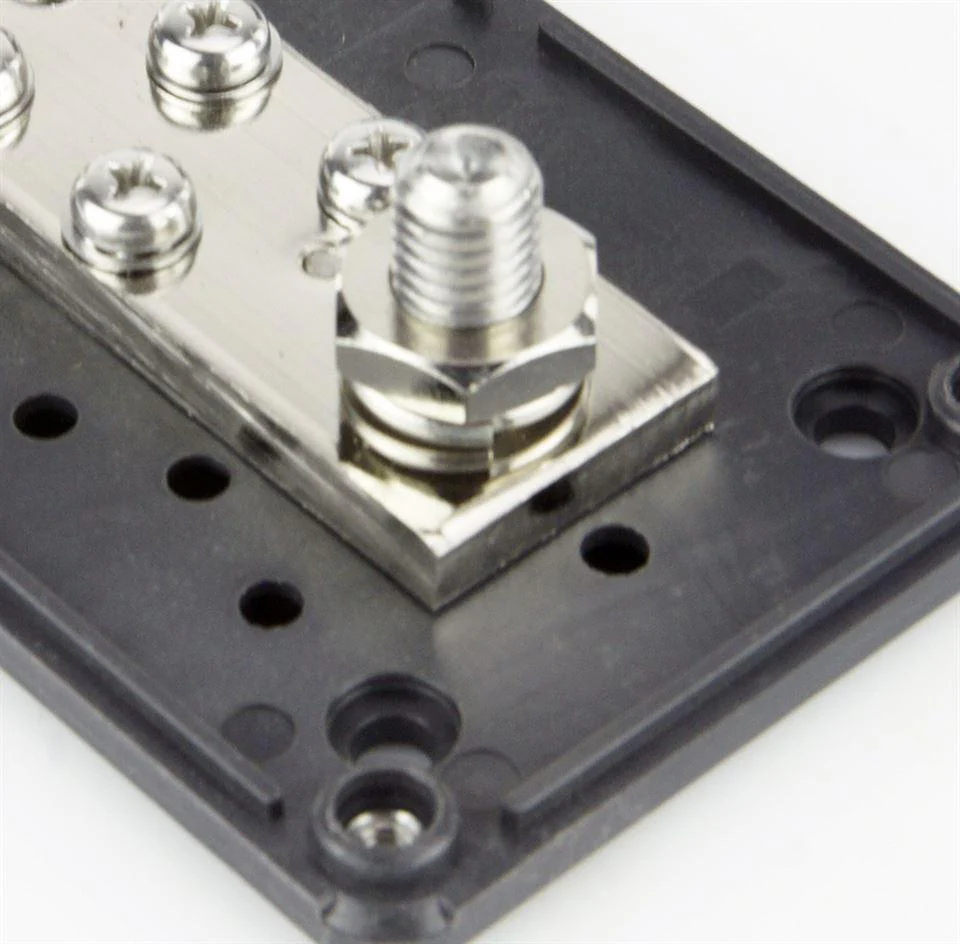

Here's a lovely quality, heavy duty BUSBAR with two 10mm studs, with nuts and washers

and six M5 screws with washers on a common, nickel-plated bar inside a glass-reinforced-nylon box.

There are six removable windows around the lid that just slide in and out for maximum versatility in your cable routing.

Size 138mm x 69mm x 45mm high.

Base mounts through four 5mm holes at 42mm x 110mm centres.

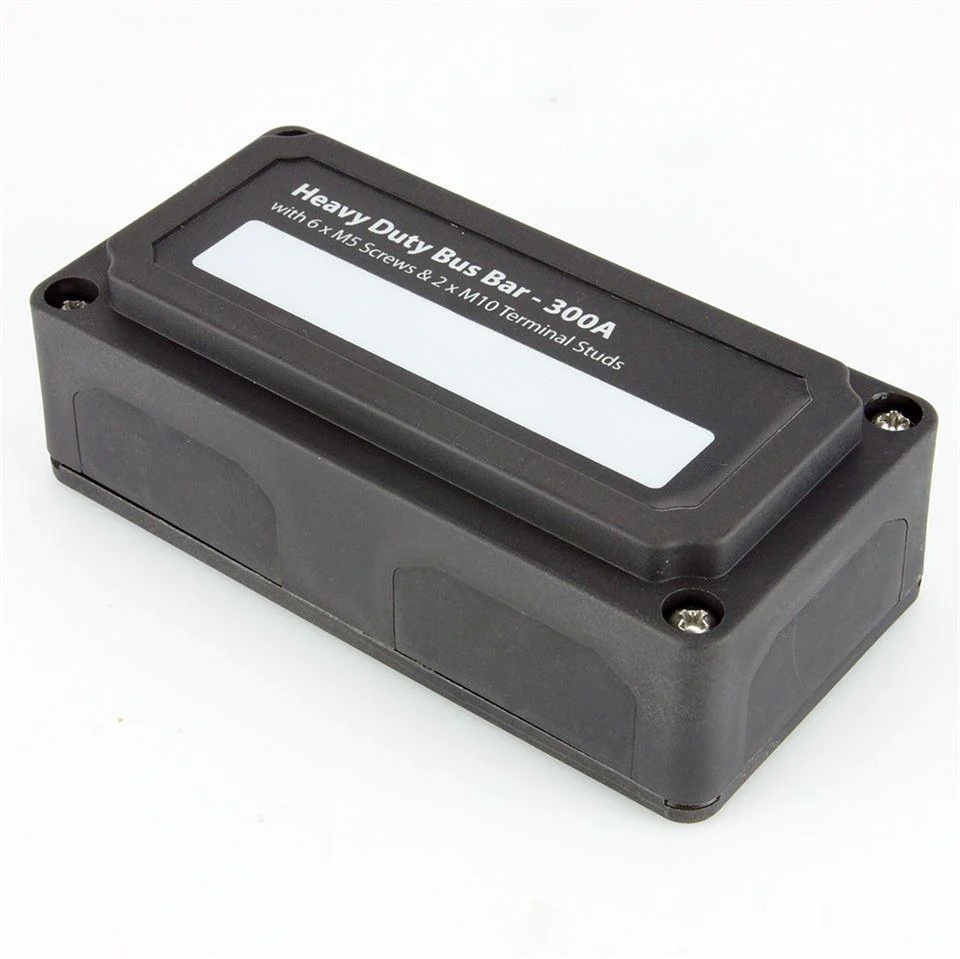

The lid screws to the base with four Pozi screws into captive nuts.

There's even a non-slip rubber insert in the base. Weight 366 gms.

Maximum 300 Amps

300 AMP BUSBAR 3 BOX #BUSBOX3
