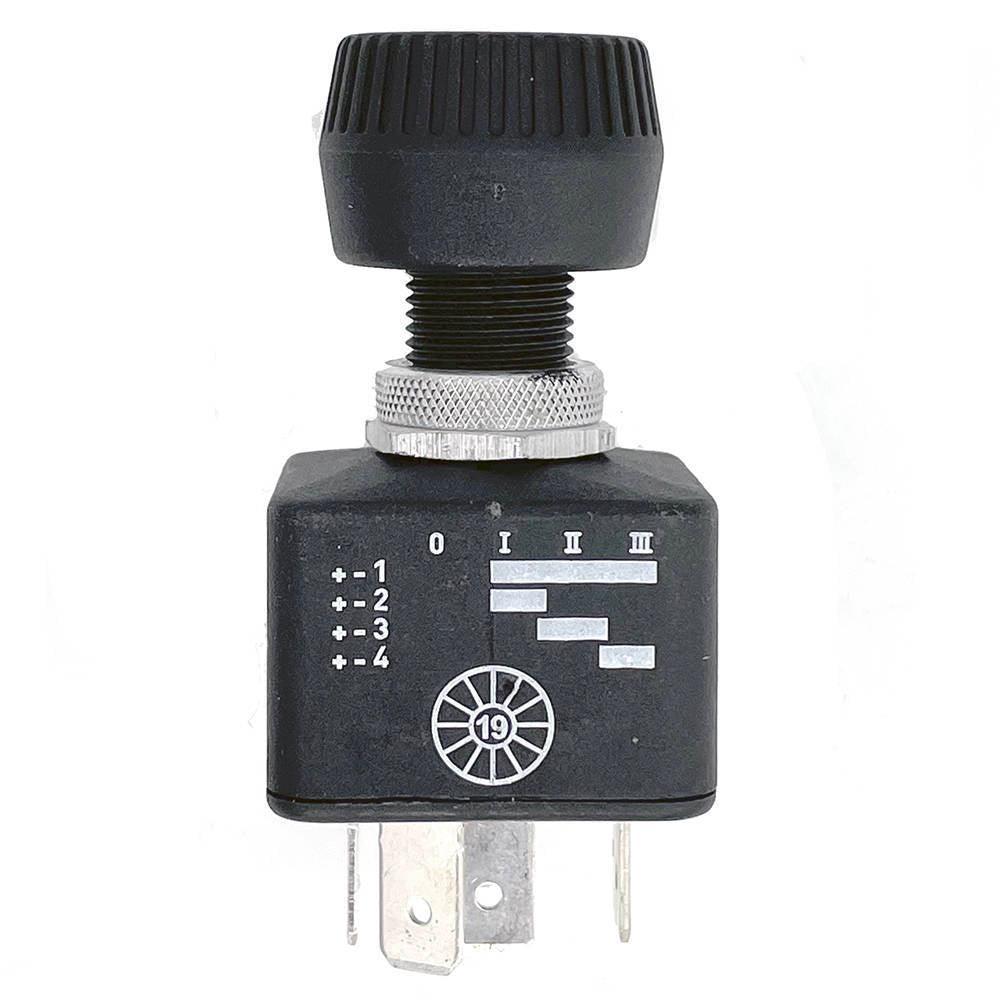

OFF-ON-ON-ON

Fits in a 12mm hole in panels up to 9mm thick.

Push-on knob diameter 23mm.

Switch body 30mm x 30mm.

Front projection 25mm.

Rear projection 36mm.

1/4" male spade terminals. 15 amp contacts.

WIRING:

+12v into Terminal +

POSITION 1 - OFF

POSITION 2 - Terminals 1 and 2 go live

POSITION 3 - Terminals 1 and 3 go live

POSITION 4 - Terminals 1 and 4 go live

4 POSITION ROTARY SWITCH  #ROSW4
