‘E9’ marked.

12 or 24 volt.

These lights will turn on automatically when the ignition is turned on.

When the headlamps are turned on they will automatically switch off.

A two metre long wiring harness with fuse holder, control module and waterproof connectors is included.

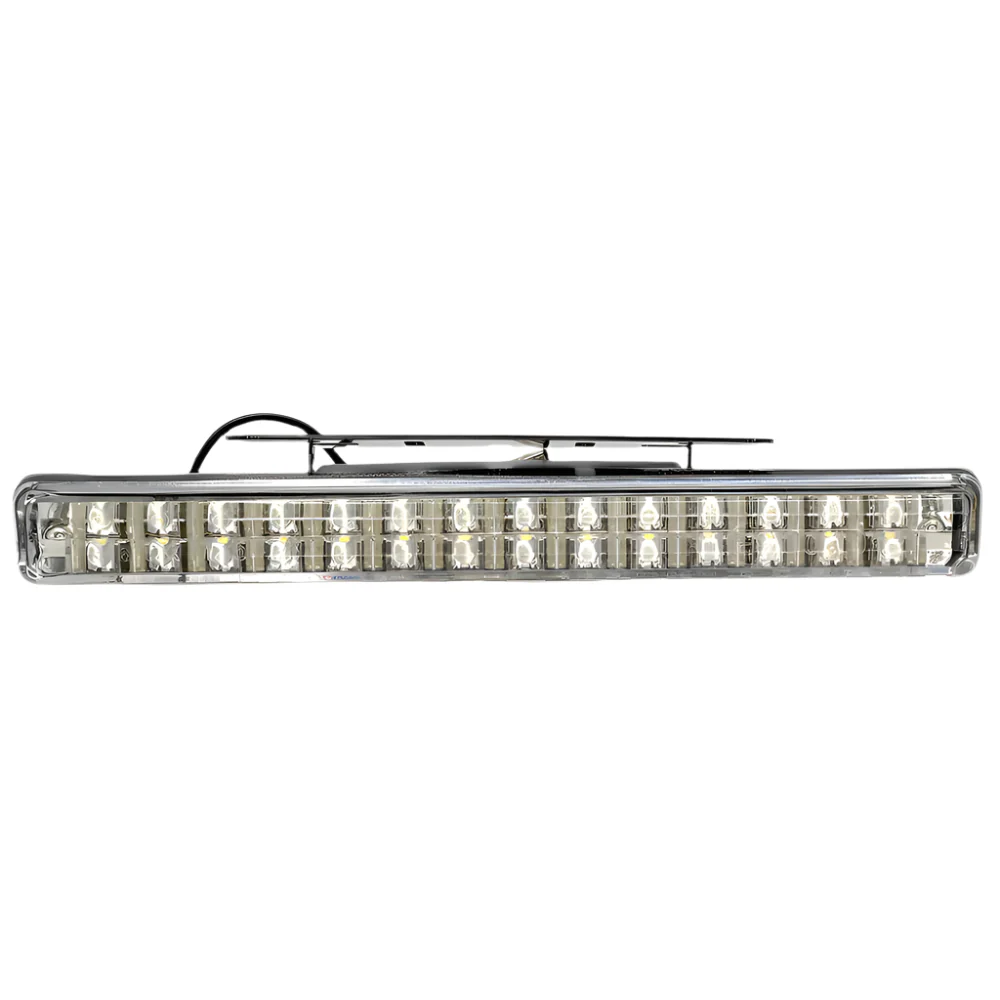

Each lamp measures 203mm long x 23mm high x 30mm front to back, including the bracket.

Each has 28 bright white LEDs.

Total 3 Amp current drain.

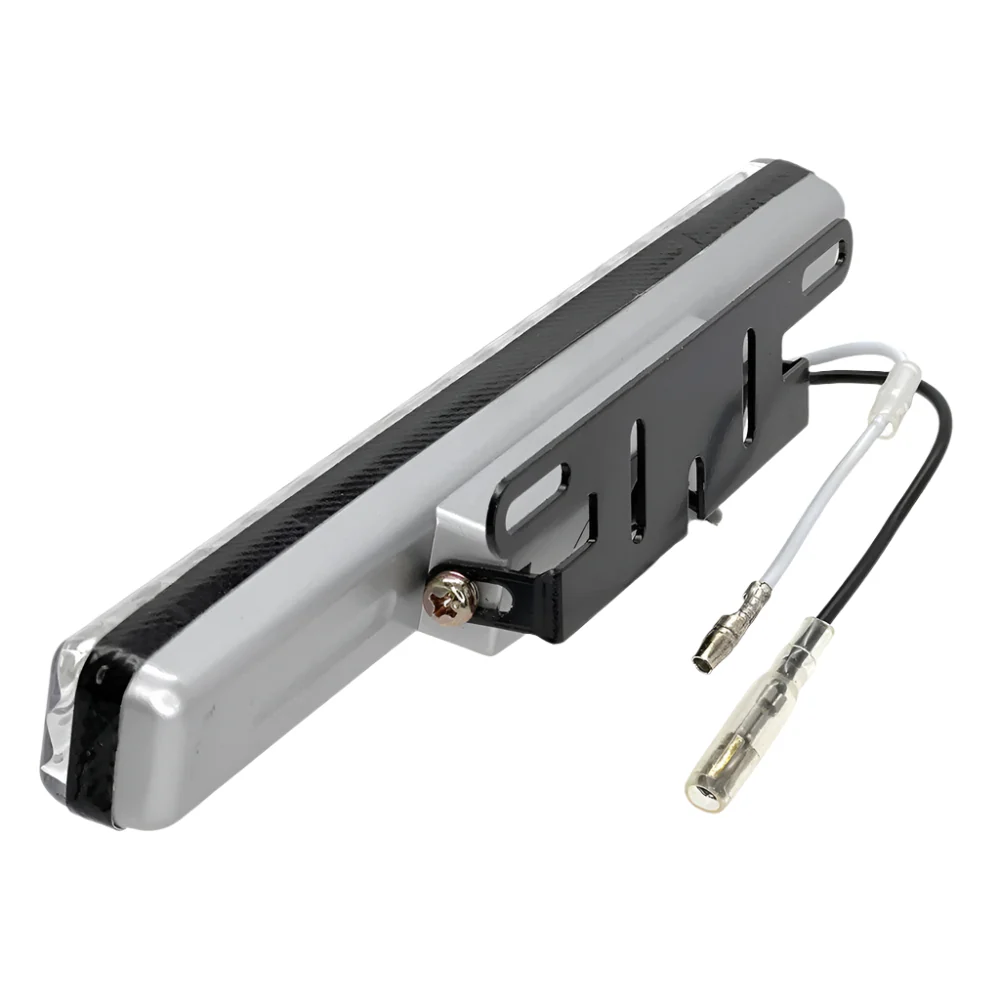

The lamps have multi-position mounting brackets and fixing screws.

Weight 425 gms.

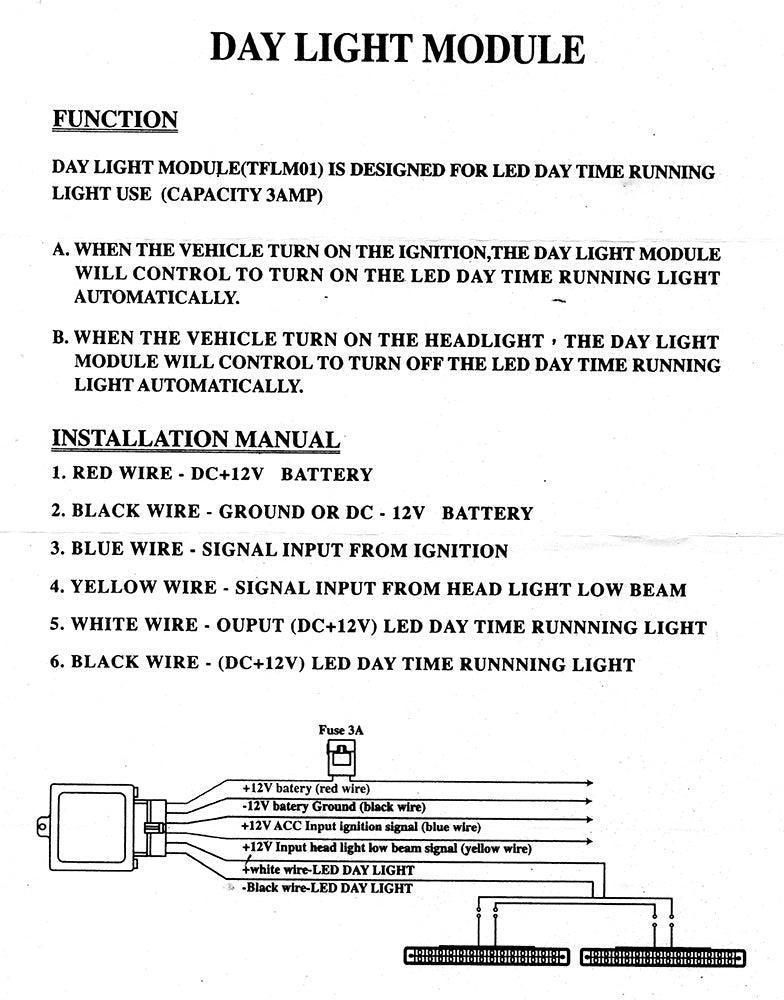

WIRING:

RED - Live feed in + 12v

BLACK -  Earth - 12v

BLUE - Switched ignition feed in

YELLOW - Input from headlamps low beam

WHITE - +ve output to DRL

BLACK - -ve output to DRL

Note: IVA rules state that Daytime Running Lights must come on with the ignition and turn off when the headlamps are turned on.

AUTO SWITCHING LED DAYTIME RUNNING LIGHTS KIT pair #DRL1
