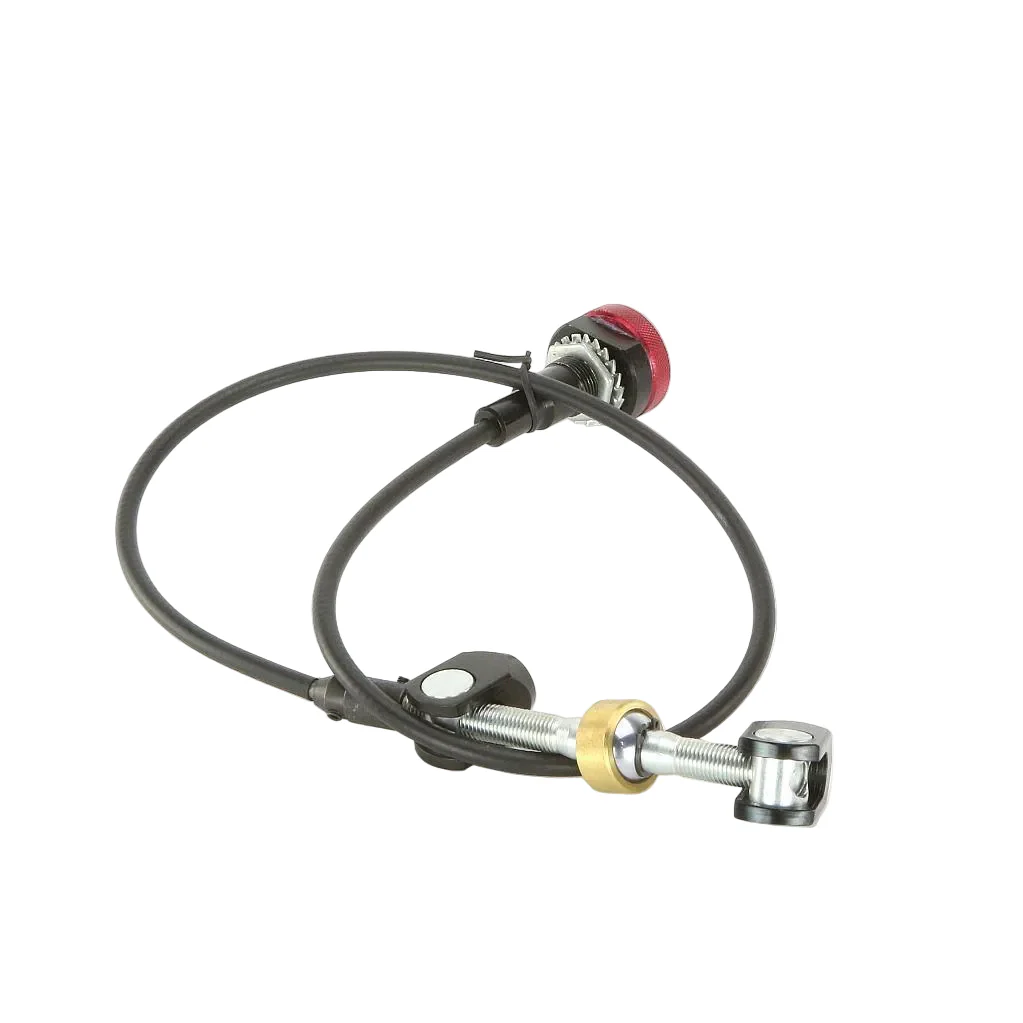

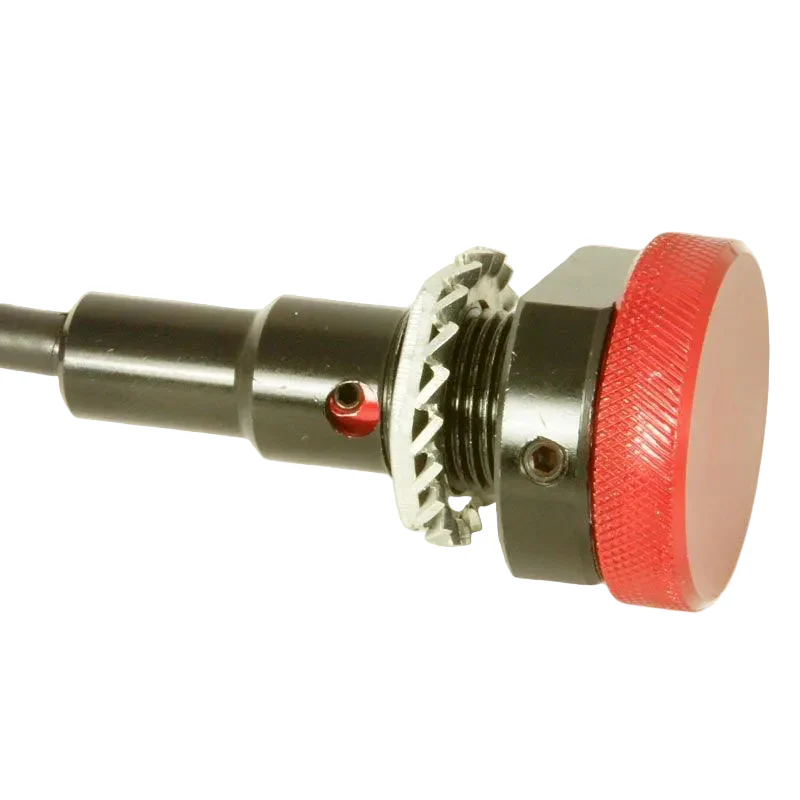

Turning the red knob will adjust the front to back brake bias 'on-the-fly'.

Steel and anodised aluminium construction.

Mounts through a 20mm hole in a panel up to 8mm thick.

The pedal end screws on to the balance bar and secures with a grub screw.

830mm overall length.

Knob diameter 40mm.

For smoothest operation, route cable with least bends possible.

NOTE: SHOWN FITTED TO A BALANCE BAR BUT BALANCE BAR IS NOT INCLUDED. NOT IVA COMPLIANT

BALANCE BAR ADJUSTER CABLE #BBADJ
