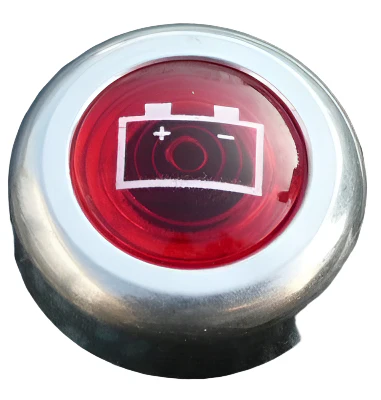

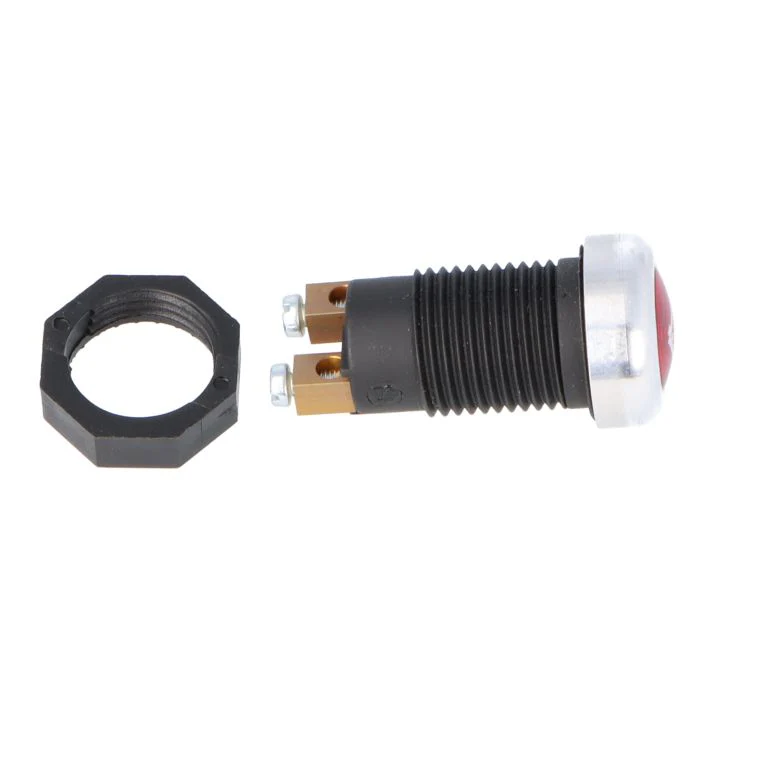

These large diameter warning lights have a 22mm diameter screw on bezel with a dash projection of 9mm, the rear projection of the light body is 36mm, mounting through a 17mm hole with a maximum panel thickness of 14mm. Screw terminals on the rear and a threaded collar to secure it to the dashboard. This warning light also includes a 2w Bulb.

• 46mm Overall Length
• 17mm Body Width & Mounting Hole
• 22mm Bezel Diameter
• 14mm Lens Diameter
• 2w Replaceable Bulb Included
• Screw terminals
• 22mm Hex Fixing Nut

WARNING LIGHTS LARGE IGNITION RED #WLLBAT
