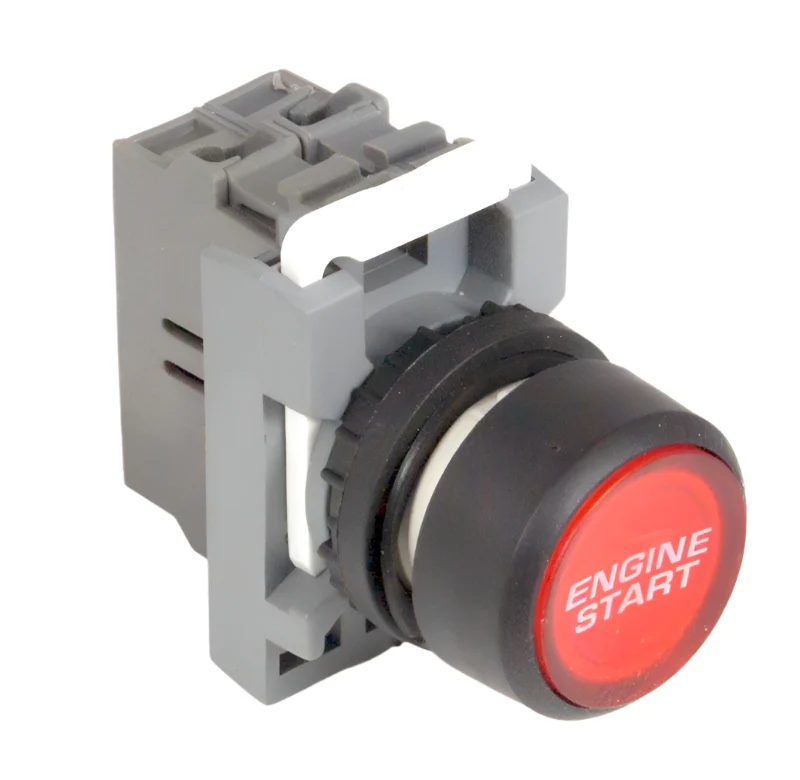

ENGINE START PUSH BUTTON WITH BLACK BEZEL

Illuminated red button with moulded black surround. 20 Amp contacts.

Fits in a 22mm hole. Bezel diameter 29mm.

Approximately 40mm rear projection.

Maximum panel thickness 5mm. 12 volt.

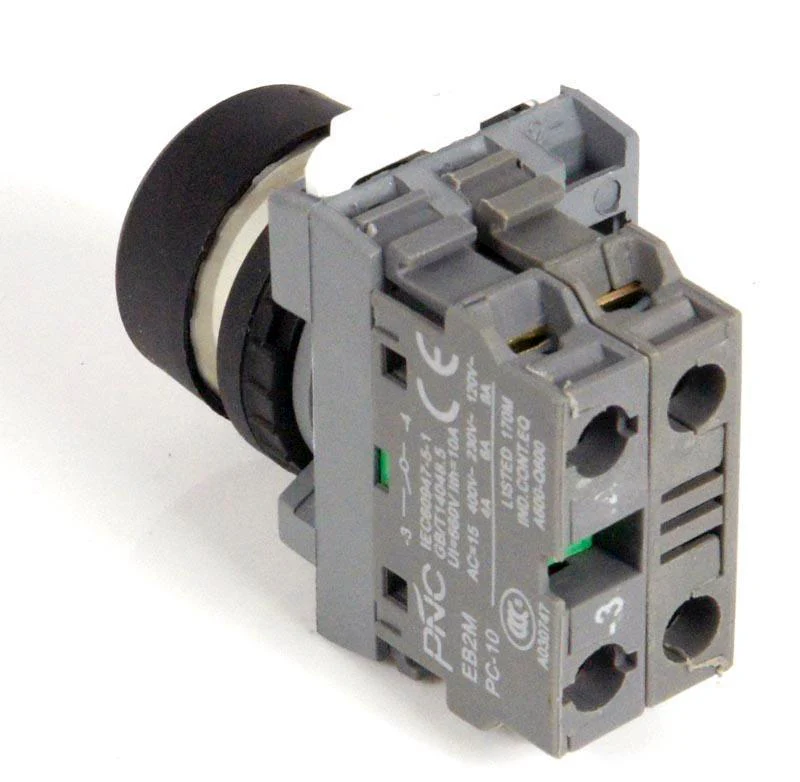

START BUTTON TERMINAL CONNECTIONS

3 - LIVE FEED FROM IGNITION SWITCH

4 - TO STARTER (small terminal on solenoid)

OTHER TWO CONNECTIONS ARE +12v and -12v

FOR ILLUMINATION

BLACK ENGINE START PUSH BUTTON #PBSWENGBK
