Black Quarter Turn Fastener With Rivets For 10mm Top Panels

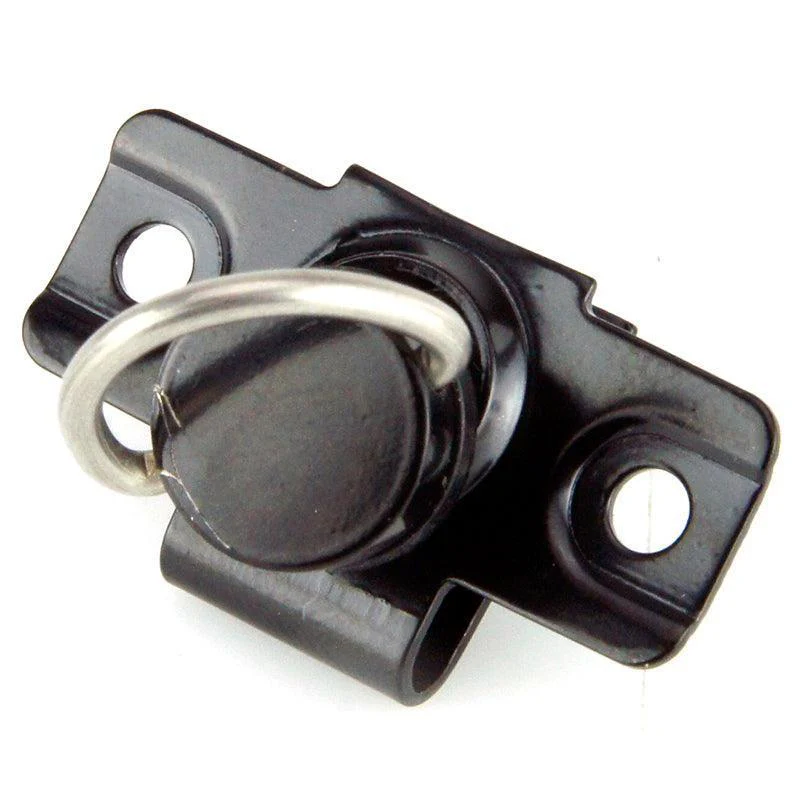

BLACK QUARTER TURN FASTENER WITH RIVETED BACKING PLATE.

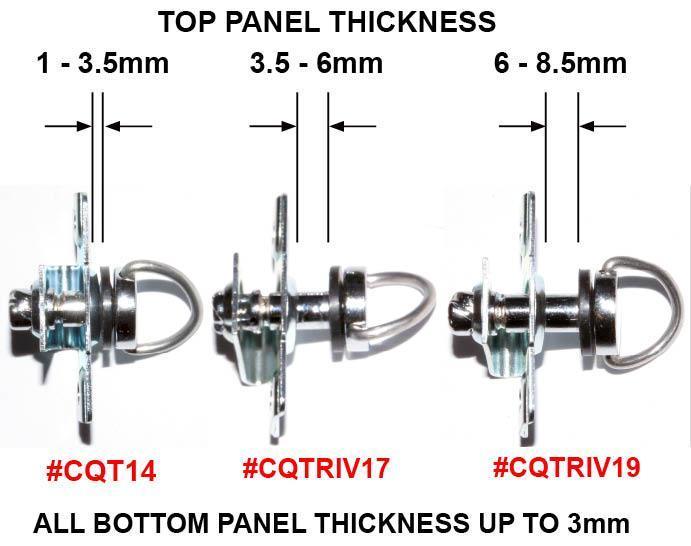

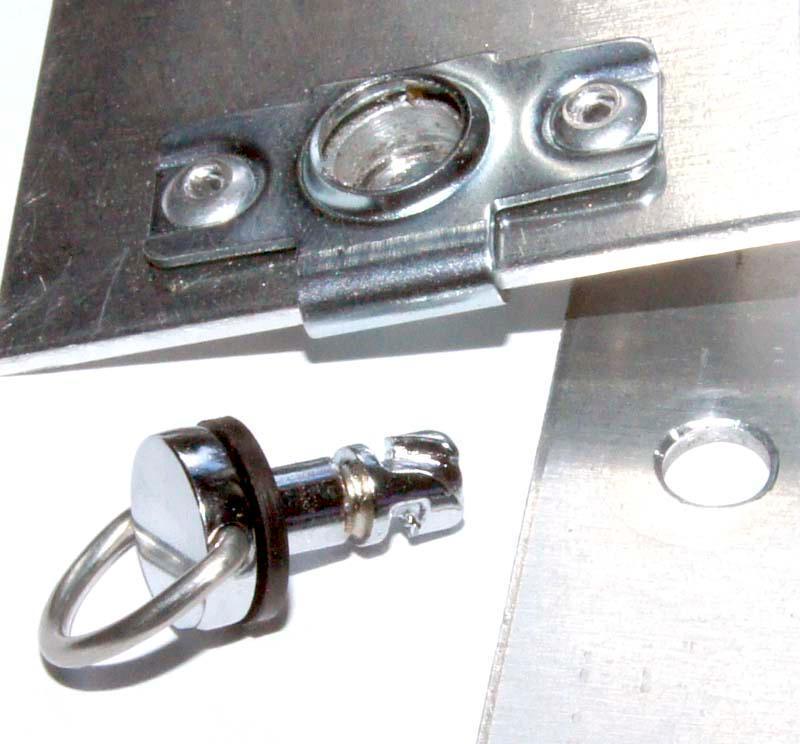

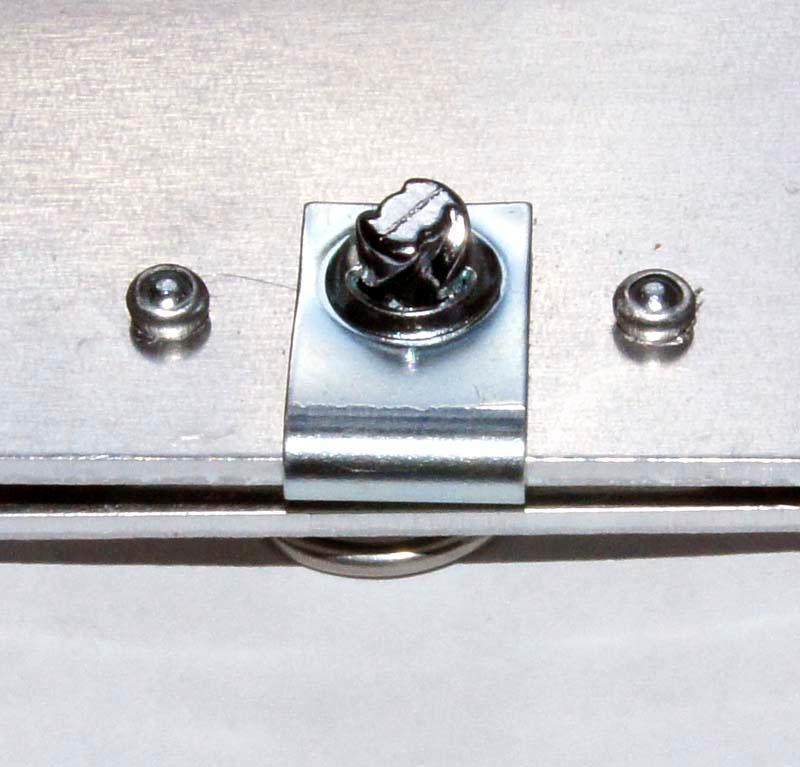

The plate (receiver) is slid over the edge of the lower panel which can be up to 3mm thick, secured with two rivets (supplied) and a clearance hole is drilled through the panel.

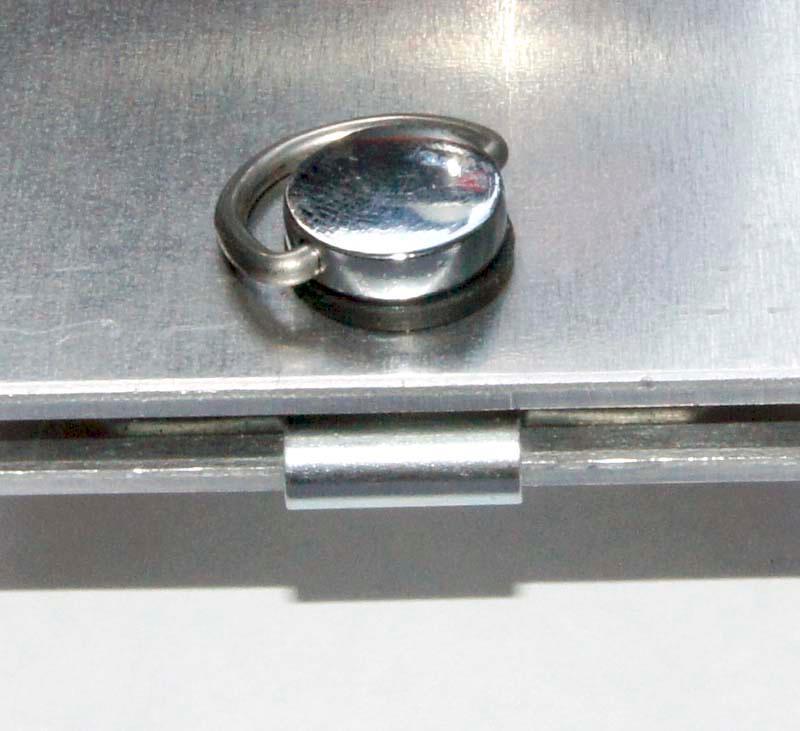

A 6mm hole is drilled through the top panel and the fastener is pushed through and twisted just a quarter of a turn, locking it in place.
A rubber washer prevents vibration and protects the top panel's surface.
If your lower panel is very thin you can use a 'Doubler' - a small piece of panel glued to the first to increase it's thickness.
Head diameter 12mm.
Shaft diameter 6mm.
Plate fixing hole centres 25mm.
Hole centre distance from edge of lower panel 12mm.Â
BLACK QUARTER TURN FASTENER WITH RIVETS FOR 10mm TOP PANELSÂ #QTRIV19BK
NOTE: CHROME VERSION SHOWN IN SOME PICTURES
