Needle roller bearings.

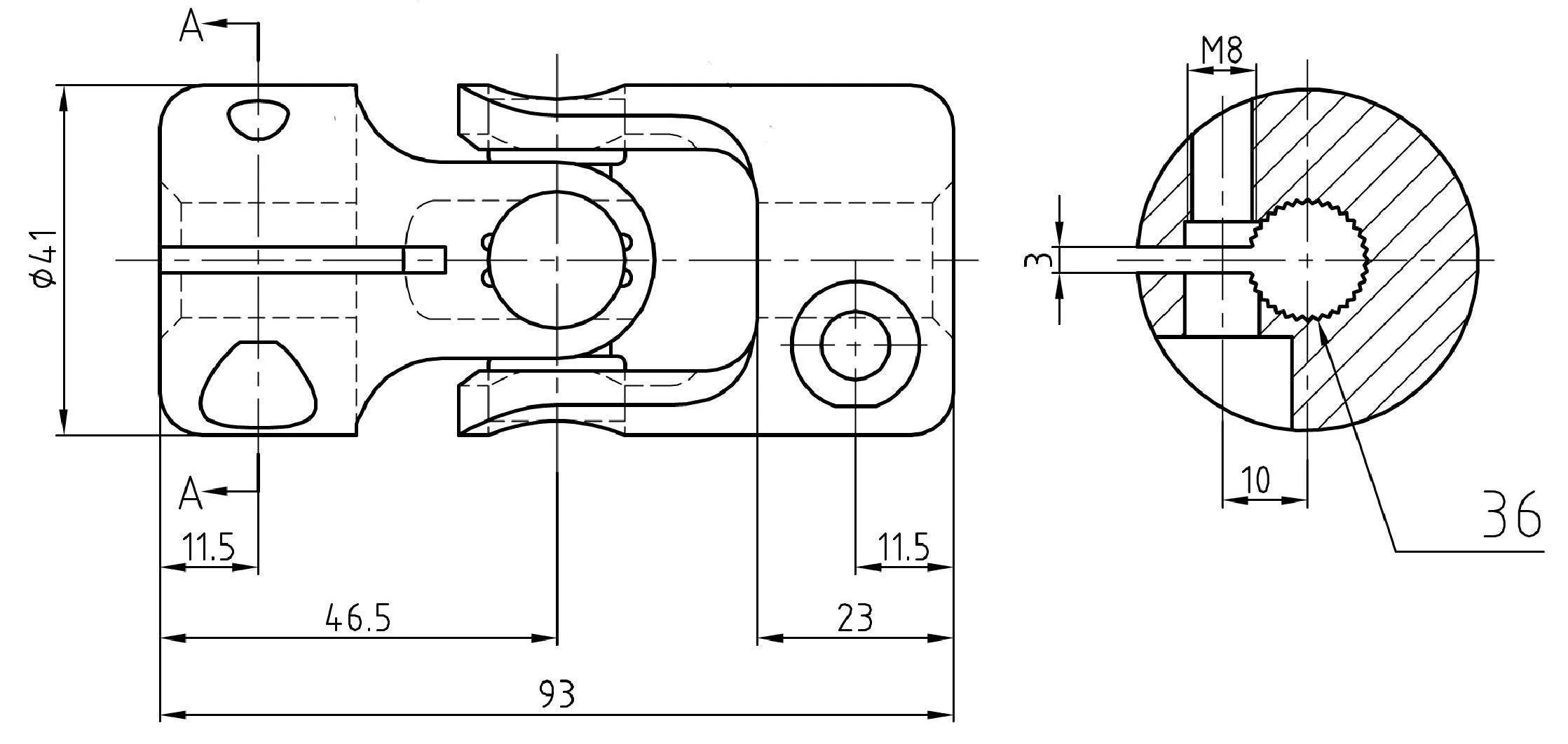

Both ends have the popular 14mm (9/16") x 36 female spline.

Overall length 93mm long x 41mm diameter.

Maximum working angle 30 degrees.

M8 high tensile pinch bolts included.

Weight 560 gms.

IMPORTANT SAFETY NOTE

THIS IS A VERY STRONG JOINT SO THE HIGH TENSILE PINCH BOLTS

MUST BE TIGHTENED TO SECURE THE JOINT SECURELY TO THE SPLINE.

USE A HIGH QUALITY H6 HEX ALLEN SOCKET ON A GOOD TORQUE WRENCH.

FAILURE TO TIGHTEN SUFFICIENTLY CAN RESULT IN THE UJ BEING LOOSE ON THE SPLINE.

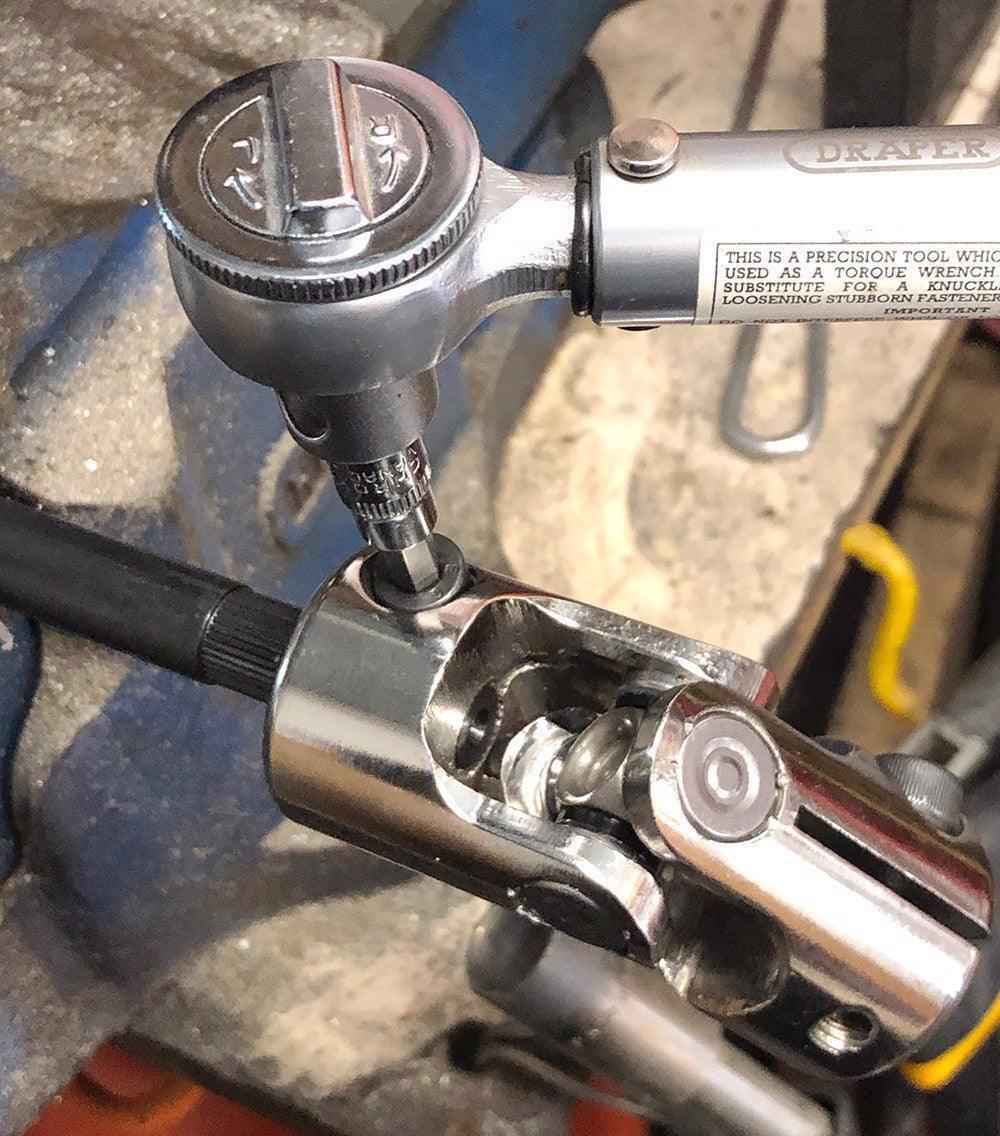

SEE PICTURE

CHROME STEEL UNIVERSAL JOINT #UJCHR
