Here’s a single fan compact heater that measures only 6¾" (170mm) wide, x 5" (130mm) high x 8 1/4" (210mm), yet still has a remarkable heat output of 3.8 KW!!

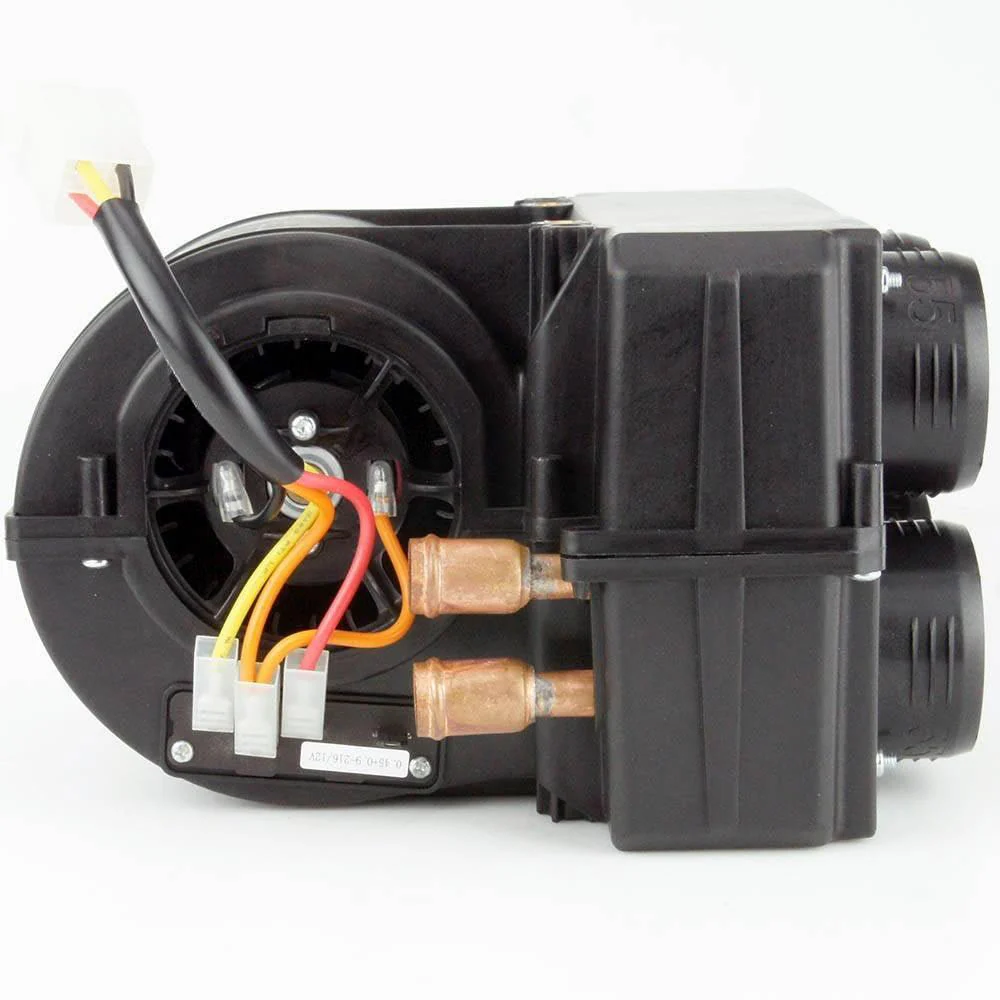

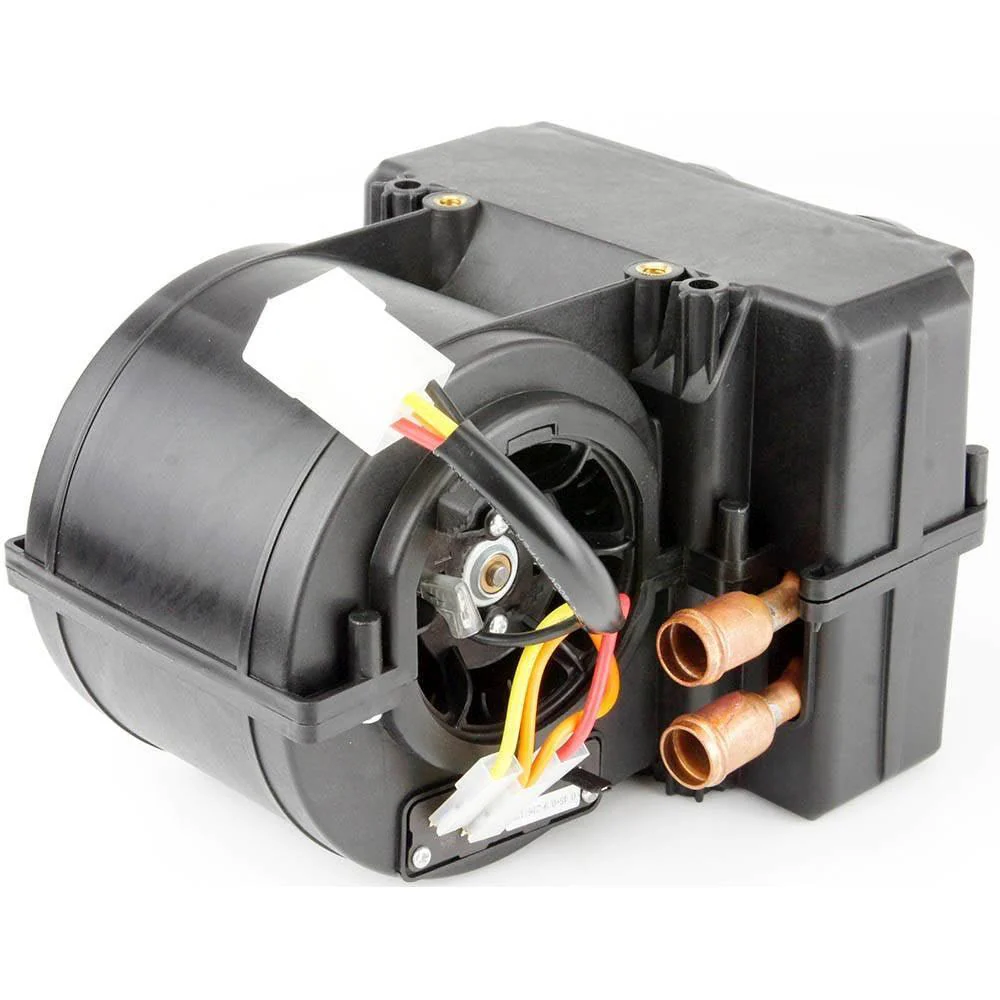

Simple plumbing - 15mm O/D inlet and outlet. Push on rubber connections.

Maximum air-flow 170 m³/hr. High efficiency copper core matrix with aluminium fins.

Three speed fan with 300mm fly lead and a 4 pin connector plug.

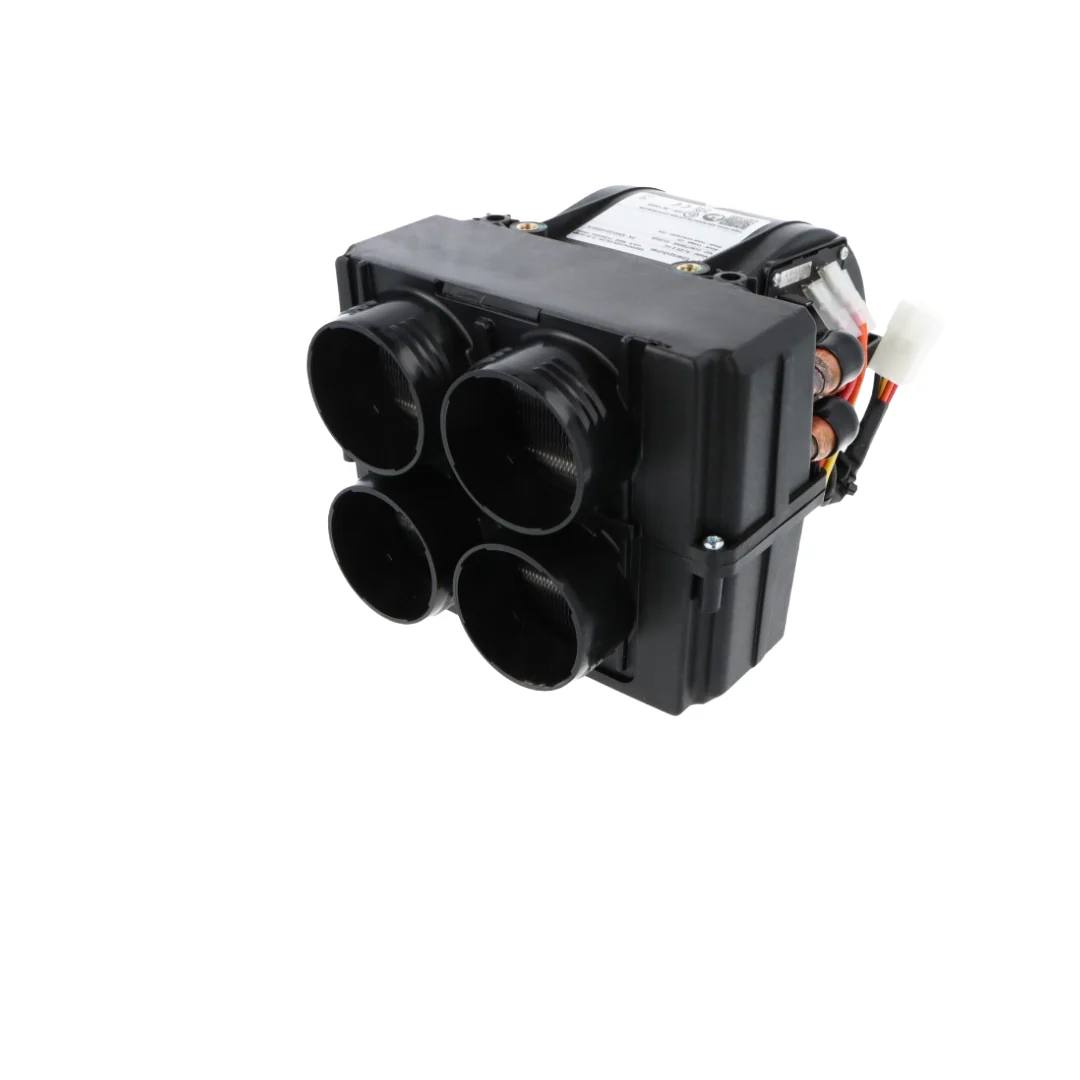

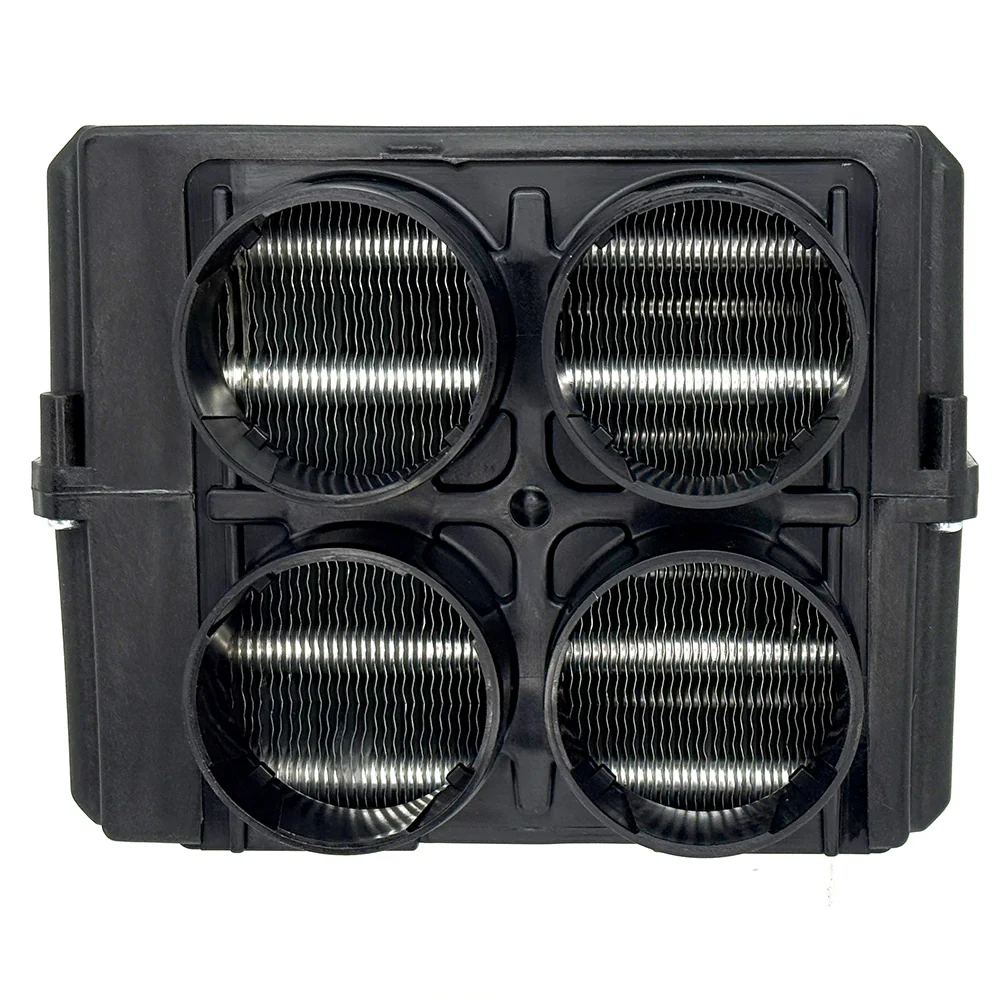

Four, 55mm outlet flanges on a removable, moulded panel.

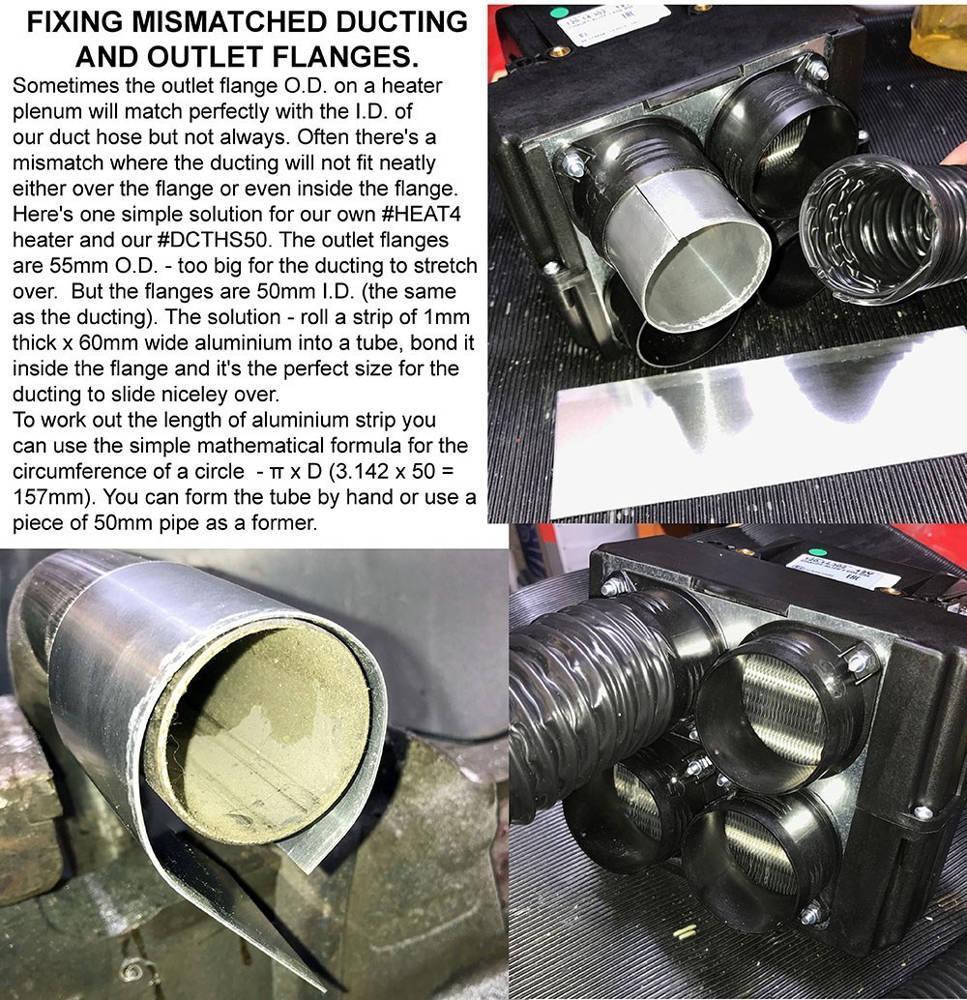

Note: The slide-in, moulded, outlet panel can be replaced with your own custom (aluminium) panel with any combination of our other outlet flanges to match your hose size. See related products. 40mm, 45mm & 50mm flanges

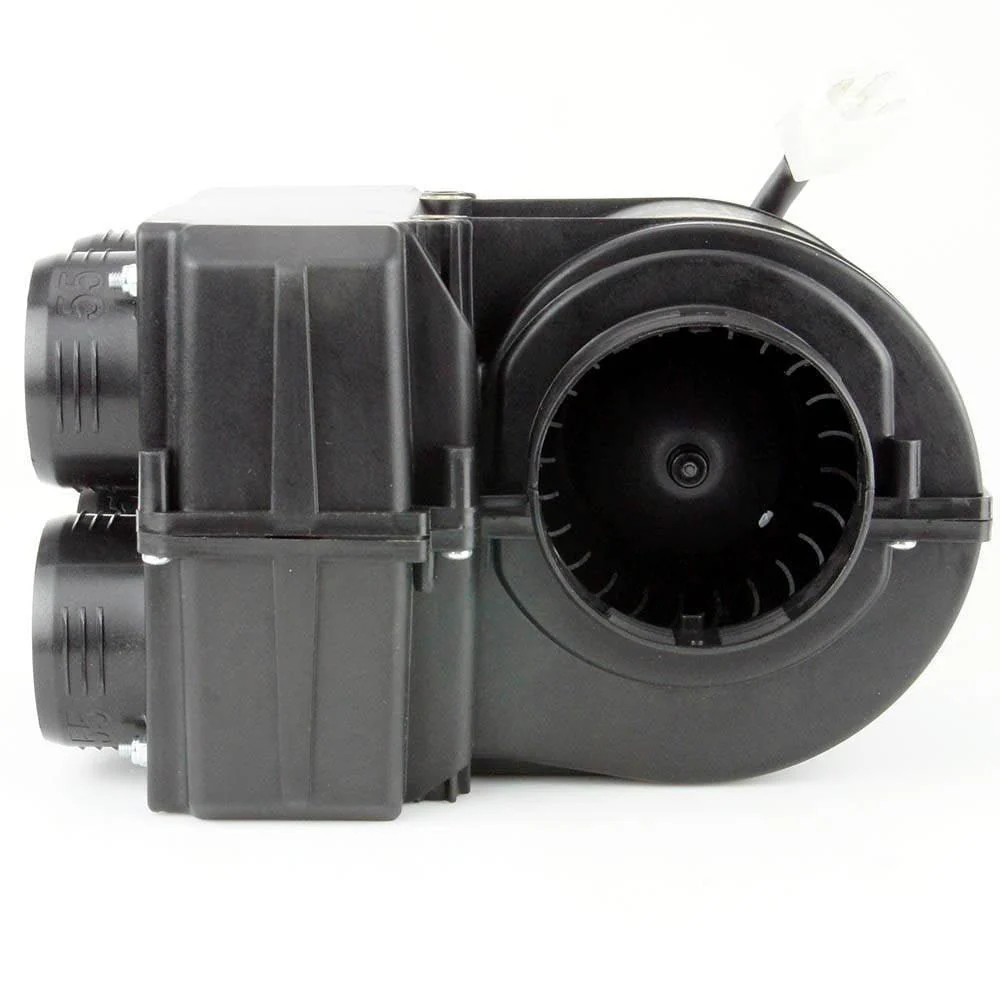

The air inlet on the motor housing has a 75mm diameter flange for ducting in fresh air.

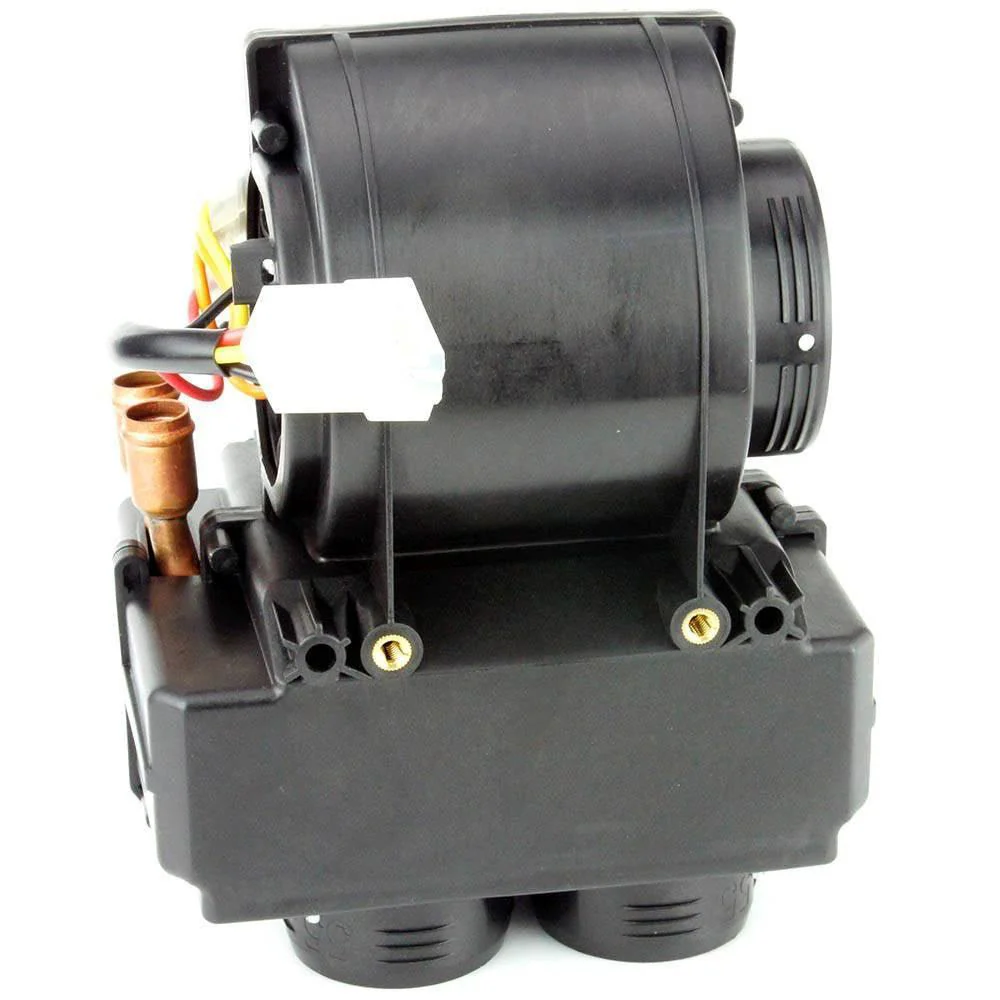

There are two 6.8mm holes right through the casing from top to bottom for stud fixing and there are two, moulded-in, brass, female, M6 inserts in the top and two in the bottom of the casing allowing multiple mounting options.

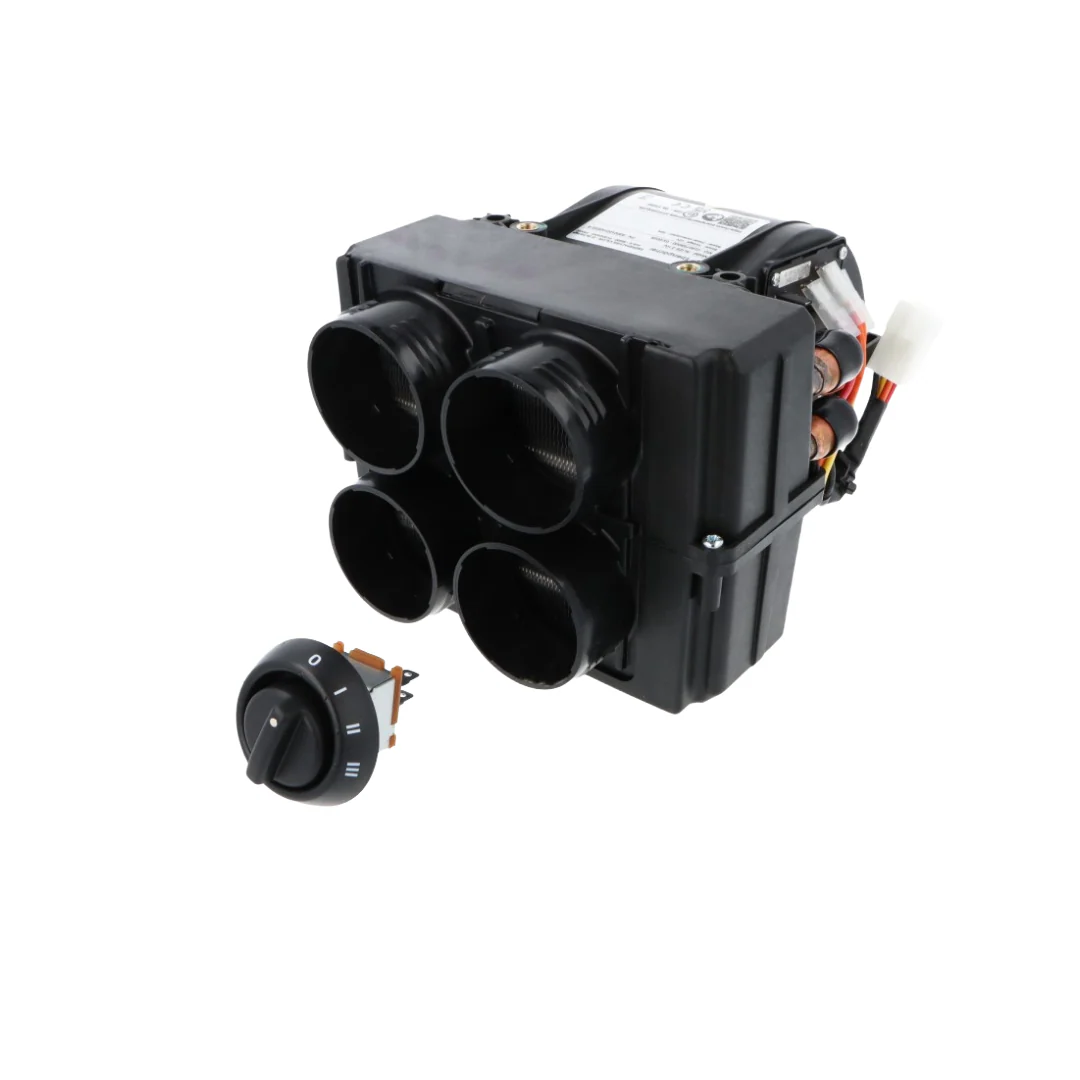

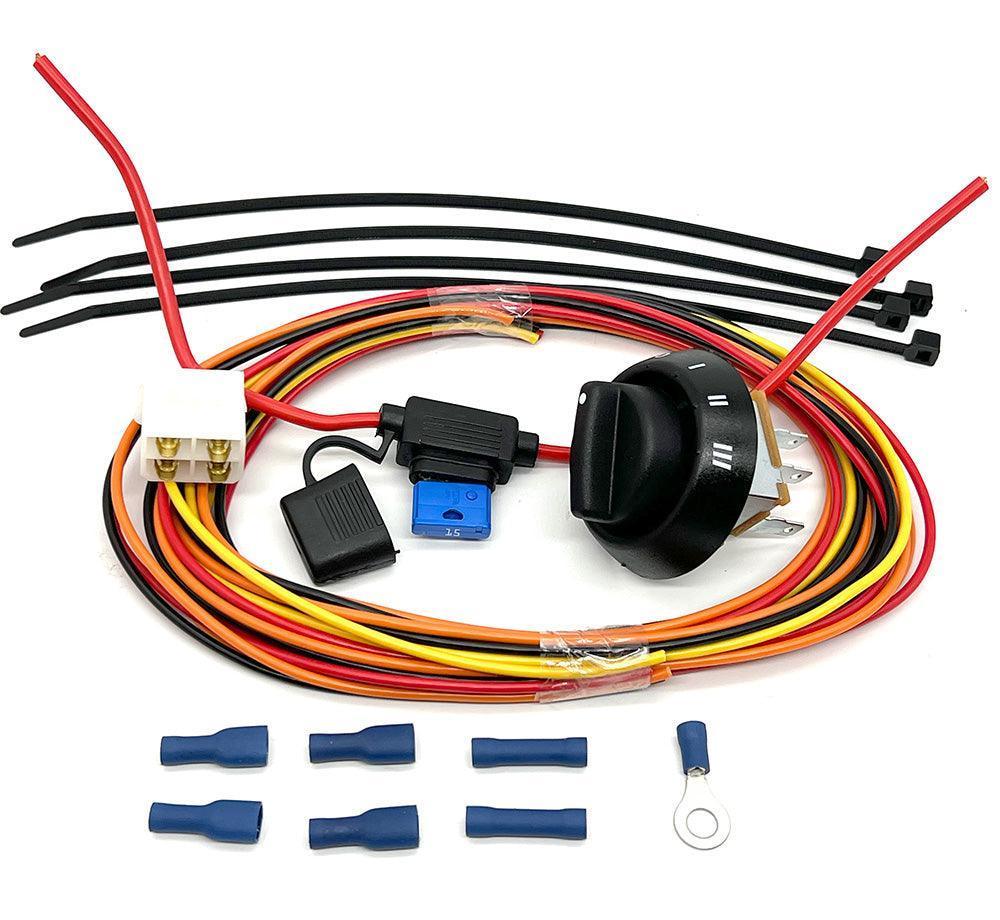

Supplied with or without wiring, connectors, in-line fuse and rotary control switch.

Fan motor maximum current 4.5 Amps.

Weight just 1.7Kg. Requires hot water feed from your engine.

FAN MOTOR SPEED WIRING

EARTH - Black
+12v LOW - Yellow
+12v MEDIUM - Red
+12v HIGH - Orange

FAN SWITCH WIRING
+12v IN - B
+12v OUT LOW - L
+12v OUT MEDIUM - M
+12v OUT HIGH - H
C is Compressor output if switch is used with Air Conditioning.

COMPACT CAR HEATER  #HEAT4
