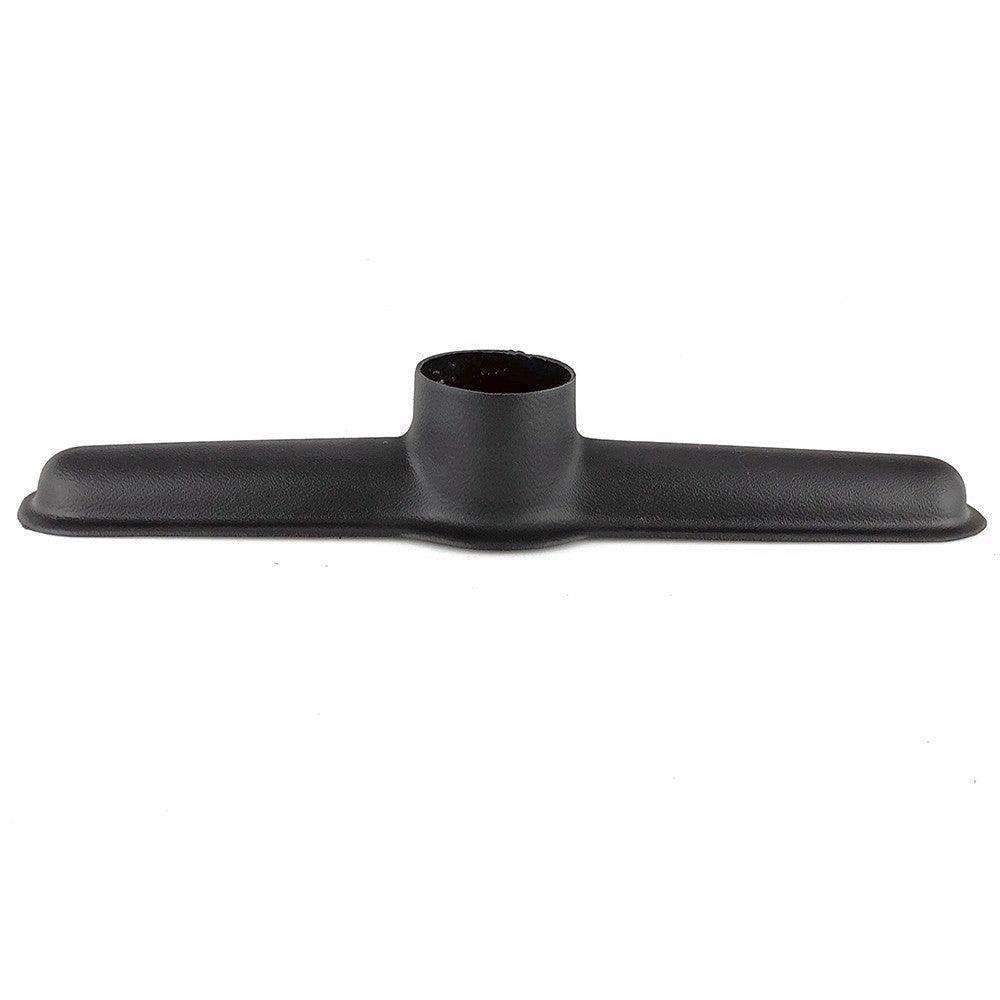

With 50mm inlet.

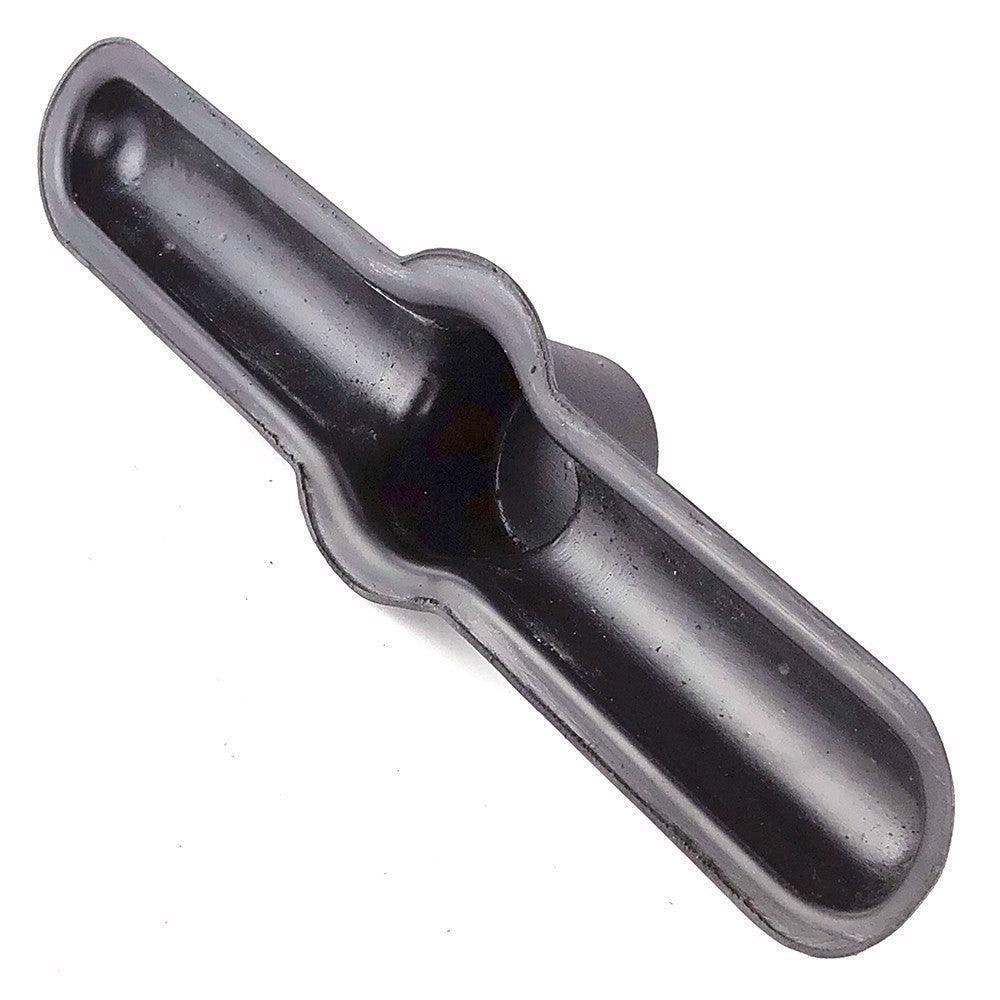

Overall length 310mm, overall width 75mm including the 7mm fixing flange all round.

Maximum height 50mm.

Inlet spigot 50mm diameter x 20mm high.

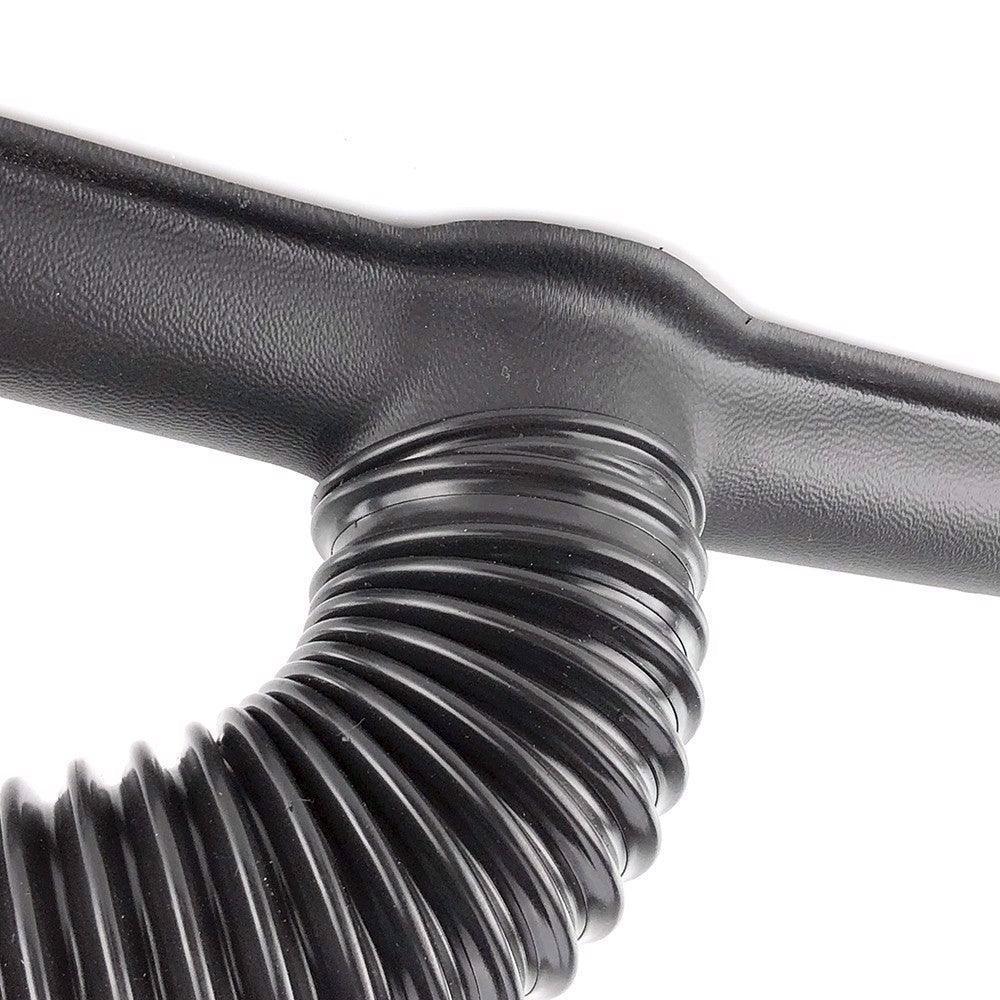

Our 50mm #DCTHS50 ducting can be bonded directly to the inlet with

Polyurethane adhesive / Sealant.

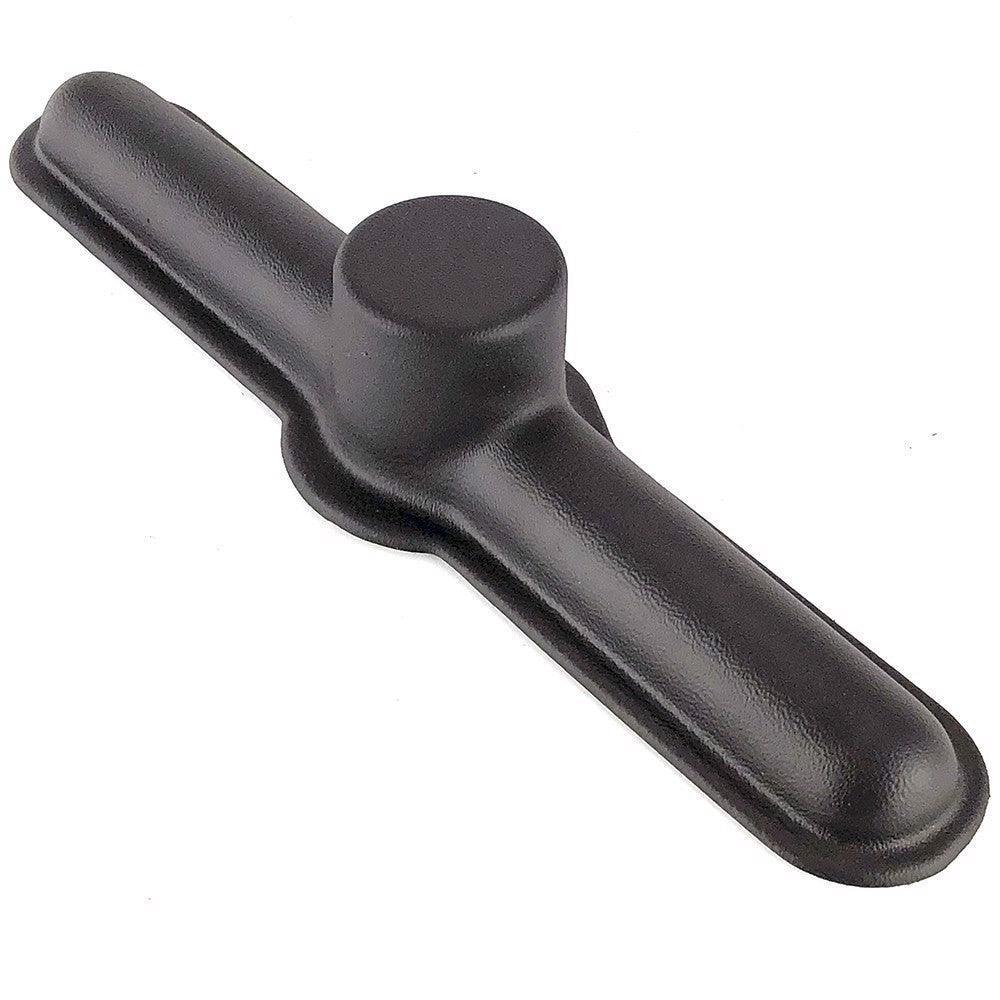

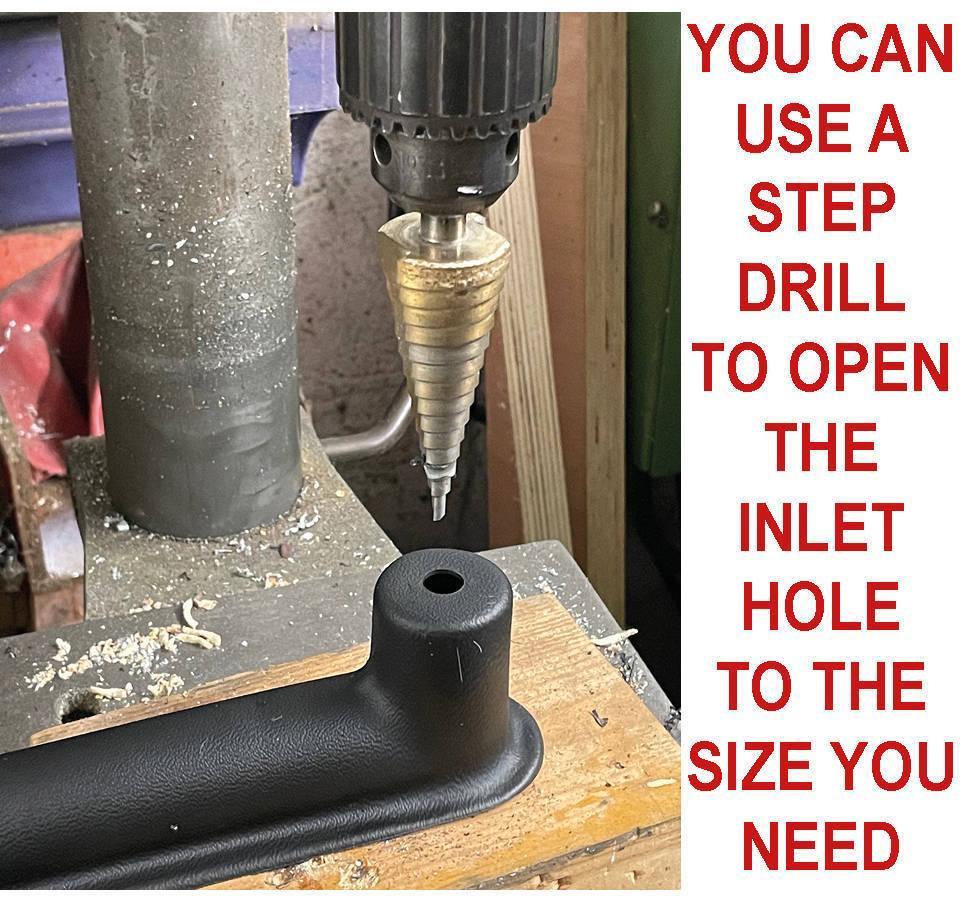

The inlet is supplied uncut but can be cut to accept smaller hoses or ducting of your choice.

DUCTING NOT INCLUDED

300mm DEMIST PLENUM #DEMPL300
