Distribution and 12 Way Fuse Box
DISTRIBUTION & 12 WAY FUSE BOX

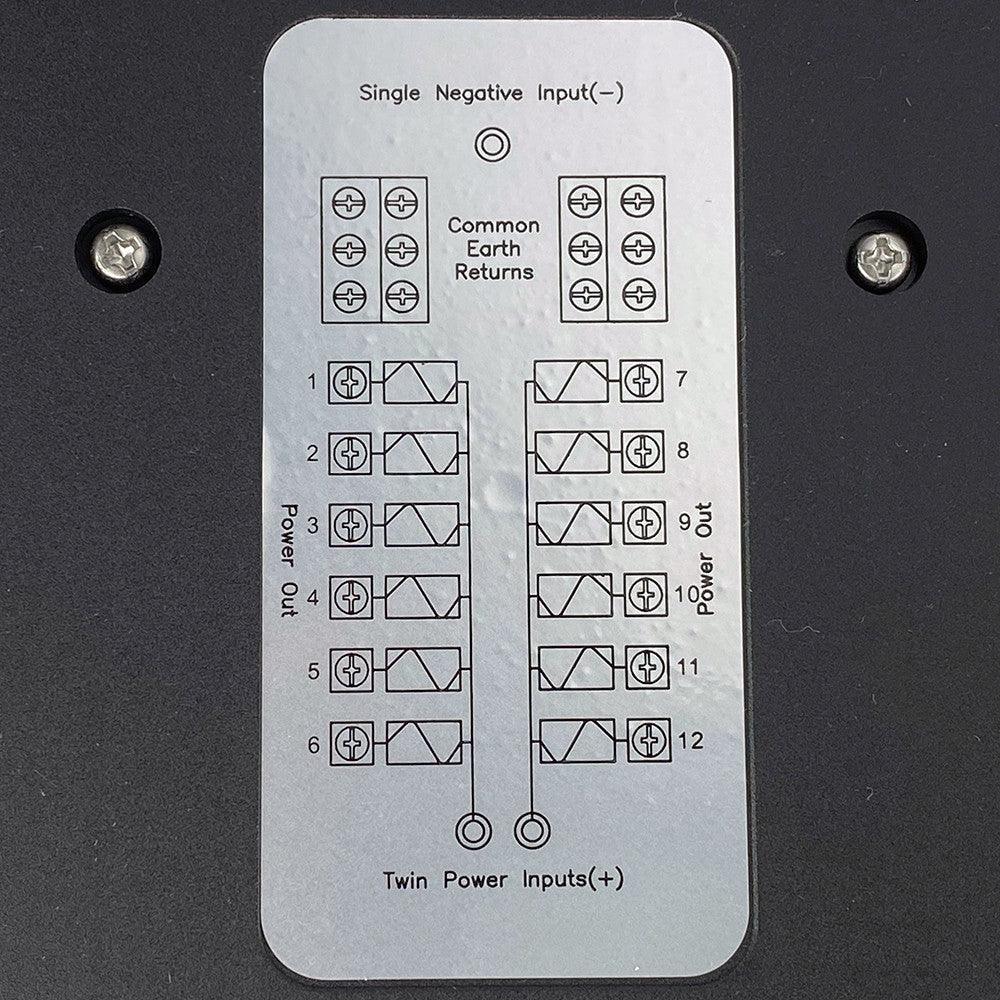

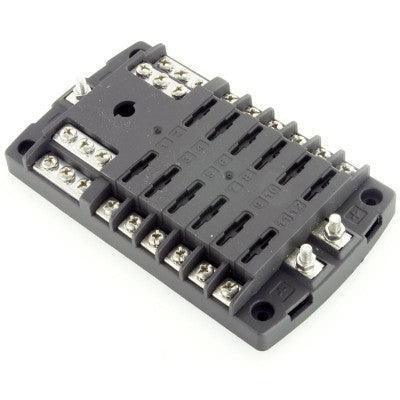

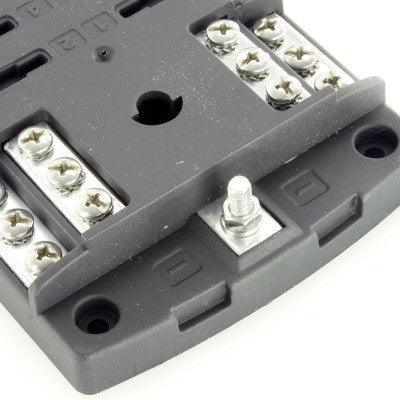

There are three independent supply connections on this useful box - A Negative (earth) distribution
with one M5 threaded stud input post and 12 x M4 threaded output screws.

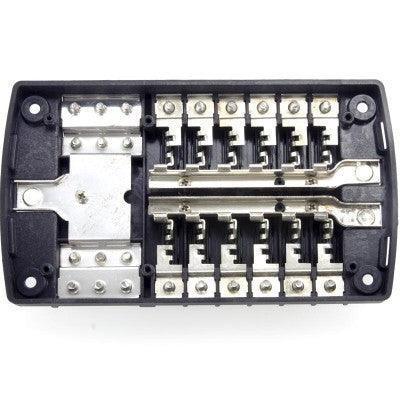

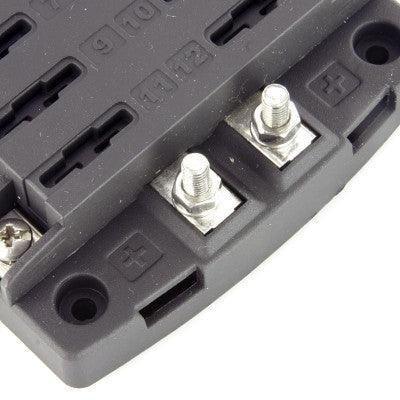

The Positive side is split into two separate busbars, each with an M5 threaded stud input
and 6 x fused outputs so you can have a permanent live side and an ignition-switched side. (fuses not included).
You can use either ring or fork terminals on all the input and output connections.

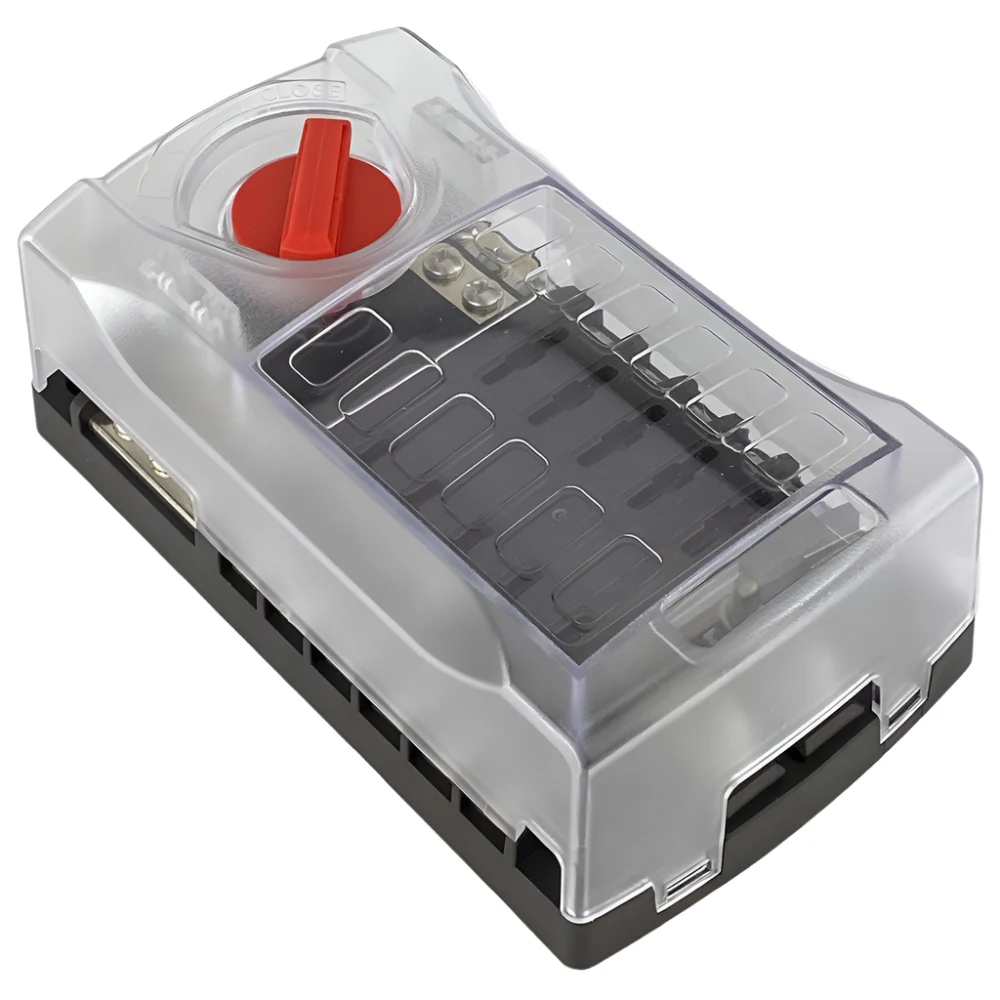

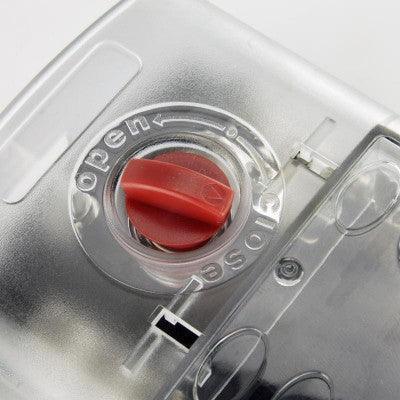

The clear plastic cover is secured or removed with half a turn of the red knob.
Overall size: 165mm x 95mm x 57mm high.
Four, 5mm dia. fixing holes at 140mm x 75mm centres
