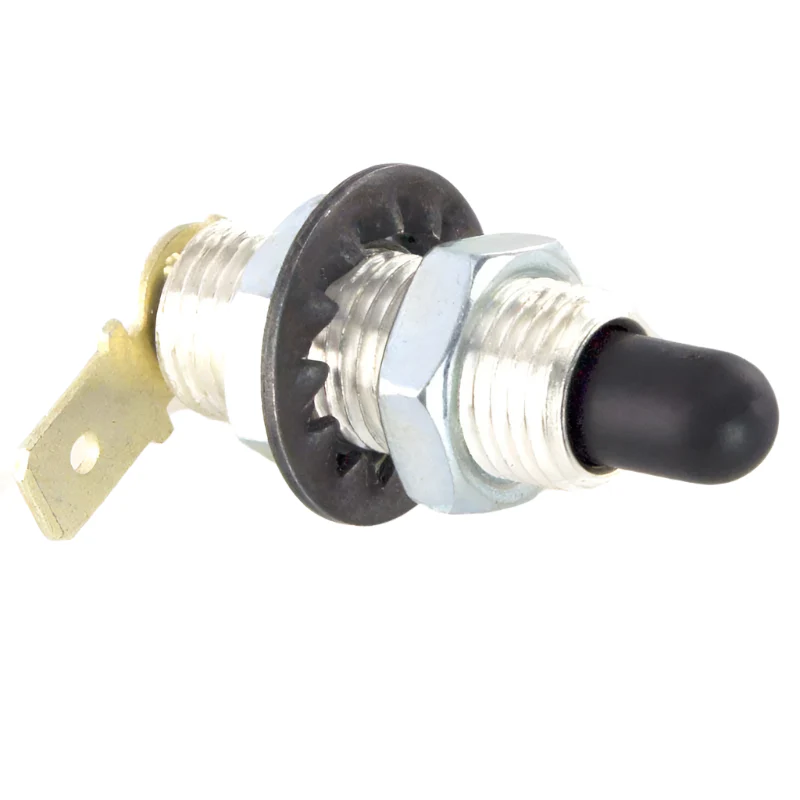

This sprung- plunger-type switch can be used for door courtesy lighting,

bonnet and boot lights or as an alarm trigger.

It fits in a 10mm diameter hole and it's two 13mm A/F nuts allow a maximum of 17mm adjustment.

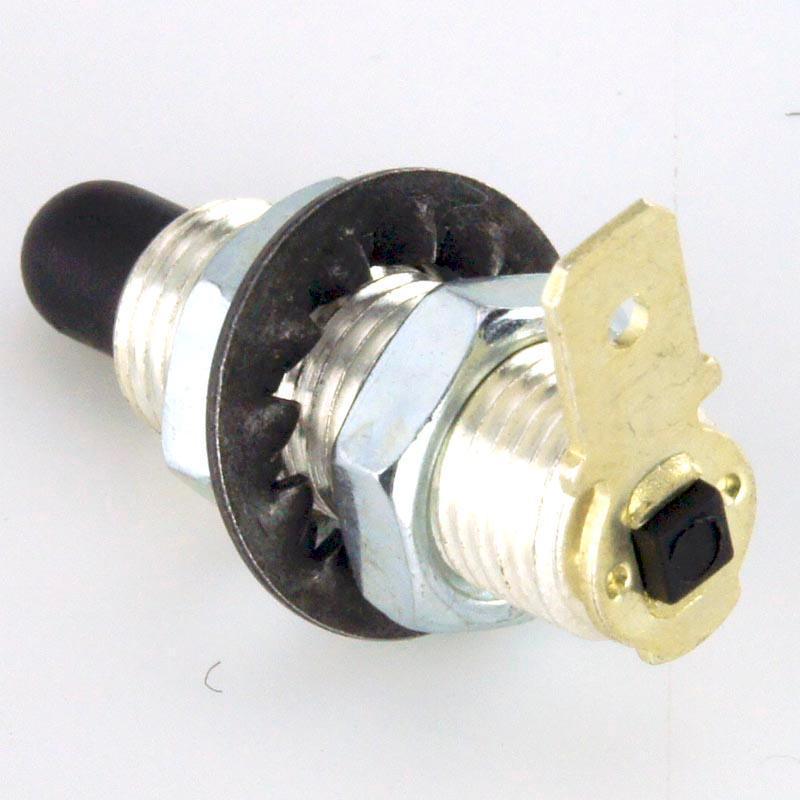

A 1/4" male spade terminal is one contact and the plated switch body is the other.

So, if you're using this switch on a GRP or plastic panel you'll need to ensure that the switch casing is earthed.

Overall length 36mm.

Maximum plunger movement 9mm.

Thread M10 x 1mm.

ADJUSTABLE COURTESY SWITCH EACH #COURT3
