The Heavy Duty, 12 volt, 5 wire, Power Door Lock / Boot lid Actuator has built in switches that trigger a module with relays to lock and unlock the other doors.

It will push and/or pull the door lock mechanism using the power supplied from the keyless entry system in the vehicle or a simple push-button.

This door lock actuator will work with most security systems.

The Blue and Green wires can be used as a two-wire actuator for boot release using a simple push-button switch or relays.

The output shaft can rotate 360 degrees.

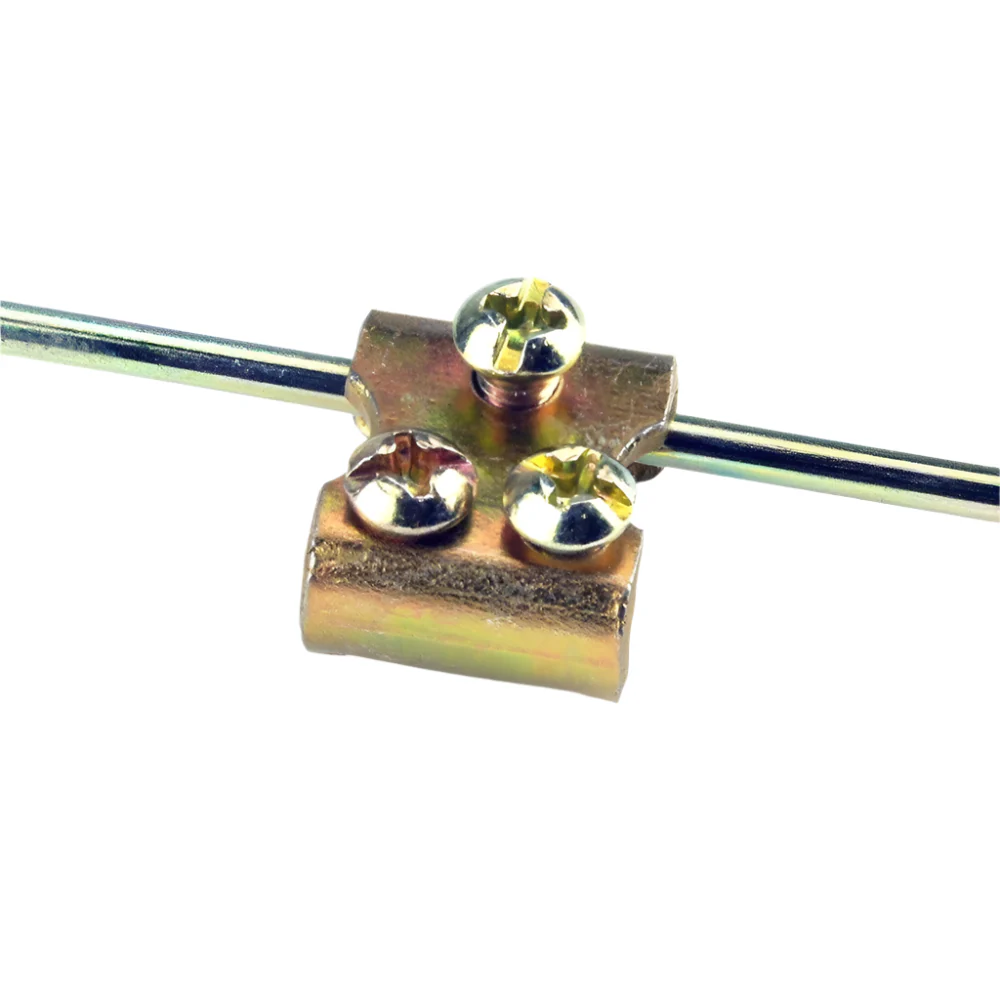

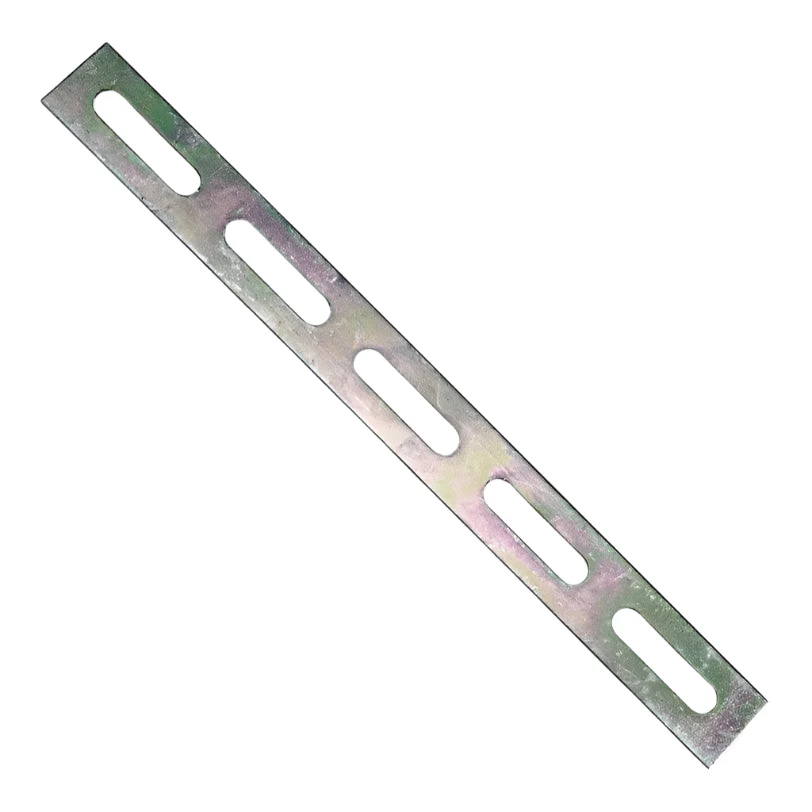

Supplied with 2.7mm diameter x 220mm (7.0in) long wire, steel mounting plate and joining block.

Current consumption: 0.15A to 3A

Push & pull force: 4kg

Travel distance: 20mm

Actuator size: approx. 150 x 63 / 32mm.

Two 3.5mm mounting holes at 58mm centres.

Weight:  140g

WIRING:

BROWN - Lock Input

BLUE - Unlock Output

WHITE - Unlock Input

Black - Earth

Green - Lock Output

WIRING FOR TWO WIRE APPLICATION:

GREEN +ve,

BLUE -ve  -  PULL

BLUE +ve,

GREEN -ve  -  PUSH

DOOR LOCK ACTUATOR #ACTU1
