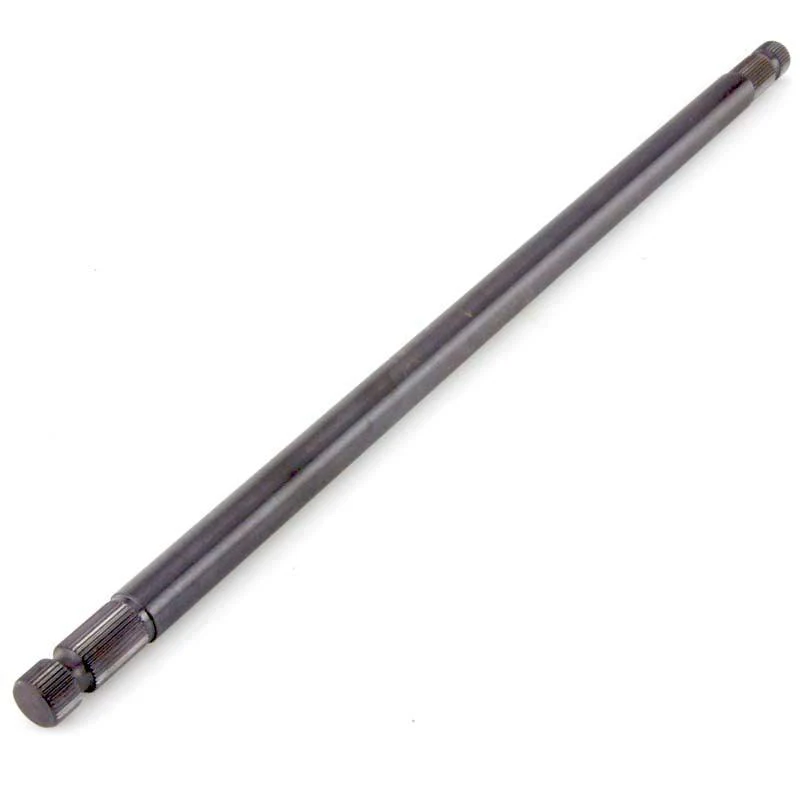

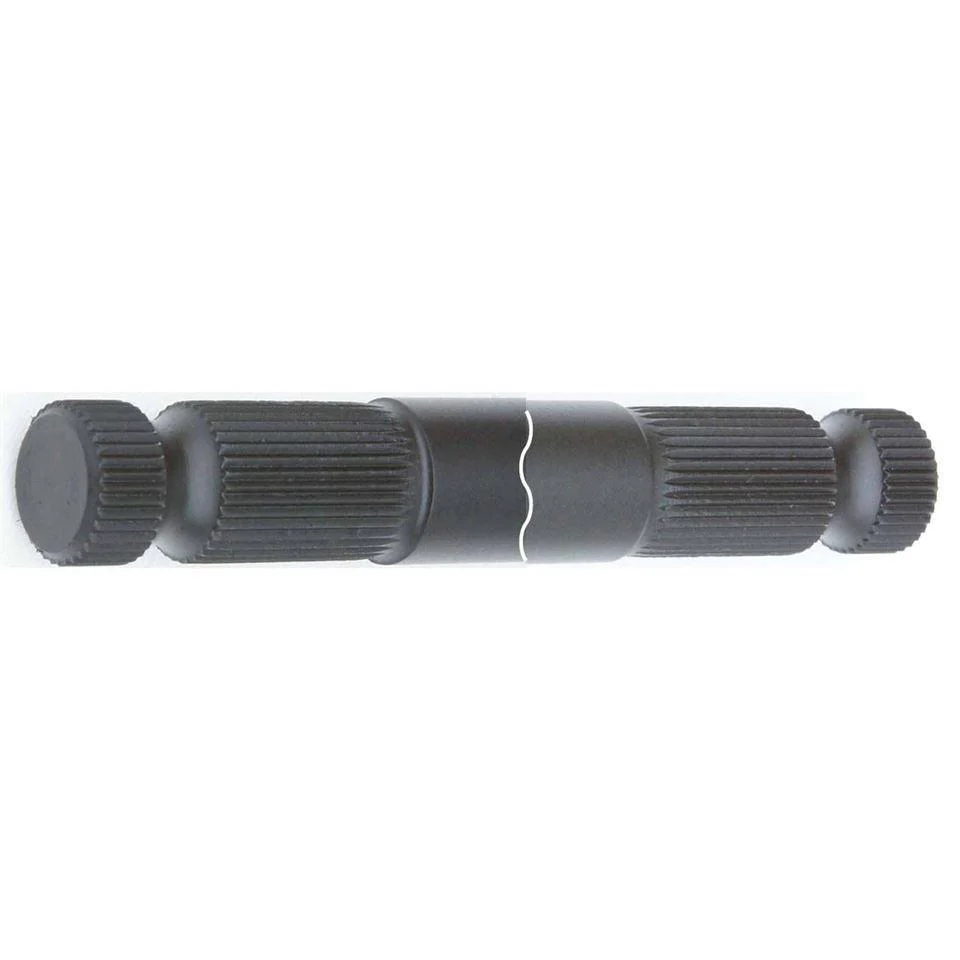

Can be cut and welded to fabricate your own steering column link.

Made from 15mm diameter steel.

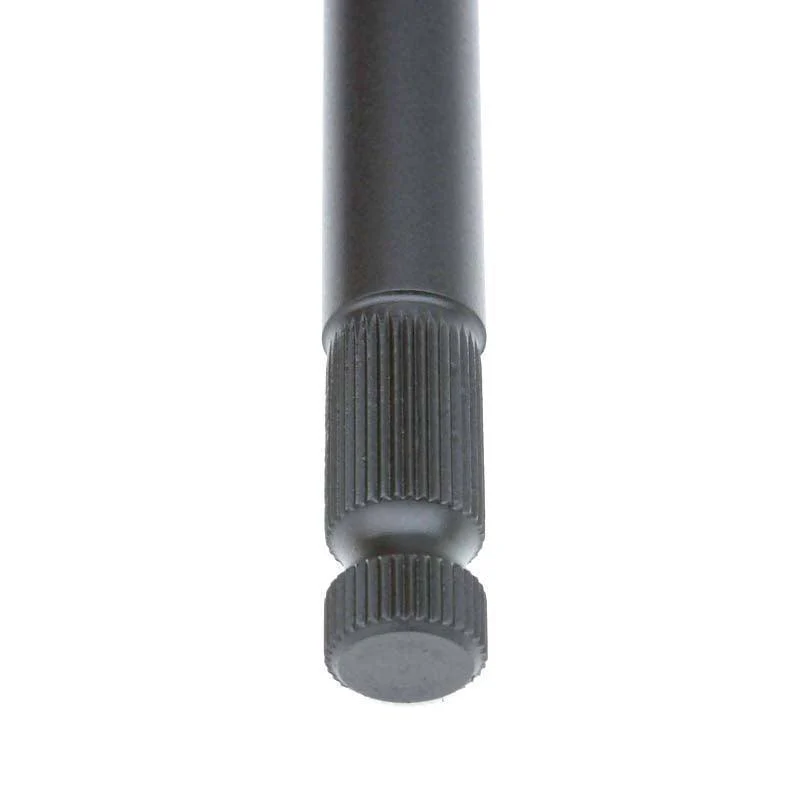

Has a 14mm (9/16") diameter x 36 spline machined on each end.

400mm long.

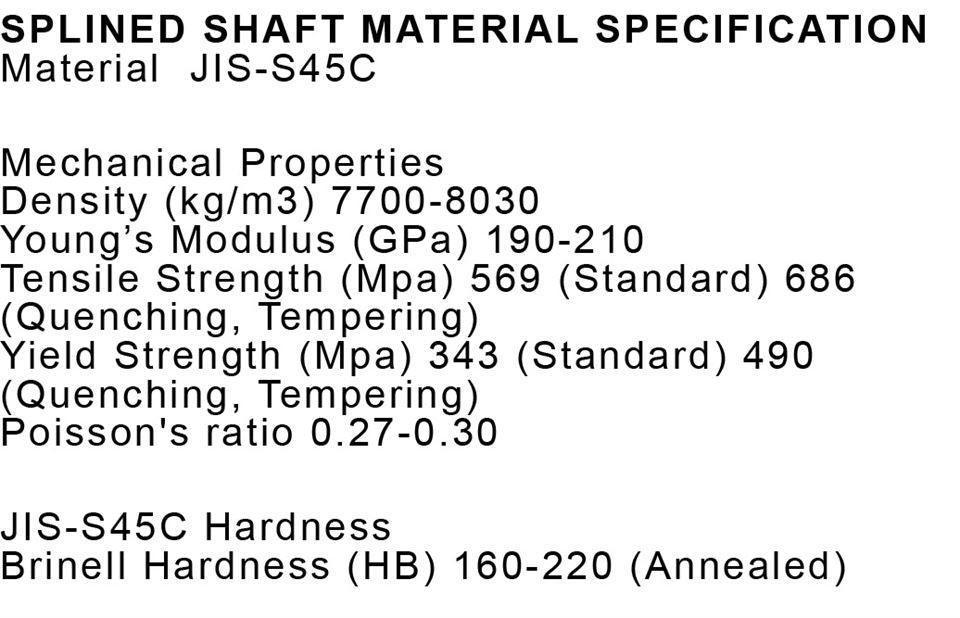

SPLINED SHAFT MATERIAL SPECIFICATION

Material JIS-S45C

Mechanical Properties

Density (kg/m3) 7700-8030

Young’s Modulus (GPa) 190-210

Tensile Strength (Mpa) 569 (Standard) 686 (Quenching, Tempering)

Yield Strength (Mpa) 343 (Standard) 490 (Quenching, Tempering)

Poisson's ratio 0.27-0.30

JIS-S45C Hardness

Brinell Hardness (HB) 160-220 (Annealed)



400mm DOUBLE ENDED SPLINED SHAFT #SPLINED400
