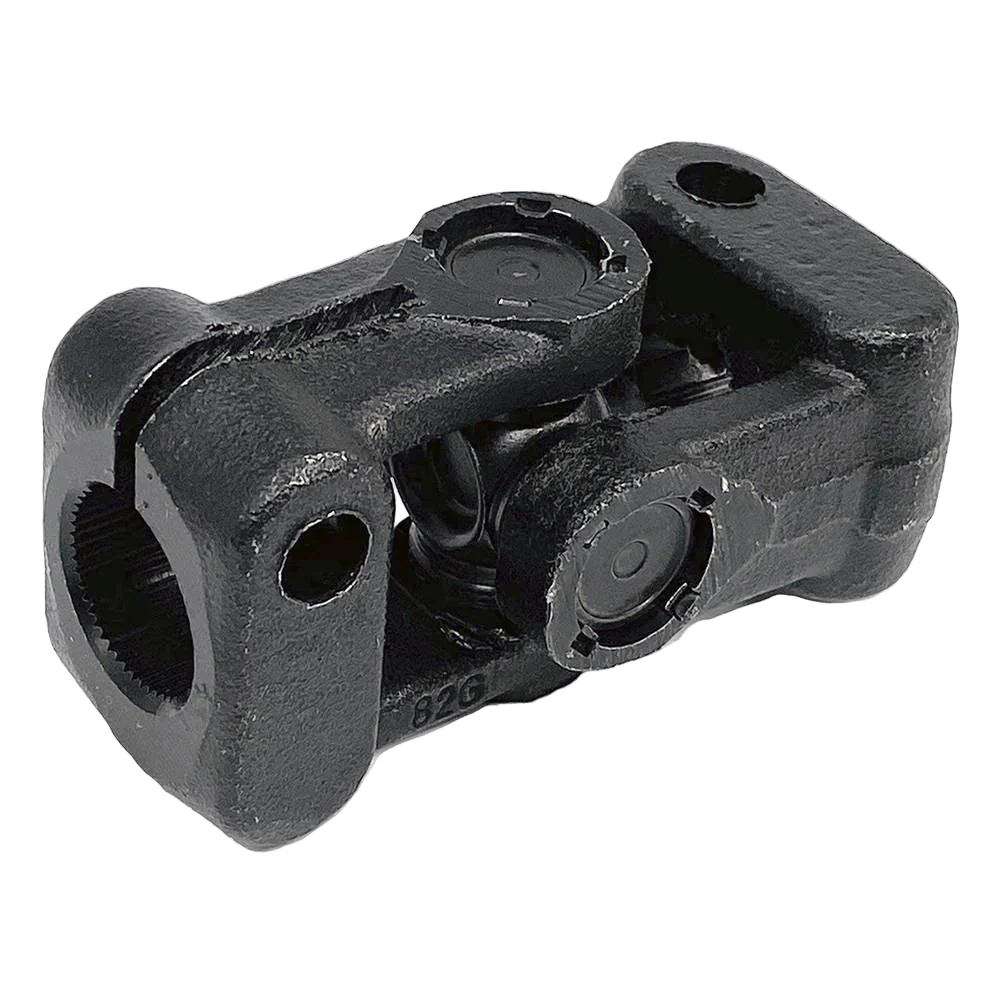

Forged Universal Joint With 9/16 & 3/4 Splines

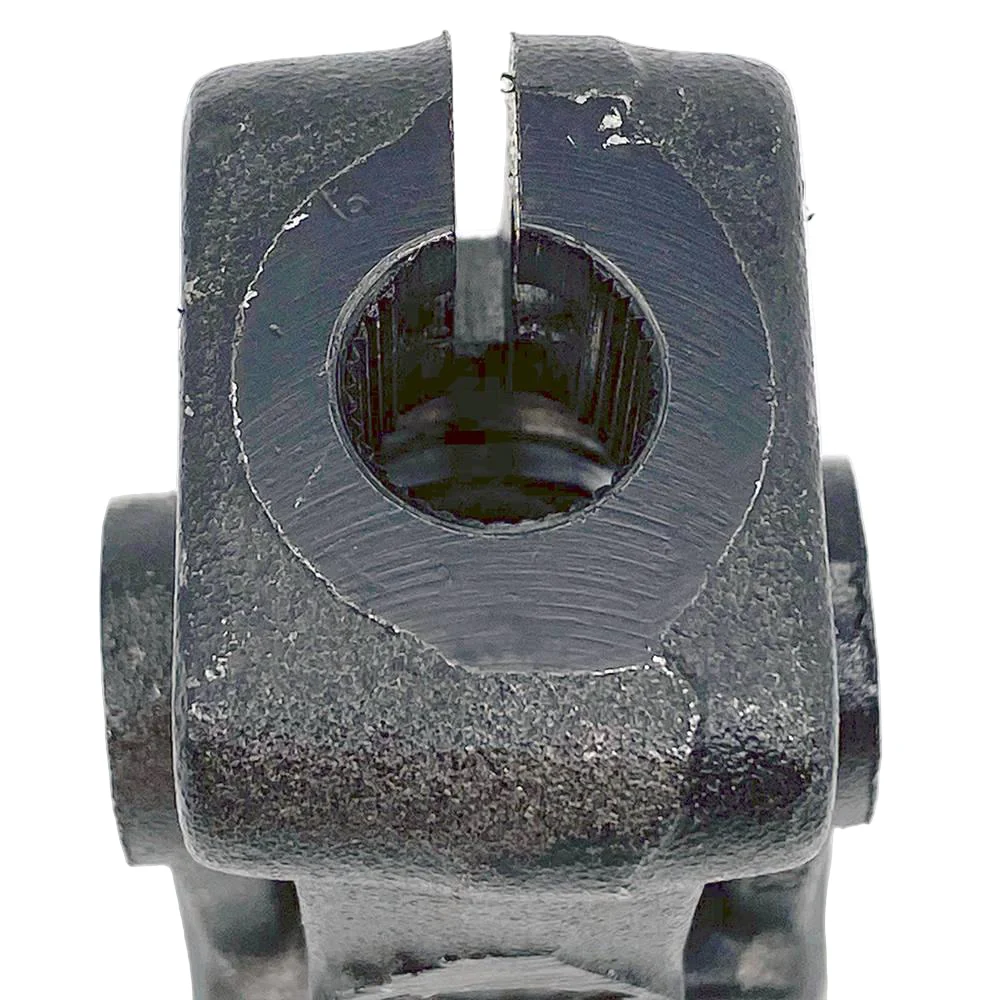

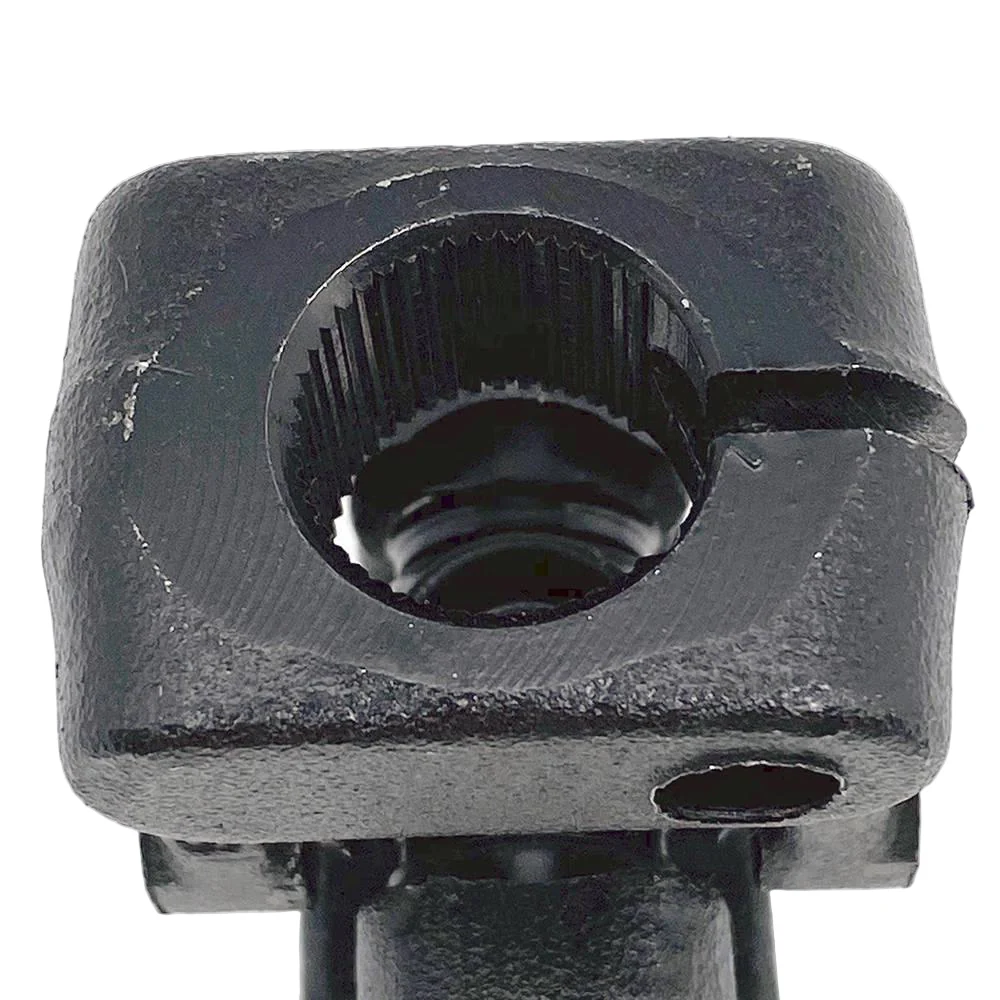

14mm (9/16") x 36 spline at one end and 3/4" (19mm) x 48 spline at the other end.
Size 80mm long x 45mm maximum diameter.
Compact and strong needle roller joint for steering columns & gear linkages.
Maximum working angle 20 degrees.
Weight 449g
May be black or plated depending on availability.
UNIVERSAL JOINT TWO SPLINE SIZESÂ #UJF3Â
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
14mm (9/16") x 36 spline at one end and 3/4" (19mm) x 48 spline at the other end.
Size 80mm long x 45mm maximum diameter.
Compact and strong needle roller joint for steering columns & gear linkages.
Maximum working angle 20 degrees.
Weight 449g
May be black or plated depending on availability.
UNIVERSAL JOINT TWO SPLINE SIZESÂ #UJF3Â
