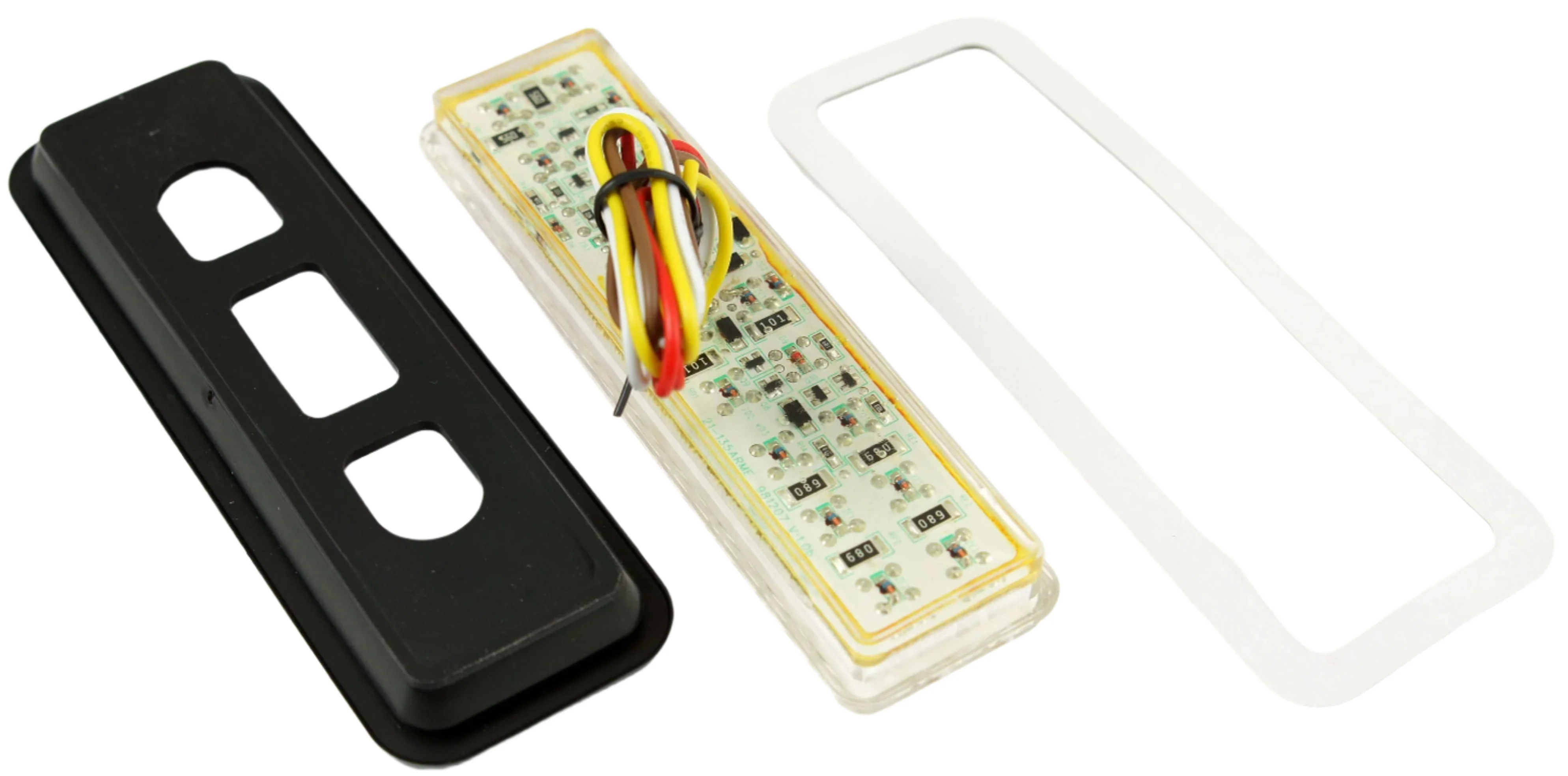

Hidden mounting. The rubber grommet/housing presses into an accurately cut hole in your panel - size 36mm x 132.8mm (card template included with each lamp.)

Note: maximum panel thickness 2mm.

The lamp unit is then simply pressed into the grommet locking it all in place.

Maximum overall dimensions 145mm (53⁄4") x 48mm (1.9") x 21mm deep (0.82") 175mm pre-wired fly leads.

Front projection 10mm.

Rear projection 9mm.

12 volt to 24 volt.

SOLD AS SINGLE LAMP

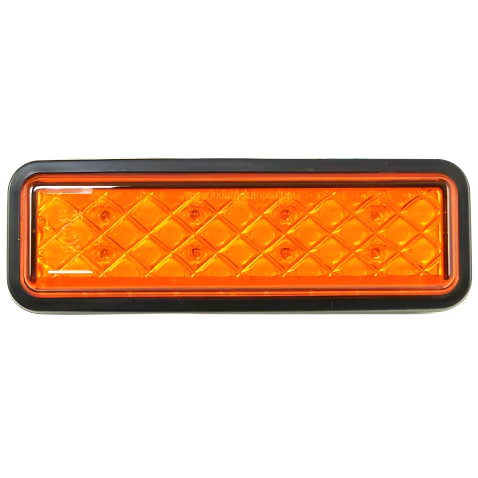

GROMMET MOUNT LED COMPACT INDICATOR AMBER LENS #RL68
