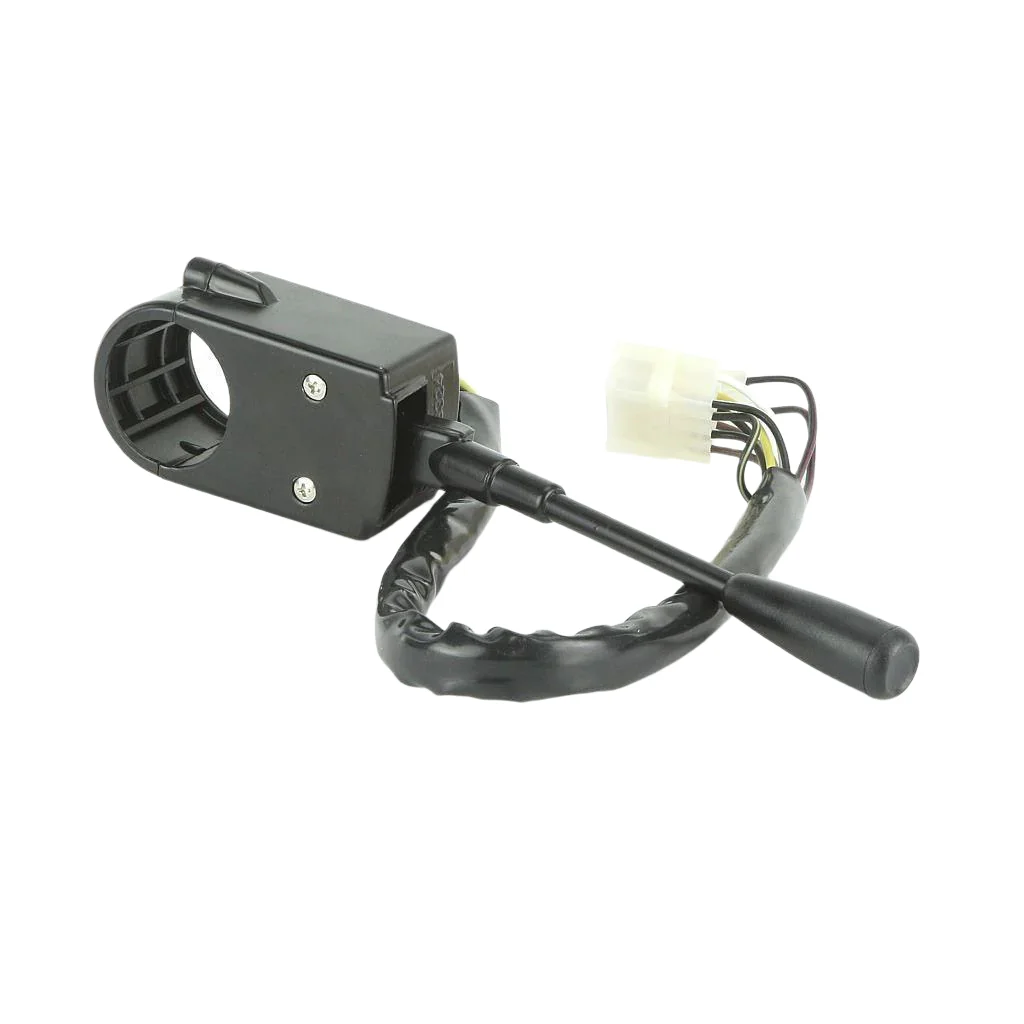

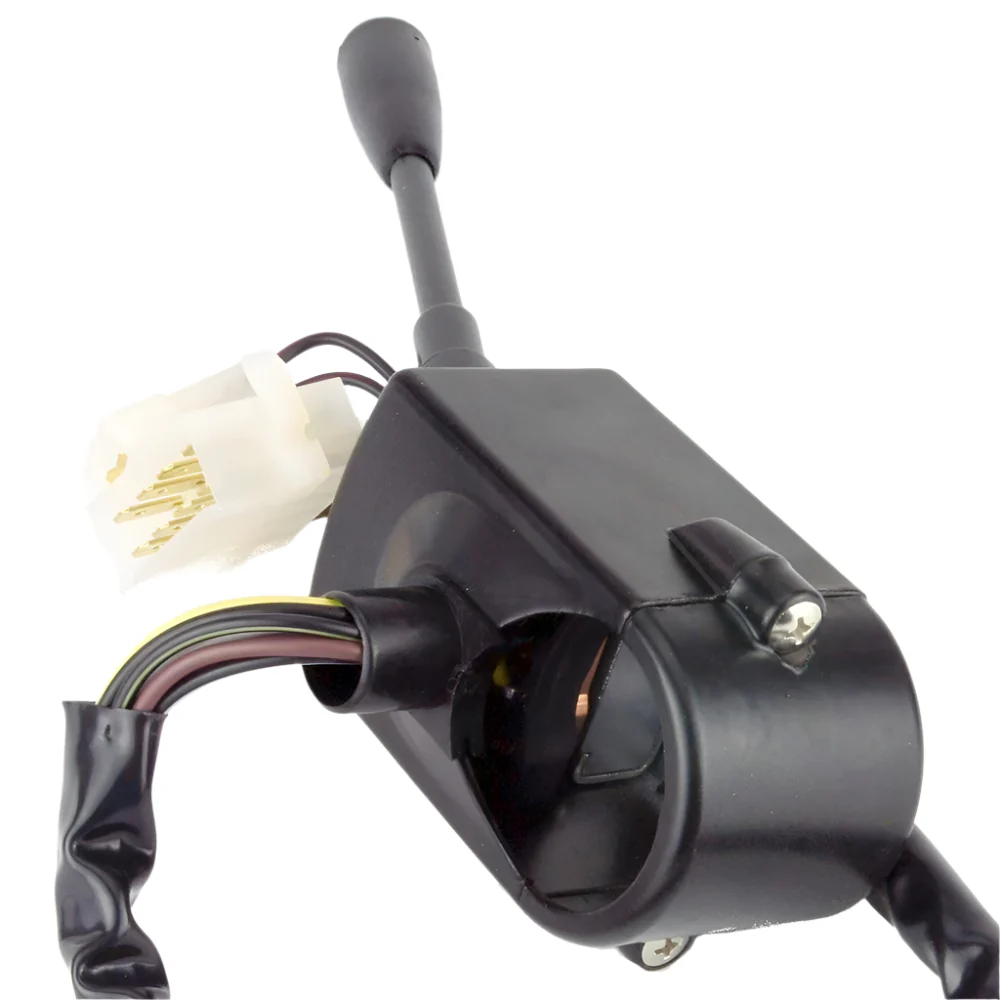

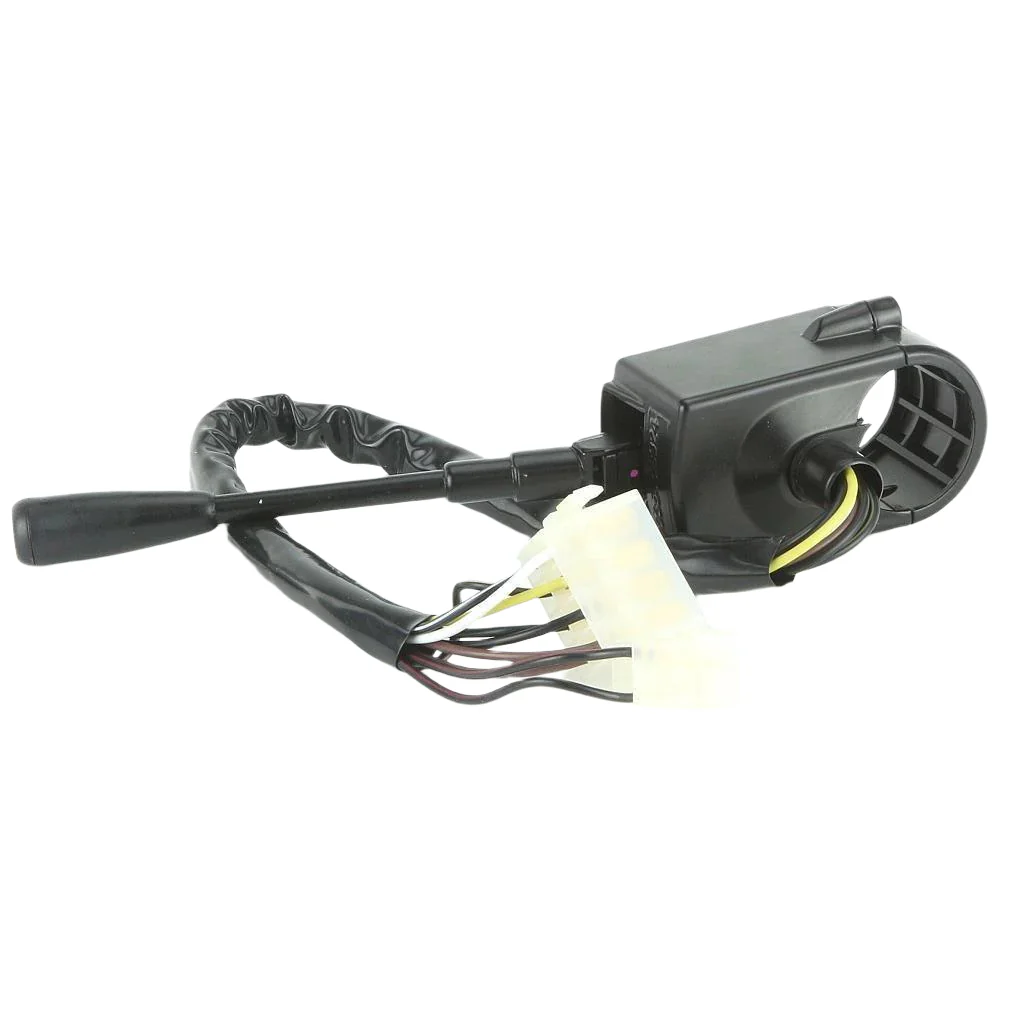

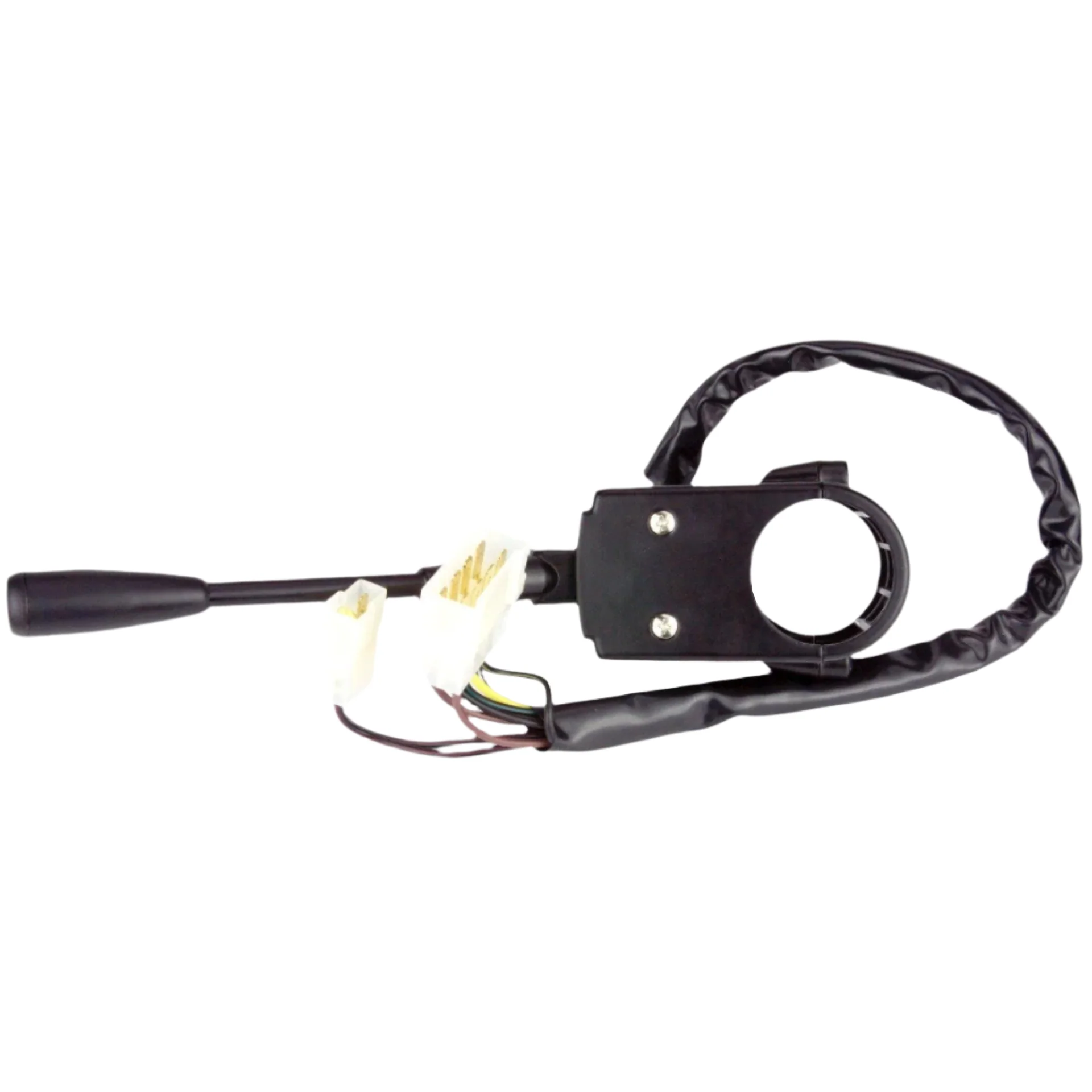

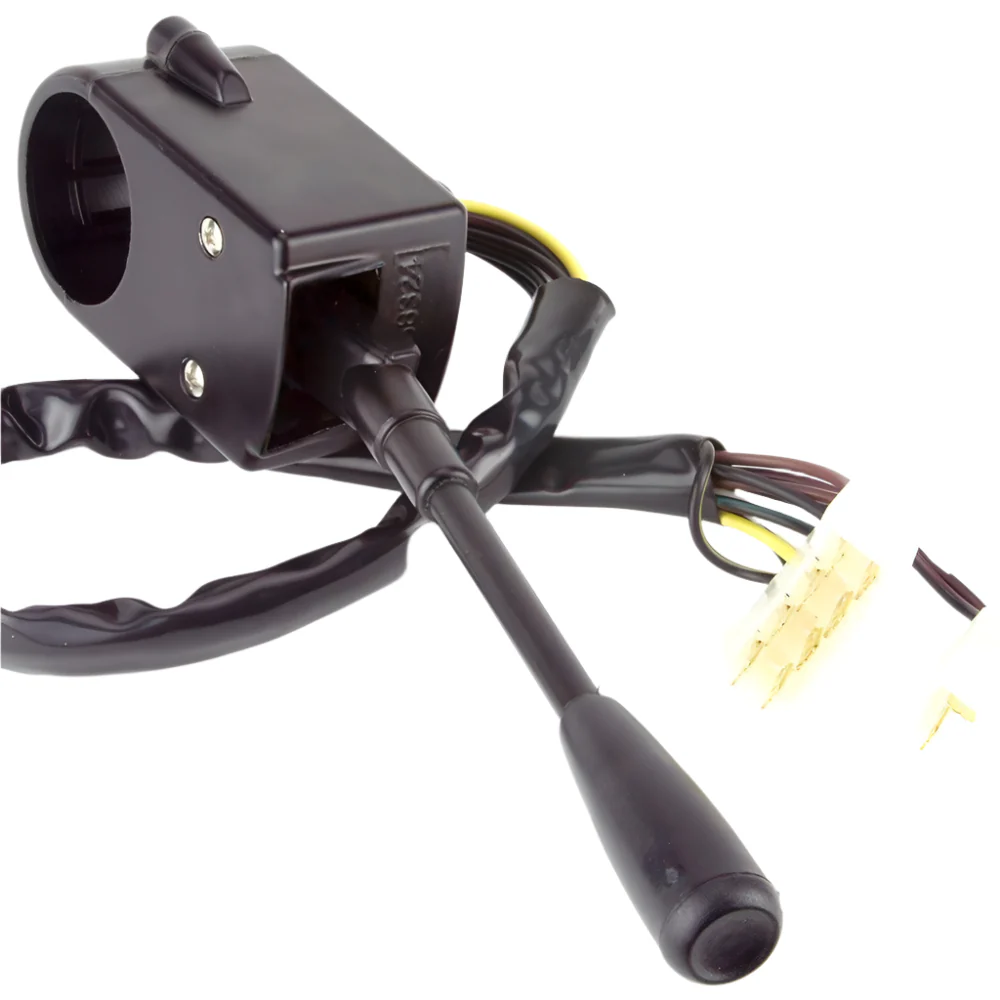

A heavy-duty indicator / dip switch with headlamp flash function and push button horn on the end.

It has a die-cast stalk and aluminium body that will clamp directly around a 45mm diameter column.

(NOTE: smaller diameter columns will require a reducer sleeve.)

500mm long, sleeved cables with one 8 way and one 2 way multi-pin plugs with 1/4" male spade connectors.

Body size 100 x 60 x 45mm.

Stalk length from centre of column 245mm.

Weight 575 gms.

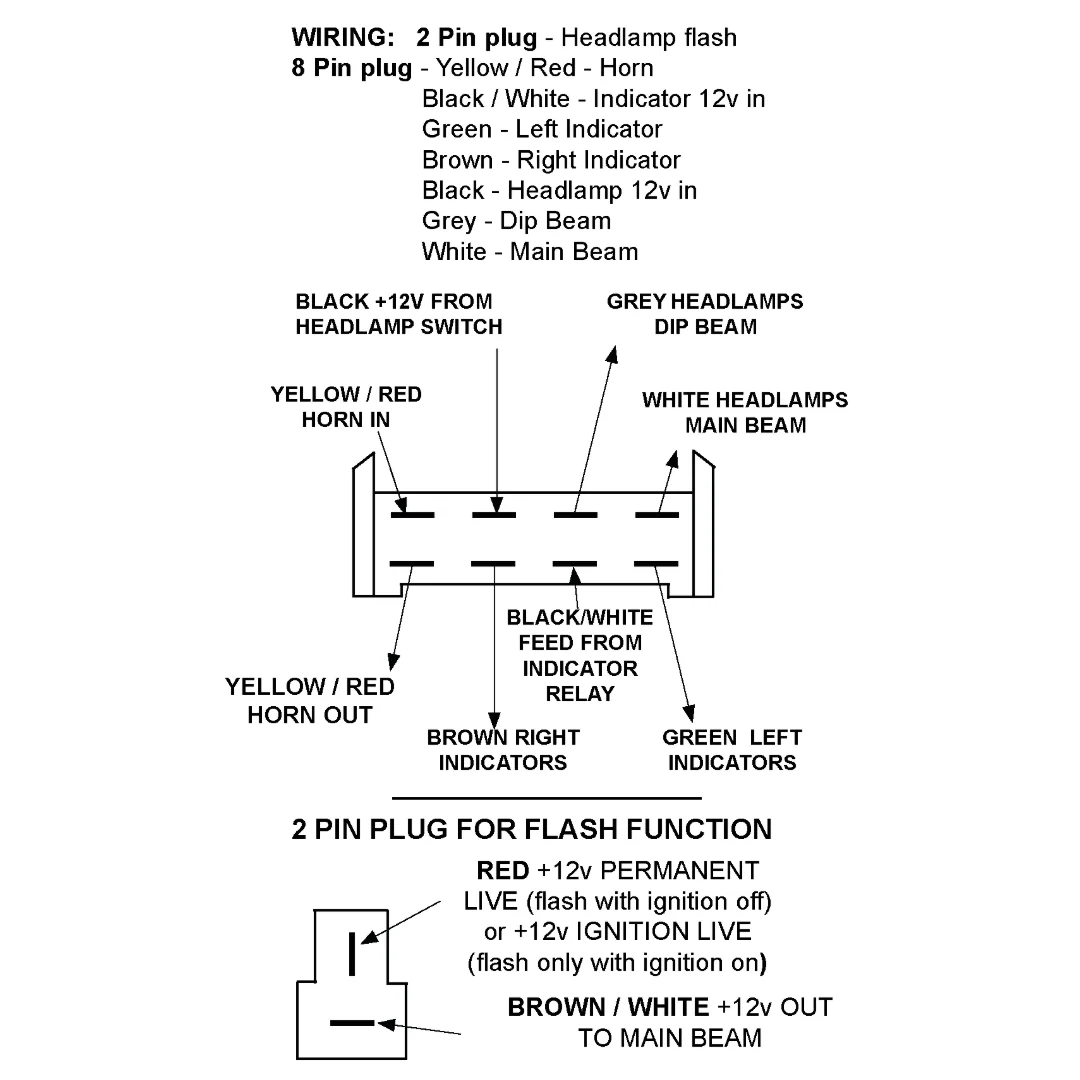

WIRING:

2 Pin plug - Headlamp flash



8 Pin plug - Yellow / Red - Horn

    Black / White - Indicator 12v in

    Green - Left Indicator

    Brown - Right Indicator

    Black - Headlamp 12v in

    Grey - Dip Beam

    White - Main Beam



HEAVY DUTY INDICATOR / DIP / HORN STALK ASSEMBLY #INDSW11
