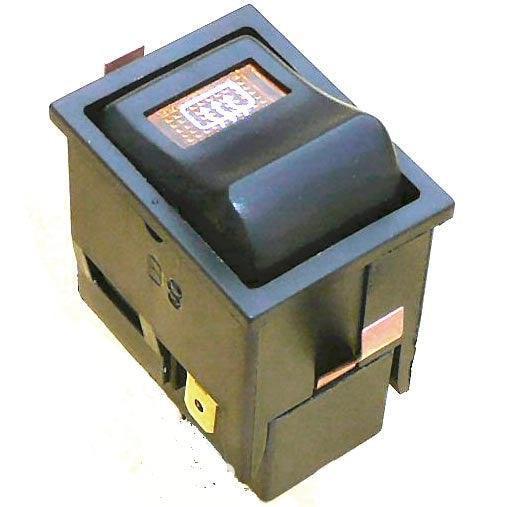

All switches are illuminated and some have secondary illumination when in ‘ON’ position’.

Overall size 24mm wide by 32mm high. Fits in a rectangular hole 22mm x 30mm. Bezel sits 2mm above mounting surface.

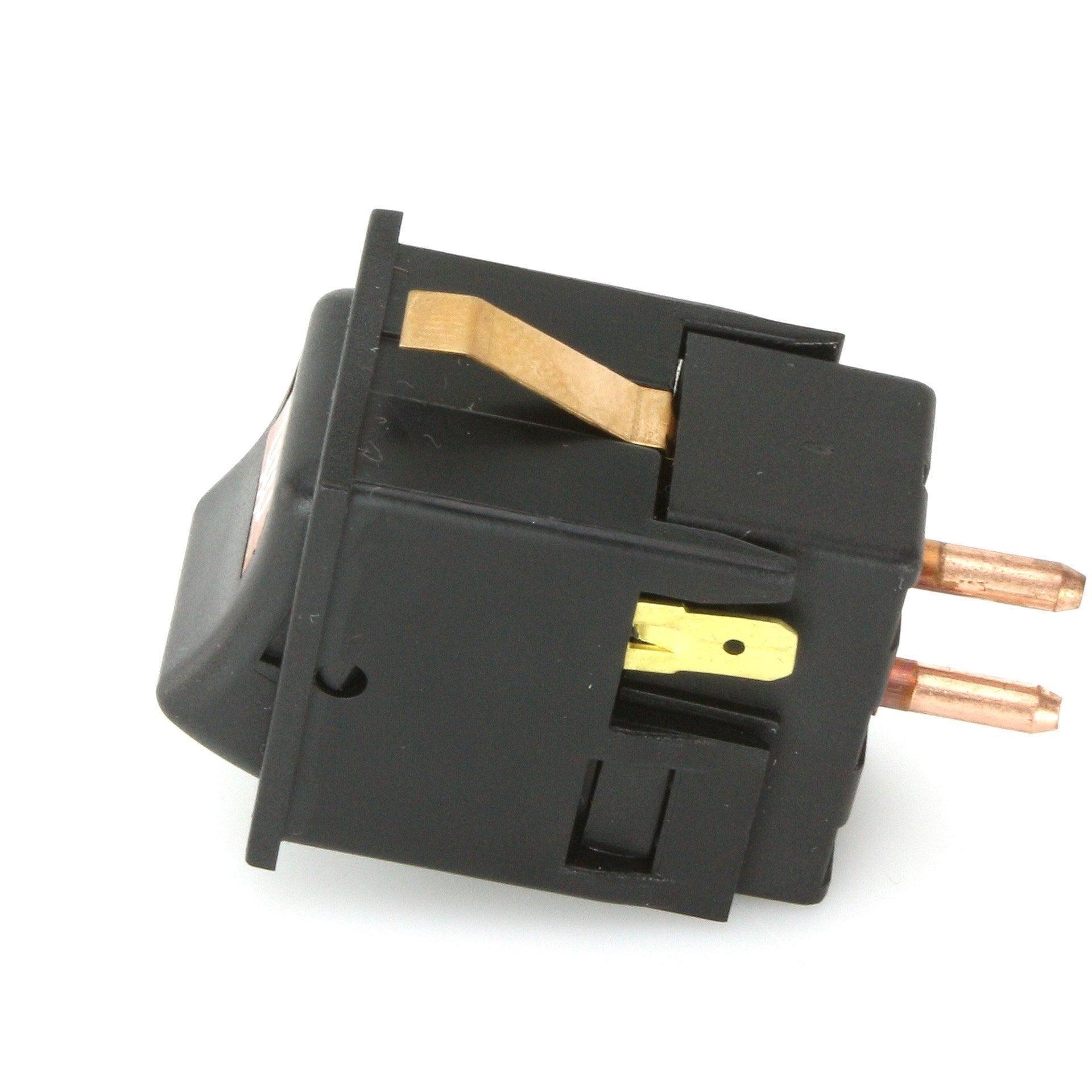

Top of rocker sits 9mm above and has IVA OK radii. Maximum rear projection to tip of pins is 42mm. High quality construction and smooth, positive action.

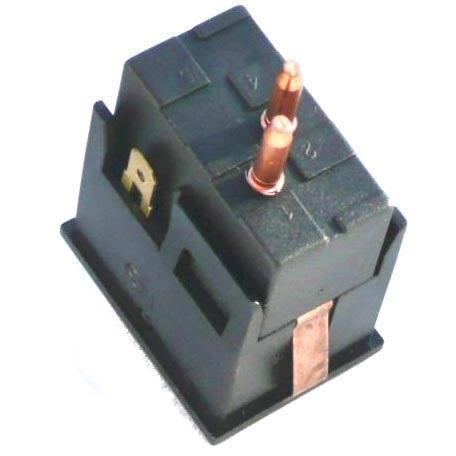

3mm Copper round pin terminals on rear can be connected using female bullet terminals sold separately.

Latching switch.

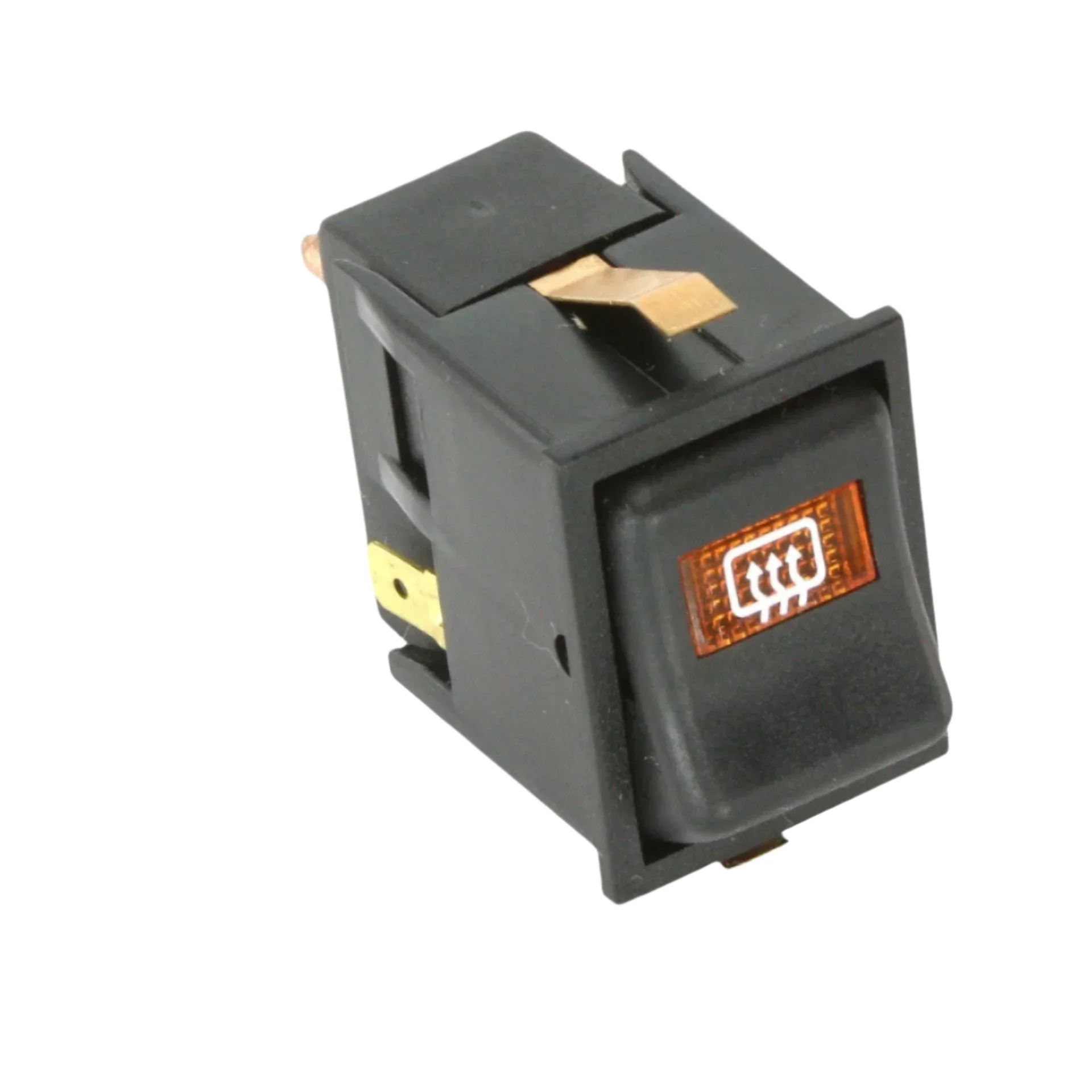

IVA ROCKER SWITCH SCREEN DEMIST #RSVADEM
