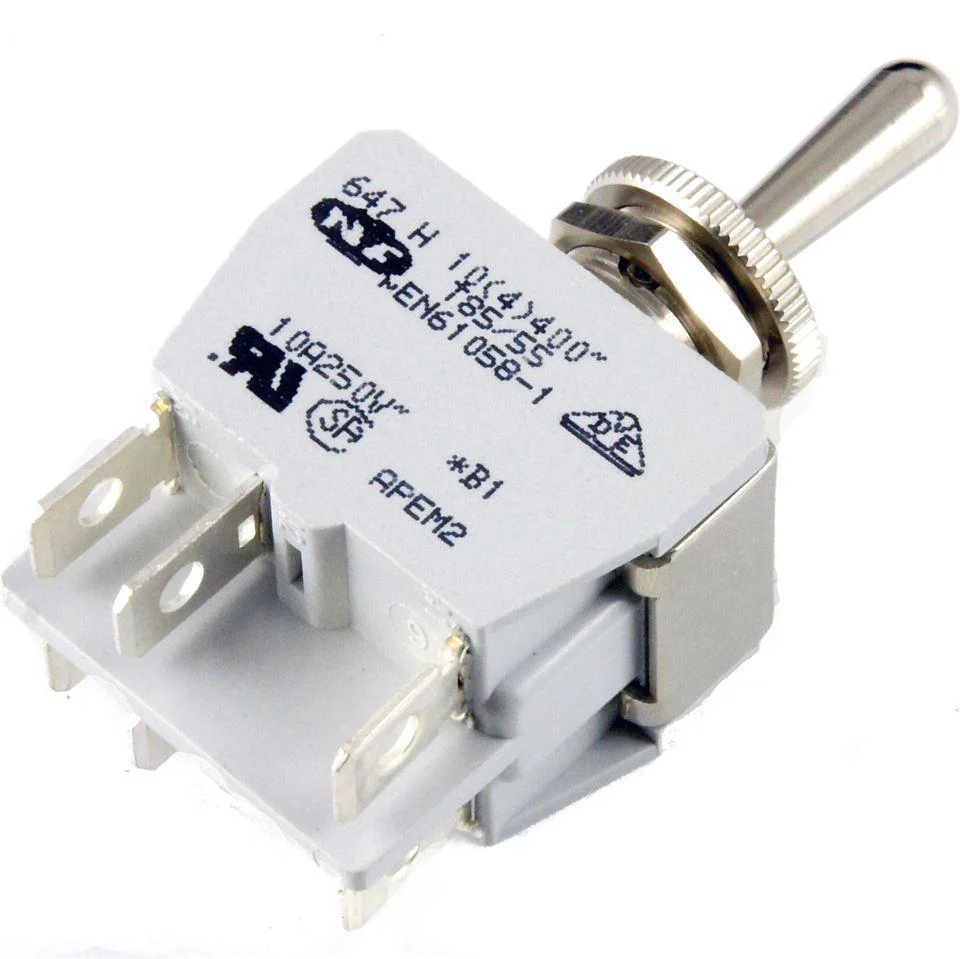

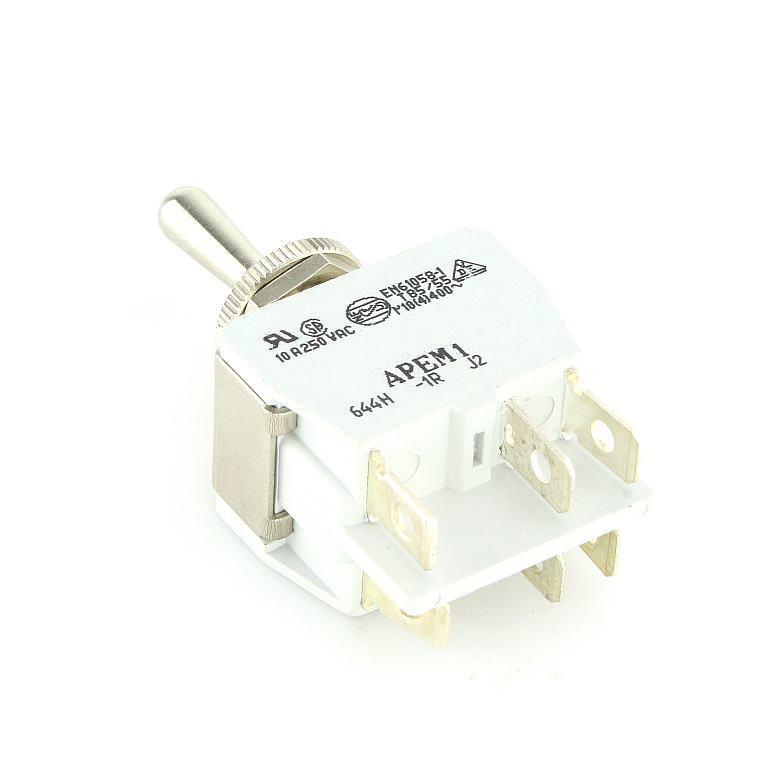

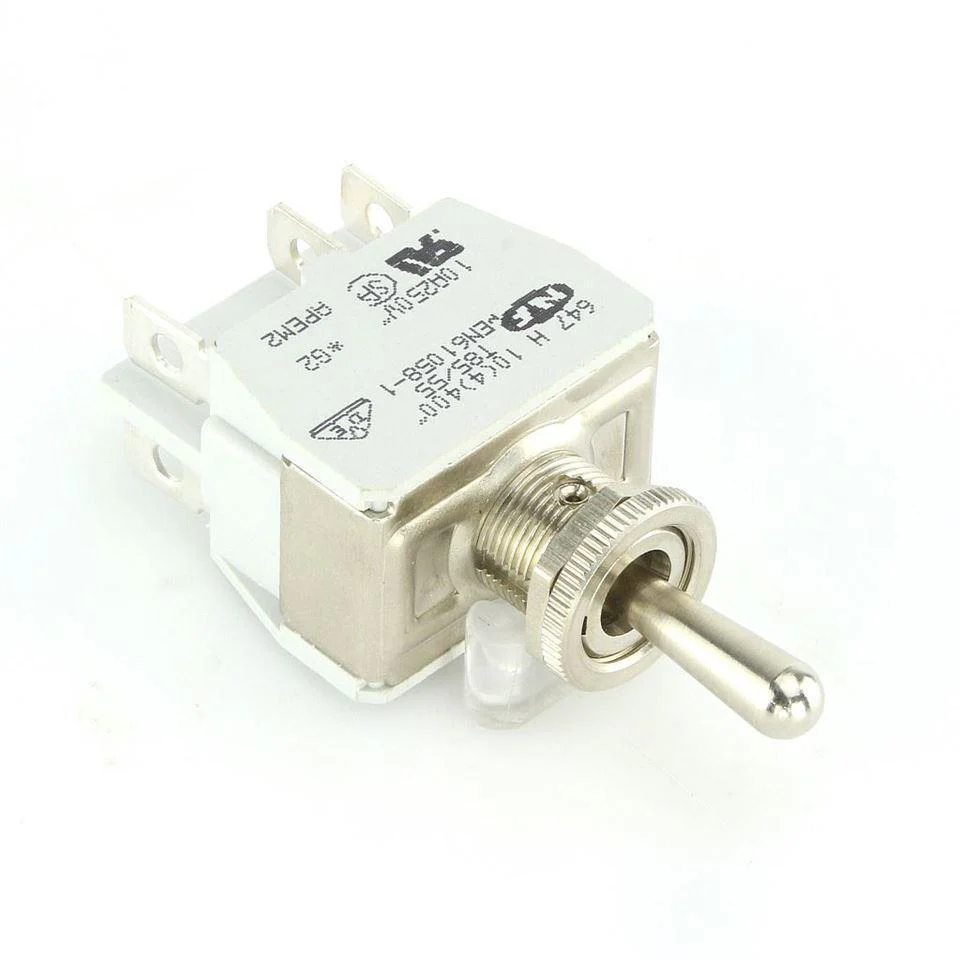

Knurled Ring Toggle Switch On(spring return)-Off-On (spring return) Double Pole
Superb quality toggle switch with a beautifully knurled outer securing ring.
Melamine/polyester case and silver plated copper contacts.
Smooth, positive action Maximum panel thickness between nuts 4.5mm.
Fits in a 12mm hole.
10 Amp.
Body size (double pole) 22mm wide, 30mm top to bottom, 32mm front to back.
1/4" spade/solder terminals.
KNURLED RING TOGGLE SWITCH ON(spring return)- OFF - ON(spring return) DOUBLE POLE #TSKR5
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Superb quality toggle switch with a beautifully knurled outer securing ring.
Melamine/polyester case and silver plated copper contacts.
Smooth, positive action Maximum panel thickness between nuts 4.5mm.
Fits in a 12mm hole.
10 Amp.
Body size (double pole) 22mm wide, 30mm top to bottom, 32mm front to back.
1/4" spade/solder terminals.
KNURLED RING TOGGLE SWITCH ON(spring return)- OFF - ON(spring return) DOUBLE POLE #TSKR5
