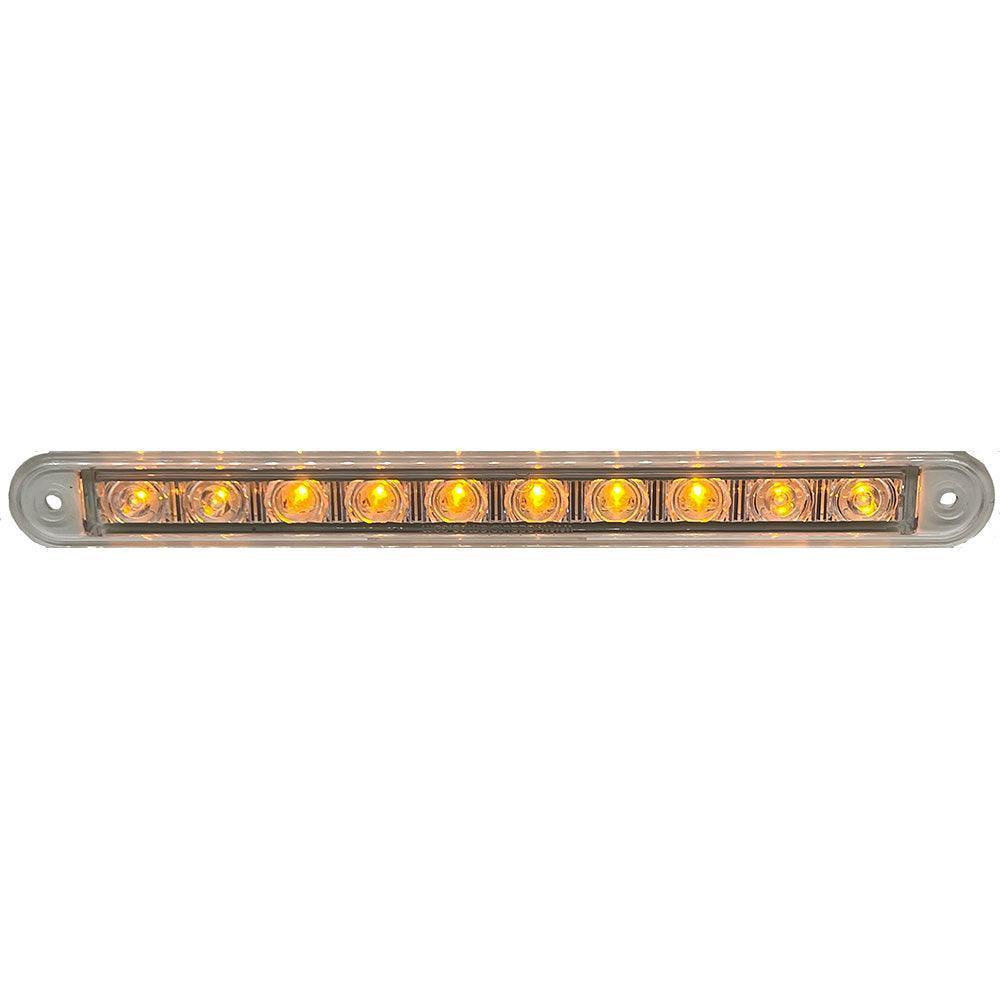

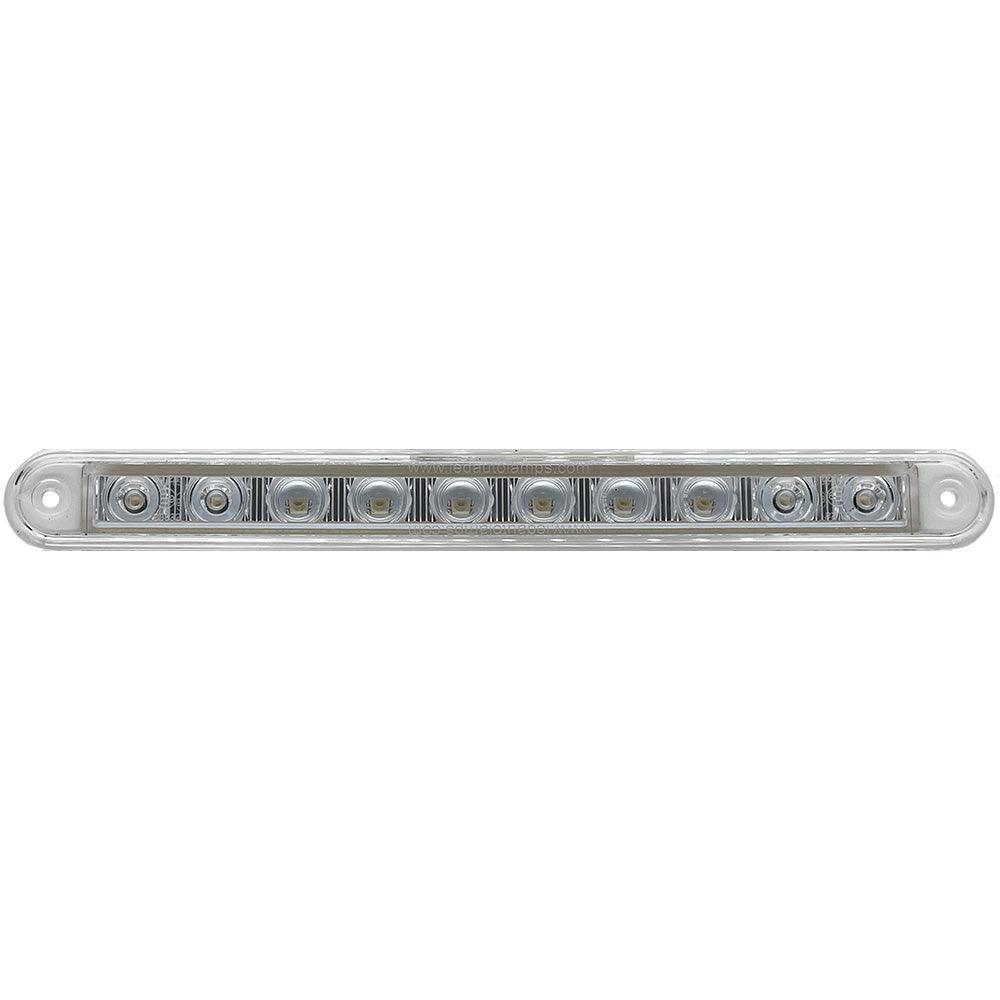

CLEAR LENS INDICATOR with sequencing - led’s lighting one after the other along the lamp with every flash. (See Video online)

E9 Marked. 12 Volt.

Pre-wired with 400mm fly leads.

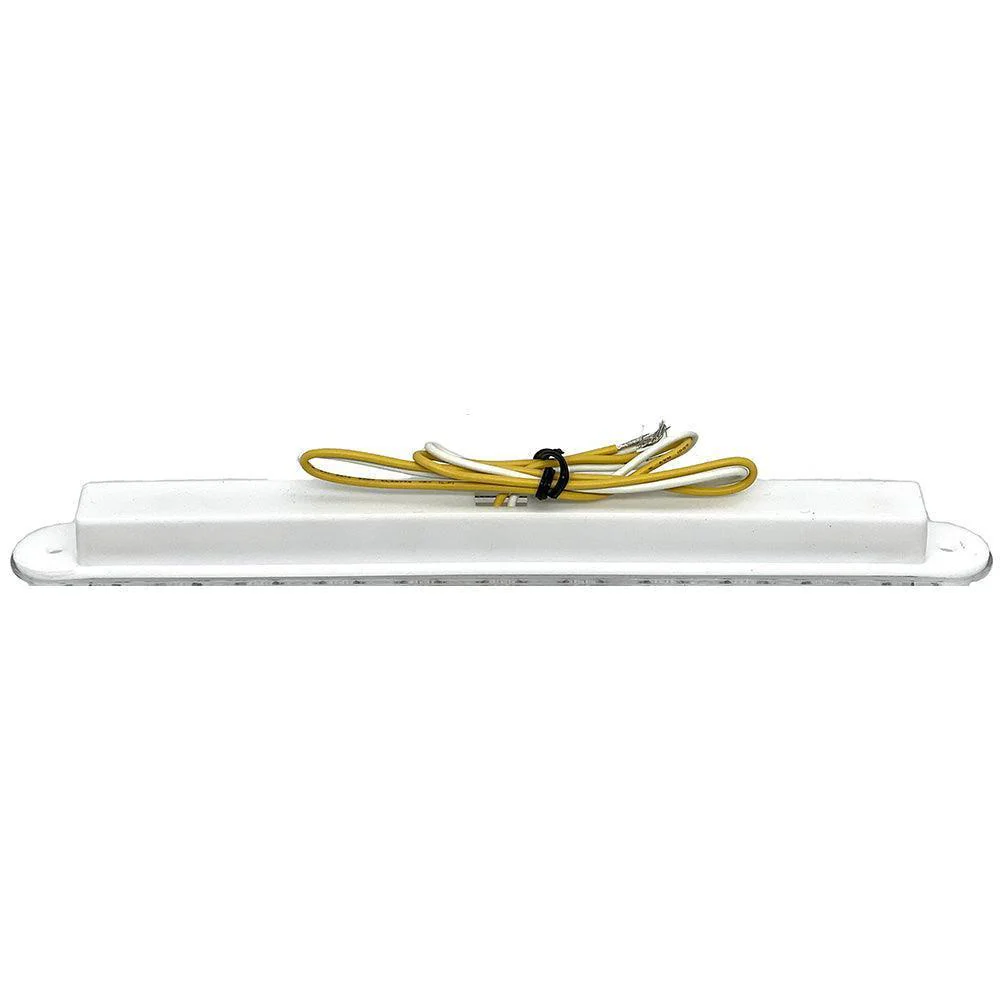

Supplied with a removable white silicone gasket / rear cover for weatherproofing.

Here's the clever bit. They're slightly concave by just a few millimetres so that, as you screw them in place they seal in the middle first then at the ends as you tighten the screws.

24mm high.

5mm front projection.

18mm overall depth.

237mm long.

Two 4mm fixing holes at 214mm centres.

Fits in a cut-out 202mm x 18mm.

WIRING: White - Earth. Yellow - +12V

237mm SEQUENCING LED CLEAR LENS INDICATOR LED #LEDIND237SC
