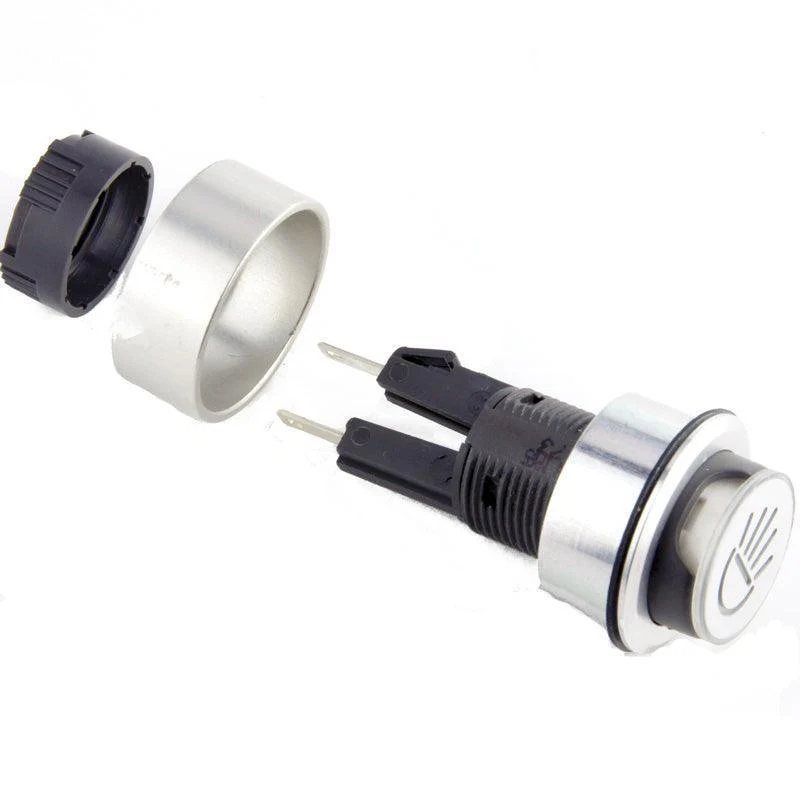

Here we have our Natural Finish Billet Aluminium Switches, these superb CNC alloy switches are finished in to incredible quality with a removable 10mm wide alloy collar which allows for flush mounting and IVA compliance.

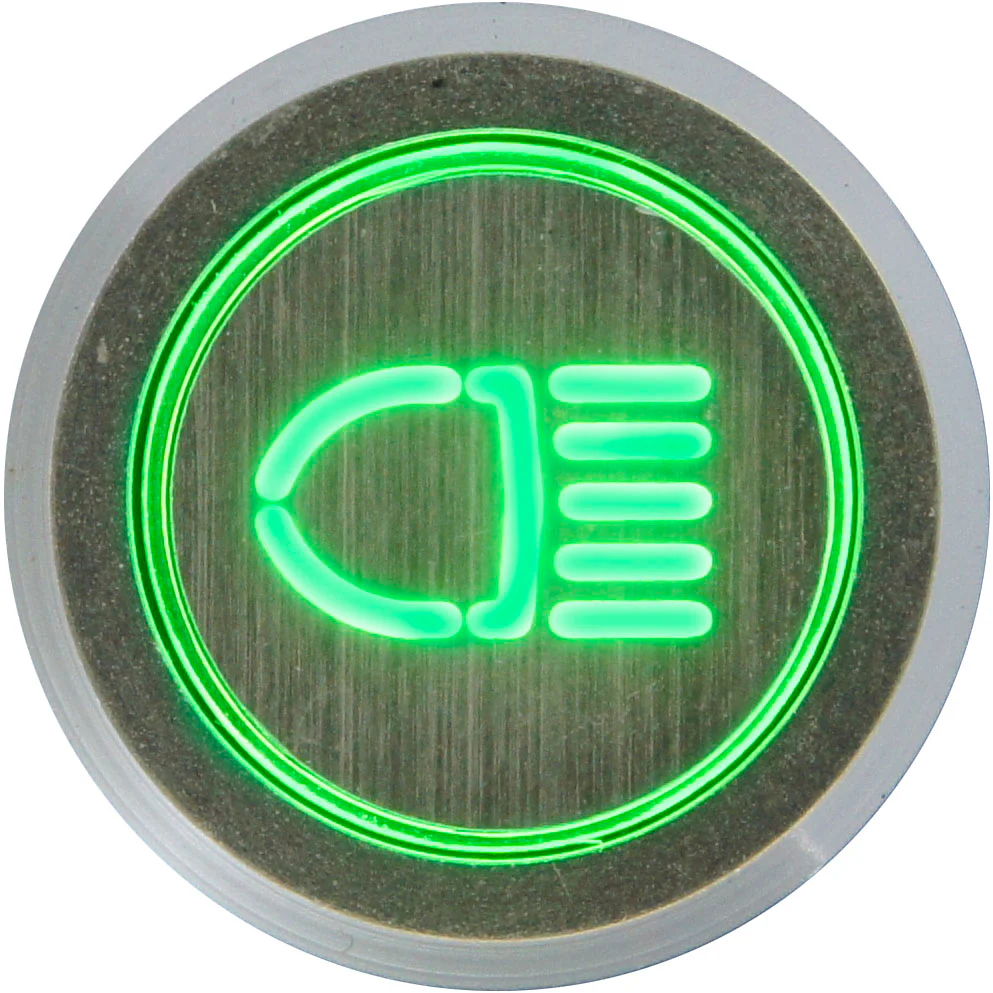

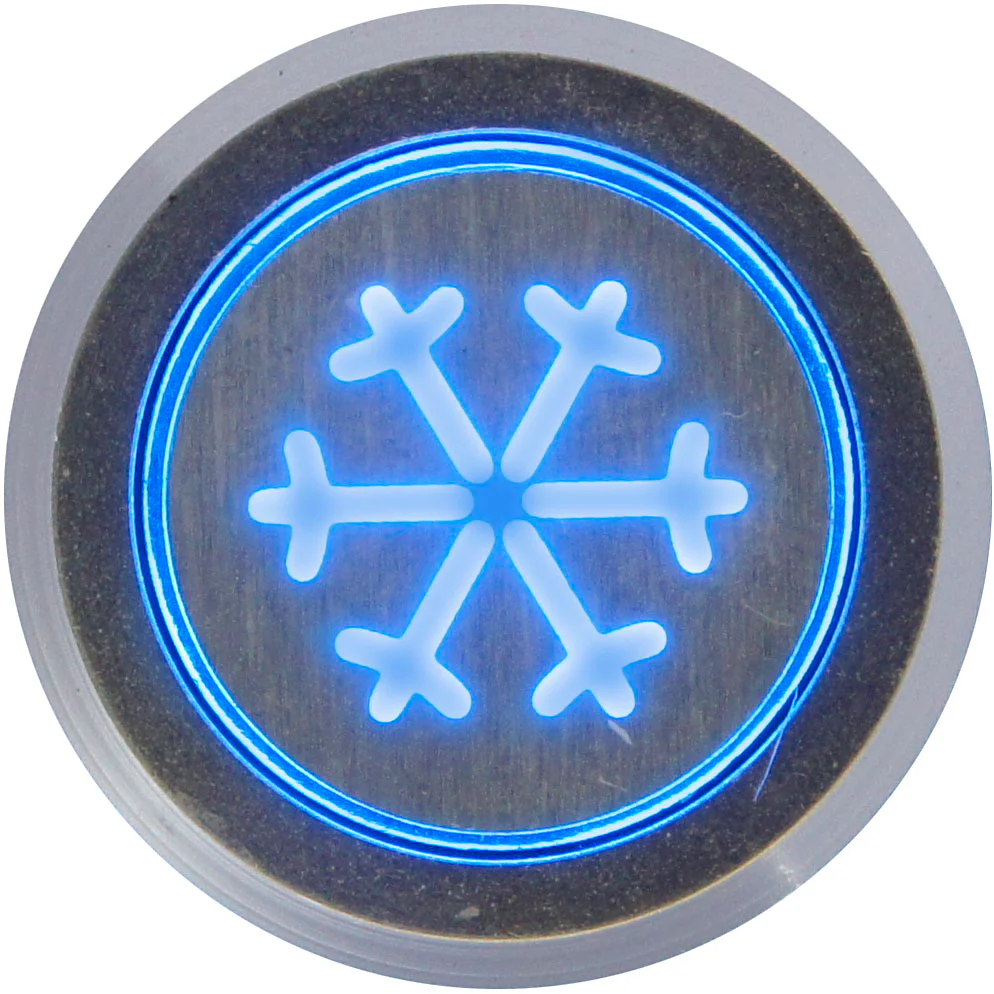

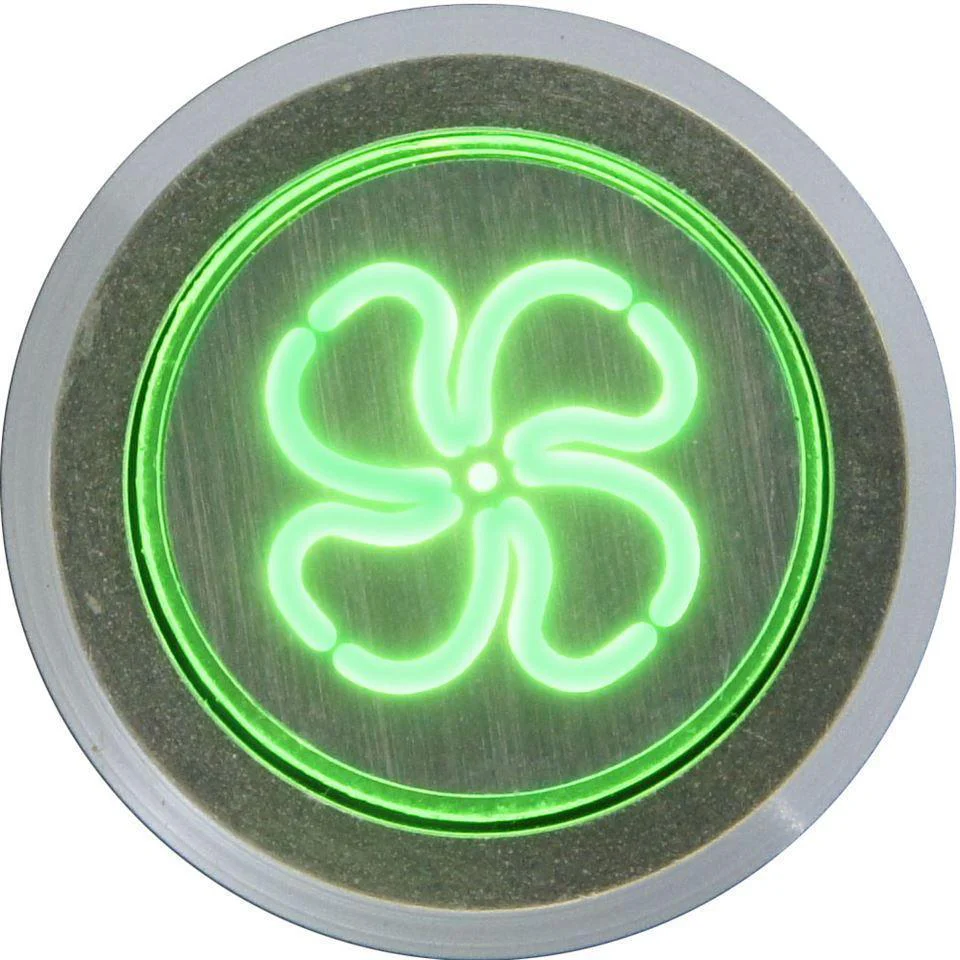

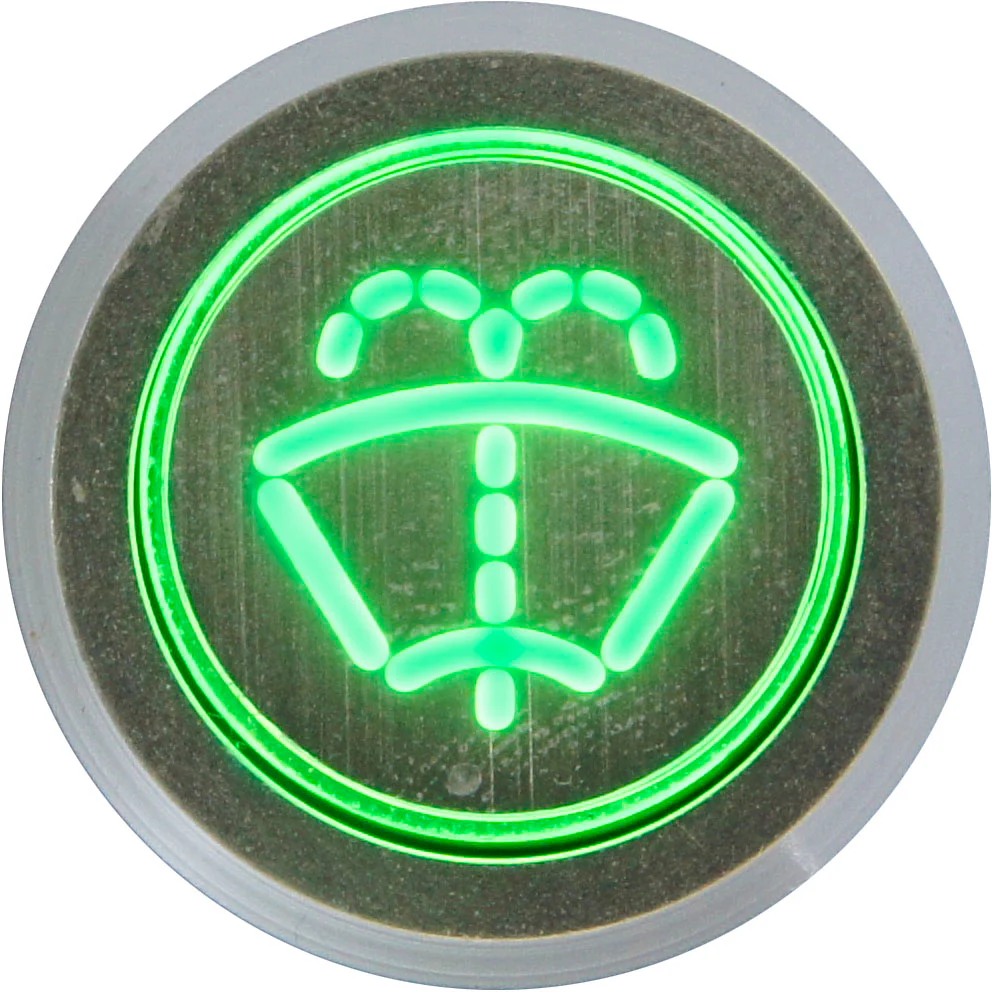

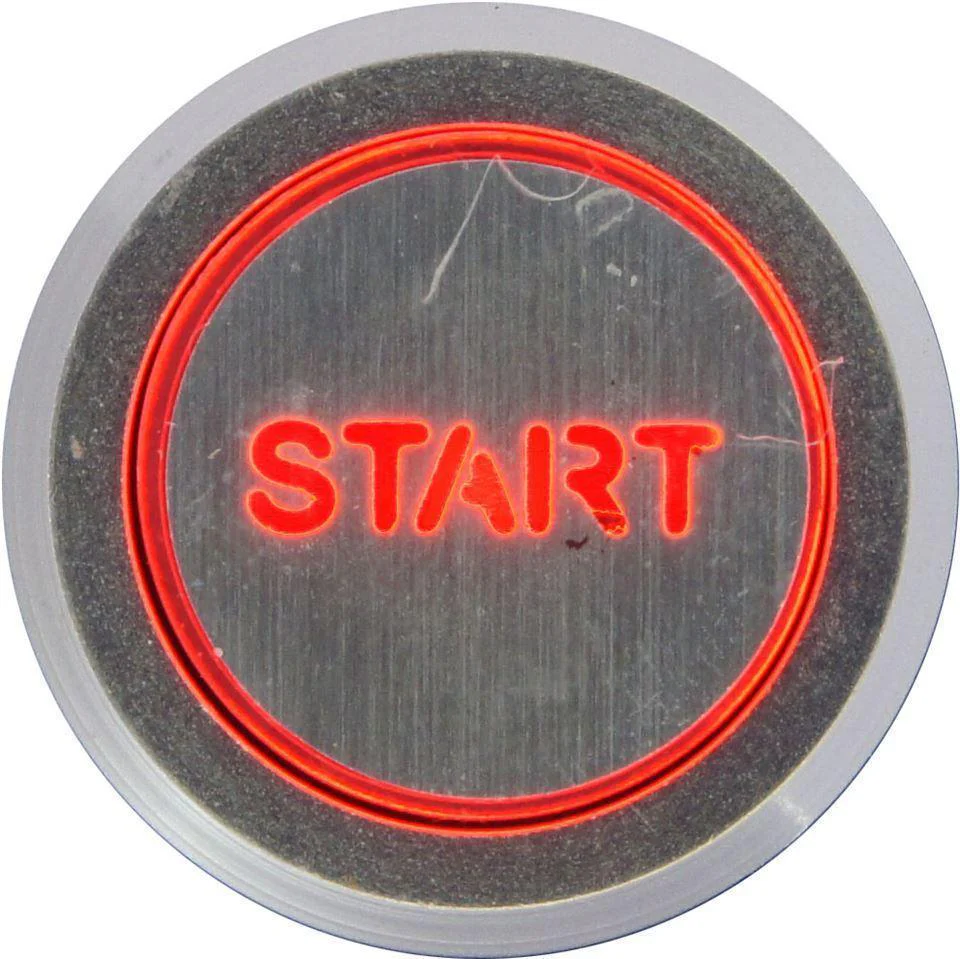

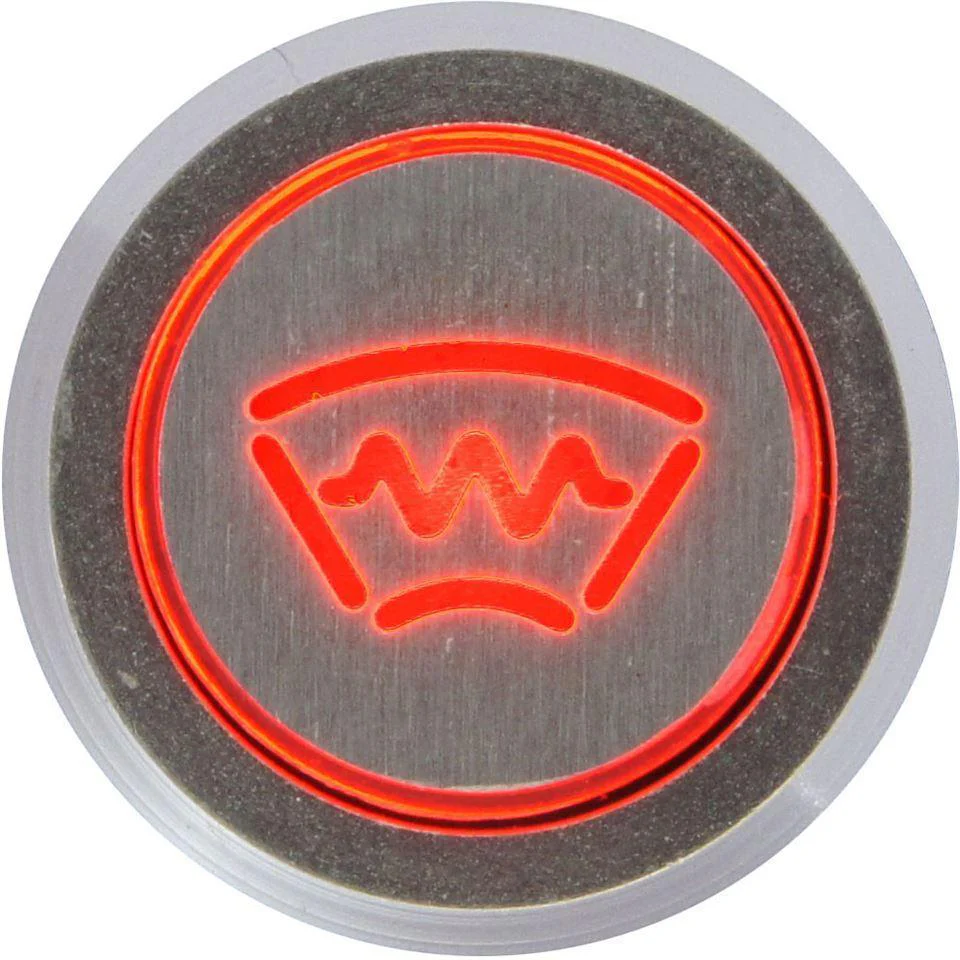

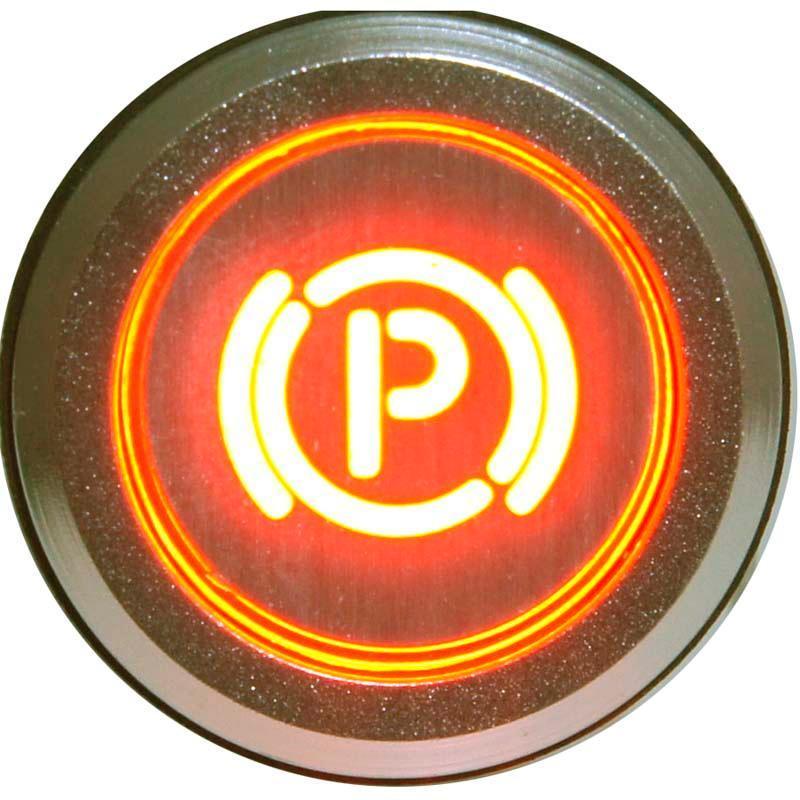

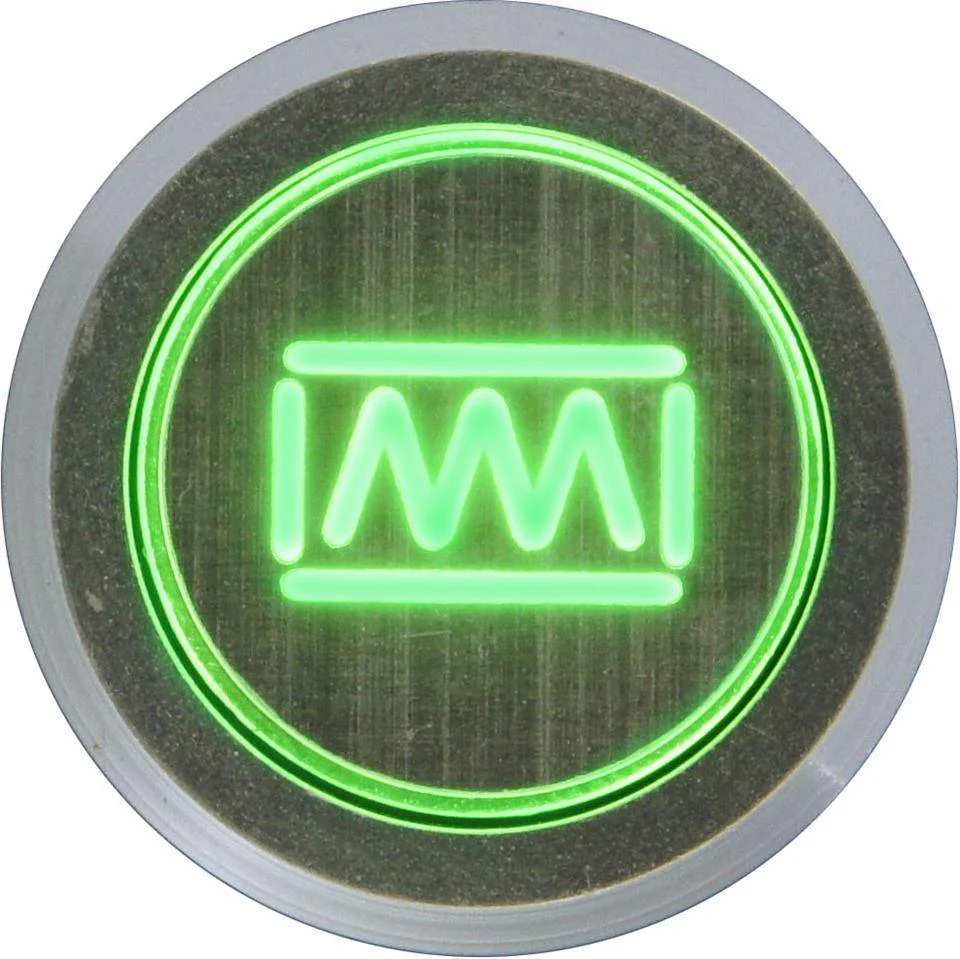

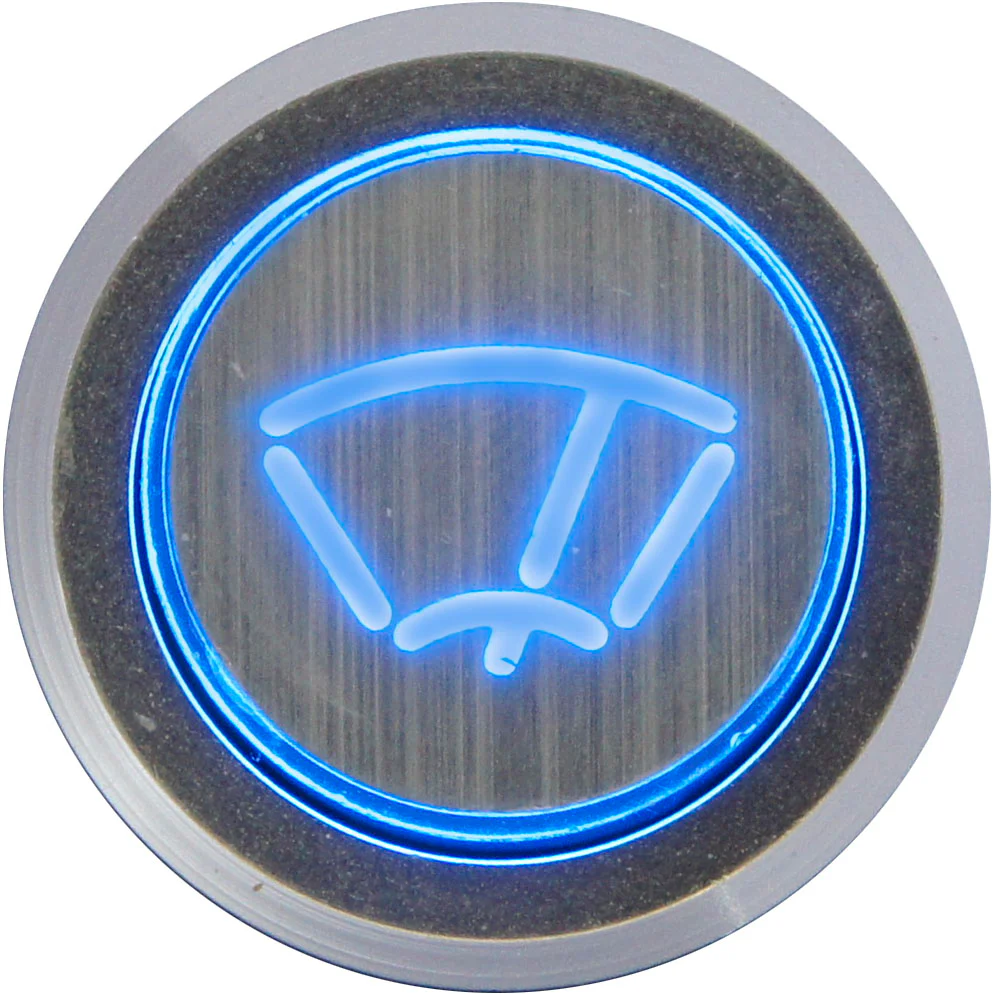

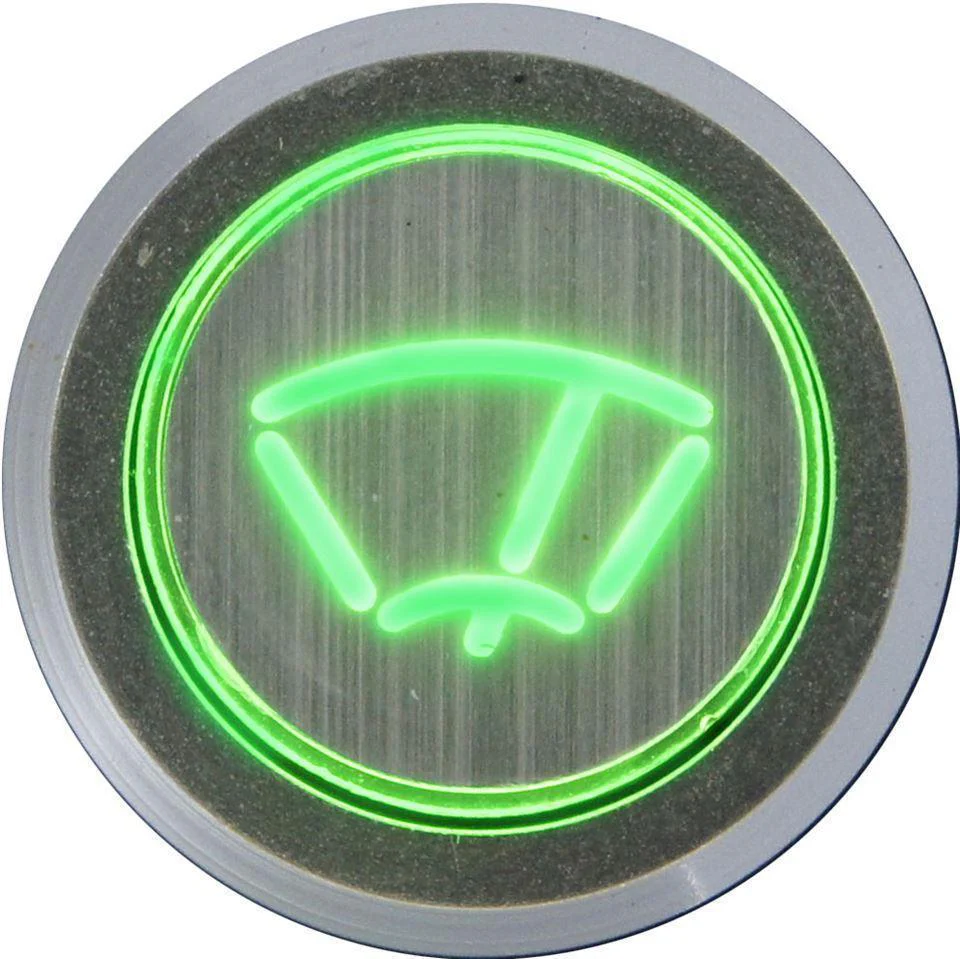

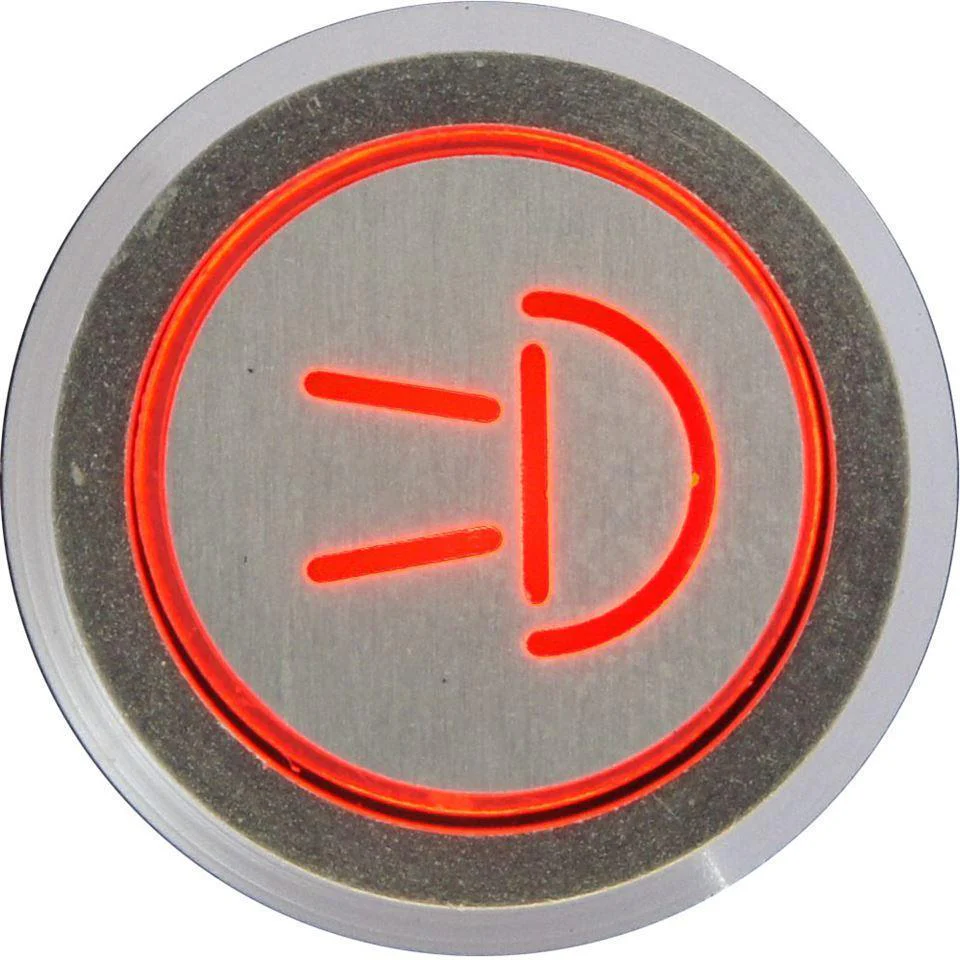

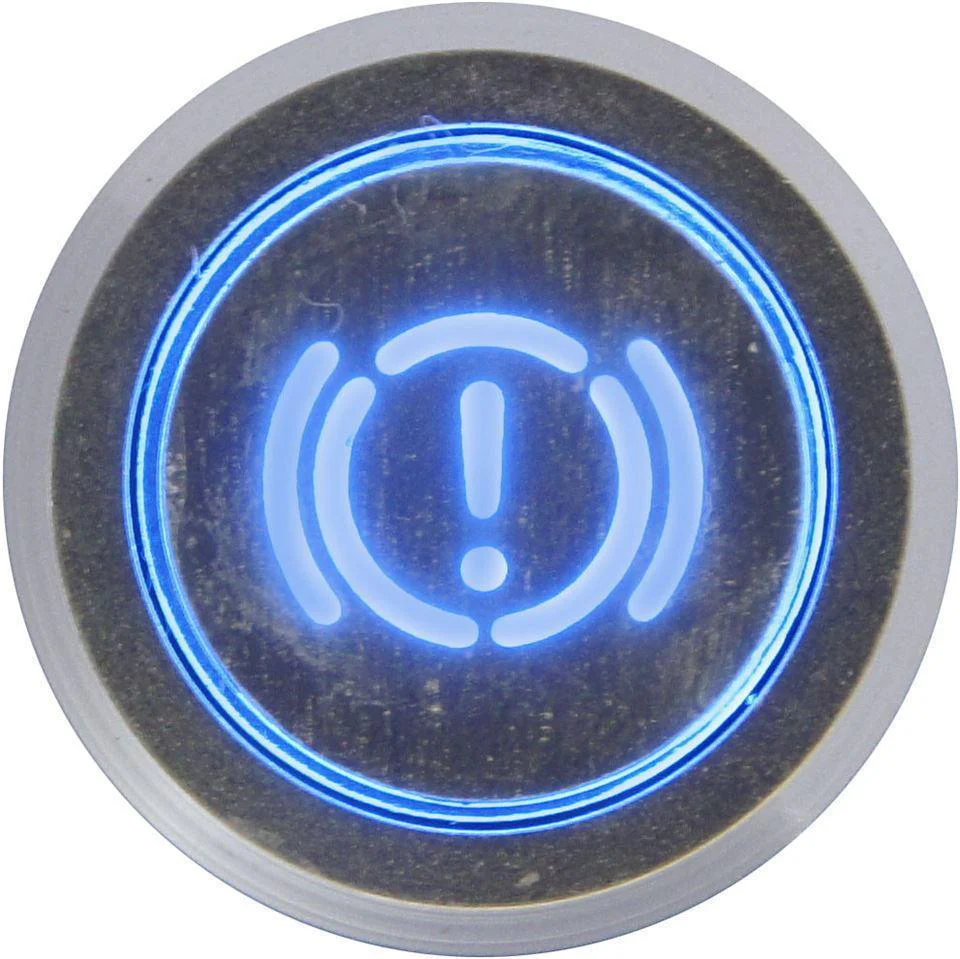

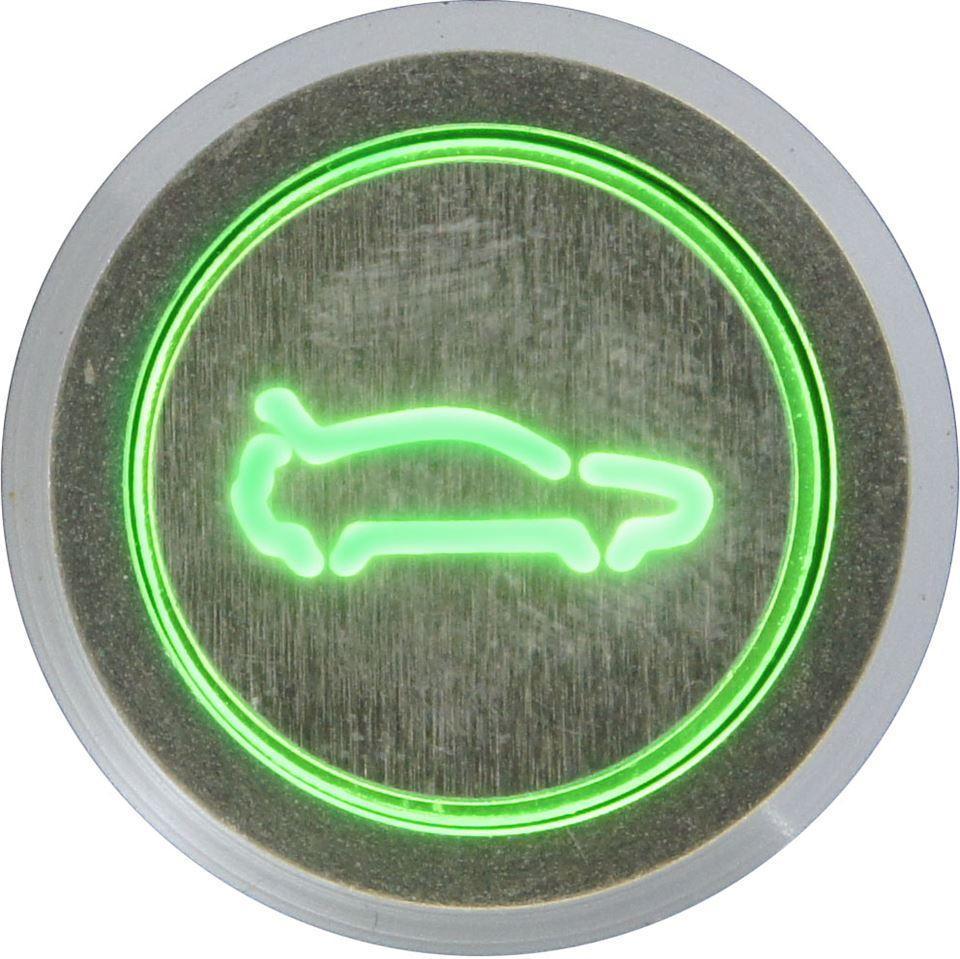

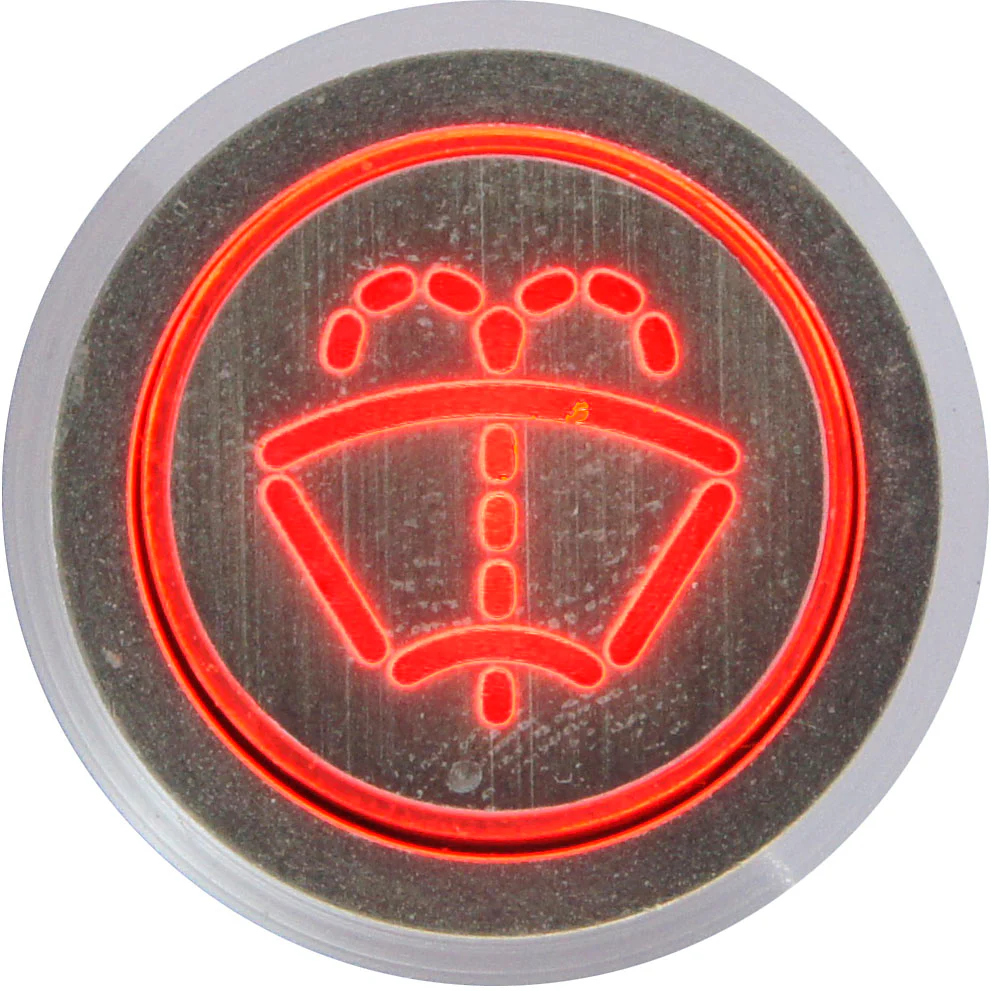

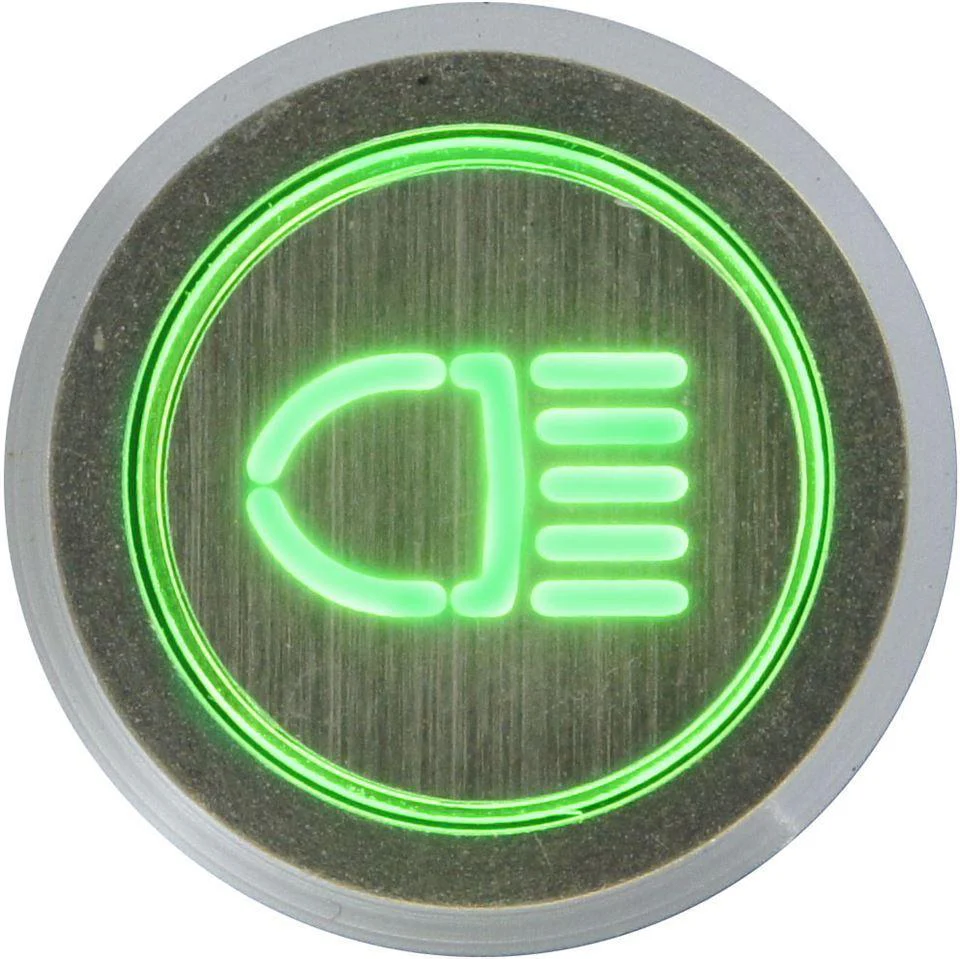

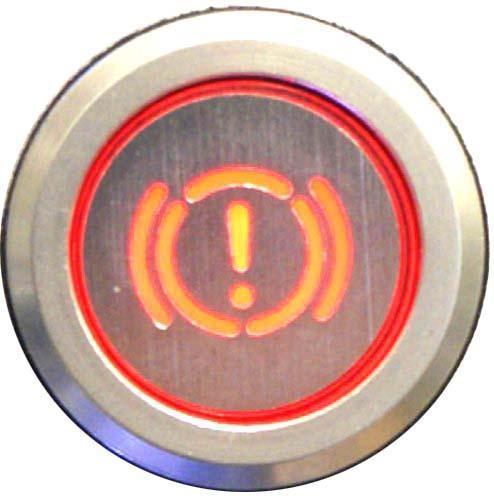

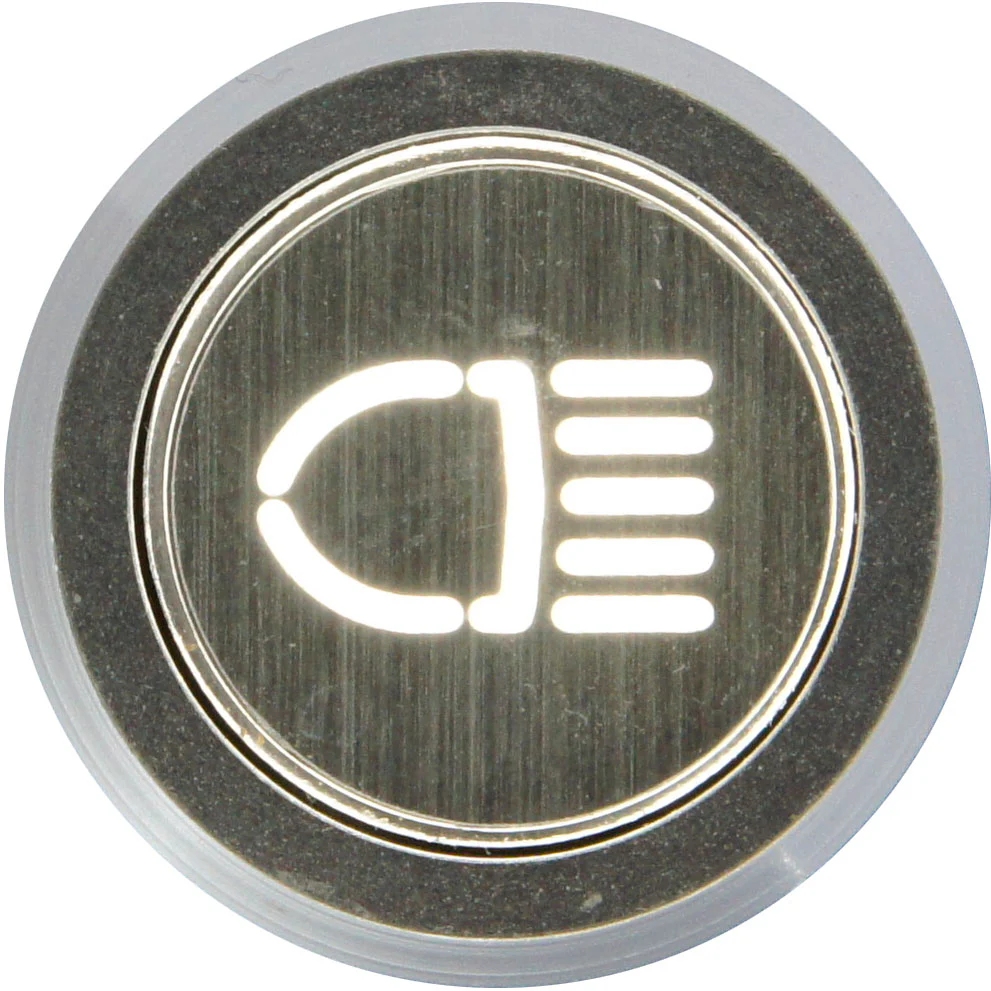

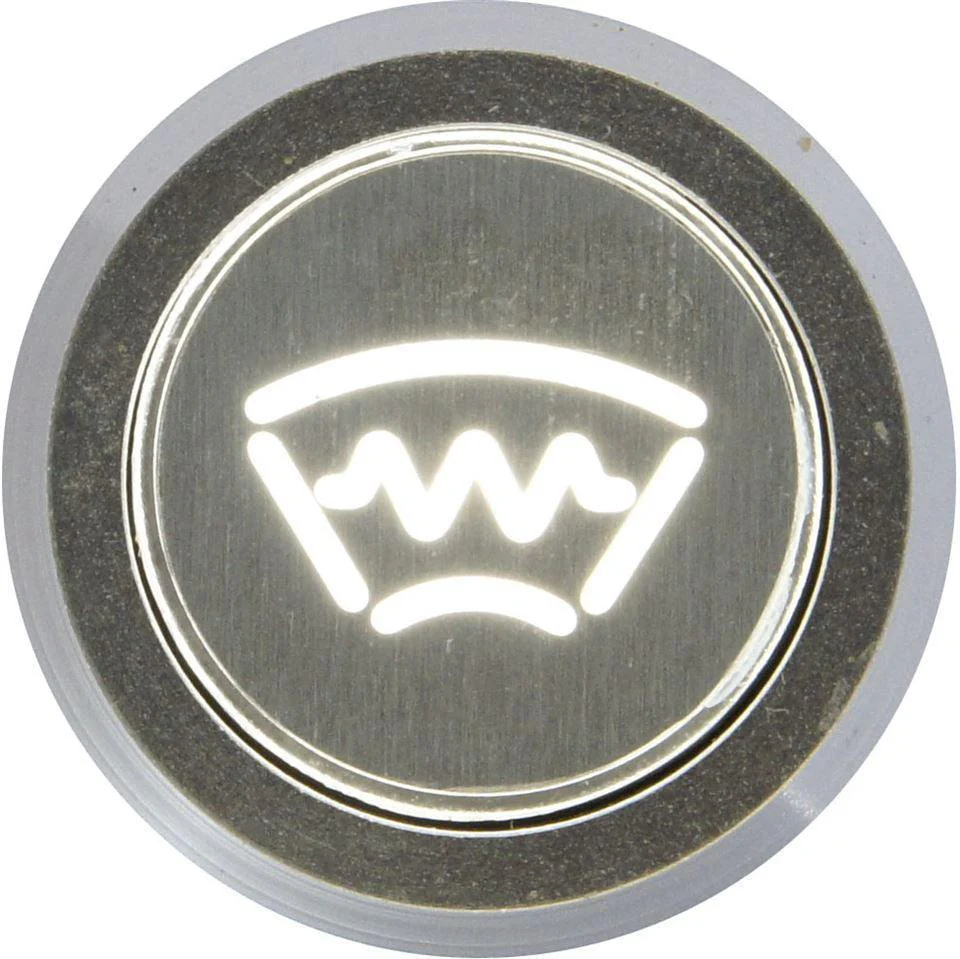

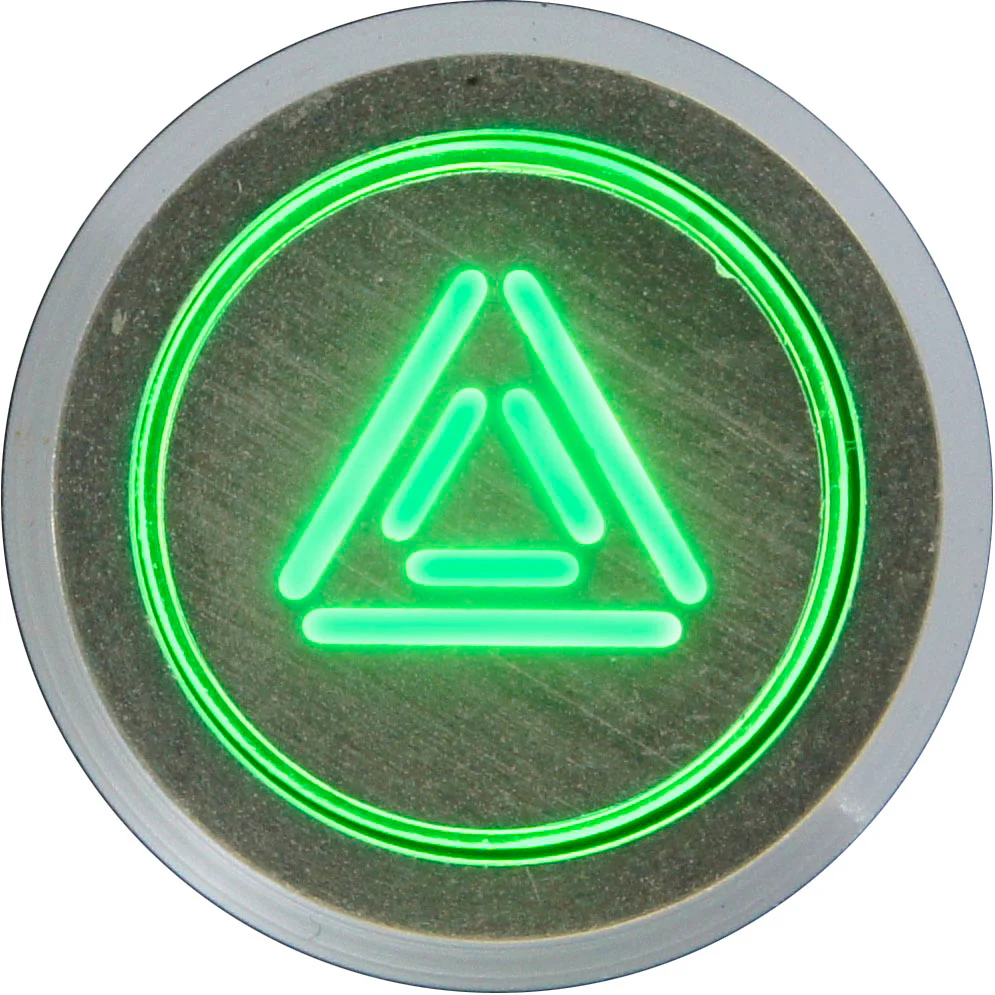

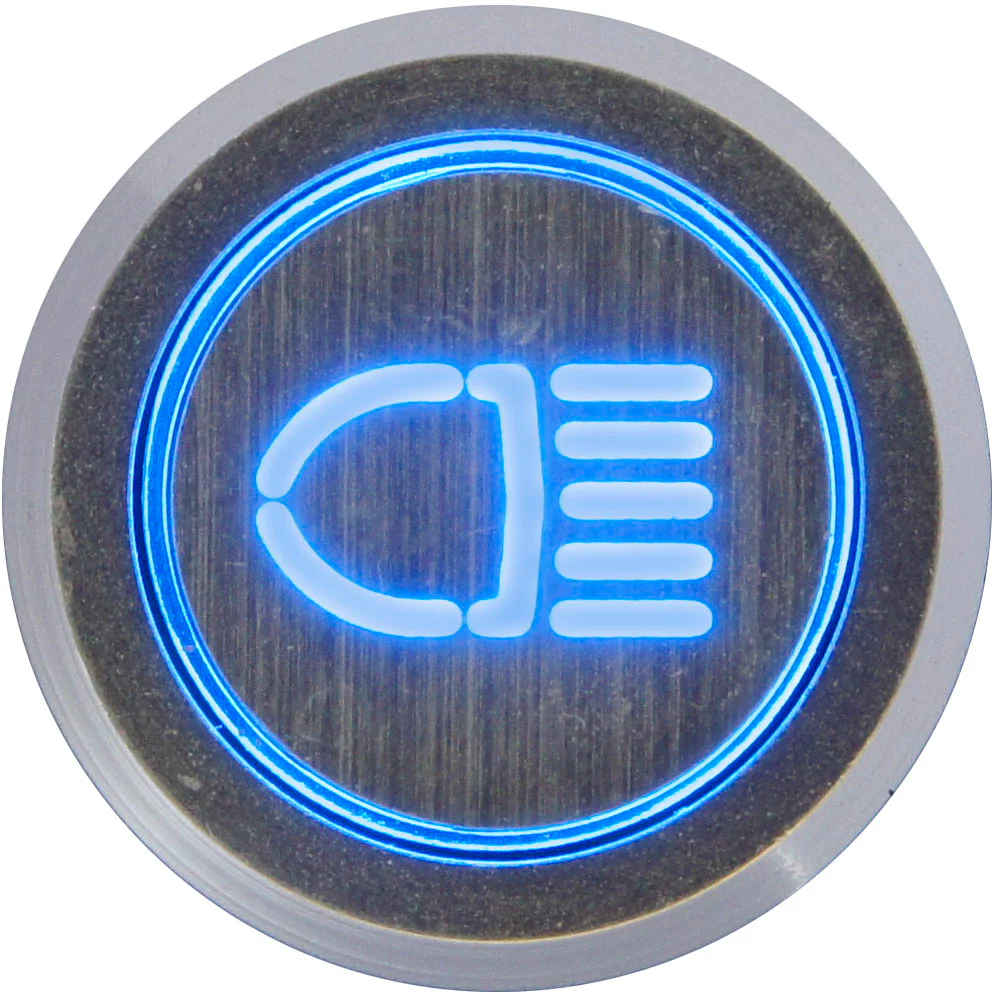

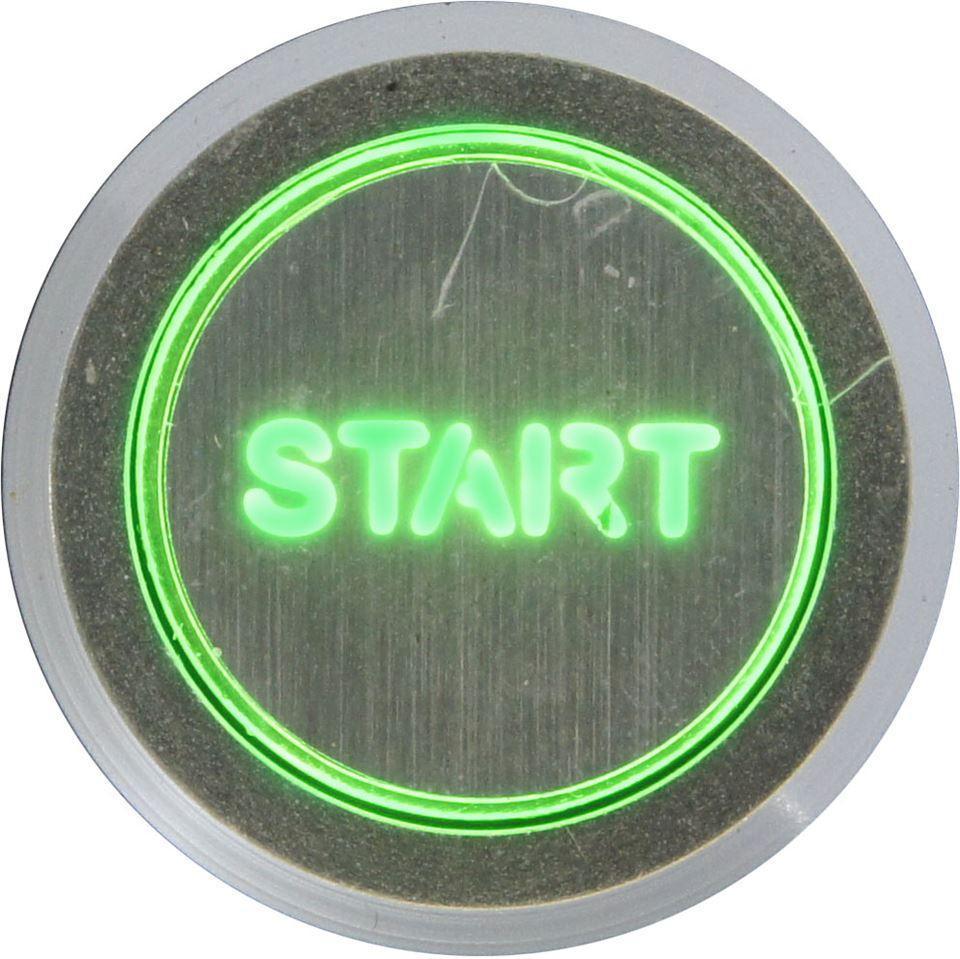

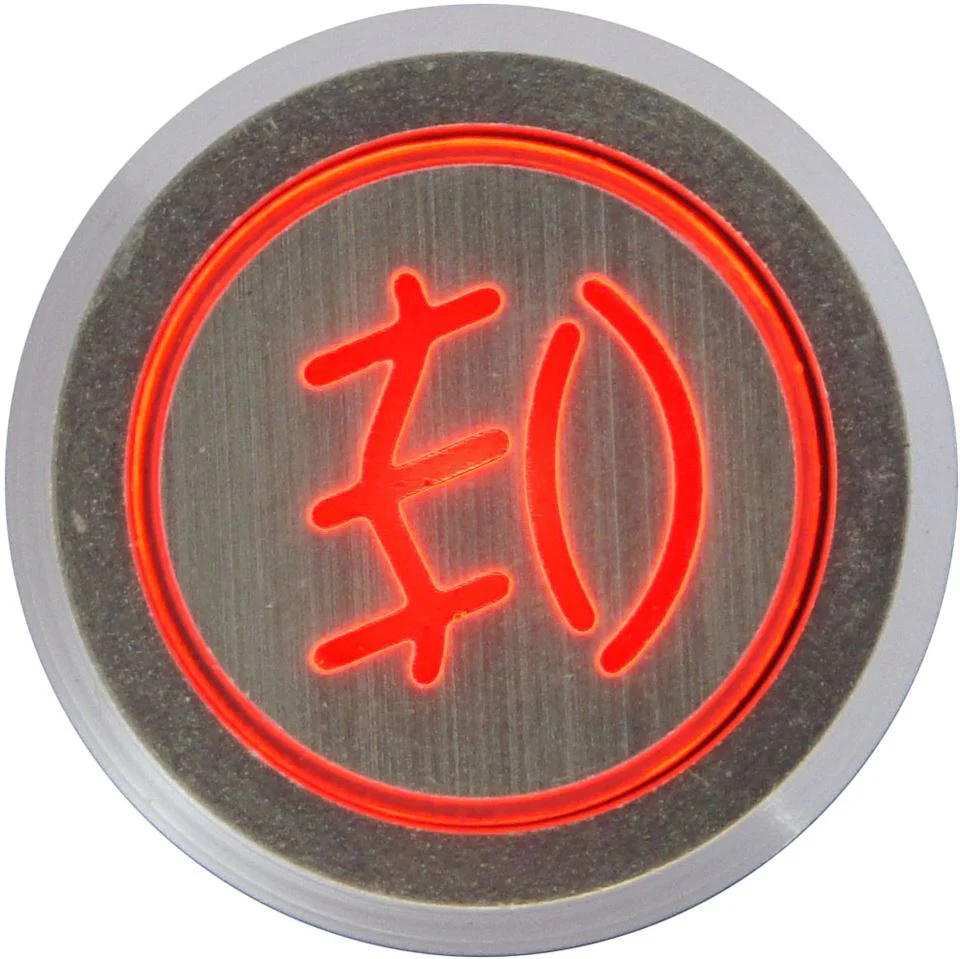

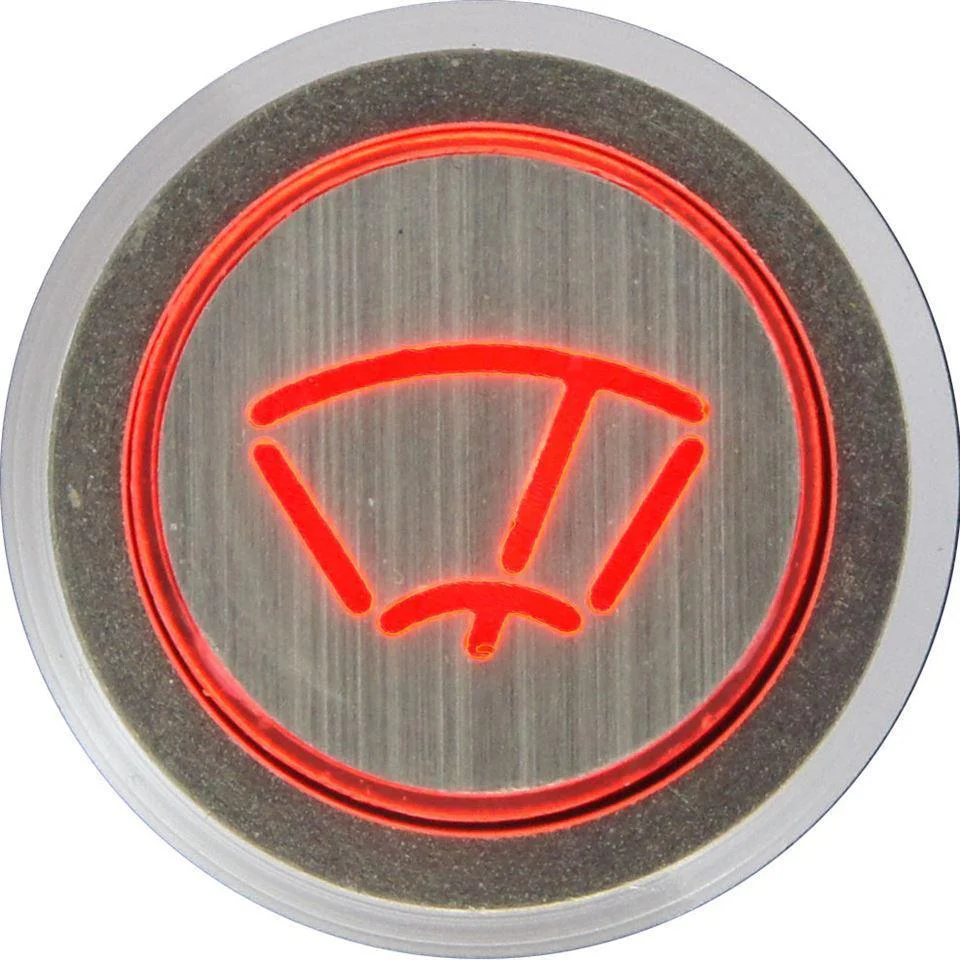

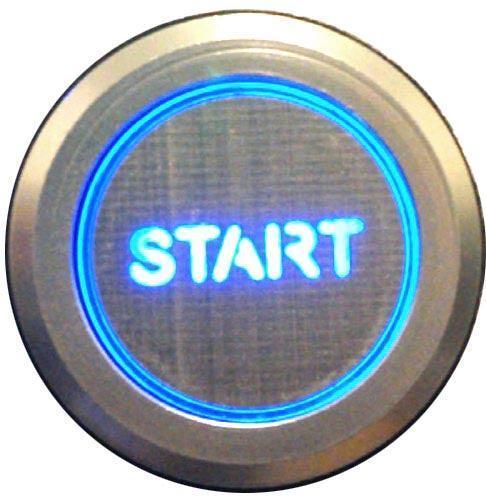

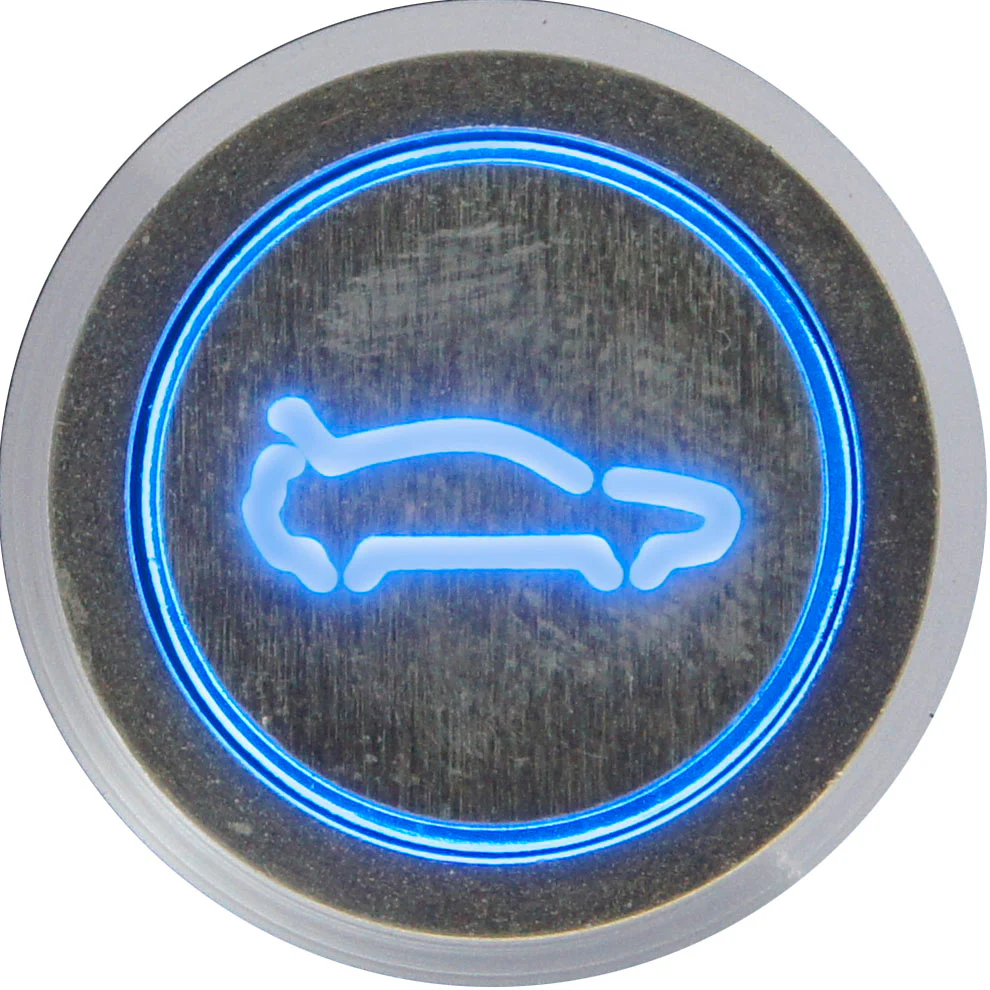

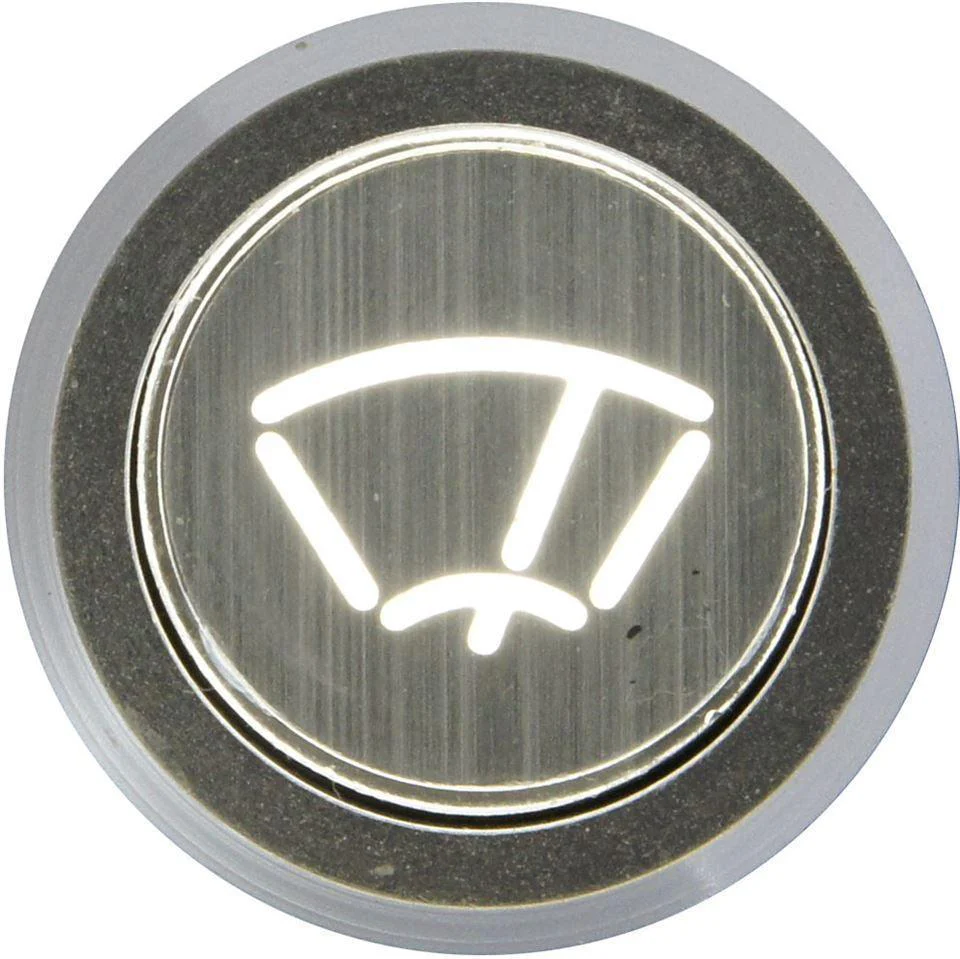

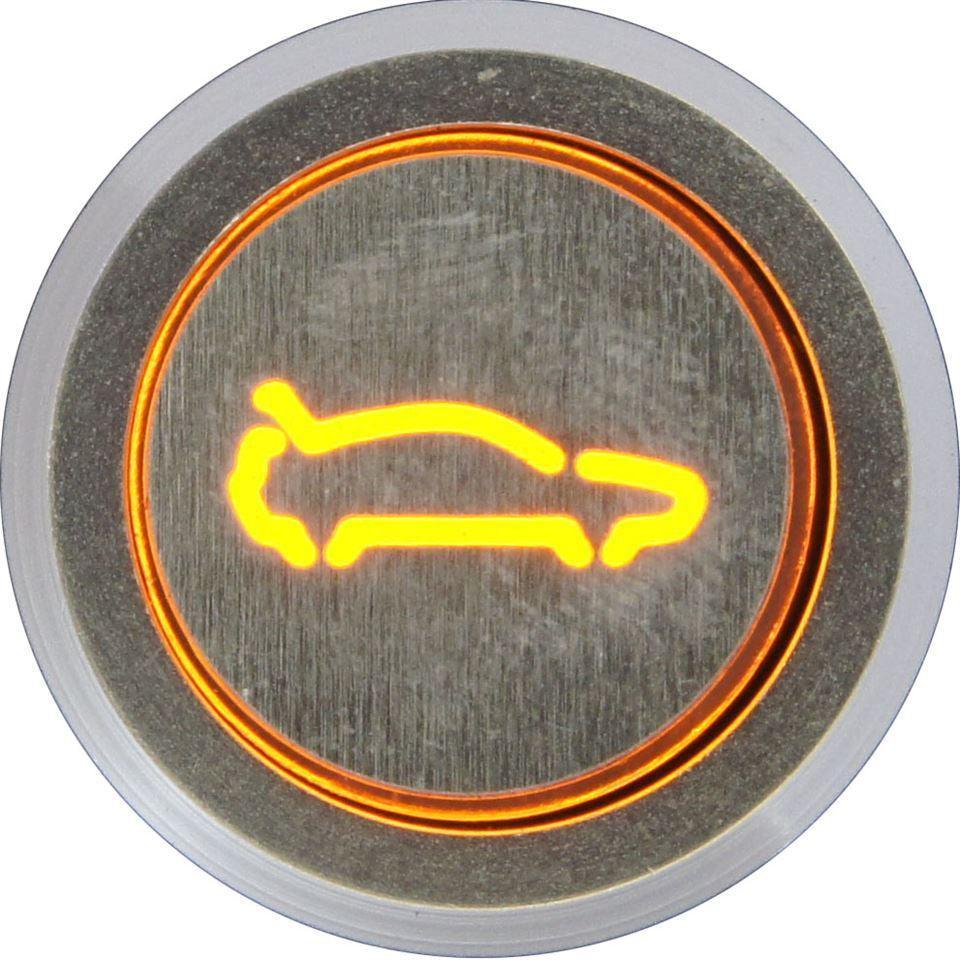

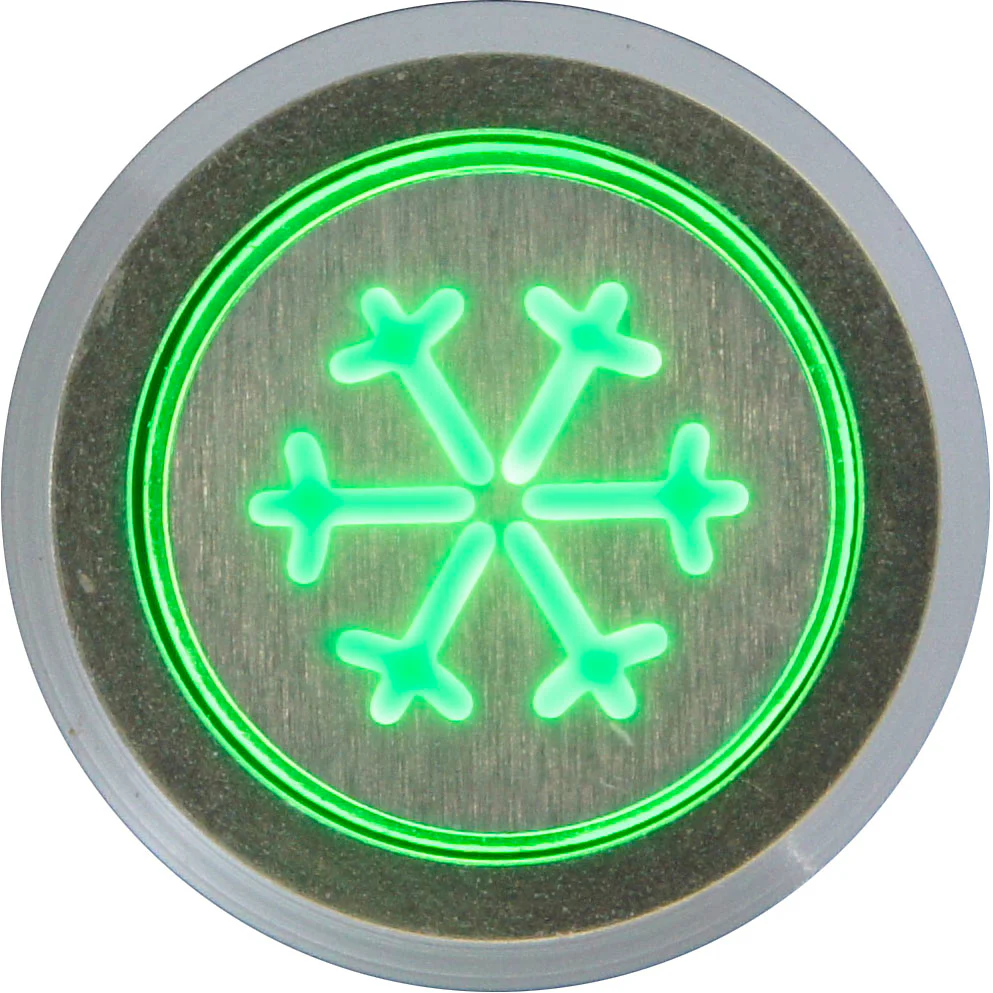

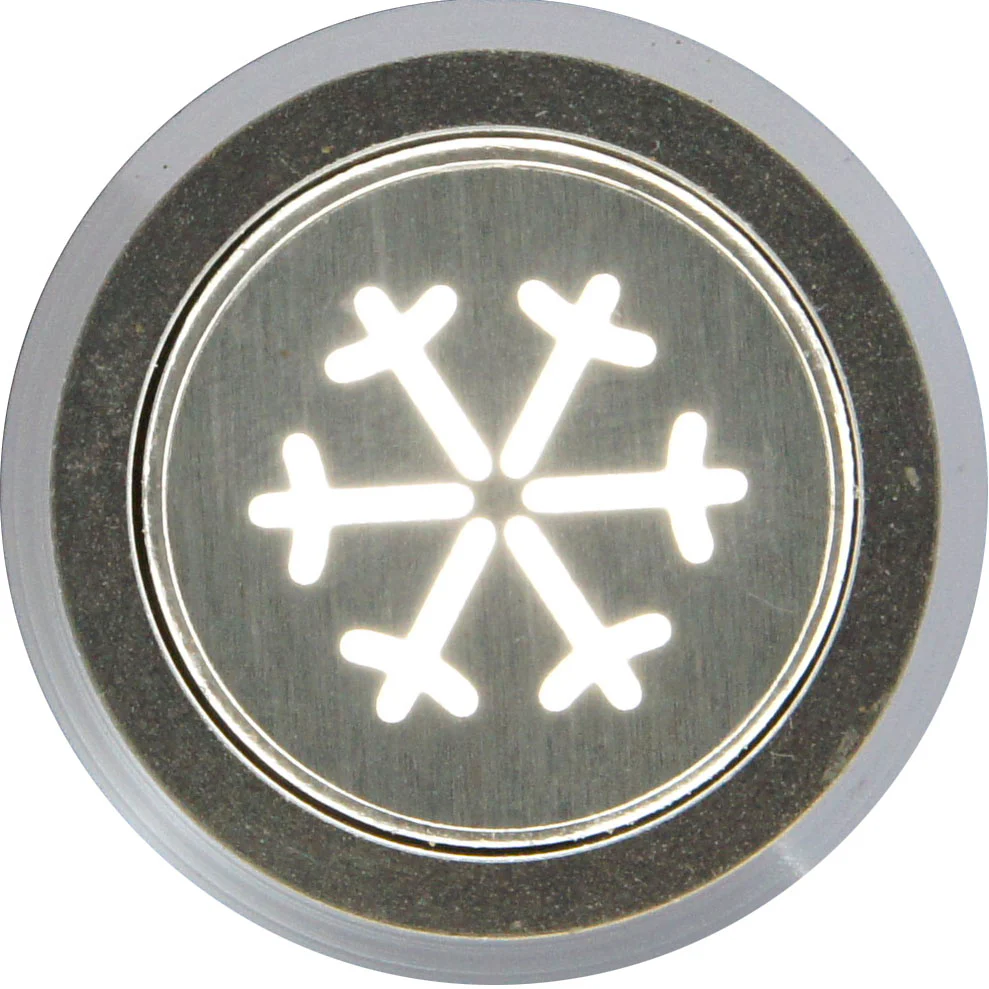

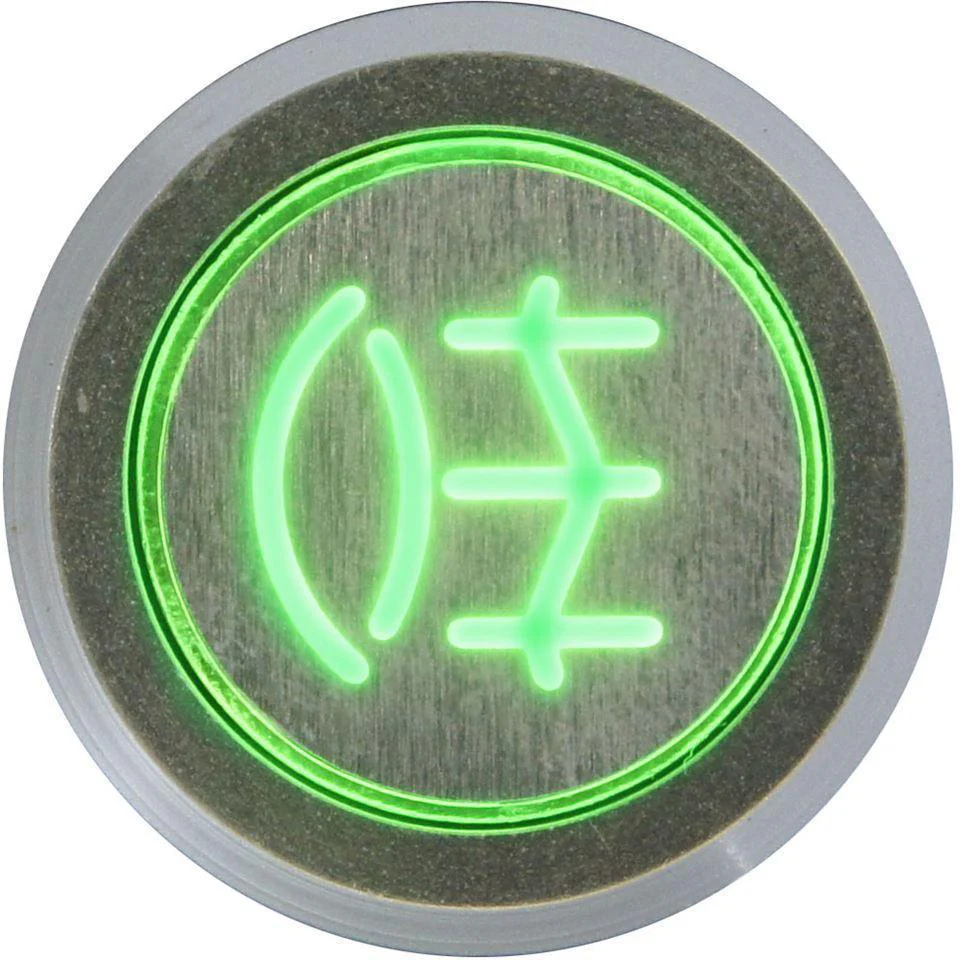

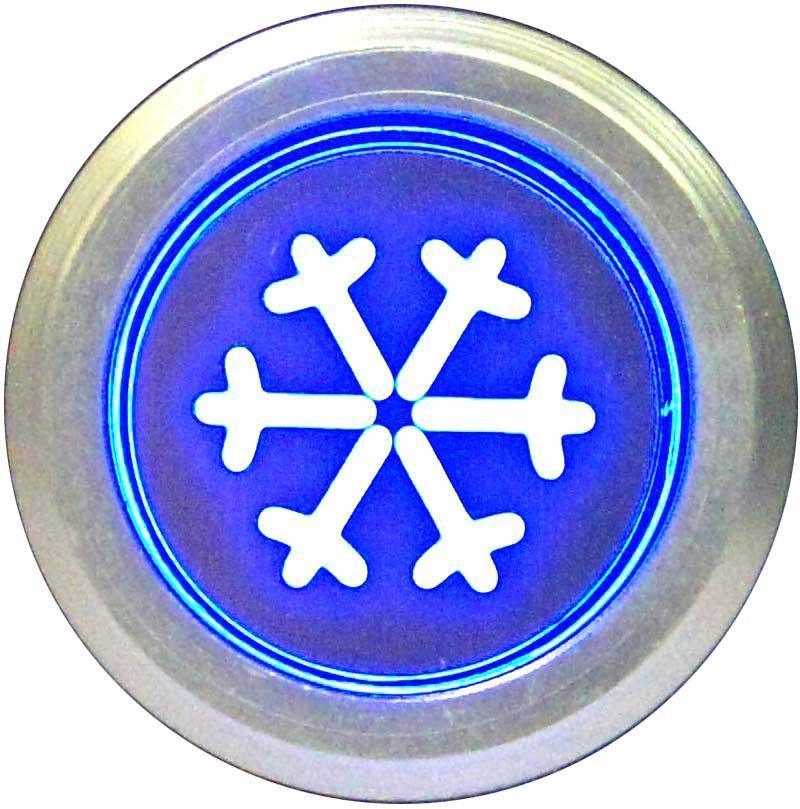

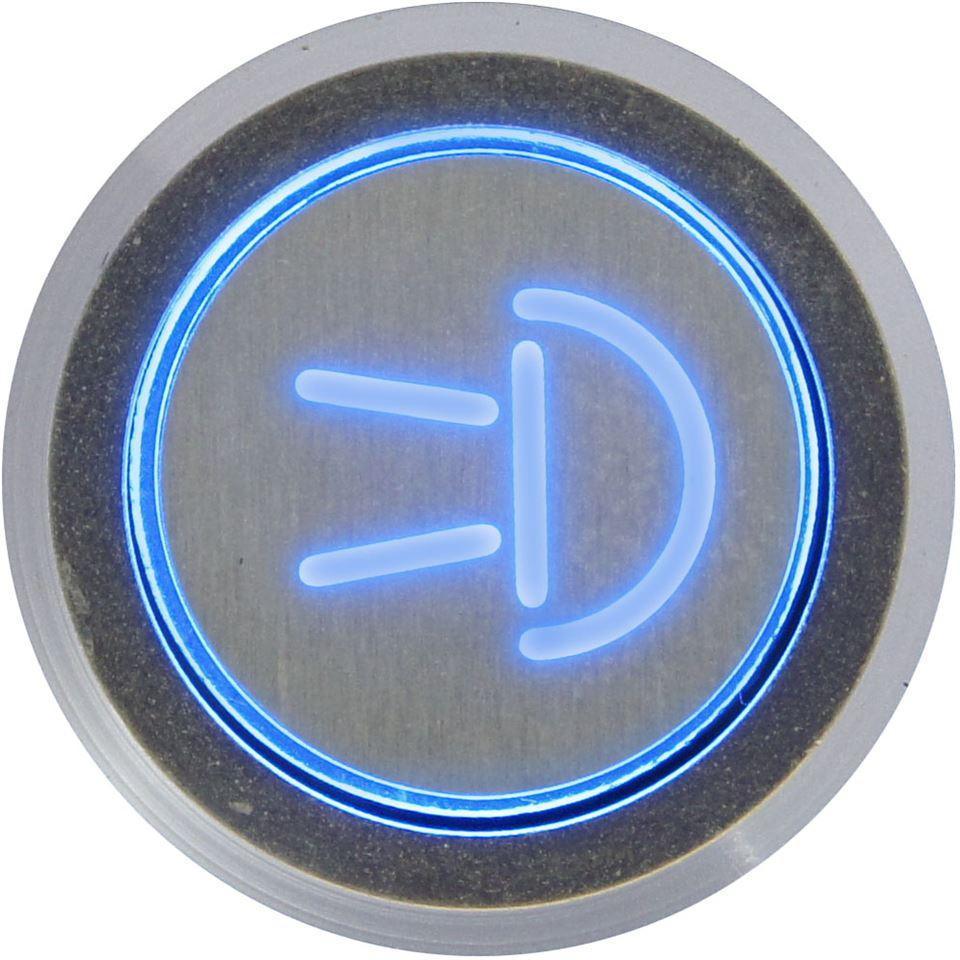

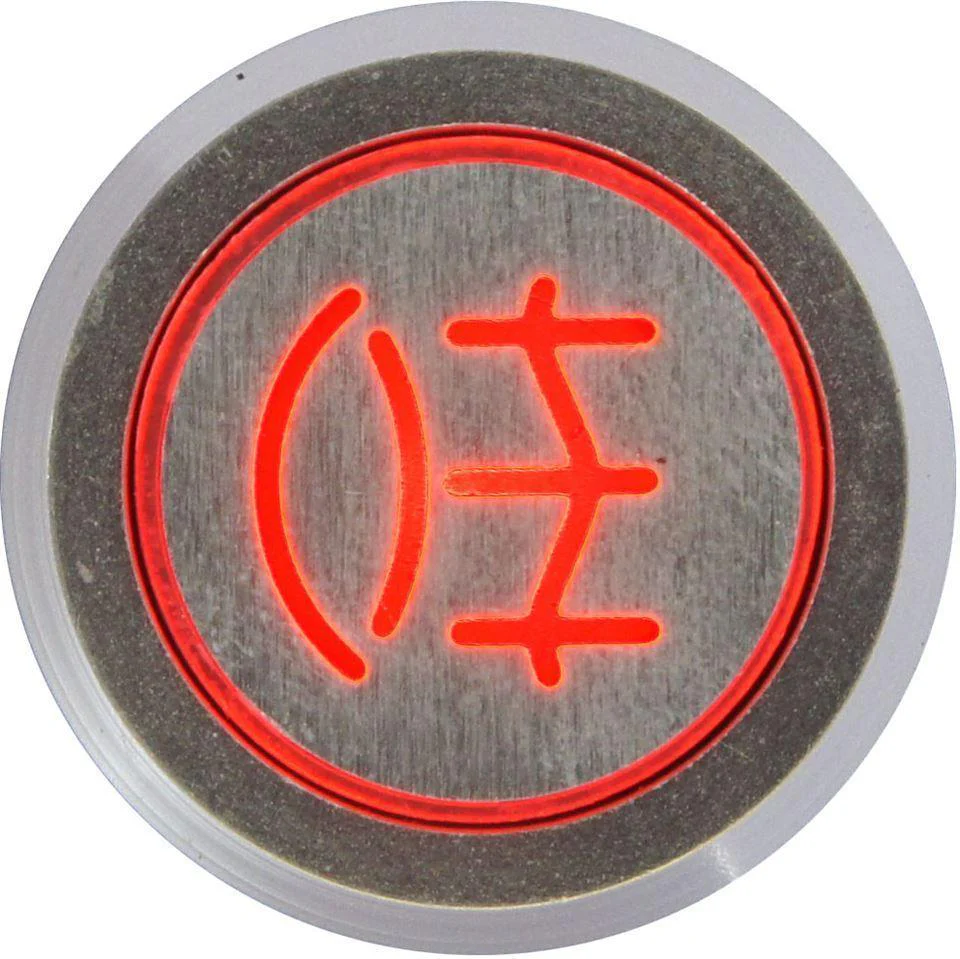

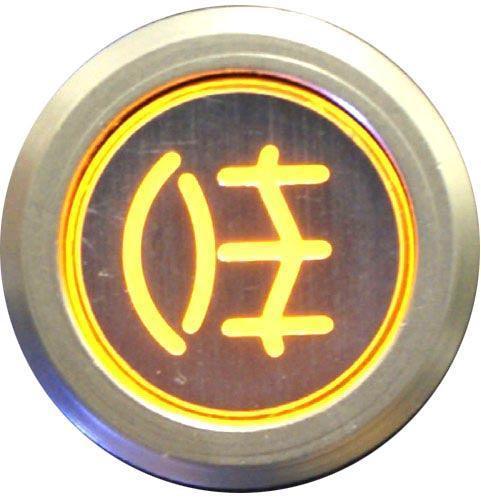

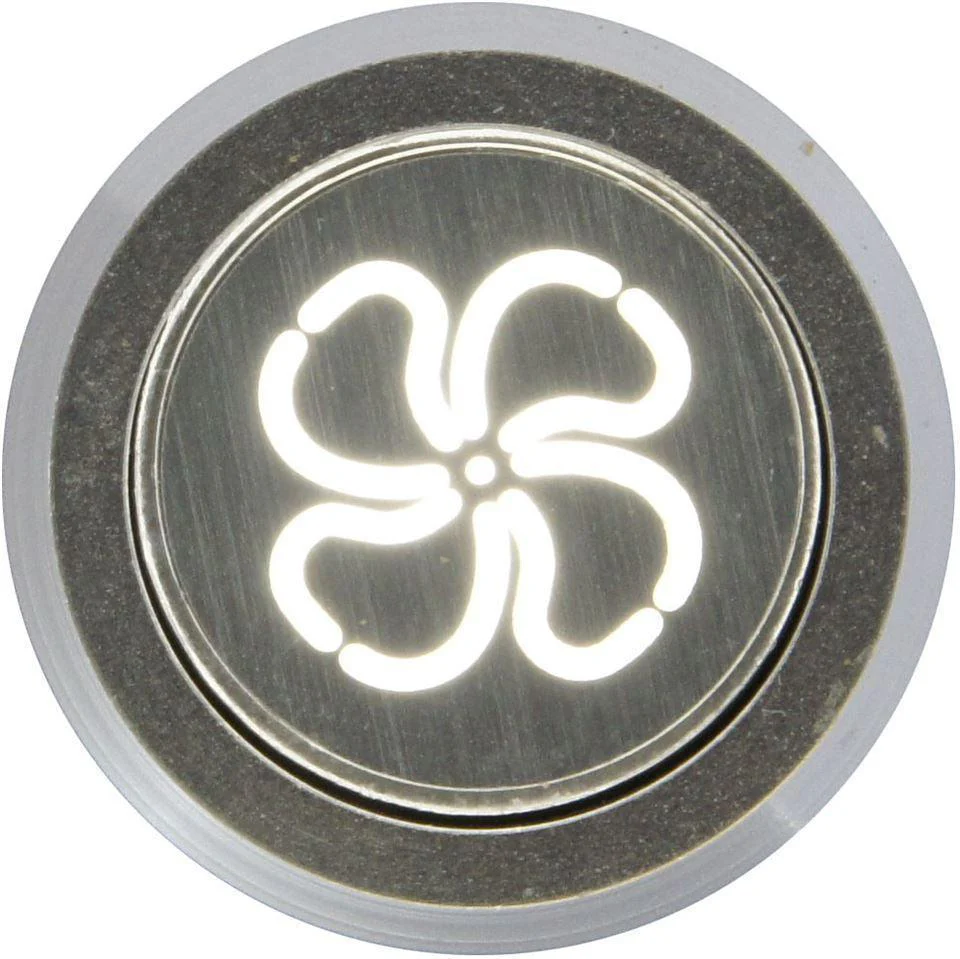

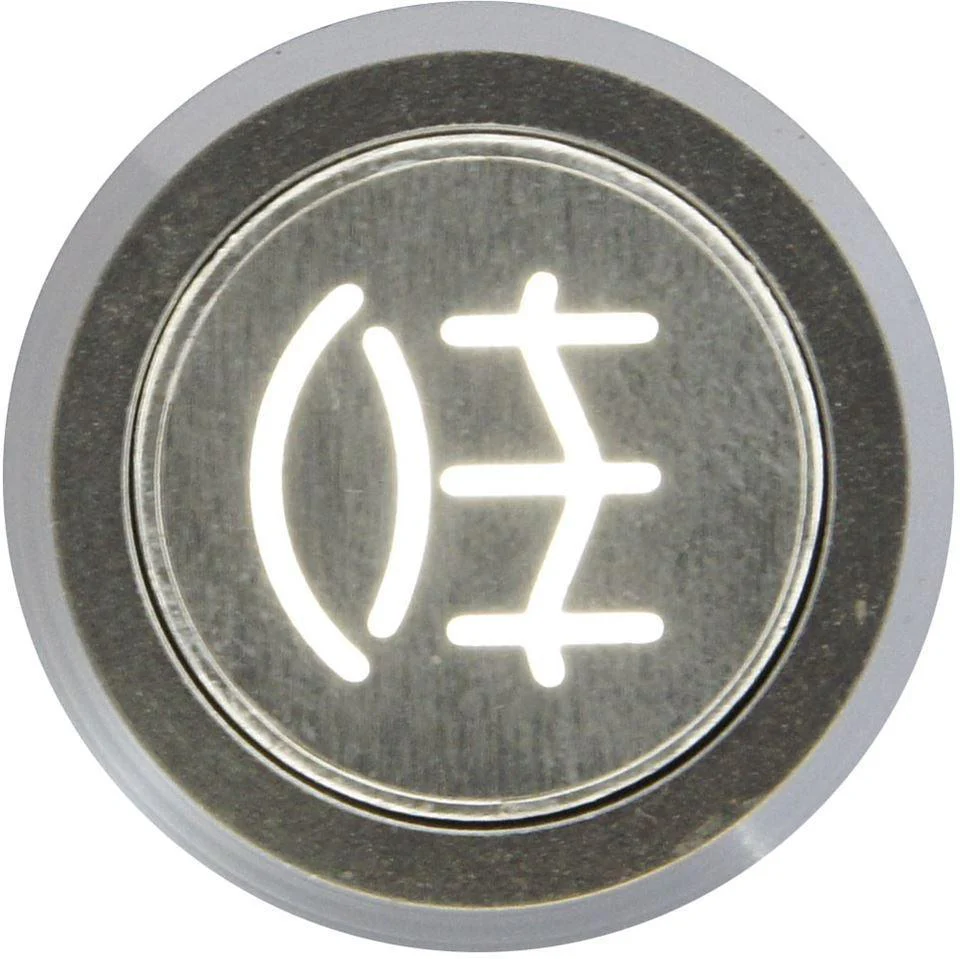

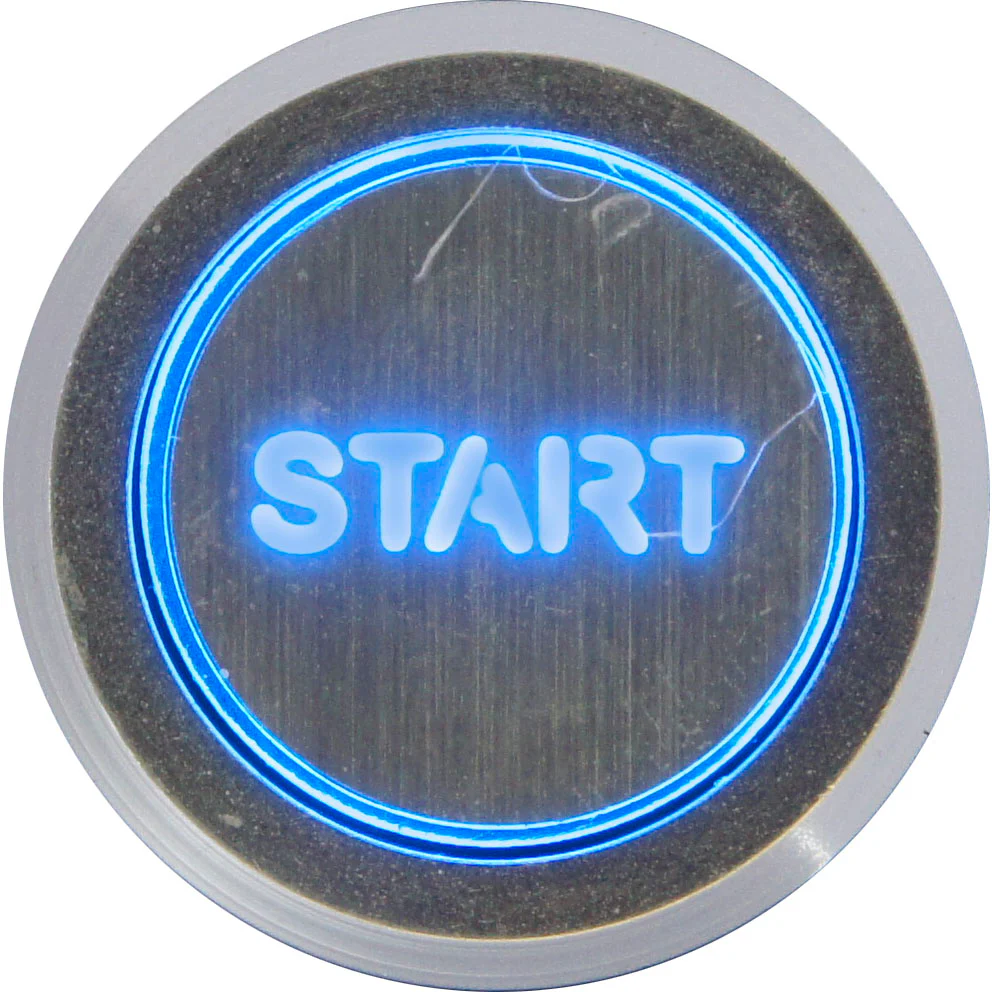

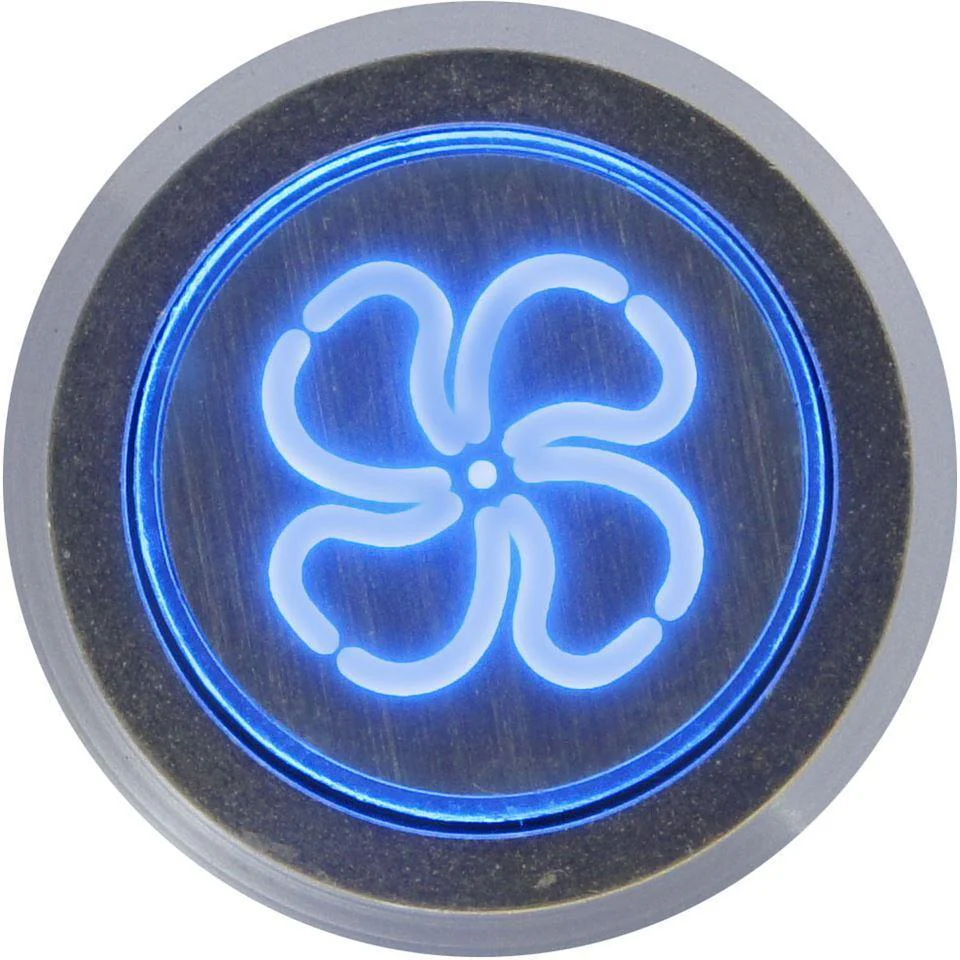

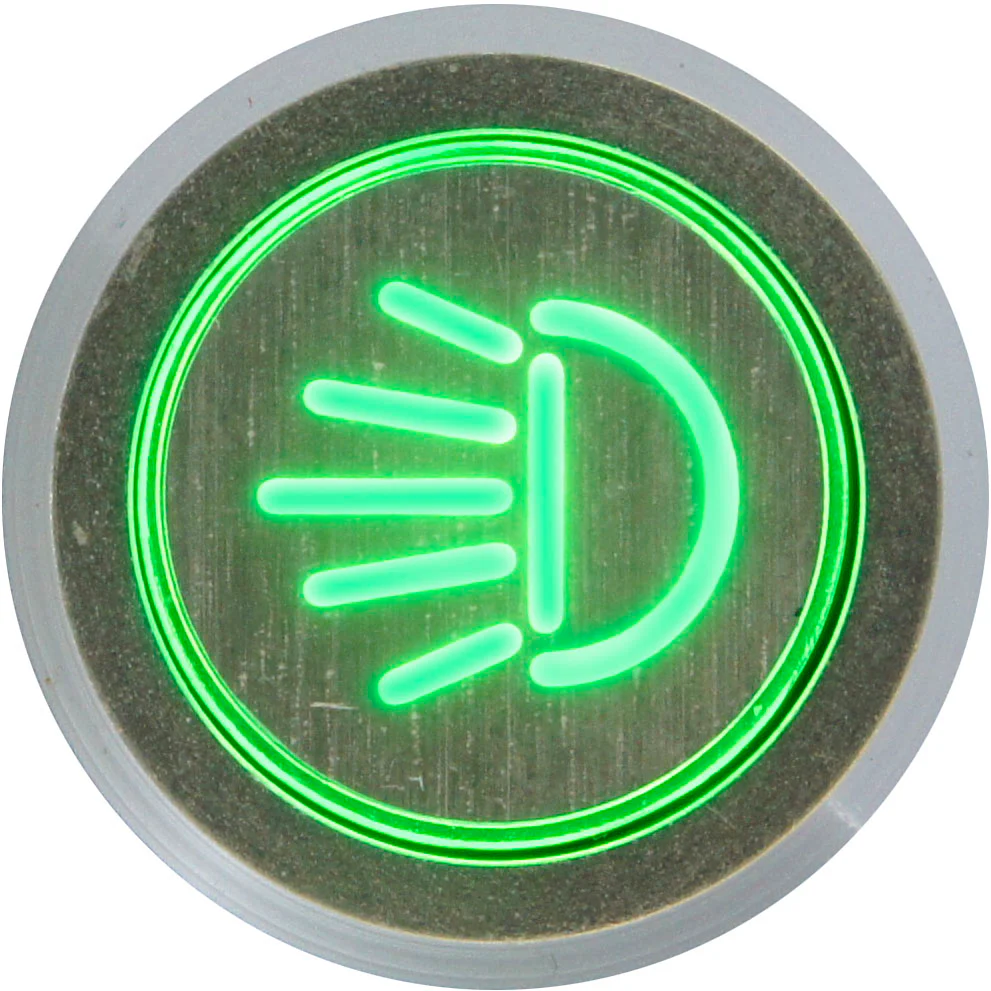

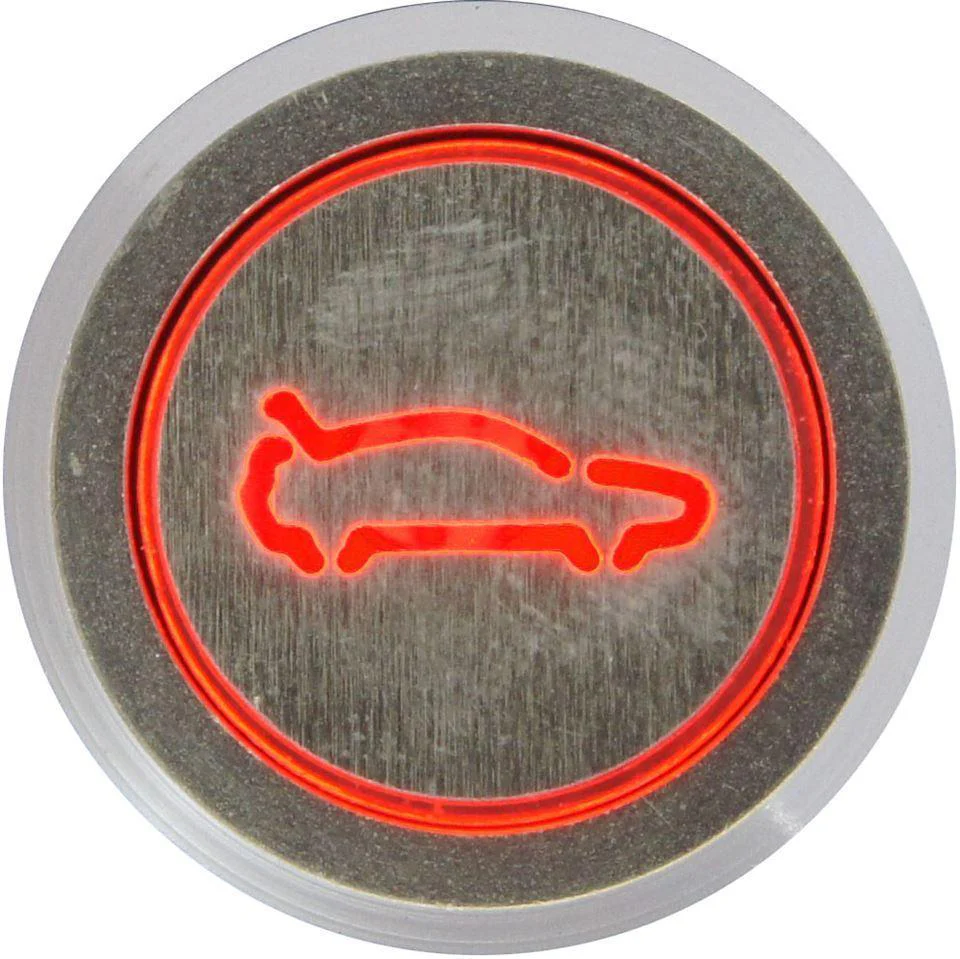

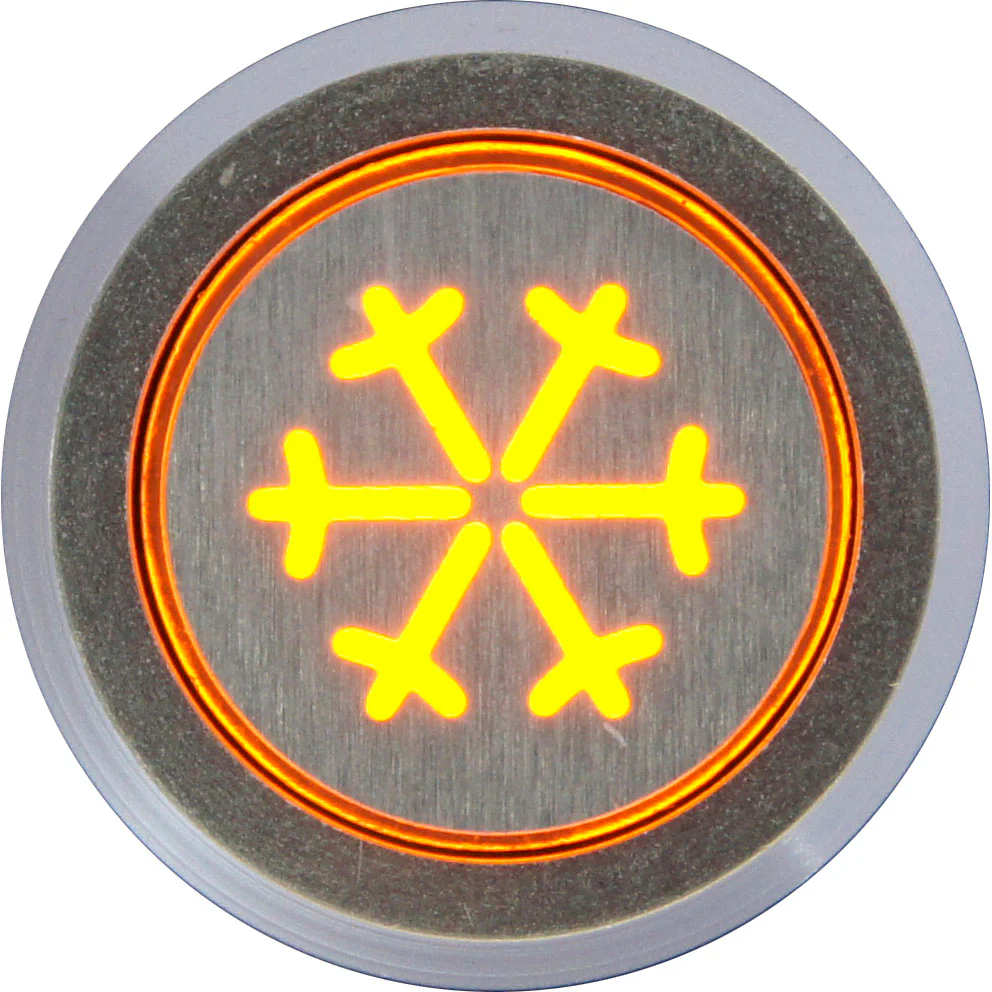

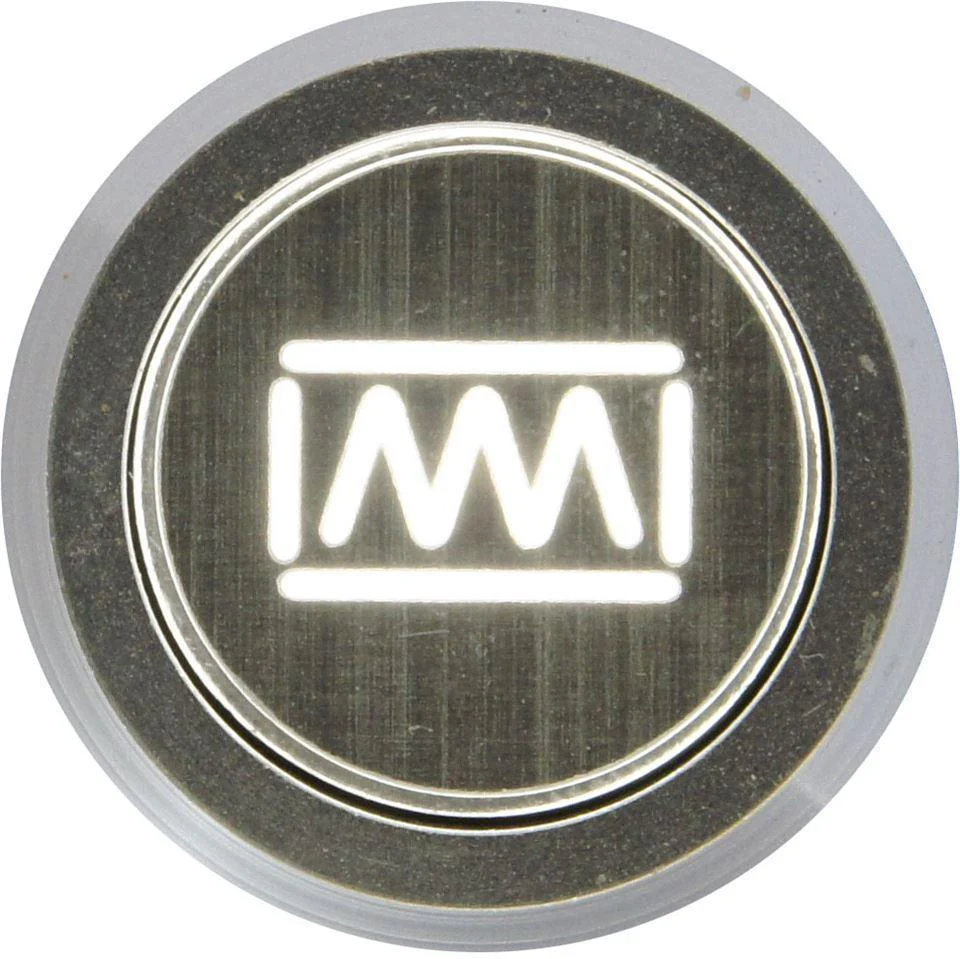

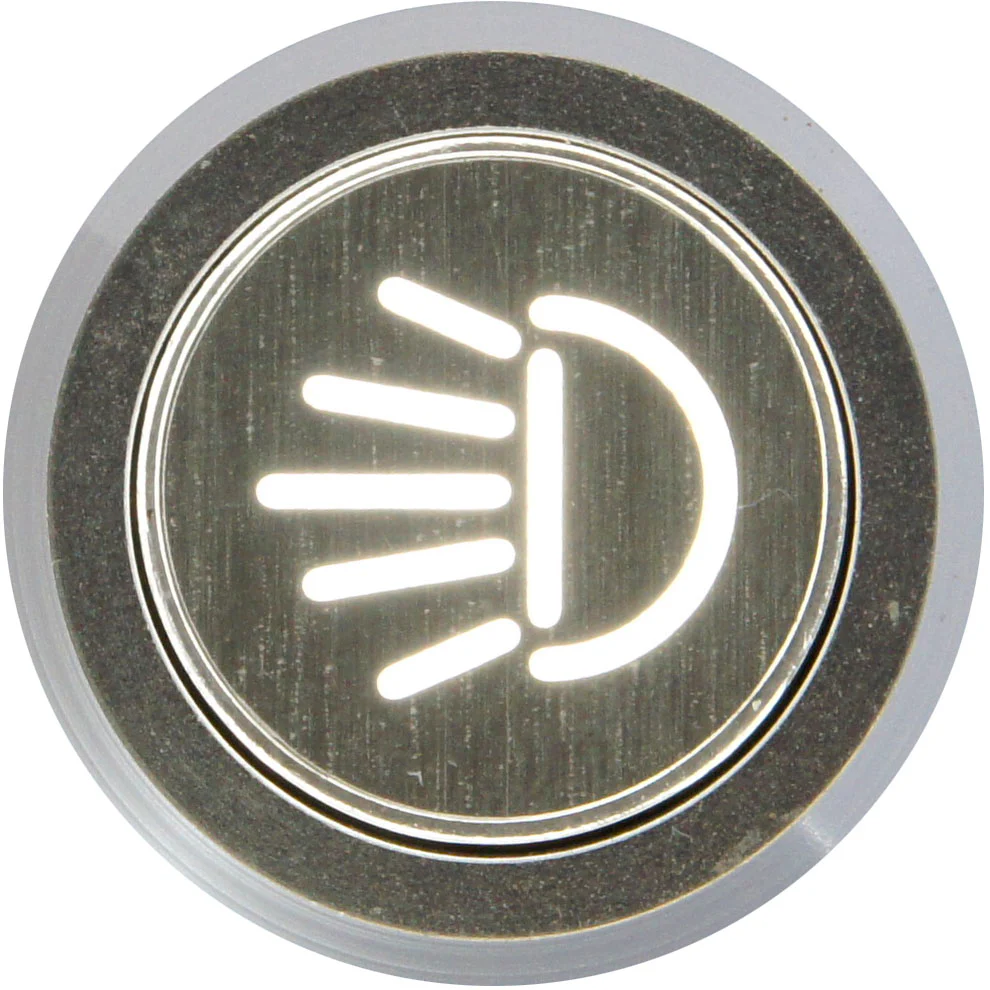

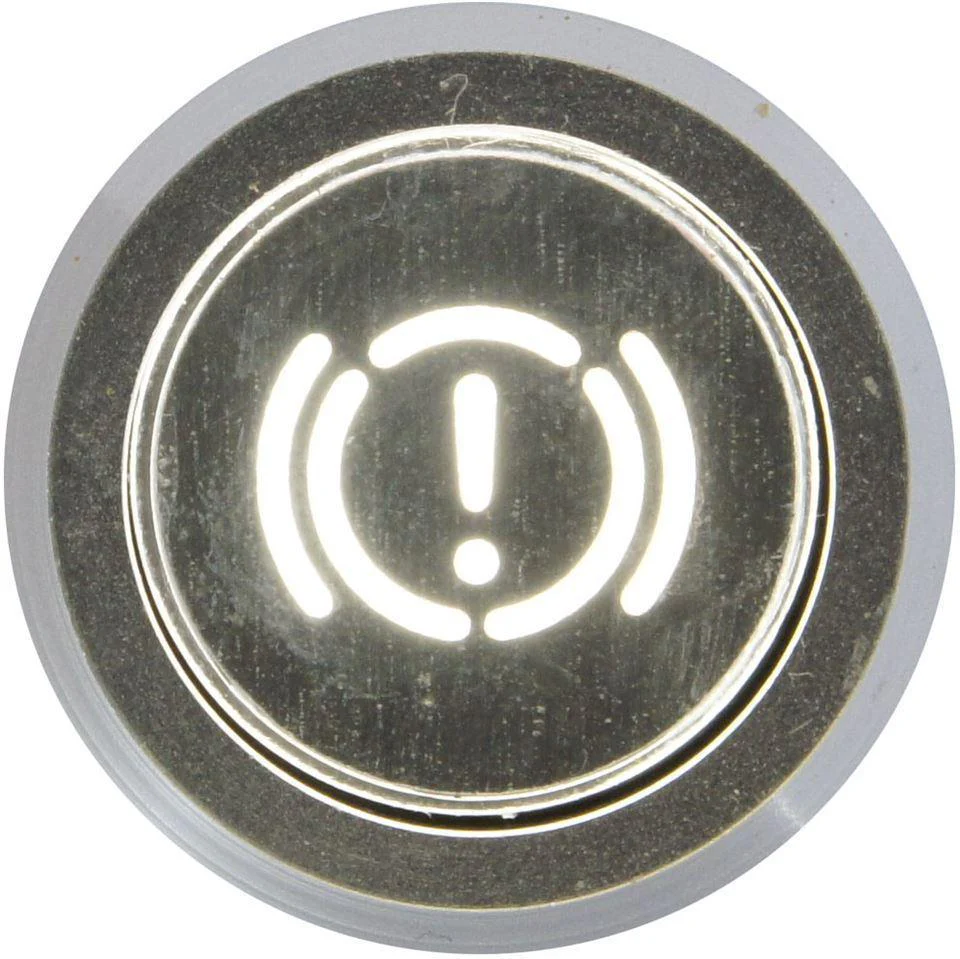

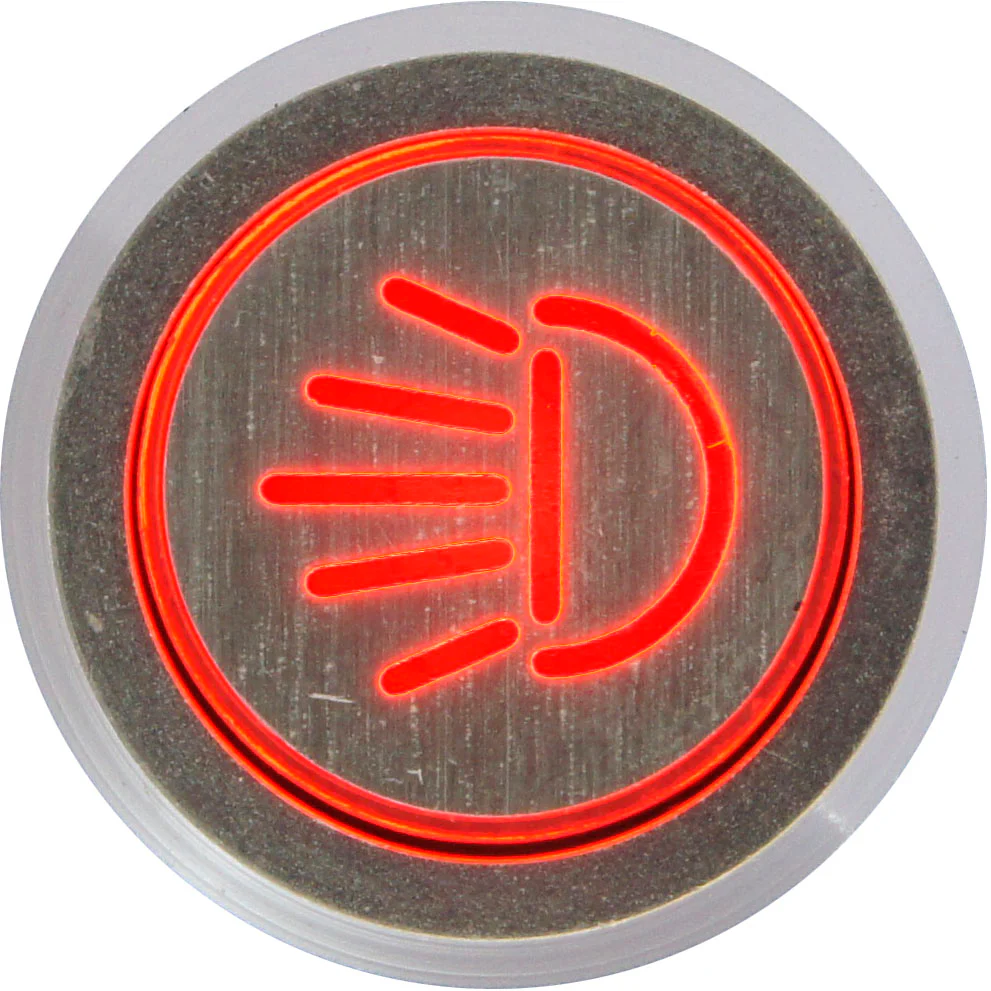

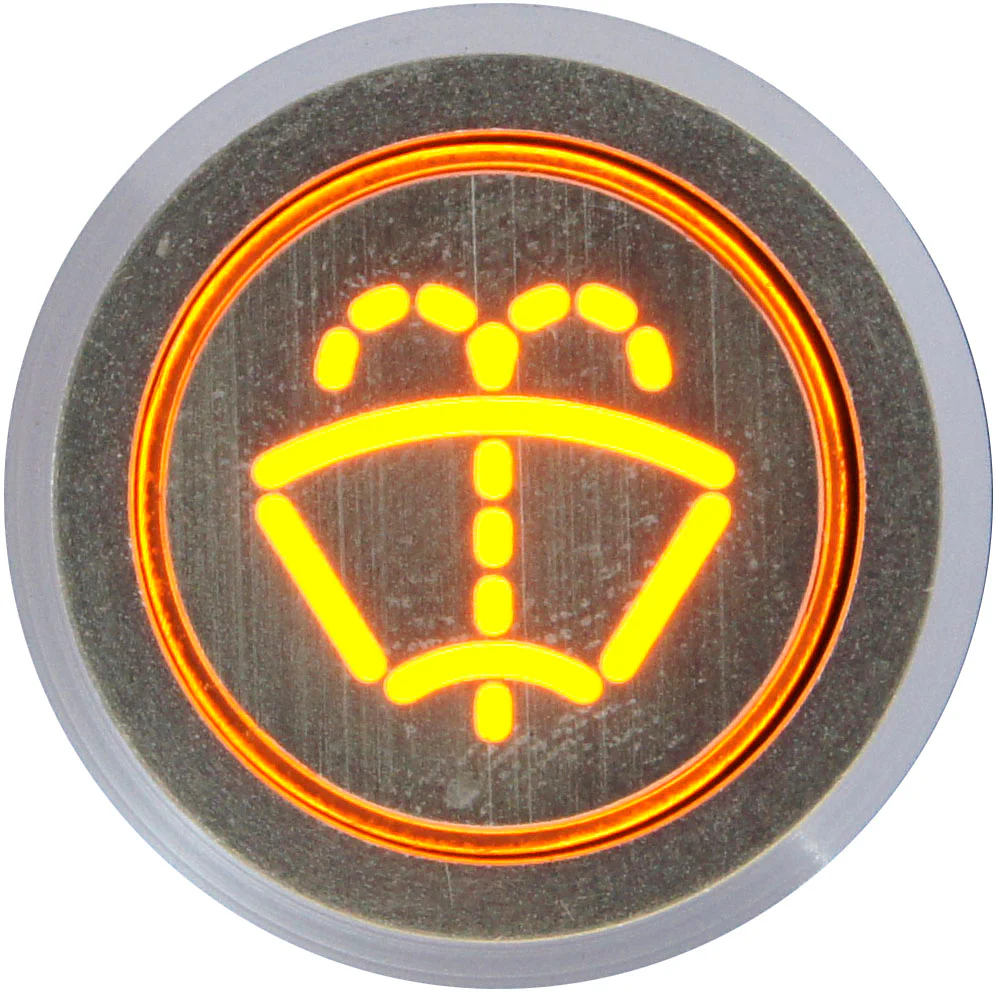

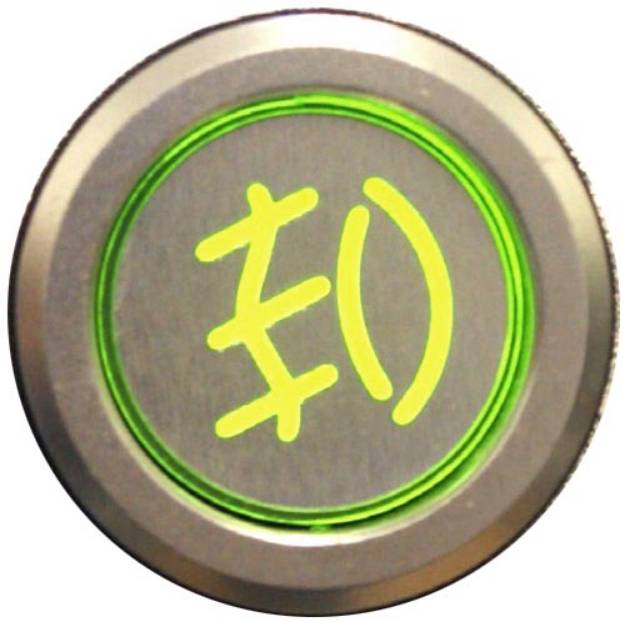

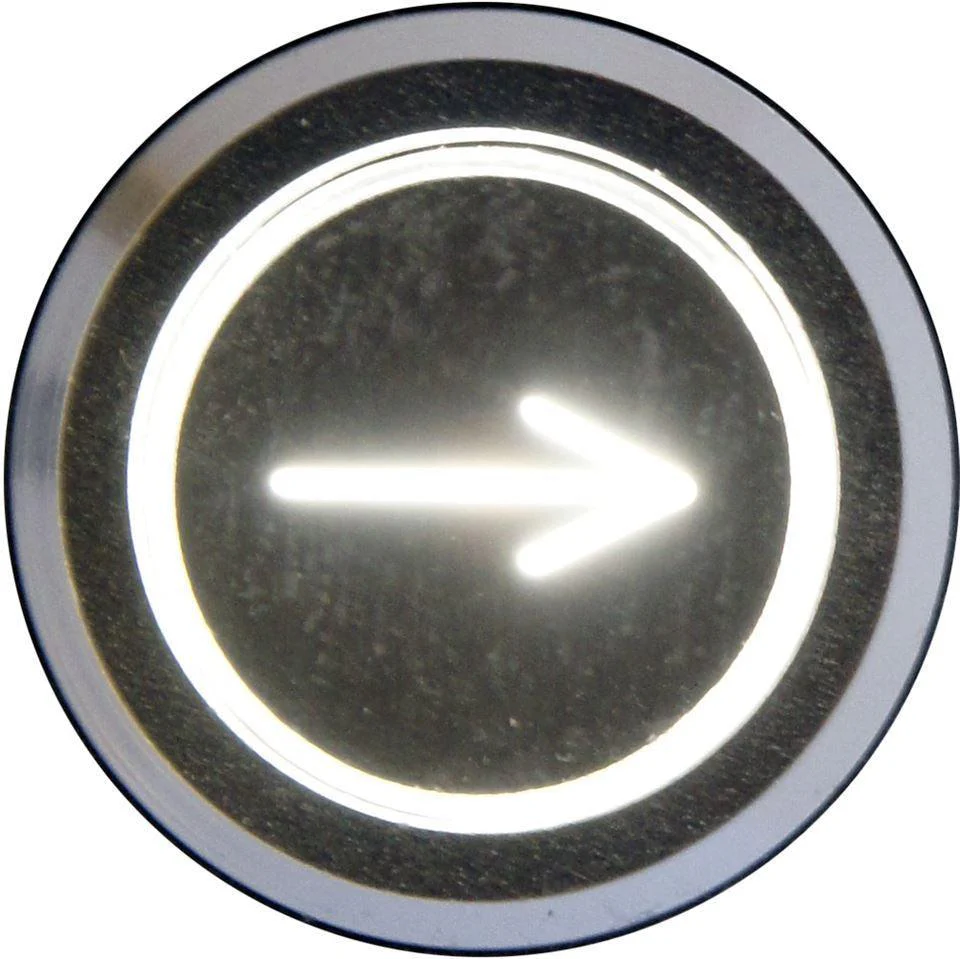

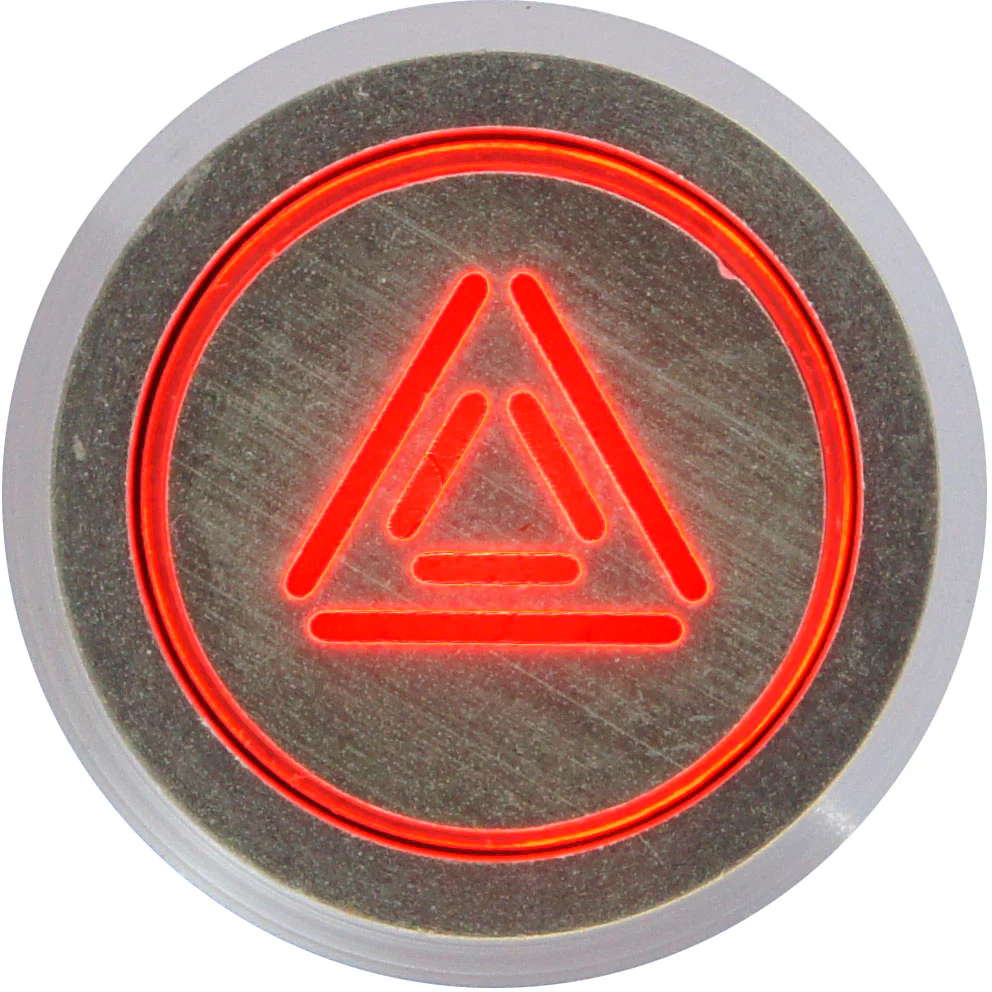

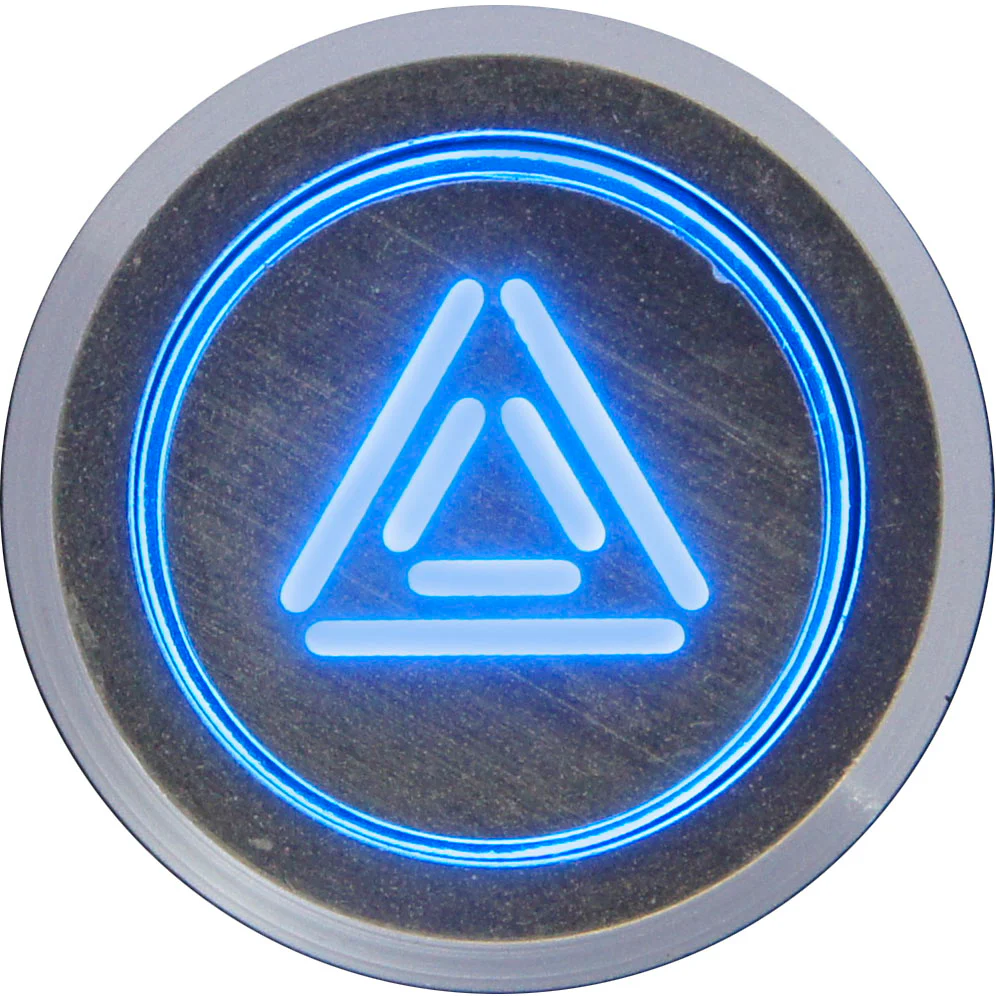

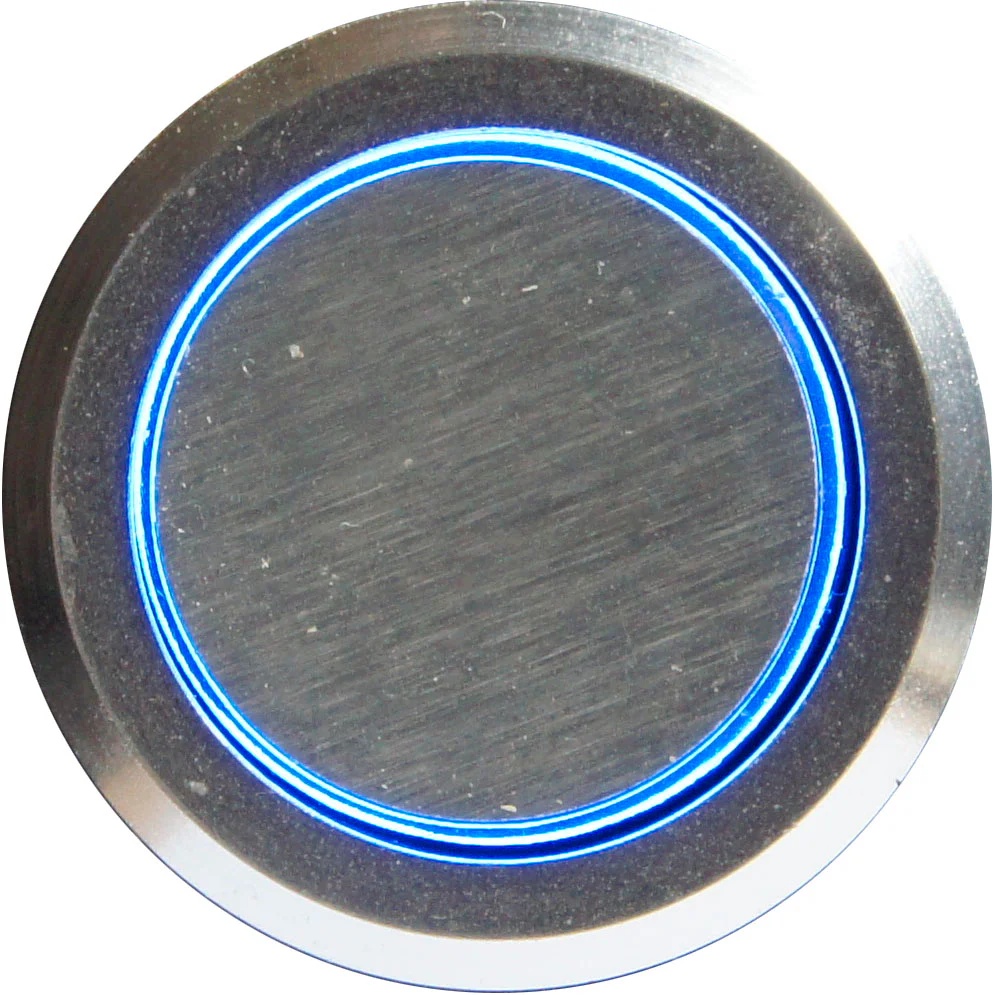

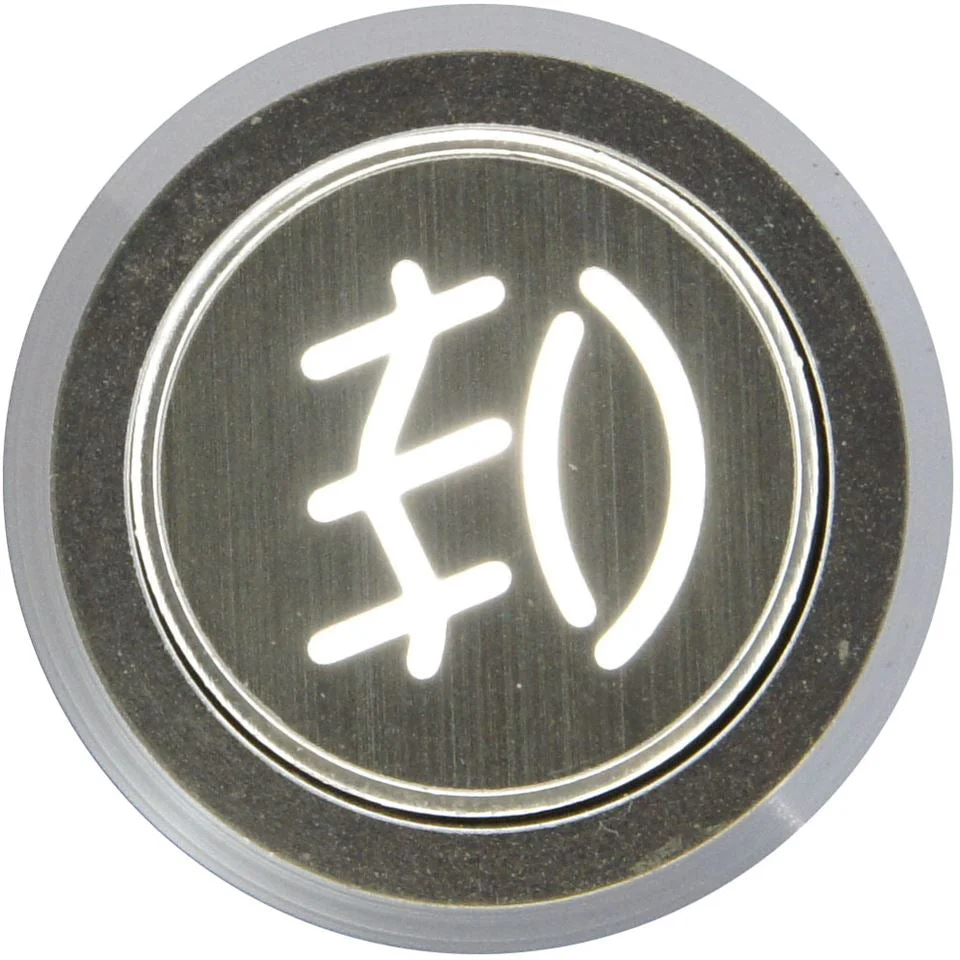

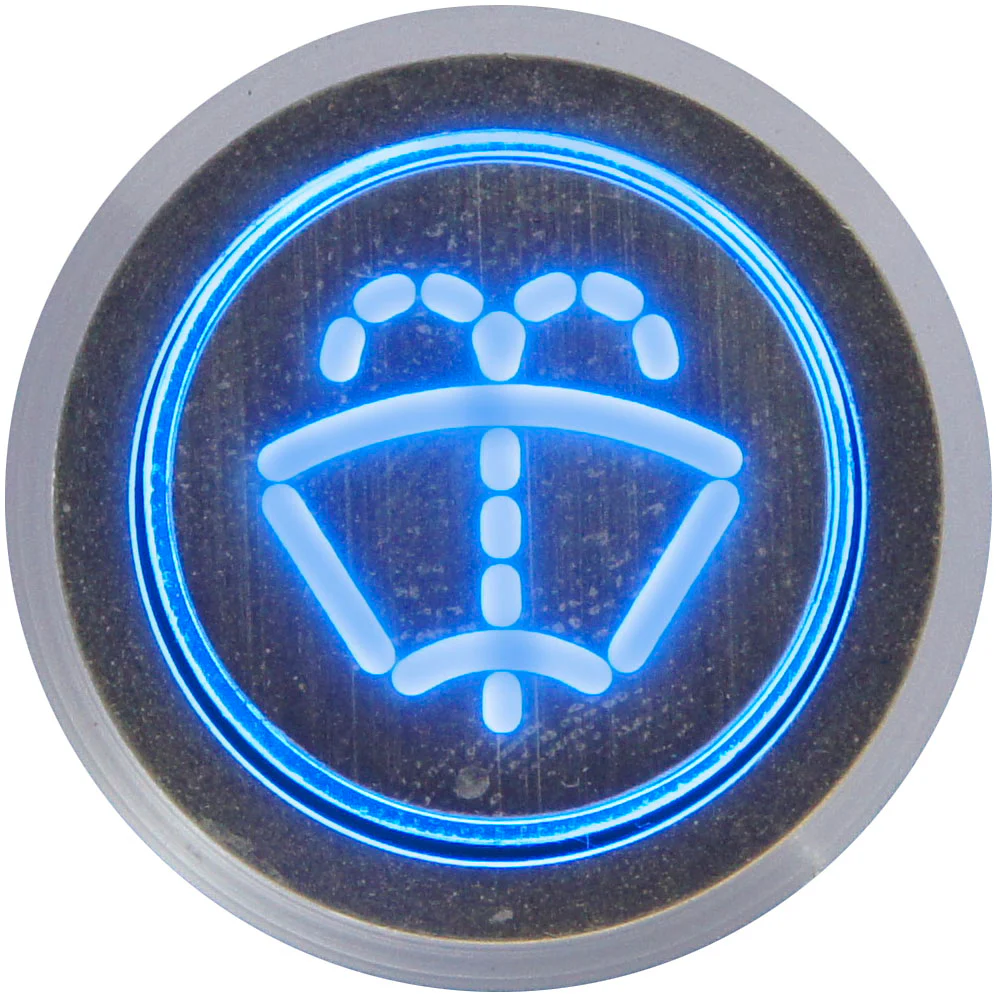

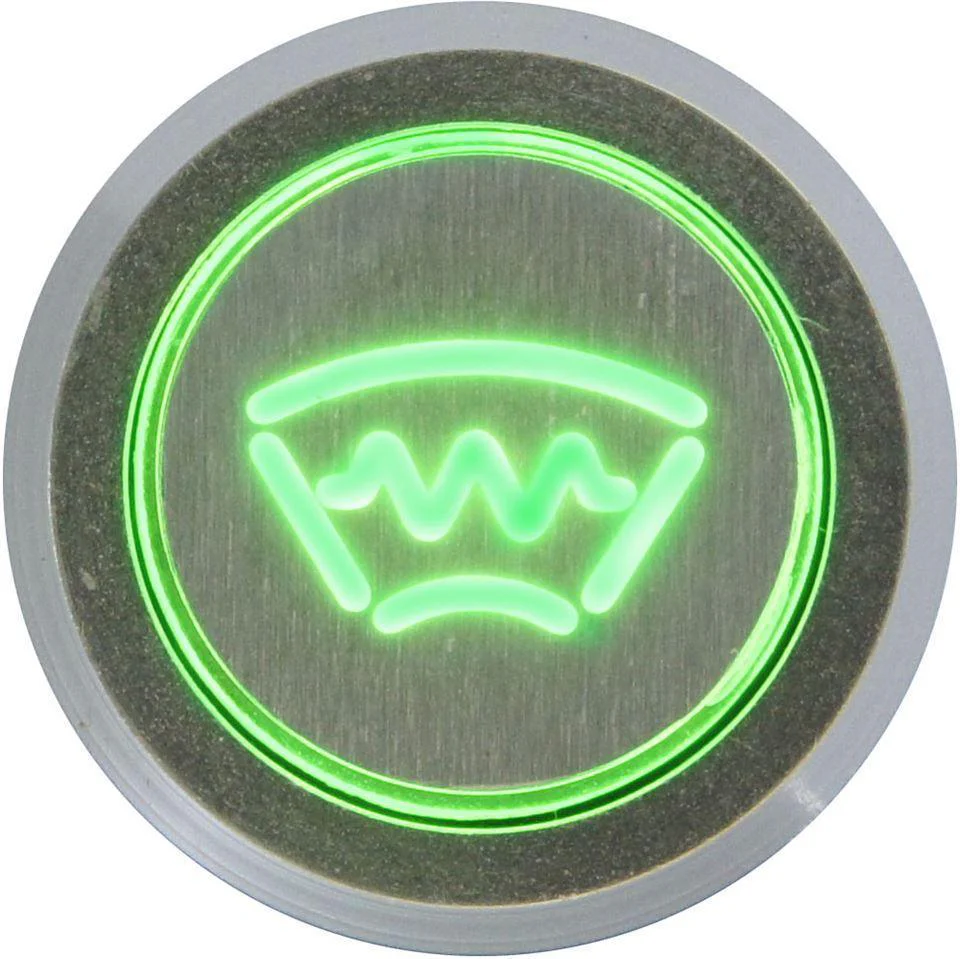

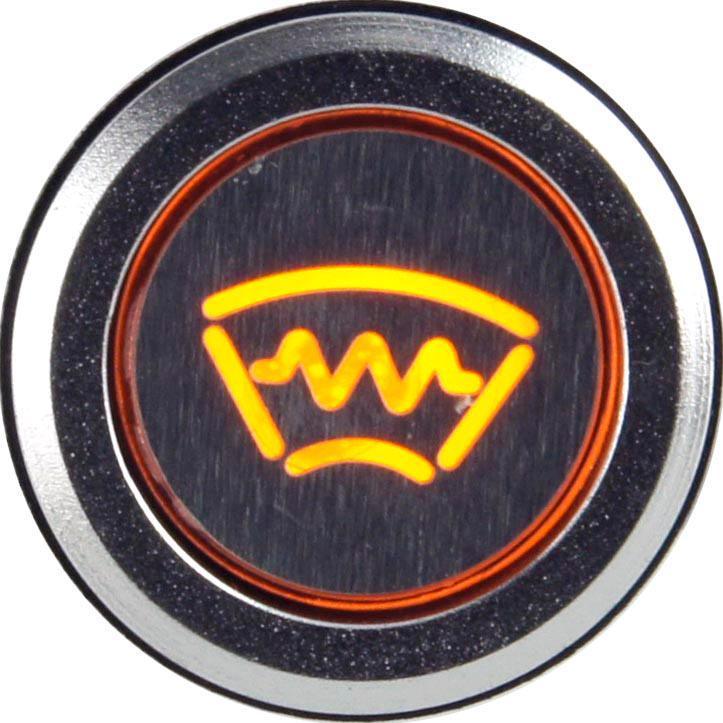

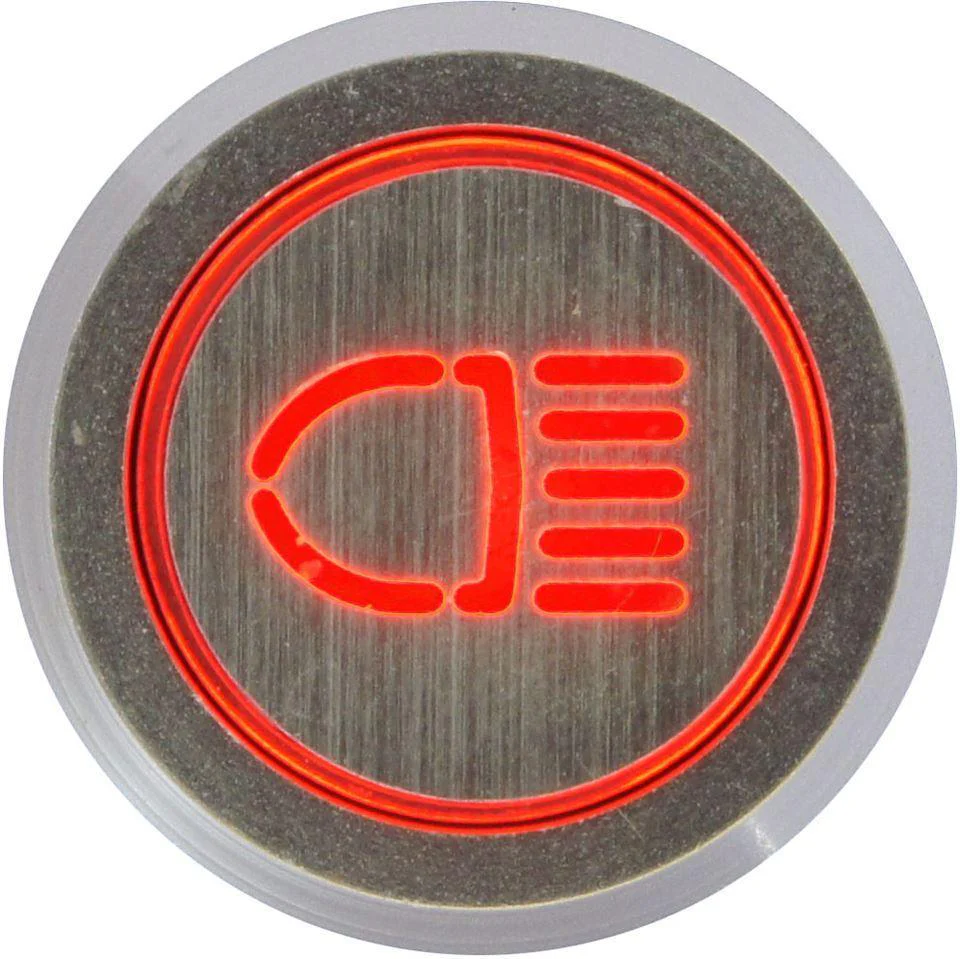

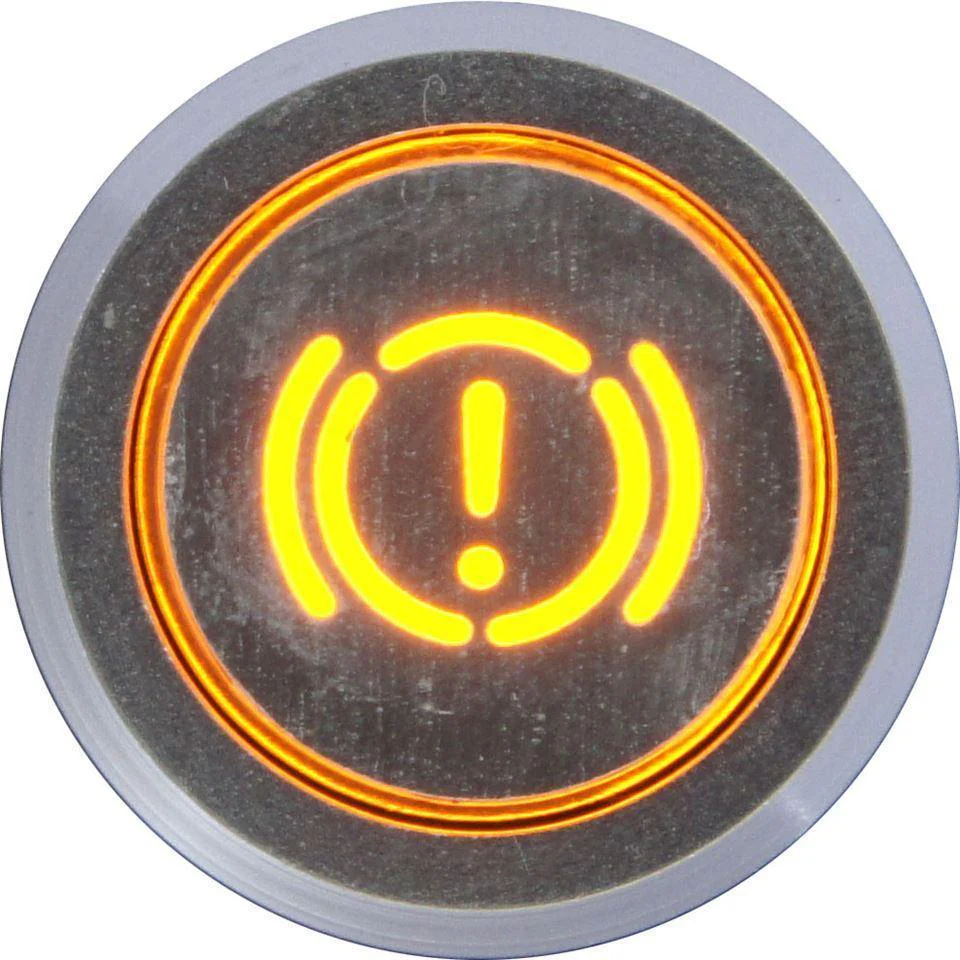

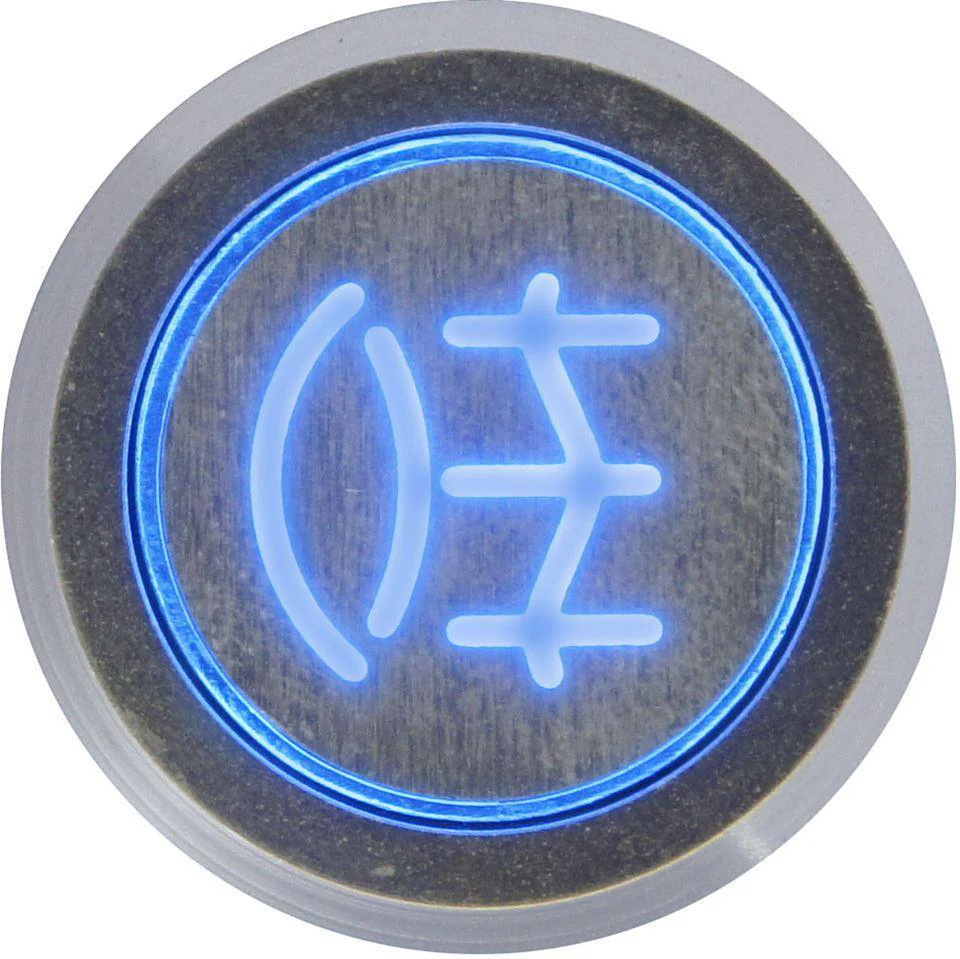

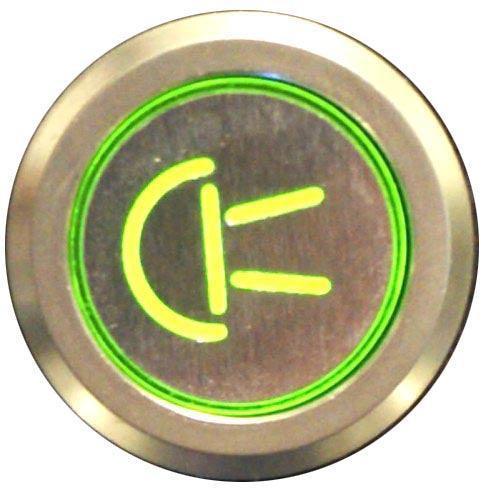

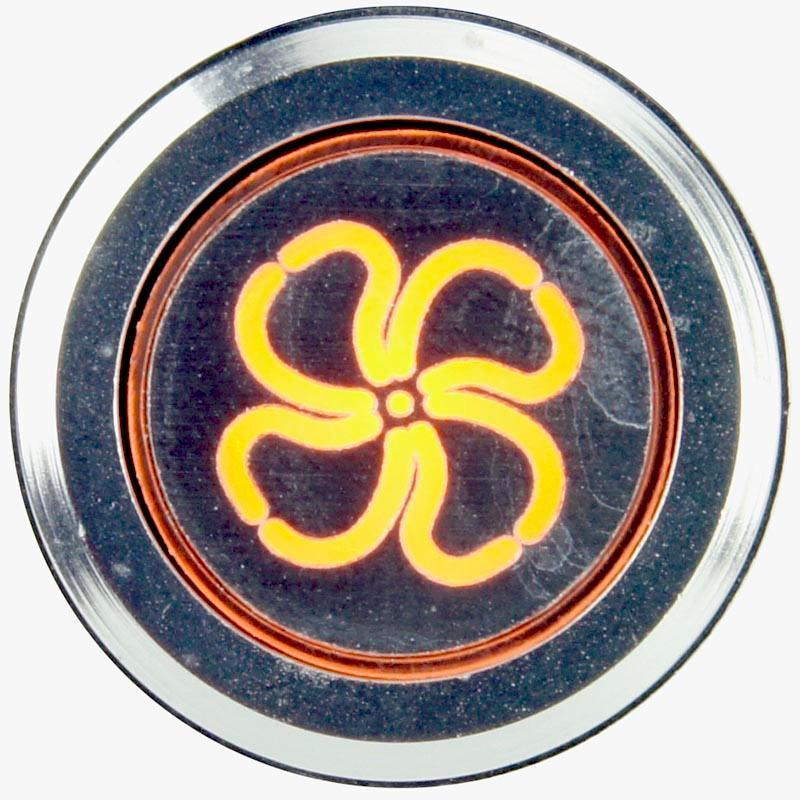

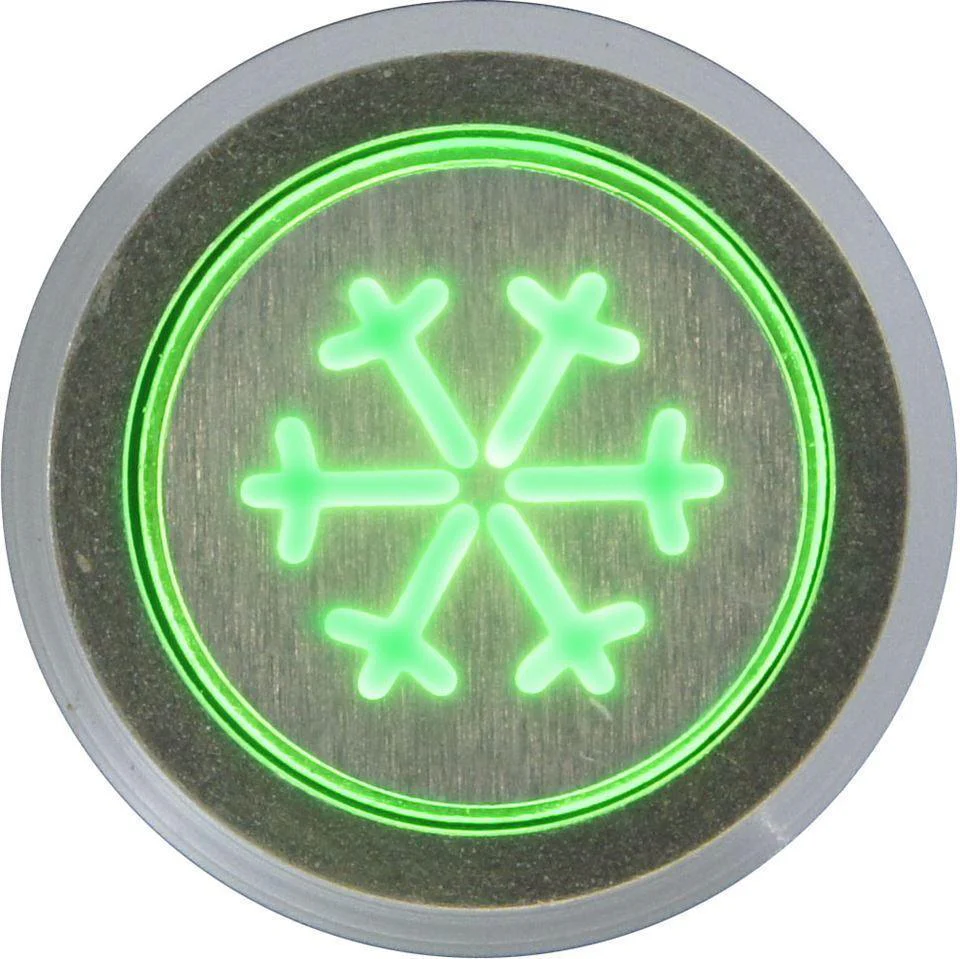

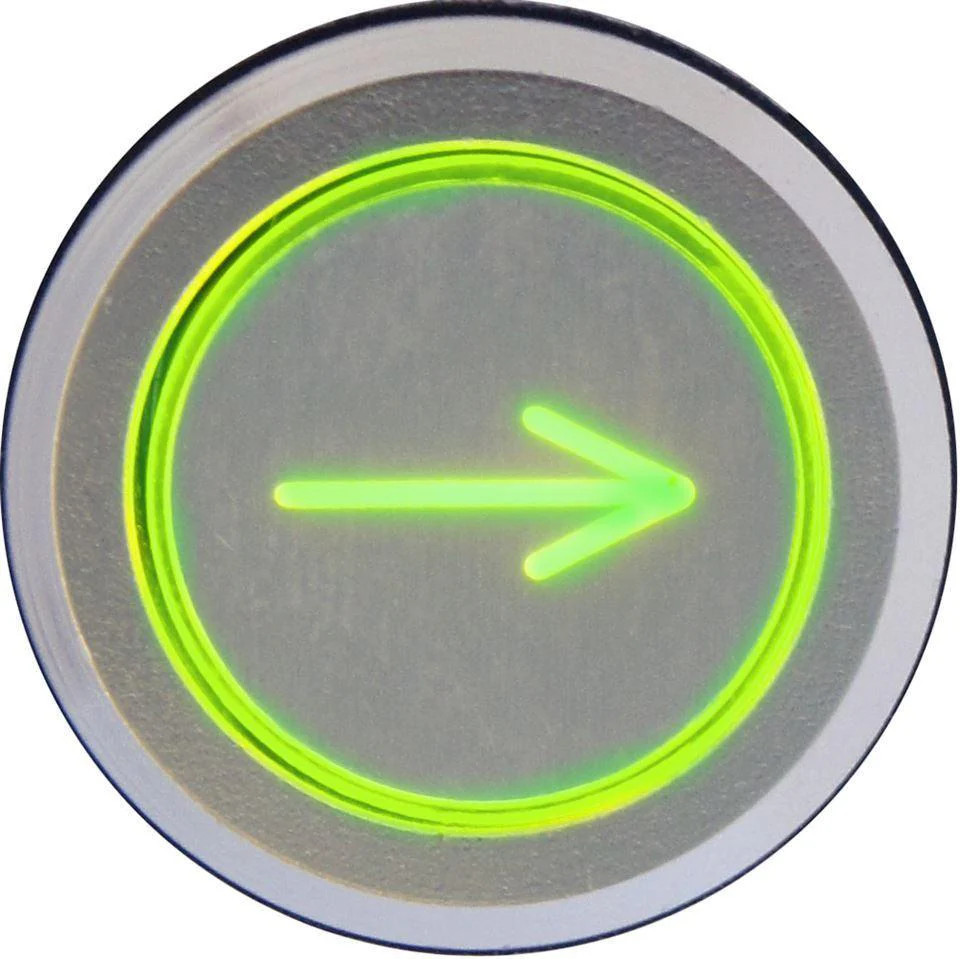

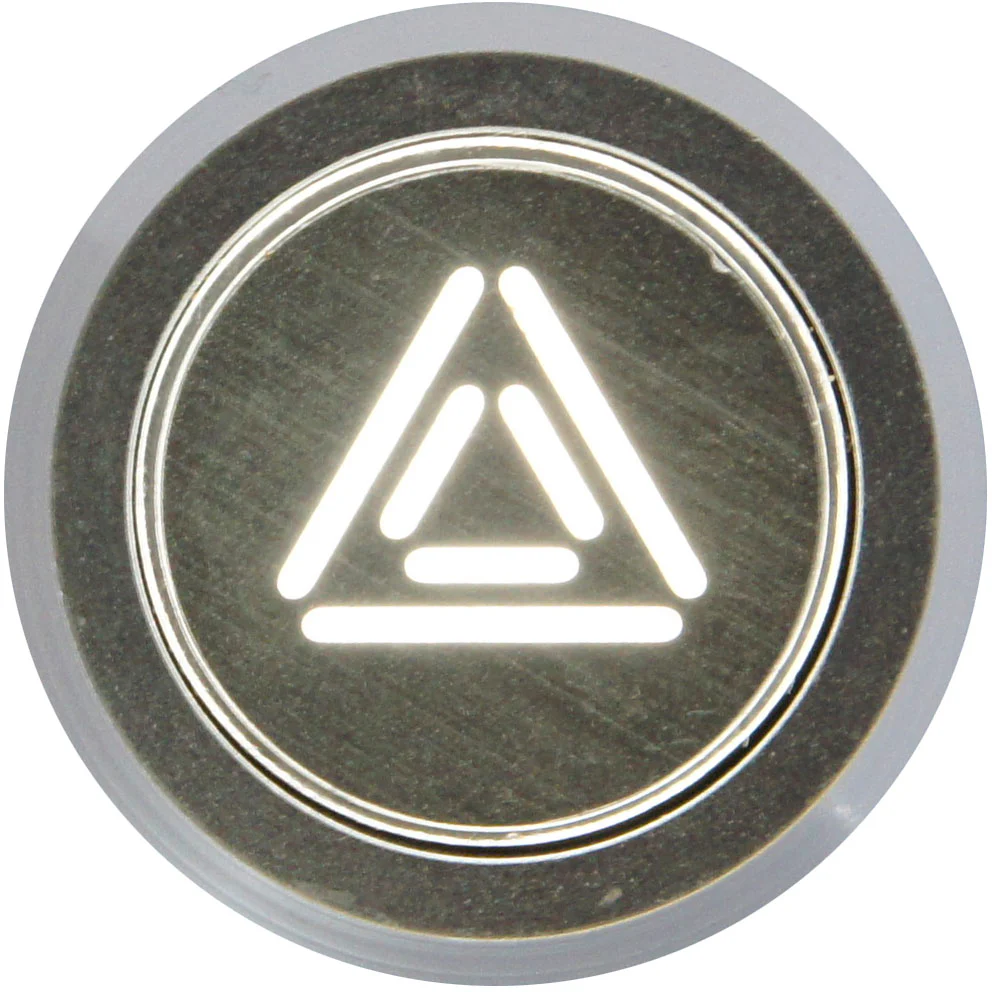

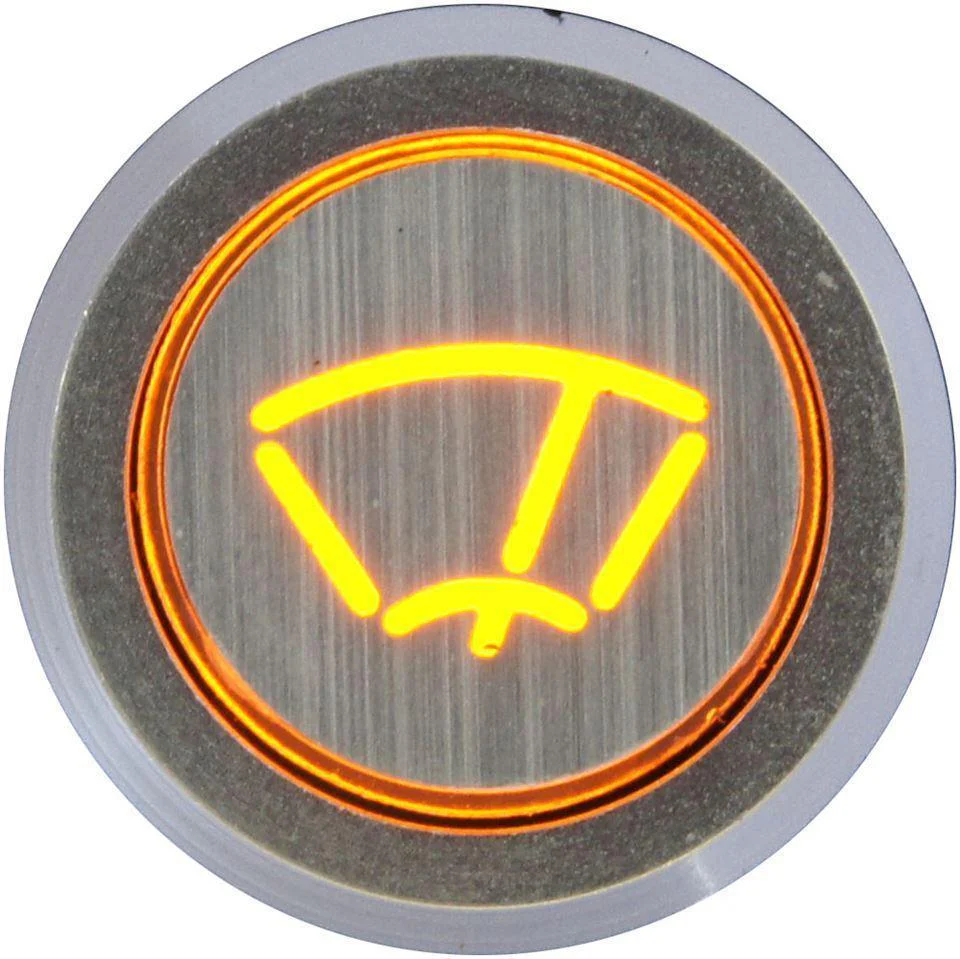

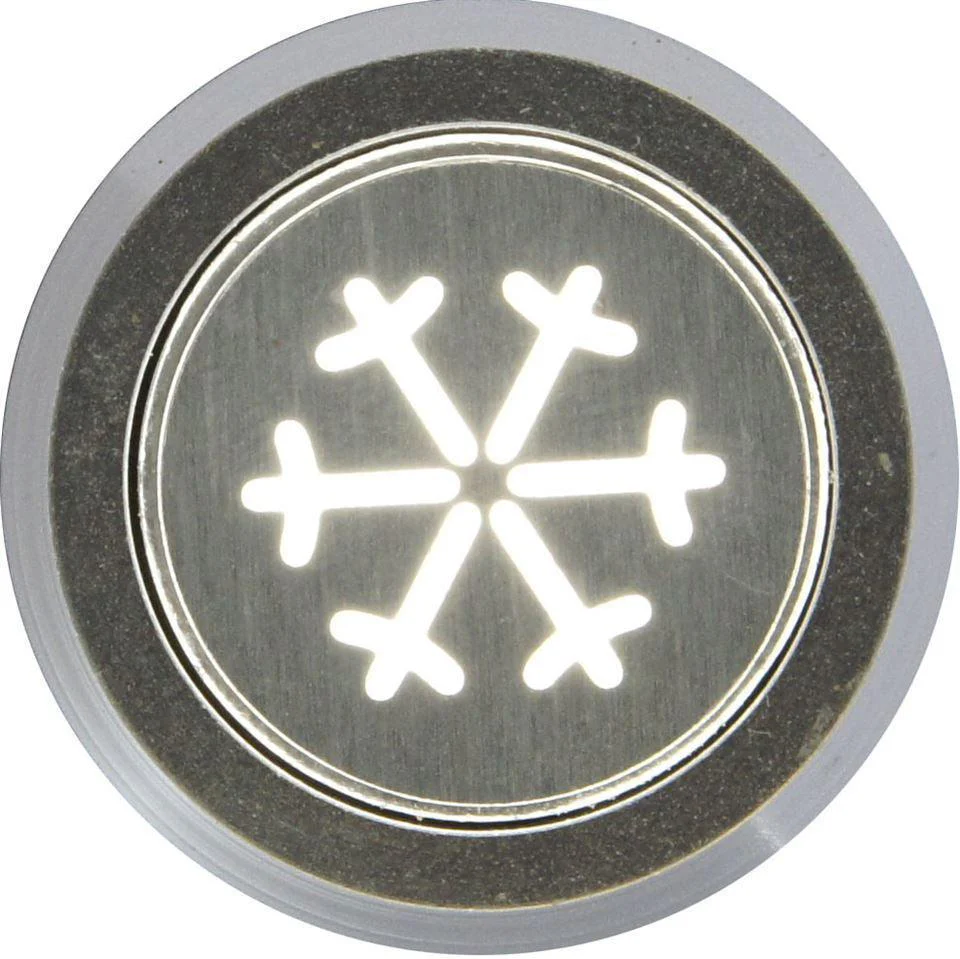

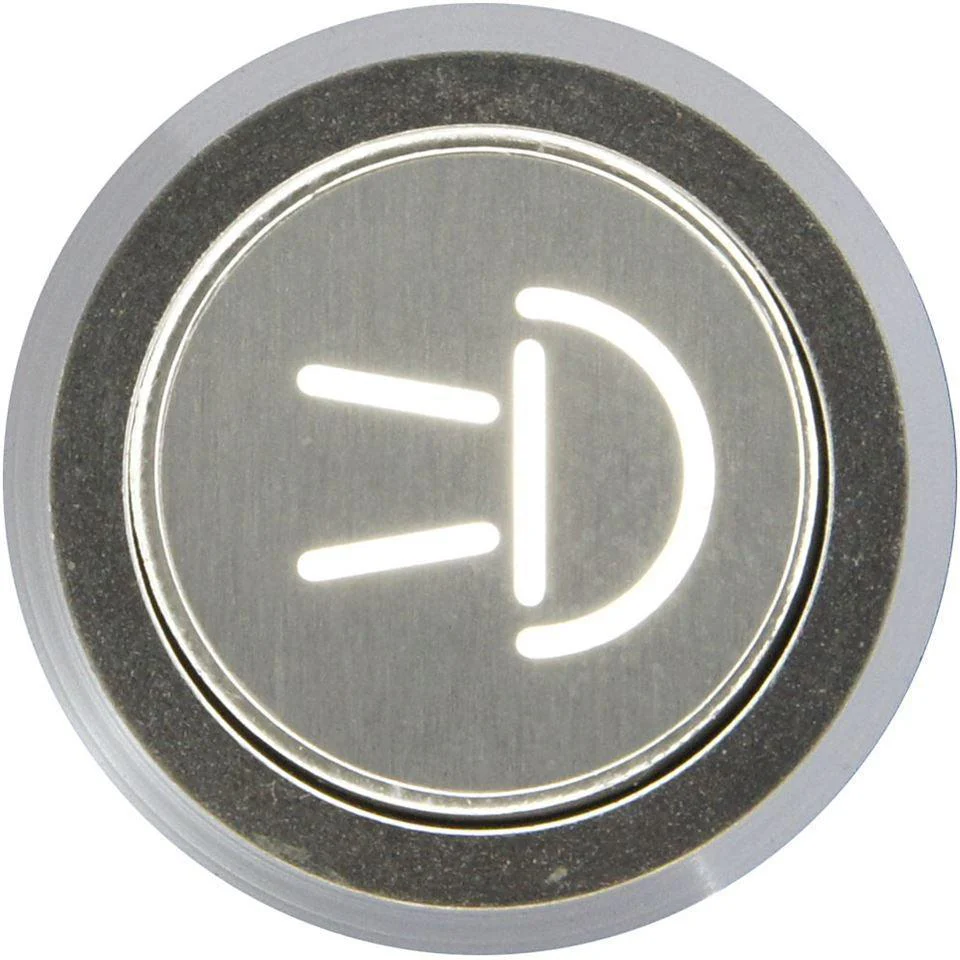

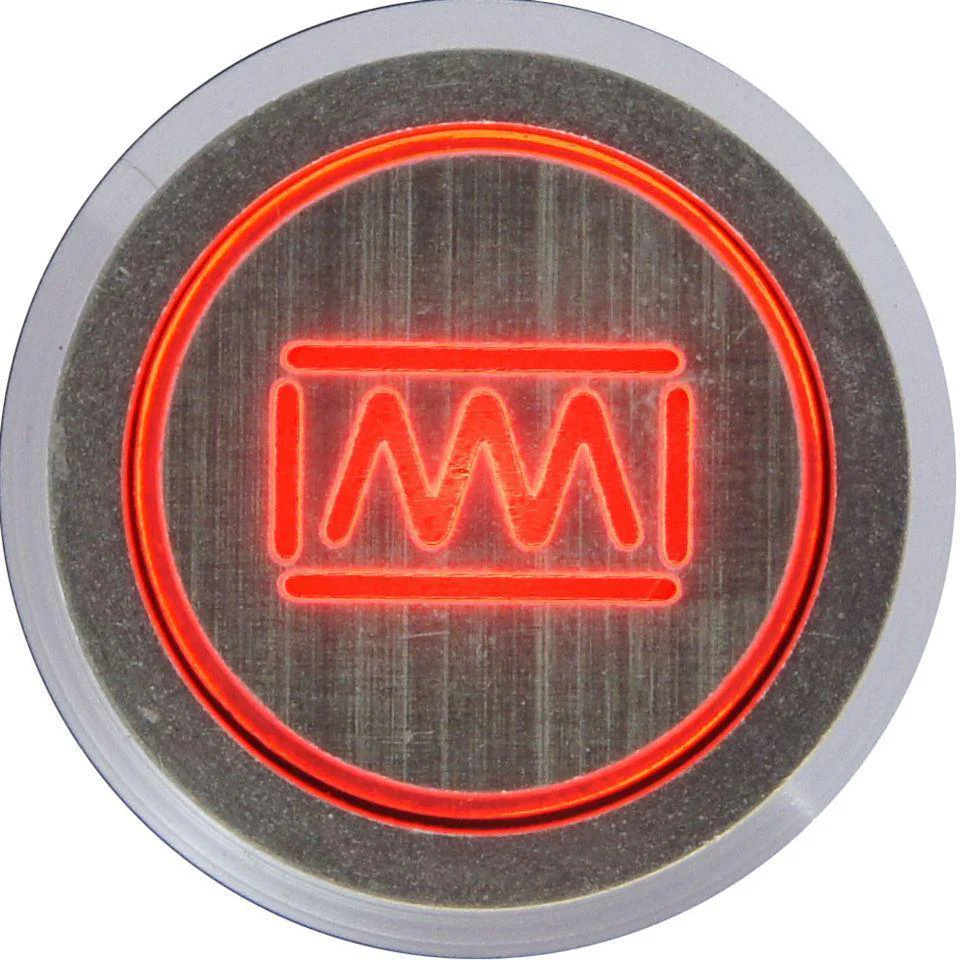

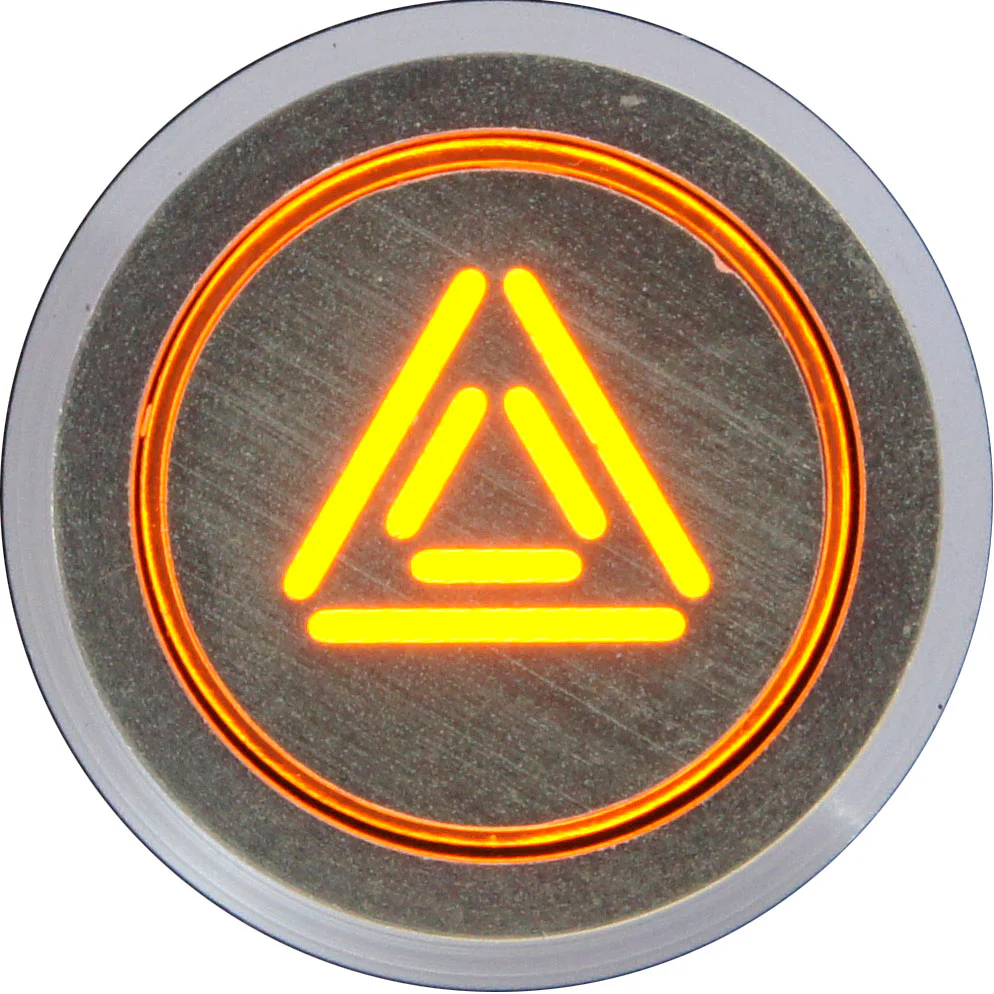

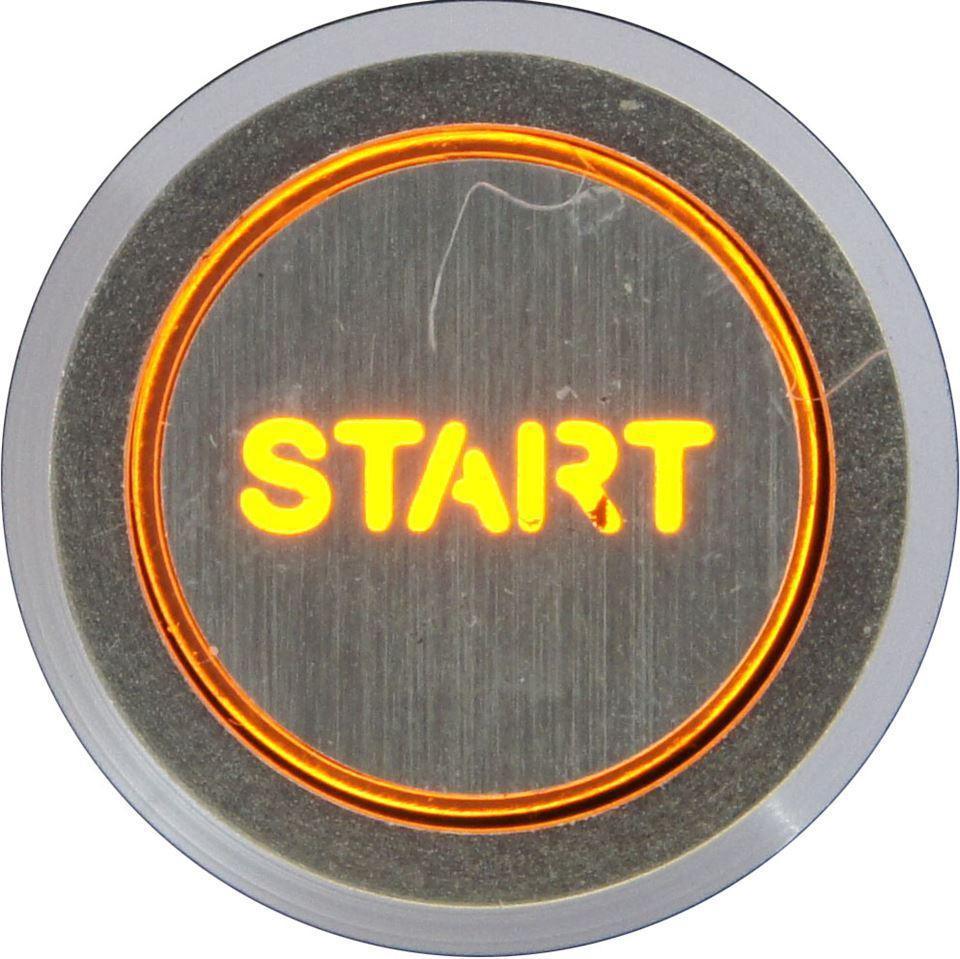

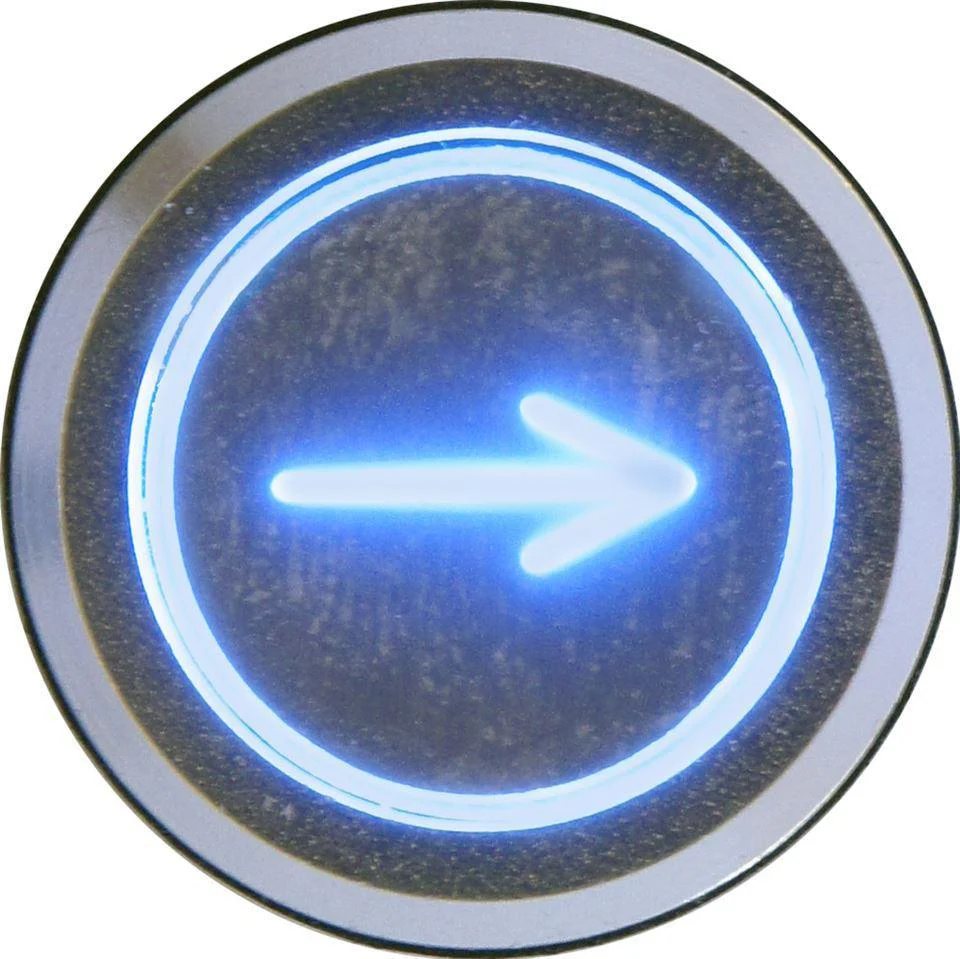

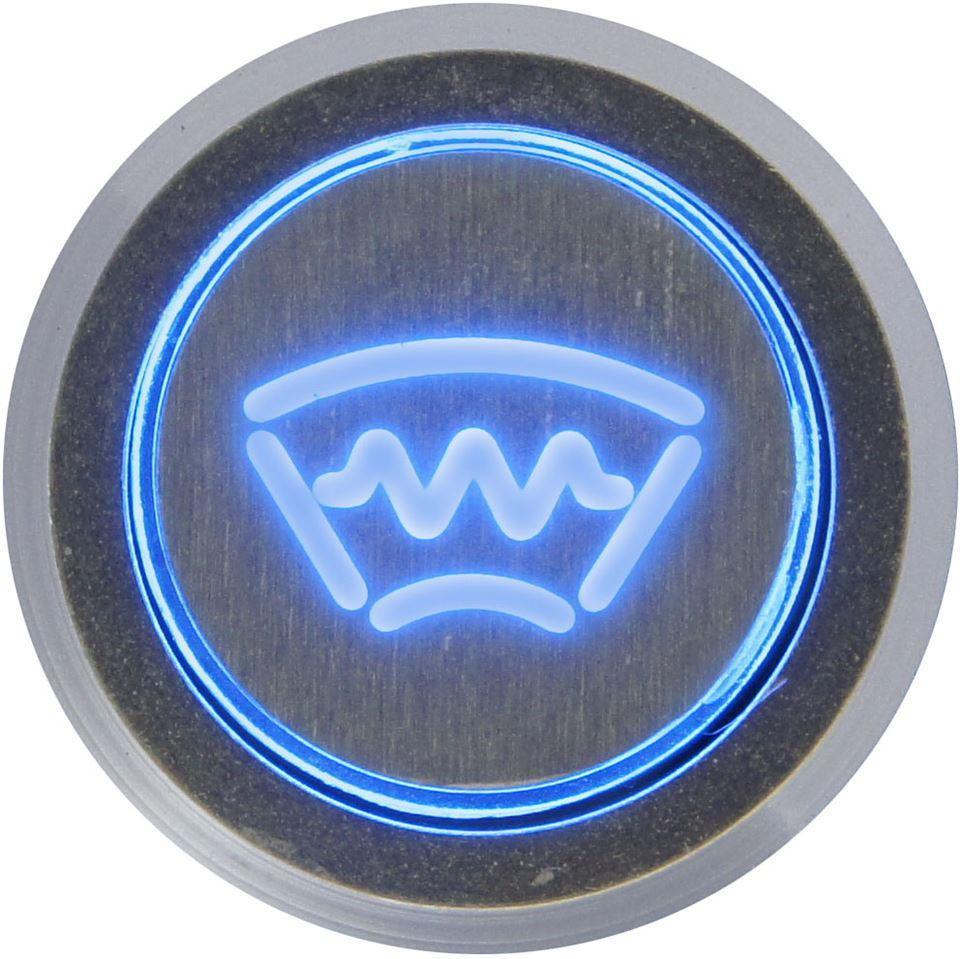

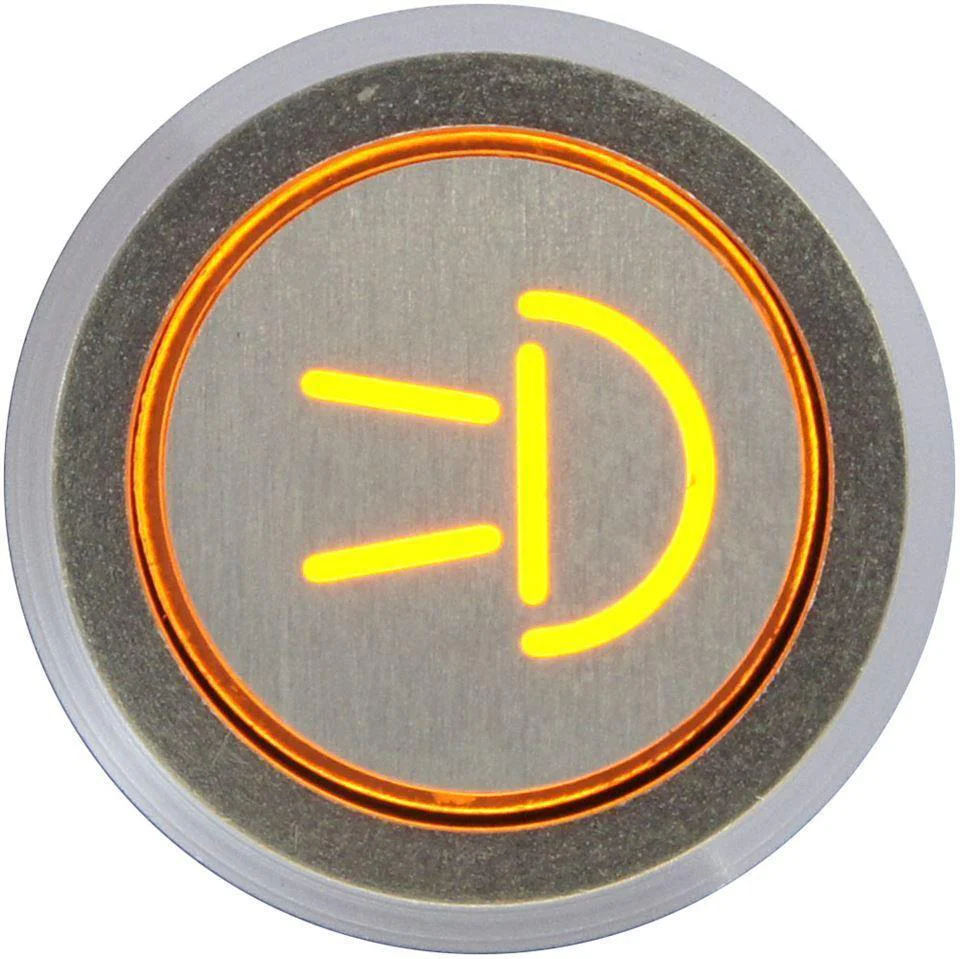

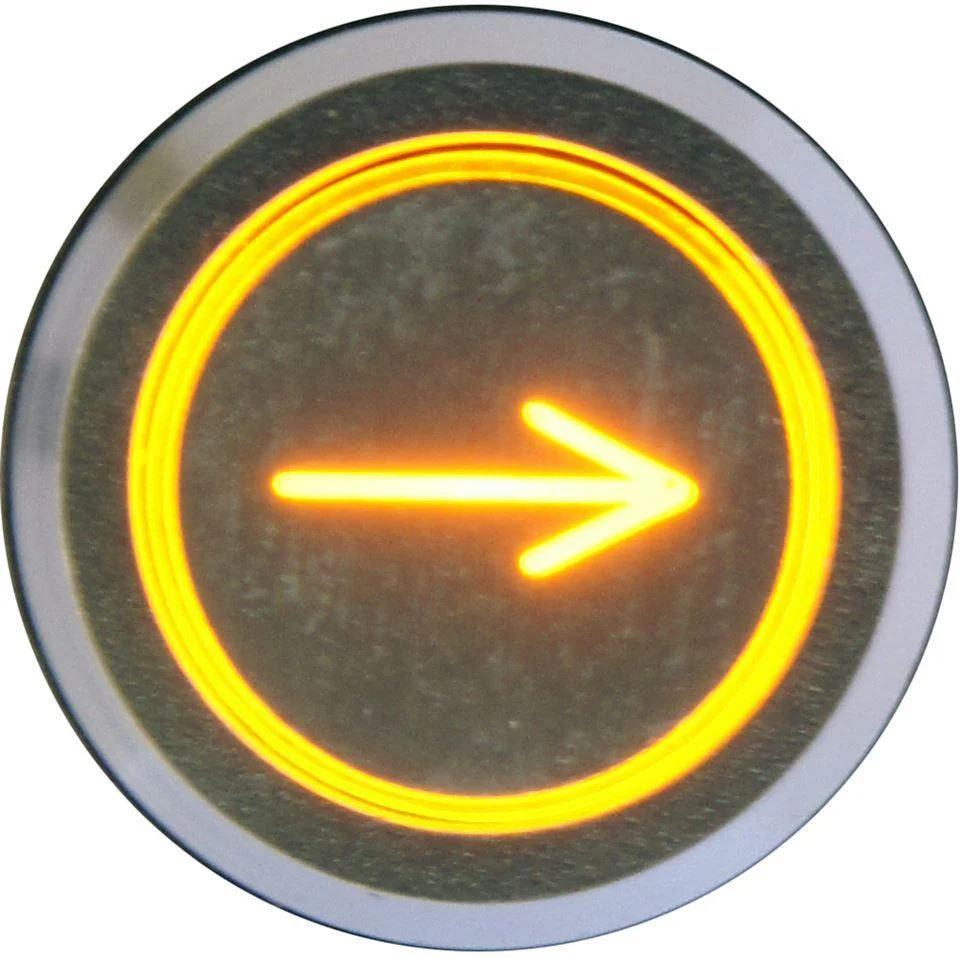

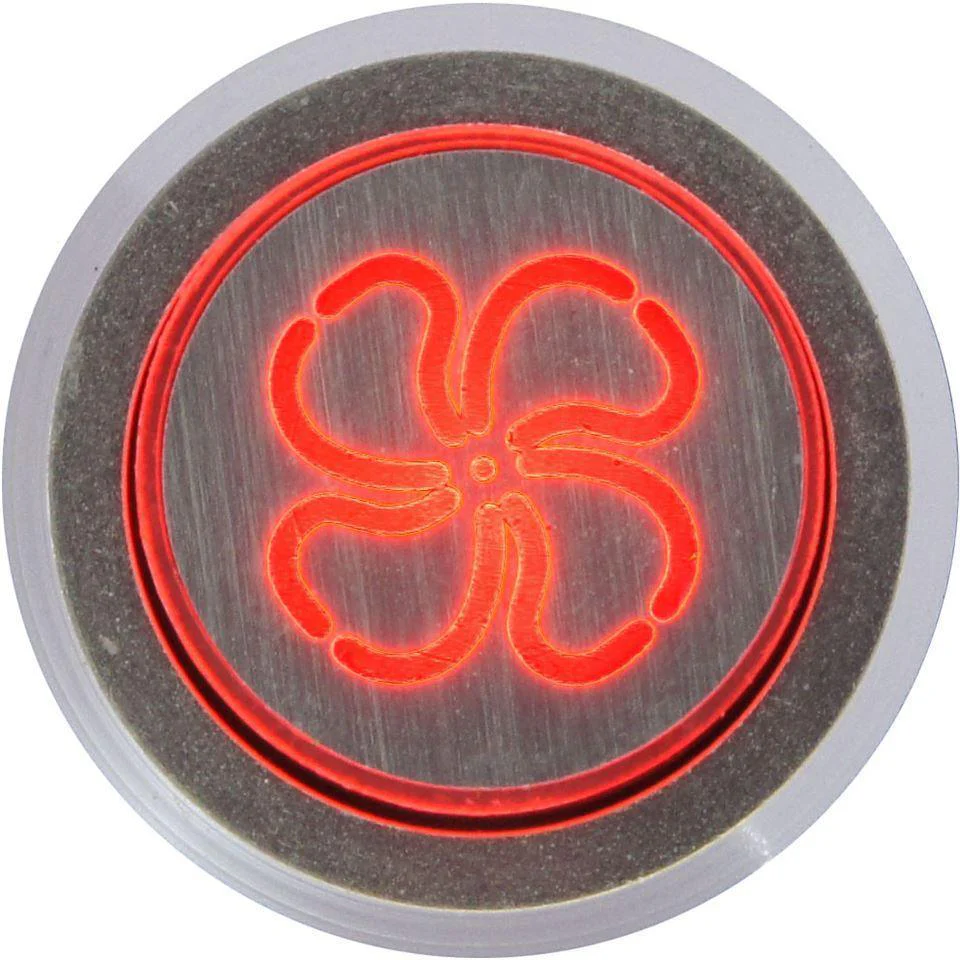

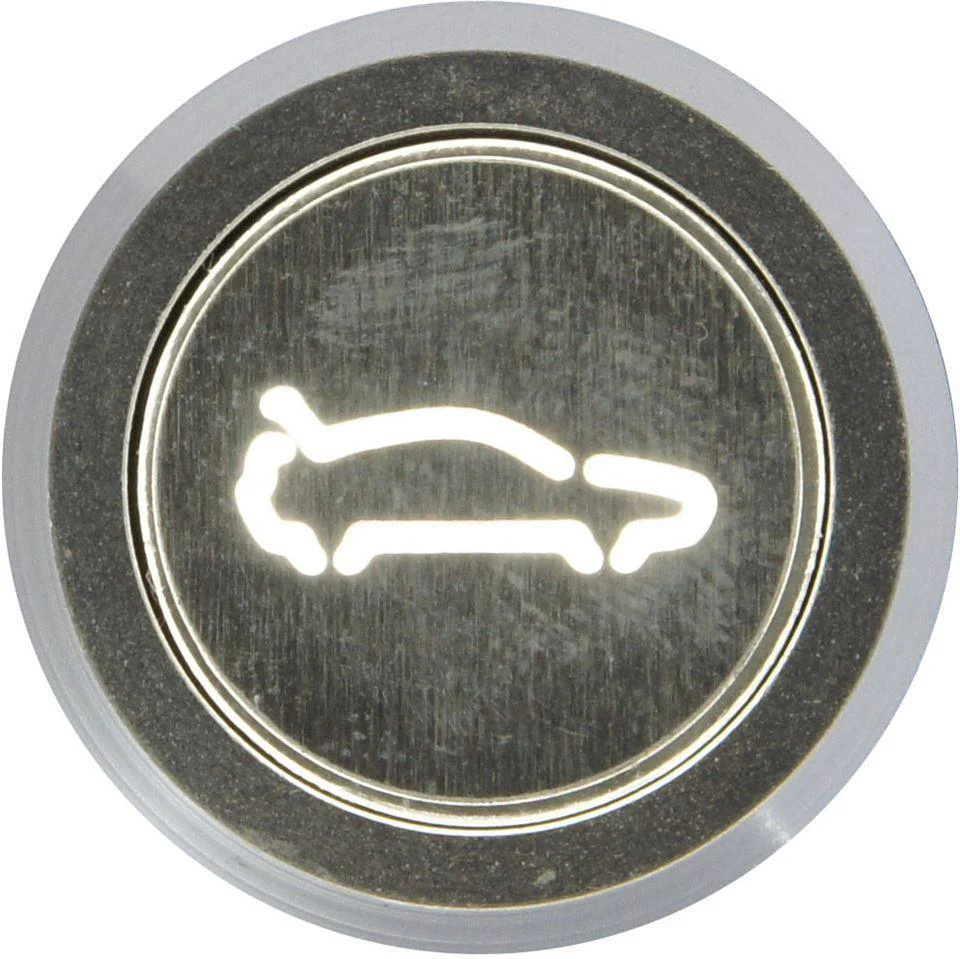

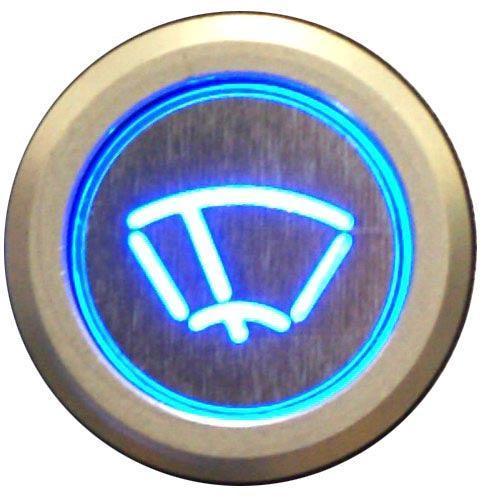

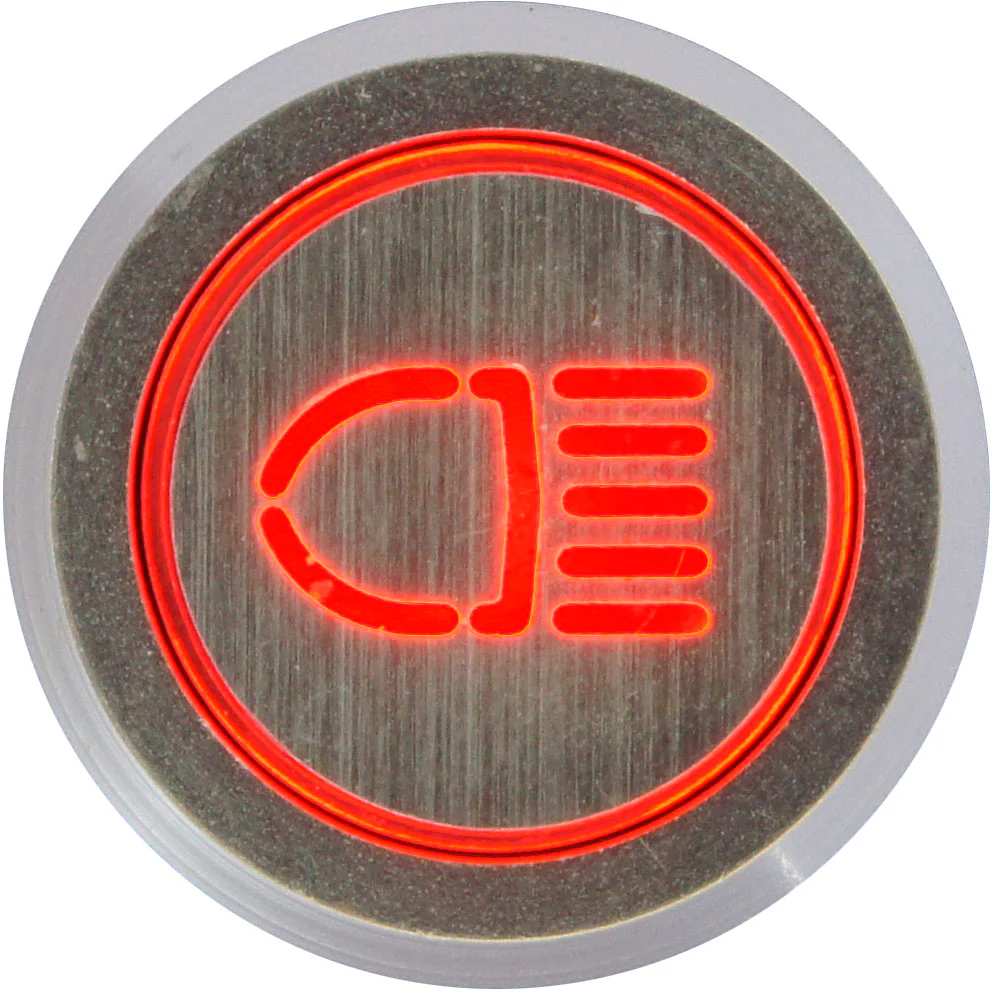

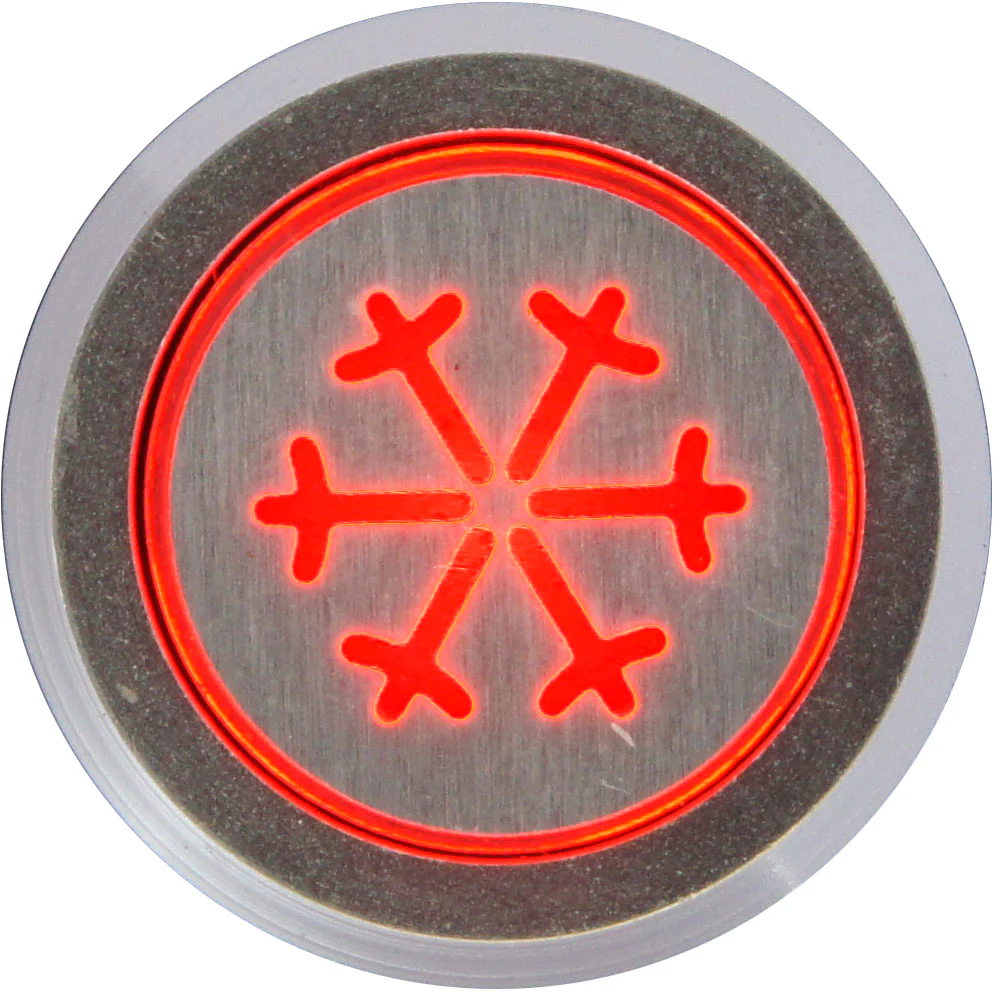

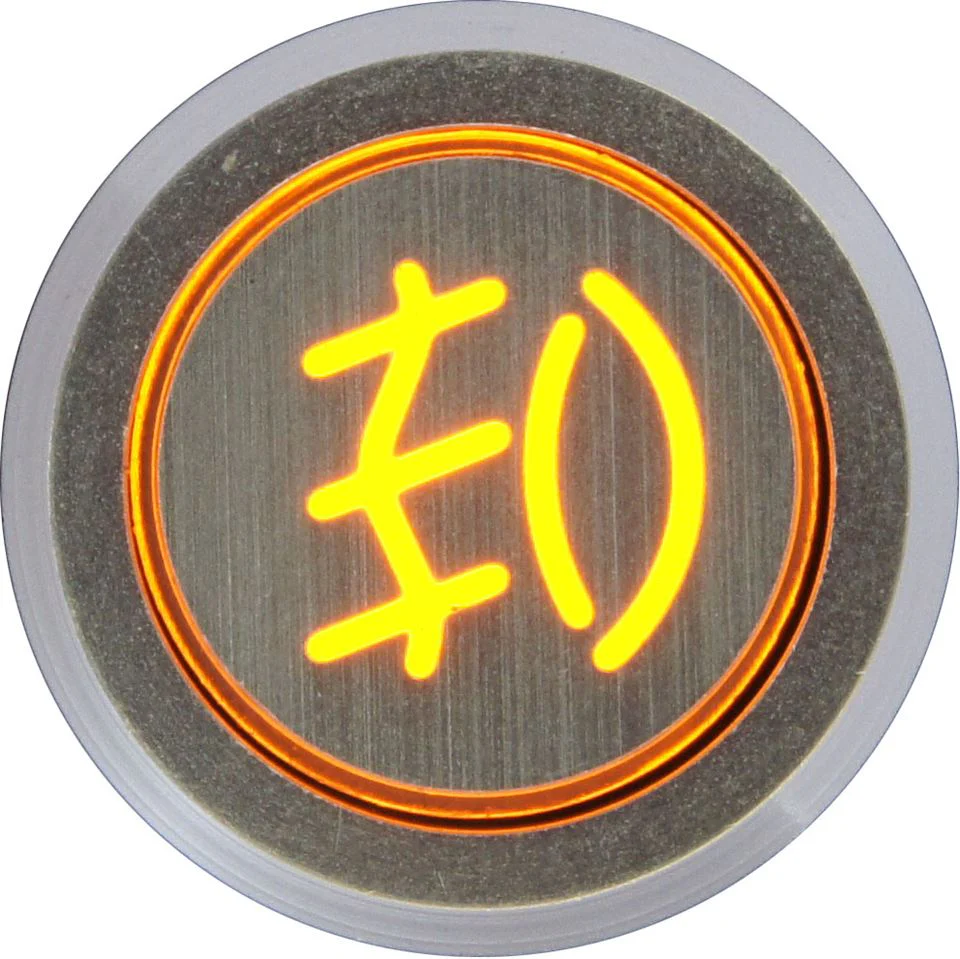

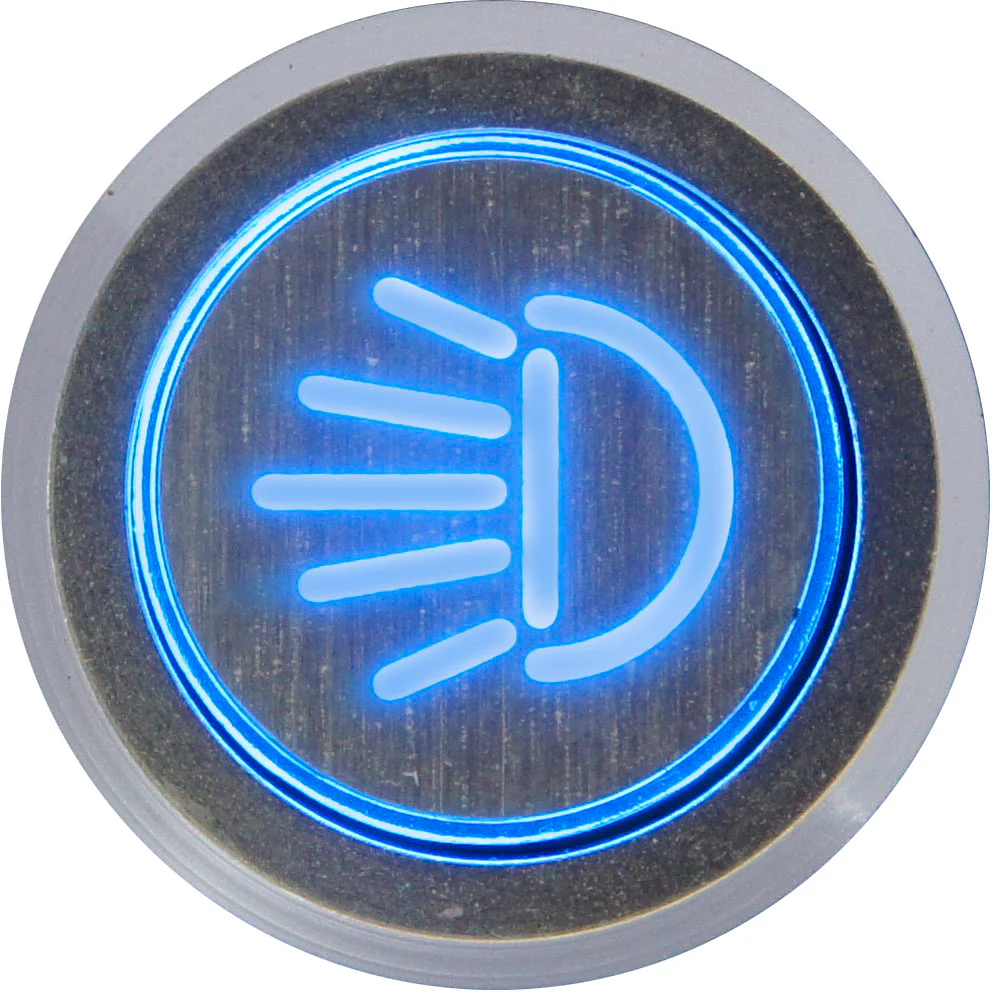

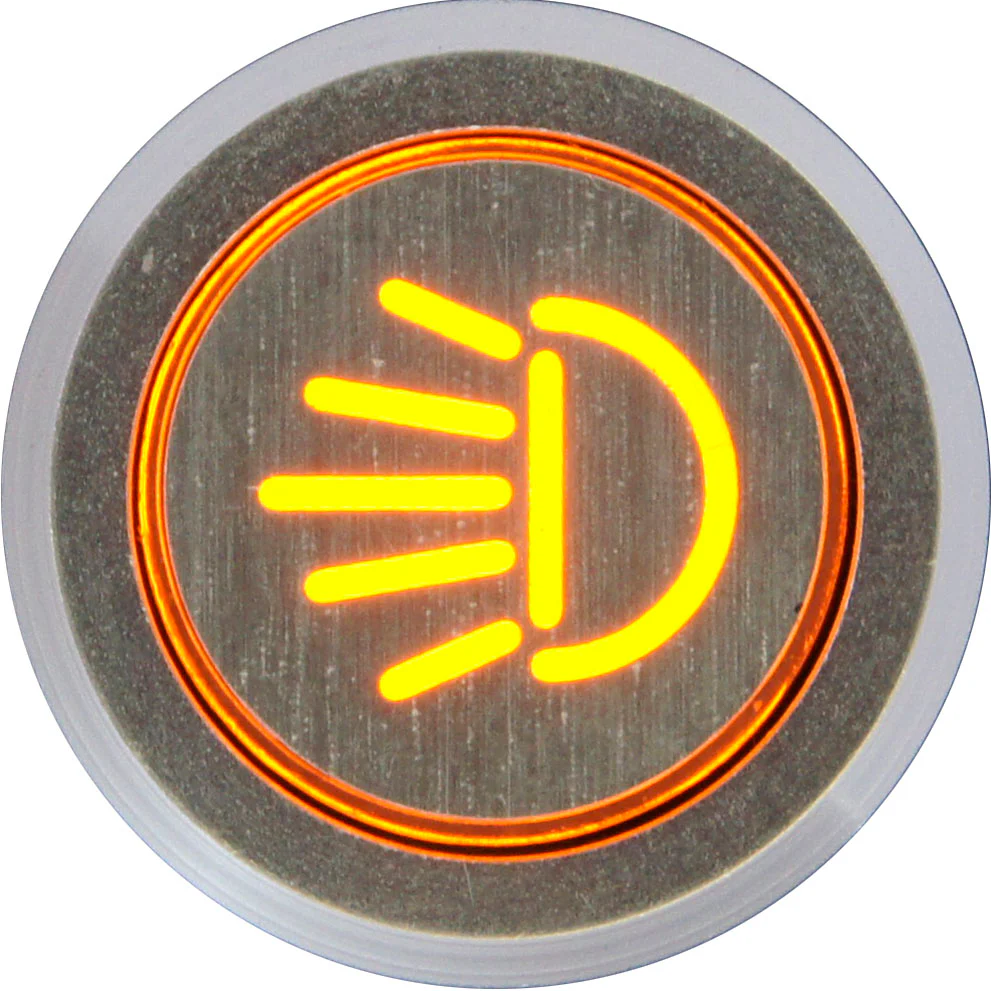

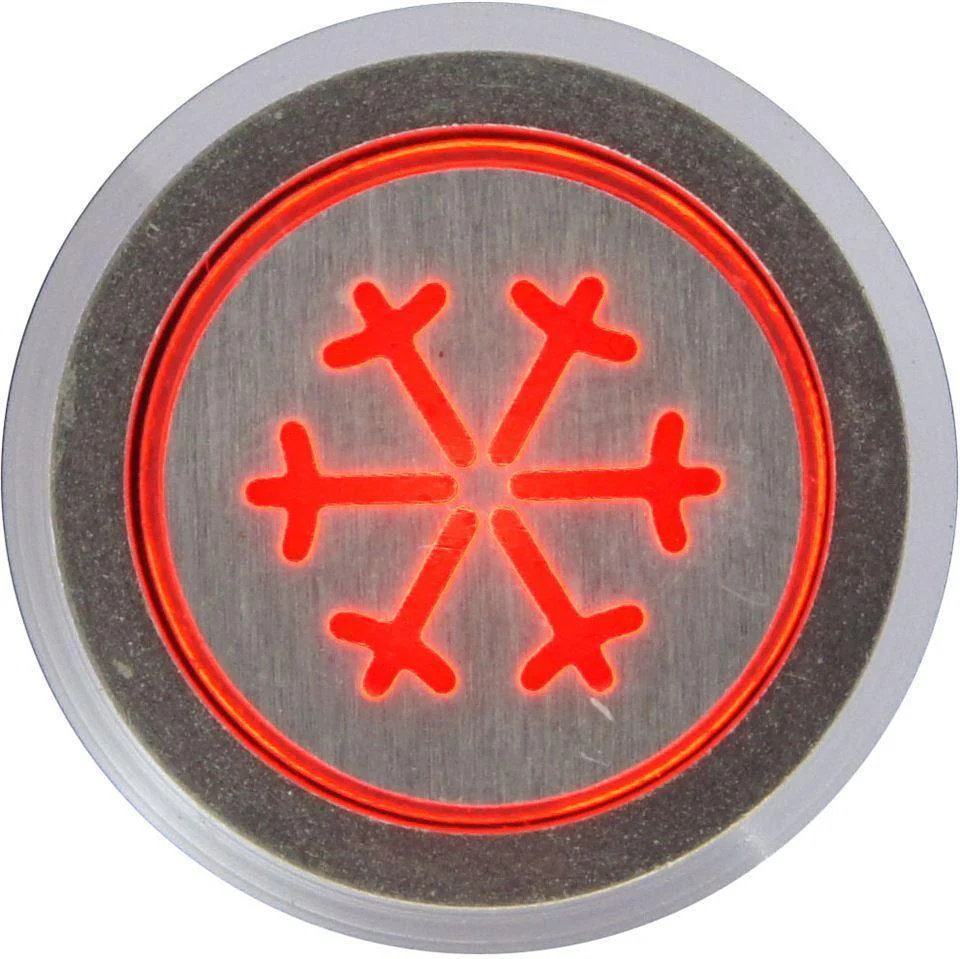

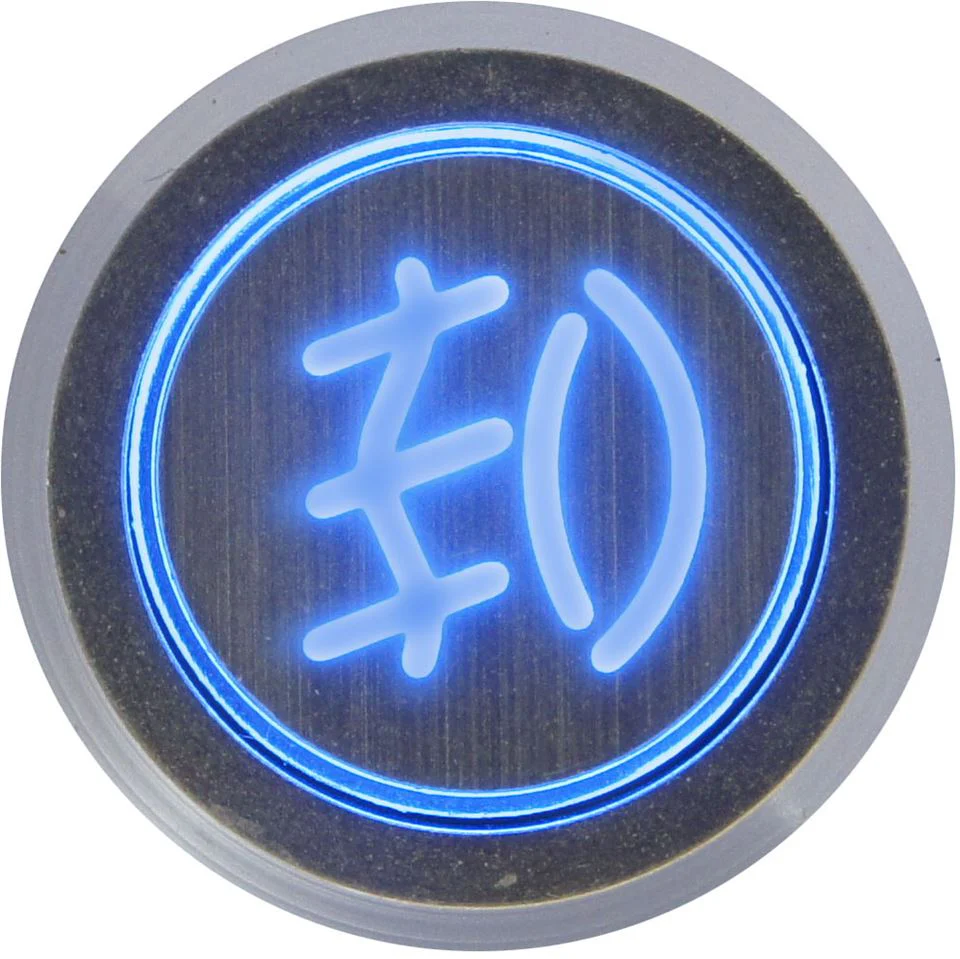

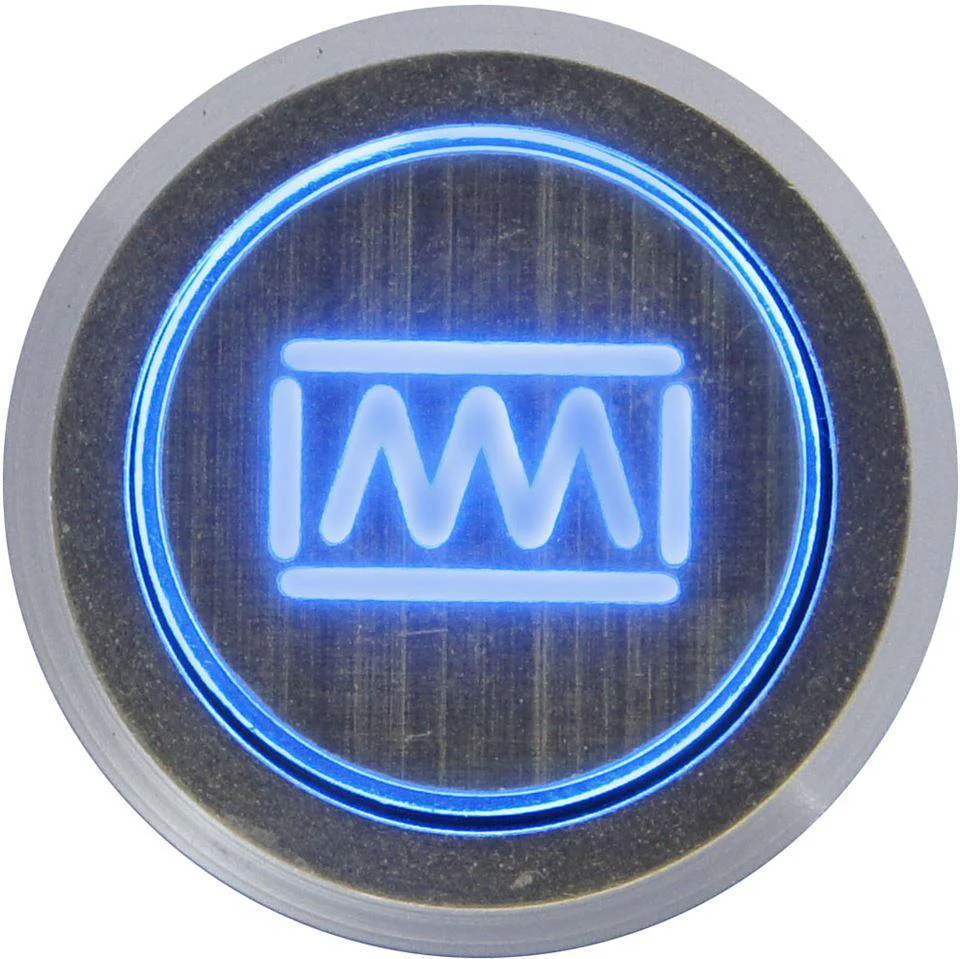

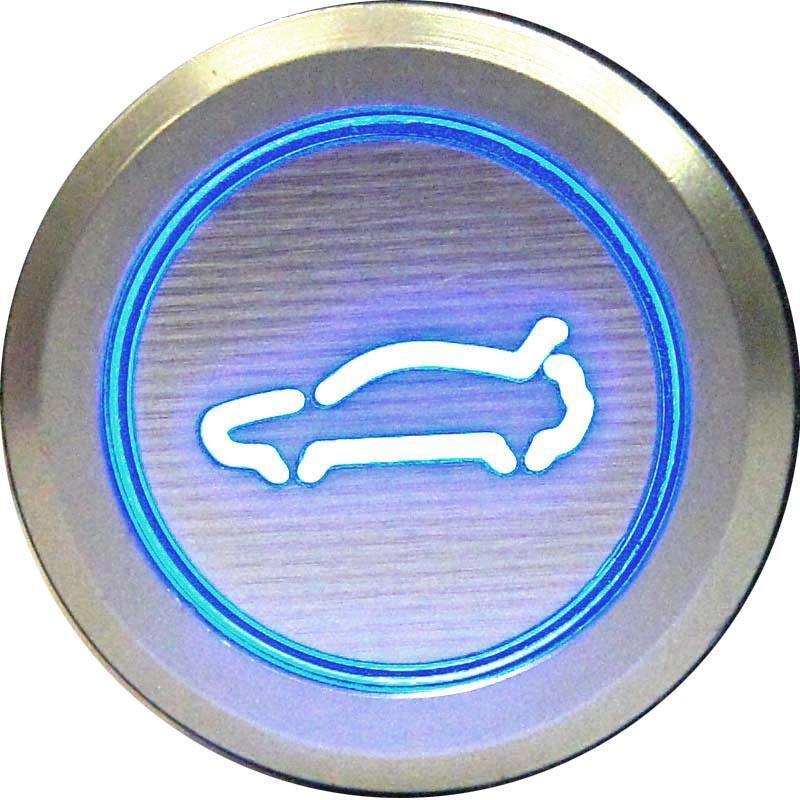

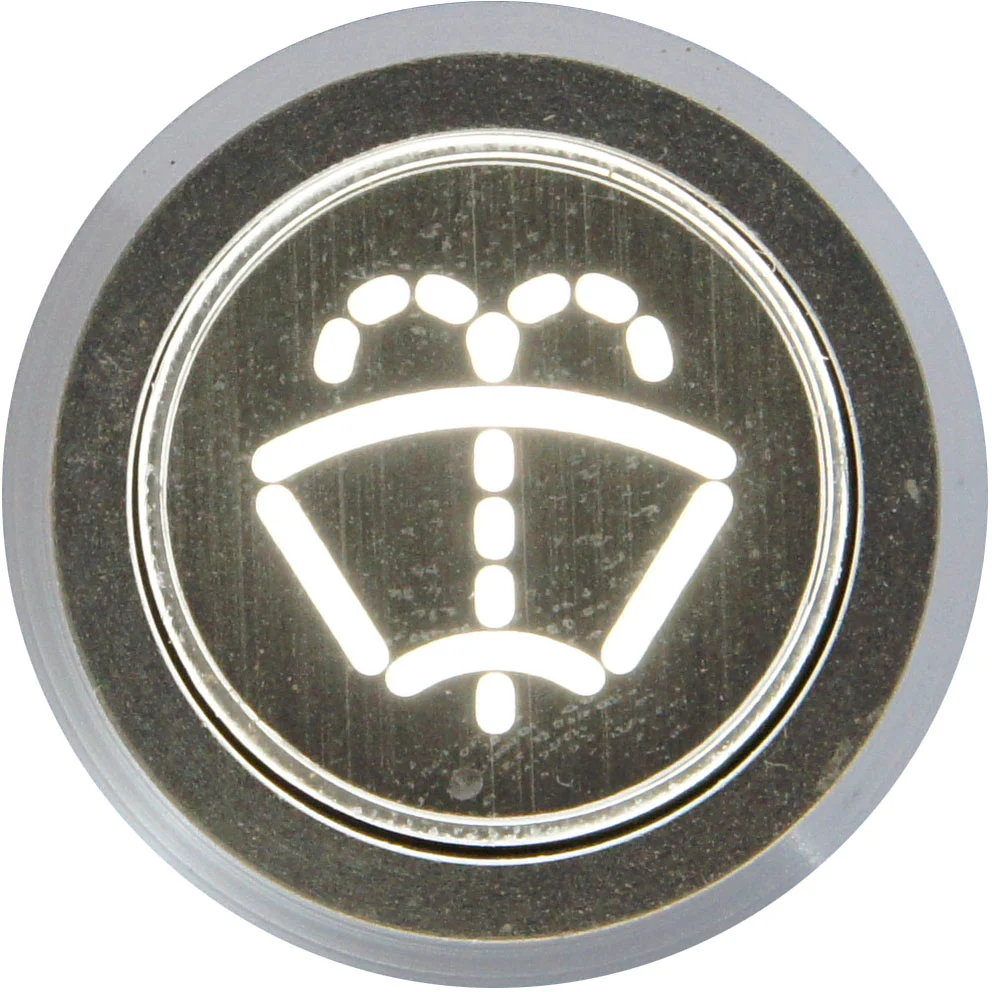

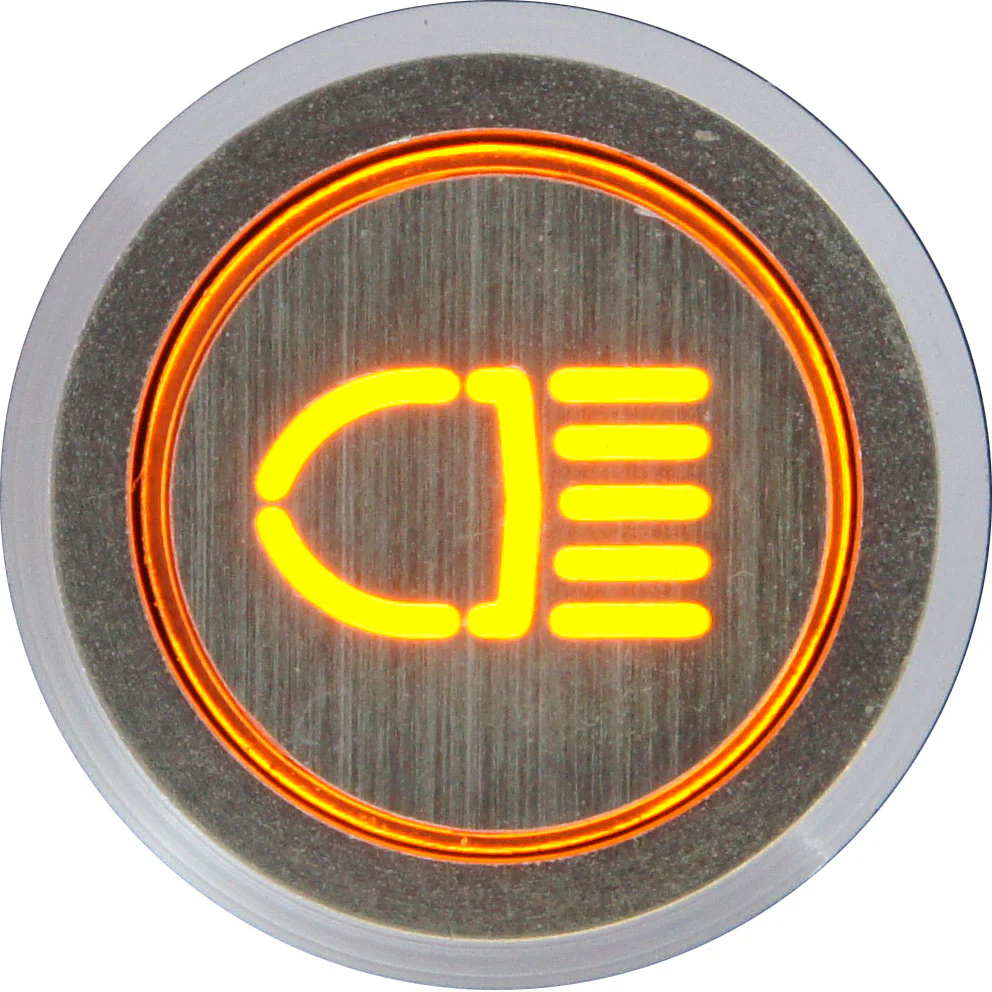

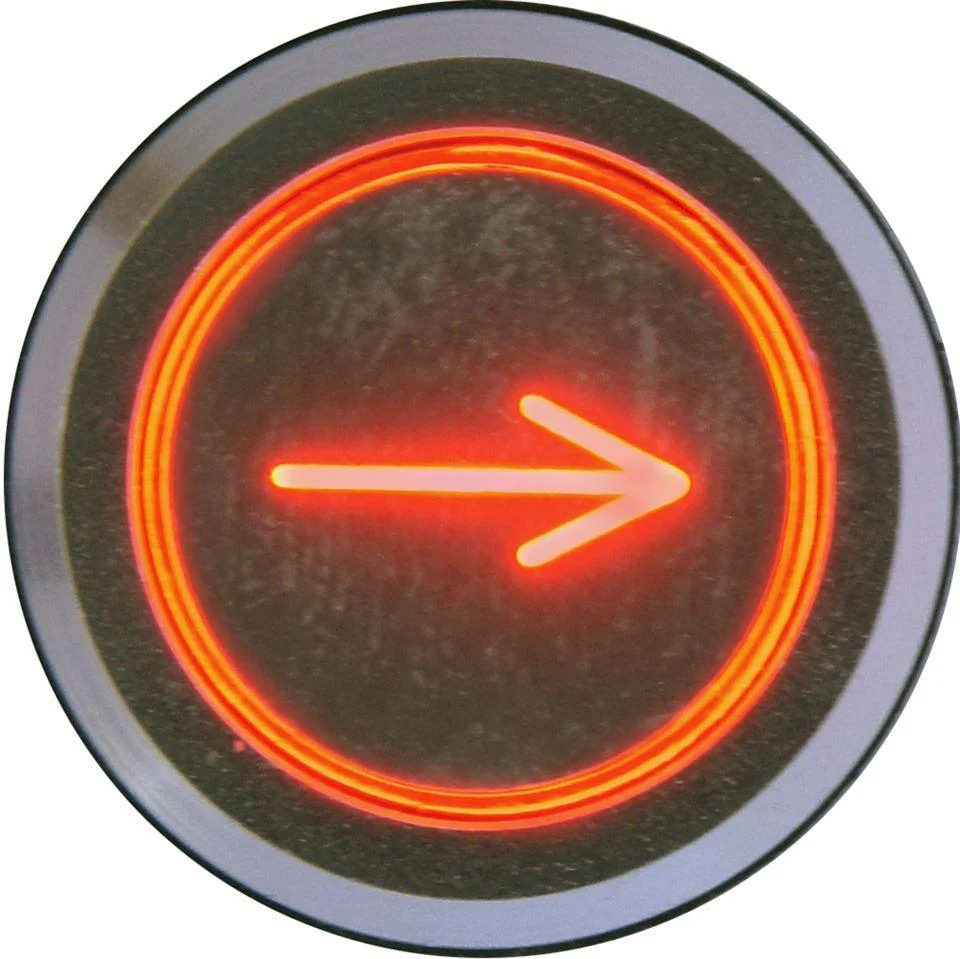

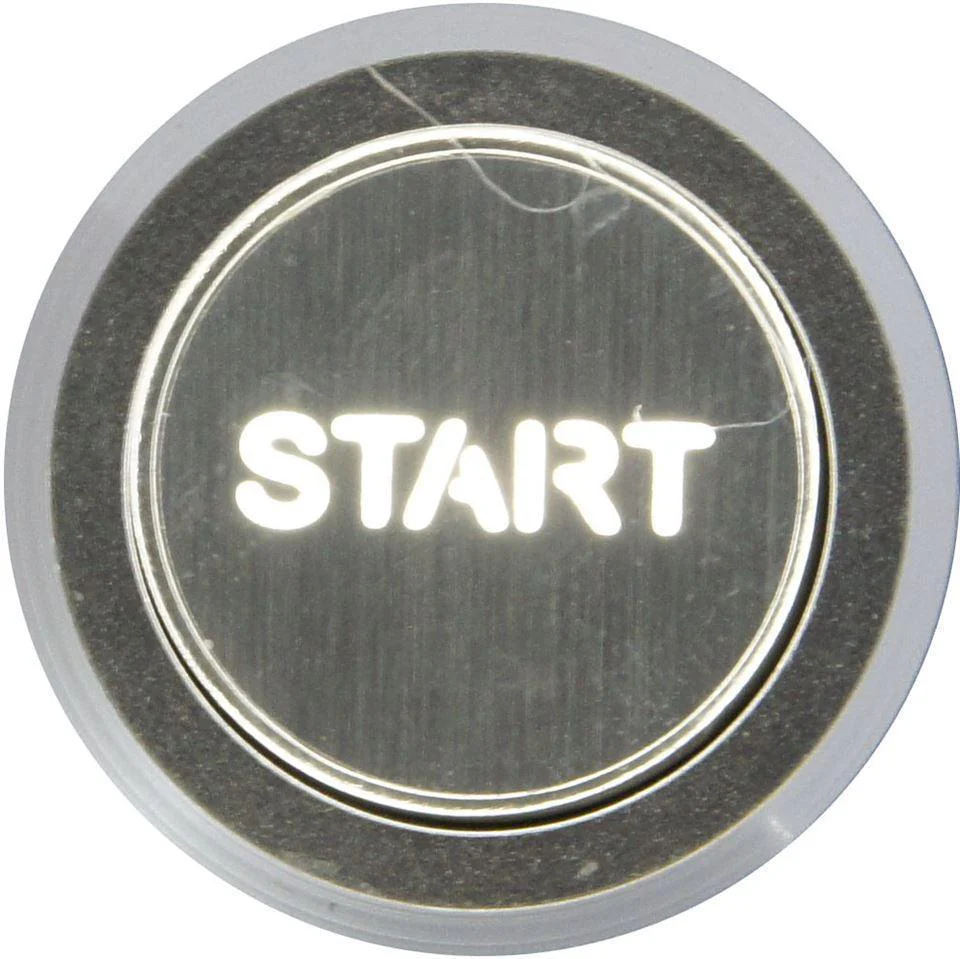

The face of the switch has a CNC engraved legend with full LED illumination. All switches have a seperate circuit, single illumination as standard so can be wired to either illuminate with sidelights 'ON' or to illuminate with the switch itself in the 'ON' position.

However a 'Dim/Bright' kit (BSWDIM) is available to provide a dim illumination when your sidelights are on and then a bright illumination when the switch is activated.

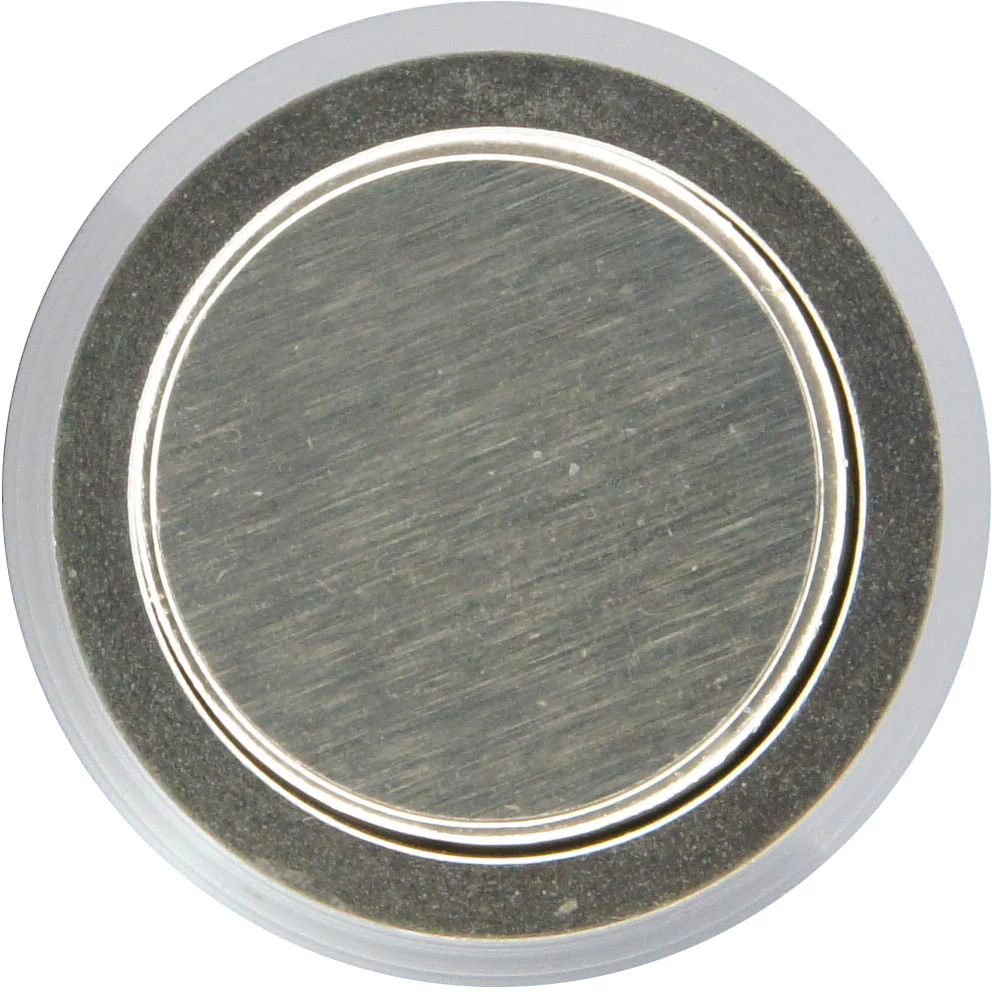

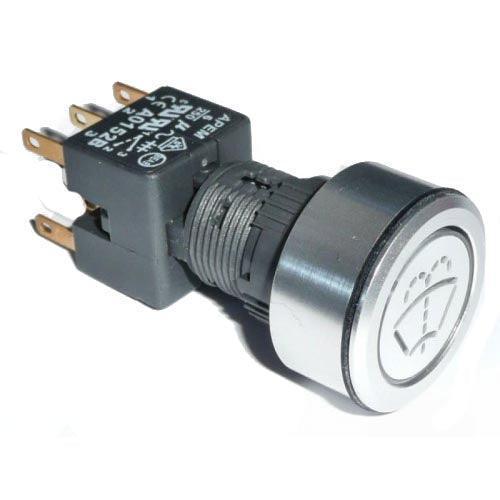

Natural Billet Aluminium Switch.

• Latching ( Push On - Push Again Off)
• ¹⁄₈" Male spade terminals
• Single Pole Contact Block 3 Pin Changeover

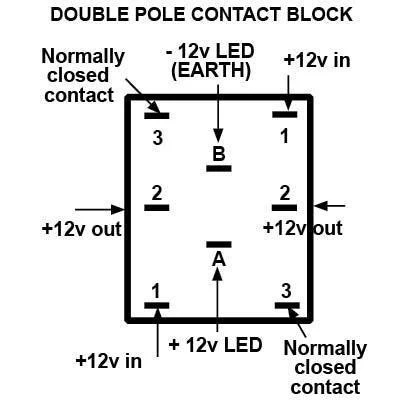

• Double Pole Contact Block 6 Pin Changeover

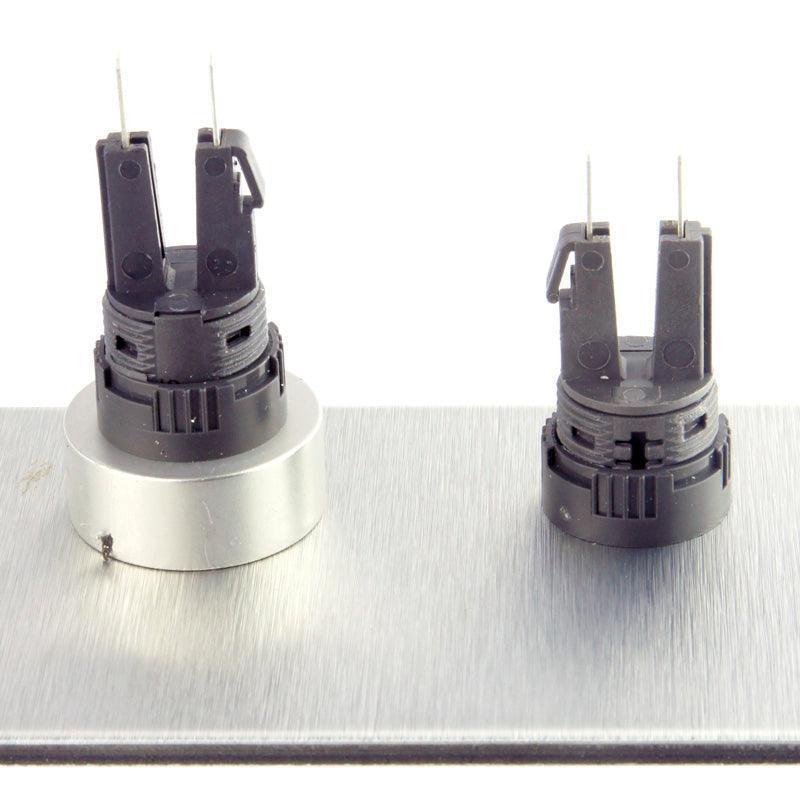

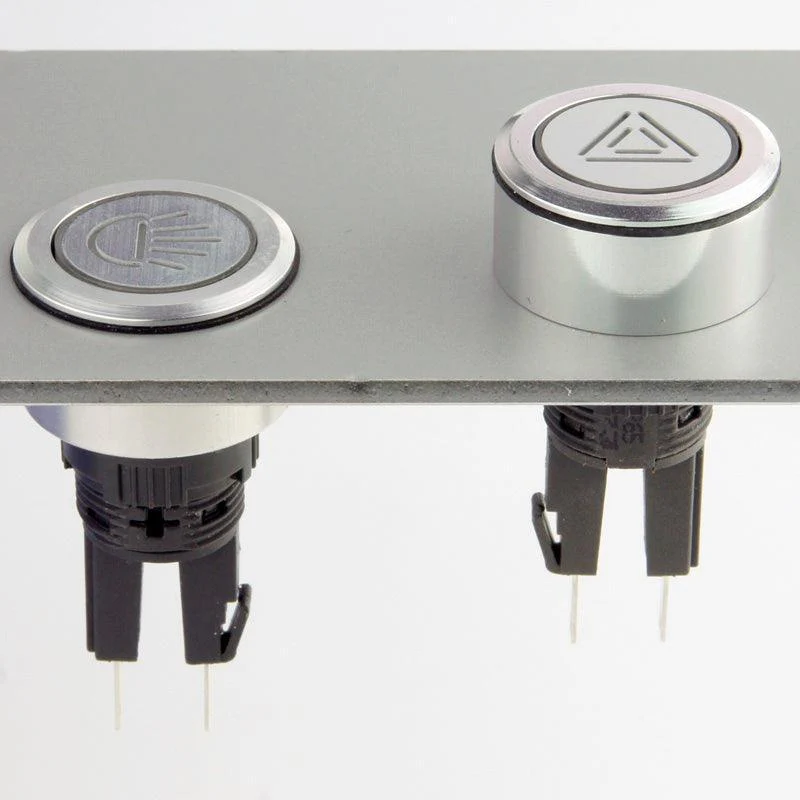

With Alloy Collar.

• Dash Projection 12mm
• Rear Projection 40mm
• Fitting hole size 15mm

Without Alloy Collar.

• Dash Projection 1.5mm
• Rear Projection 51mm
• Fitting hole size 23mm

Overall Dimensions.

• Collar Width 25mm
• Body Width 15mm
• Overall Length 52mm

NATURAL BILLET ALUMINIUM SWITCH LATCHING OPTION
