For 15mm diameter shaft.

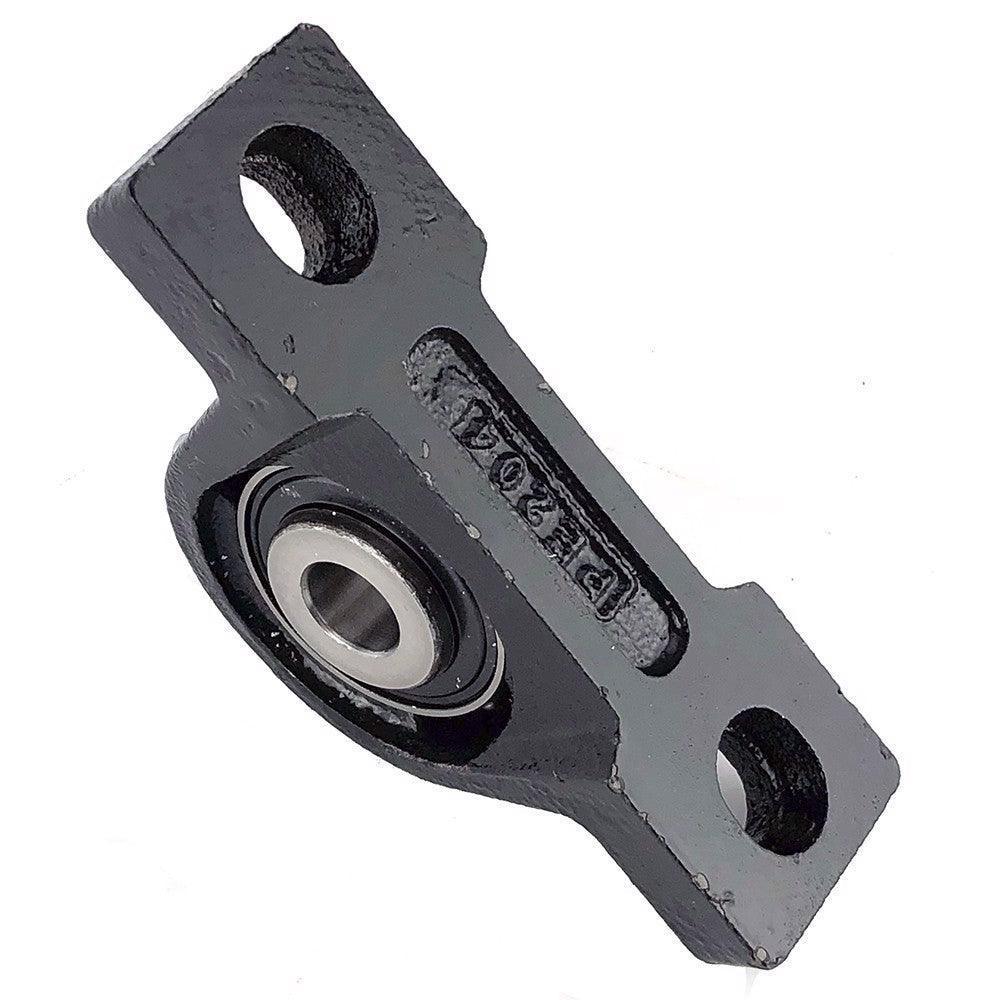

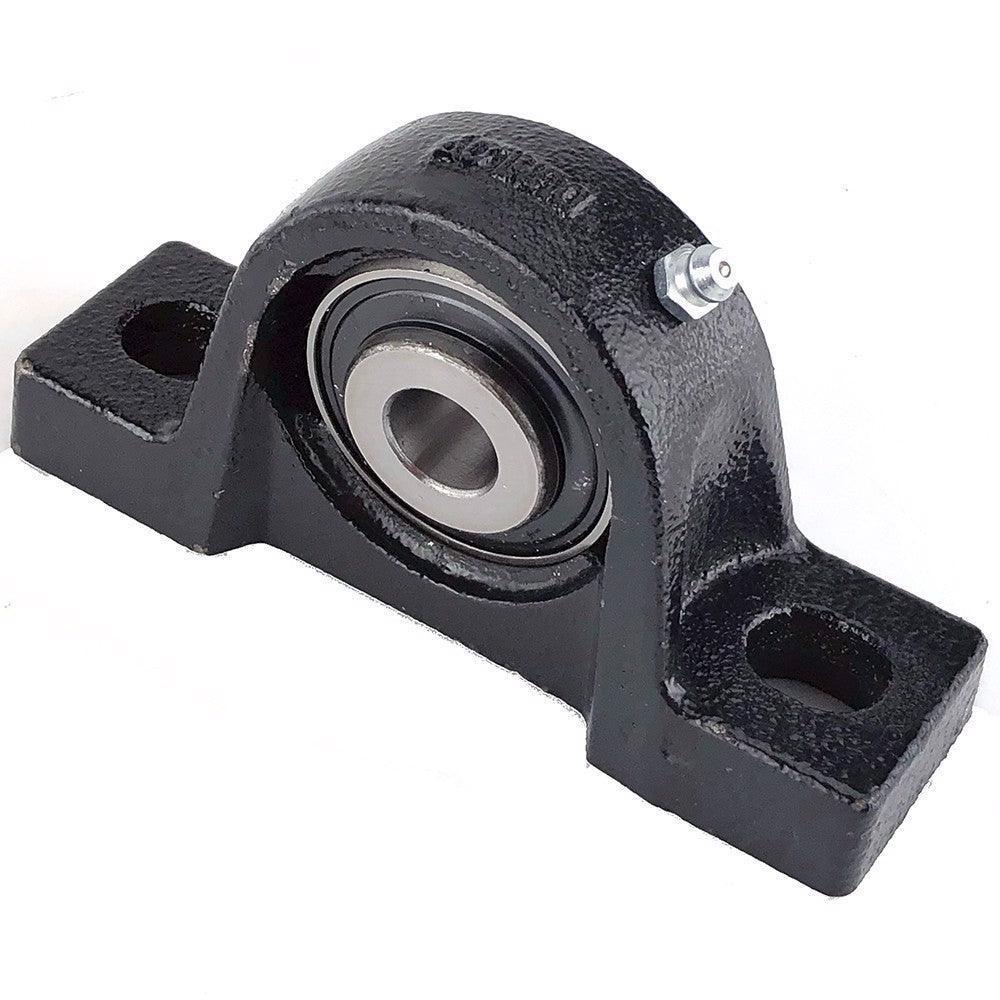

Pillow block are used as floating supports for rotating shafts.

This one has a sealed ball bearing with a spherical outer casing

that floats up to 15 degrees in it’s cast iron housing (Colour may vary).

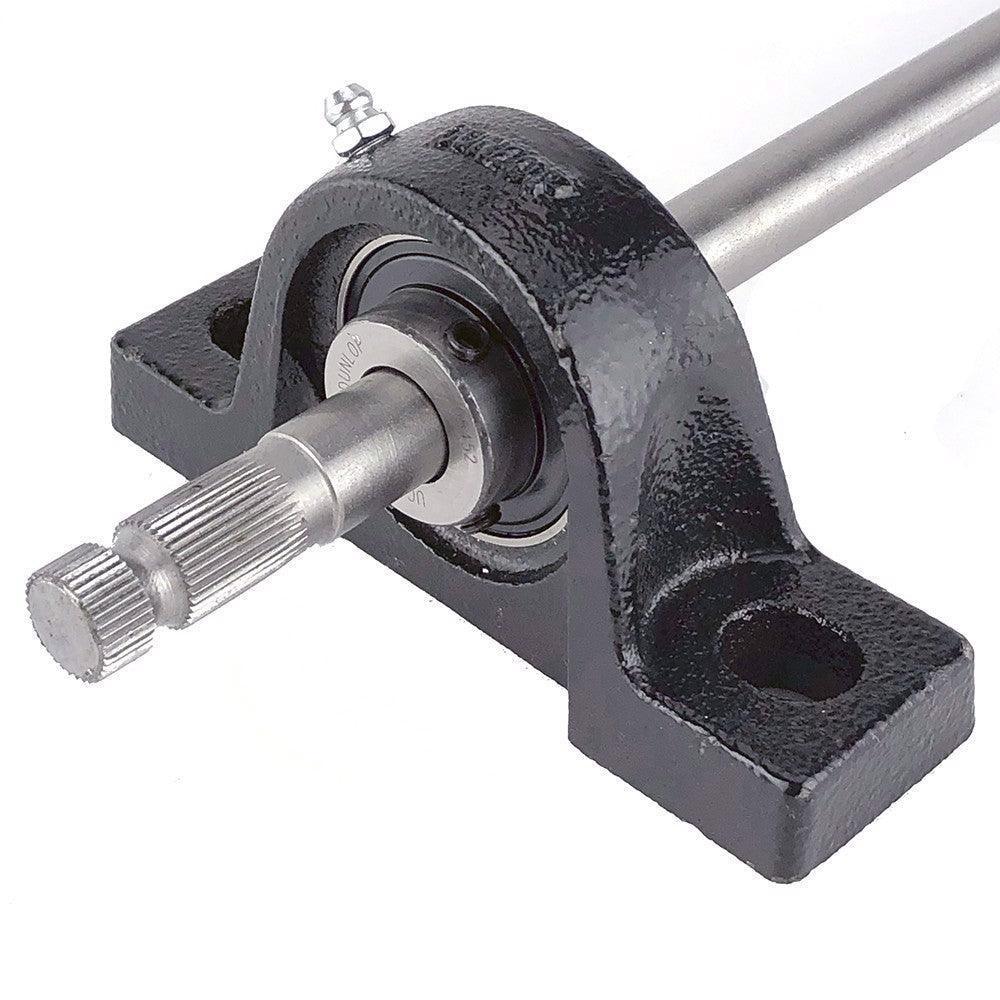

Can be used as a mid-support for long, 15mm diameter, steering columns.

Footprint 129mm x 38mm. 67mm high.

Two 11mm mounting holes at 95mm centres.

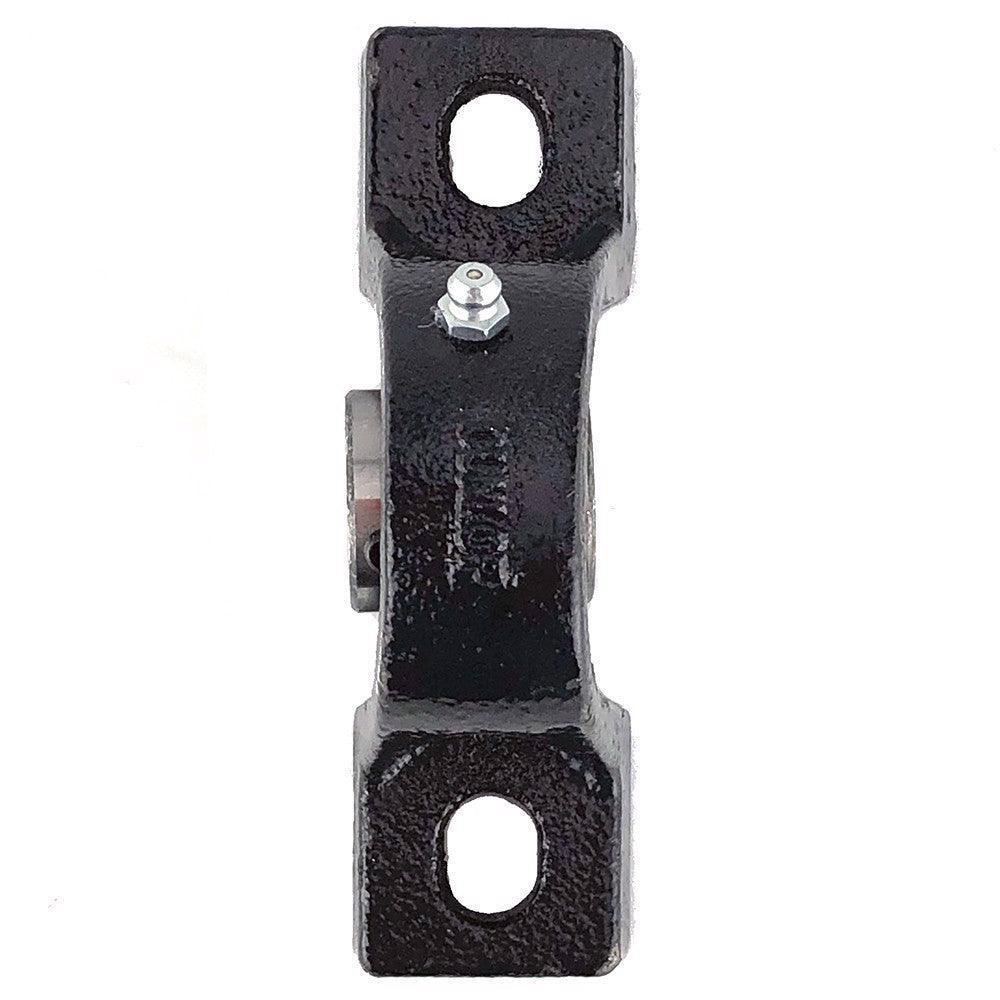

Grease nipple.

Weight 746gms

Two grub screws to secure the shaft to the bearing inner race.

NOTE: SHAFT NOT INCLUDED

NOTE: SOME STEERING COLUMNS ‘OSCILLATE’ WHEN TURNING.

THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.

ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORT

WITH A PILLOW BLOCK ROTATES ONLY ON IT’S OWN AXIS AND DOES NOT OSCILLATE.

PILLOW BLOCK 15mm I.D. #PIL15
