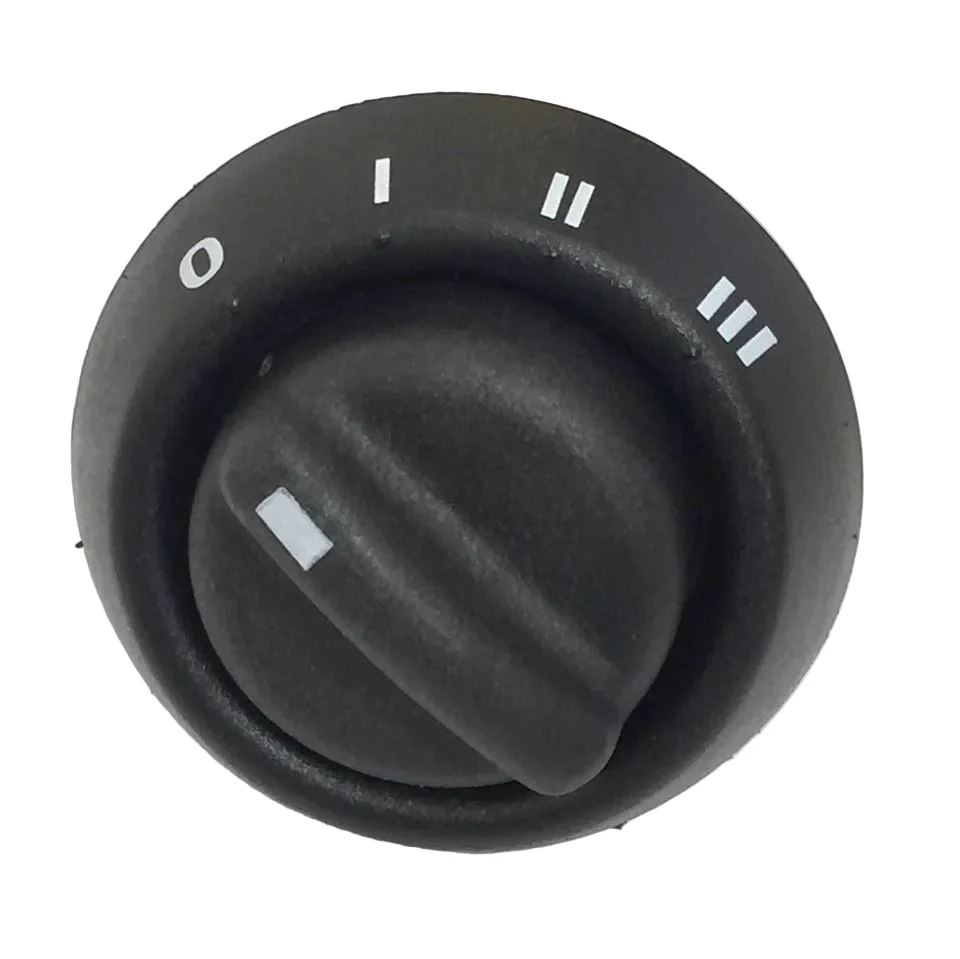

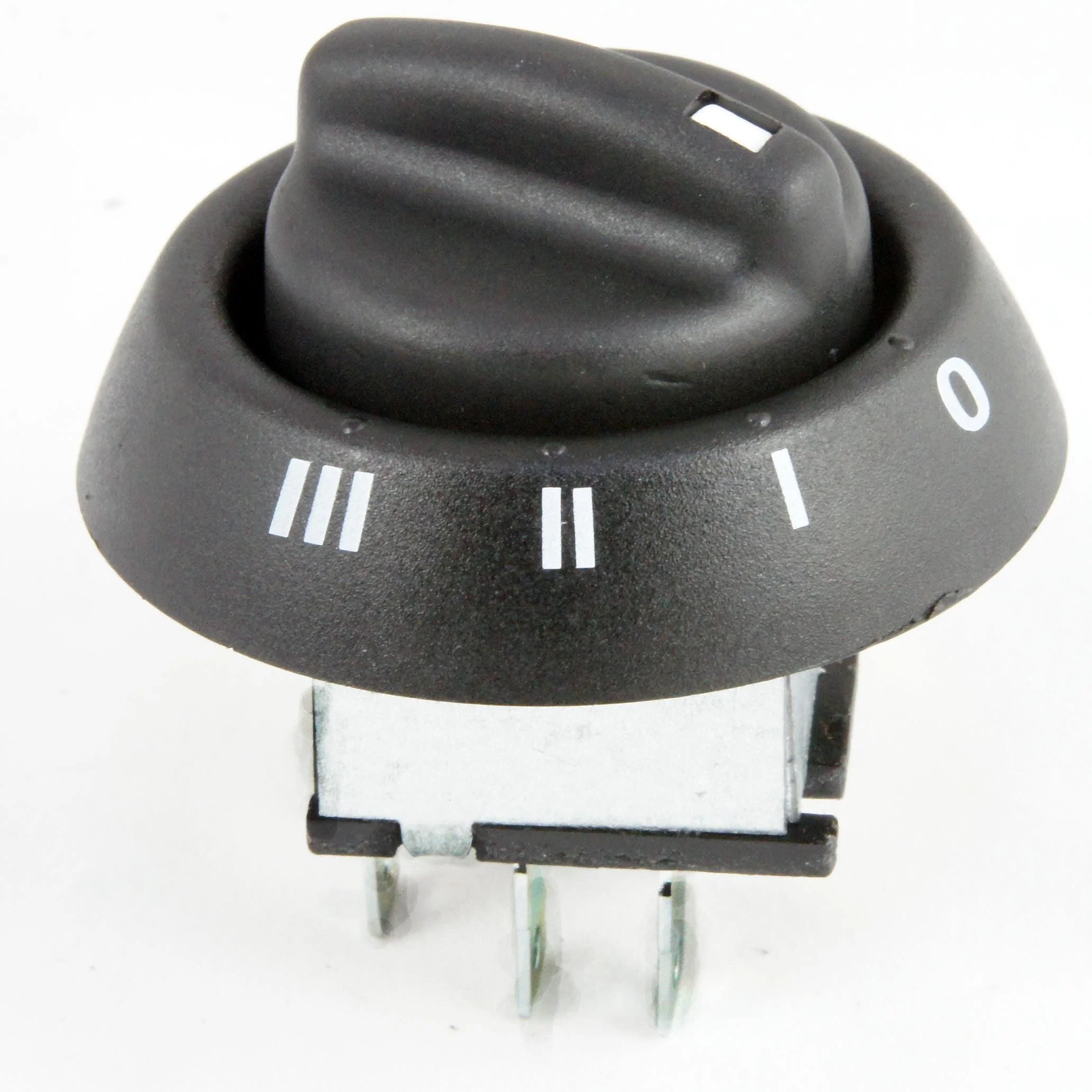

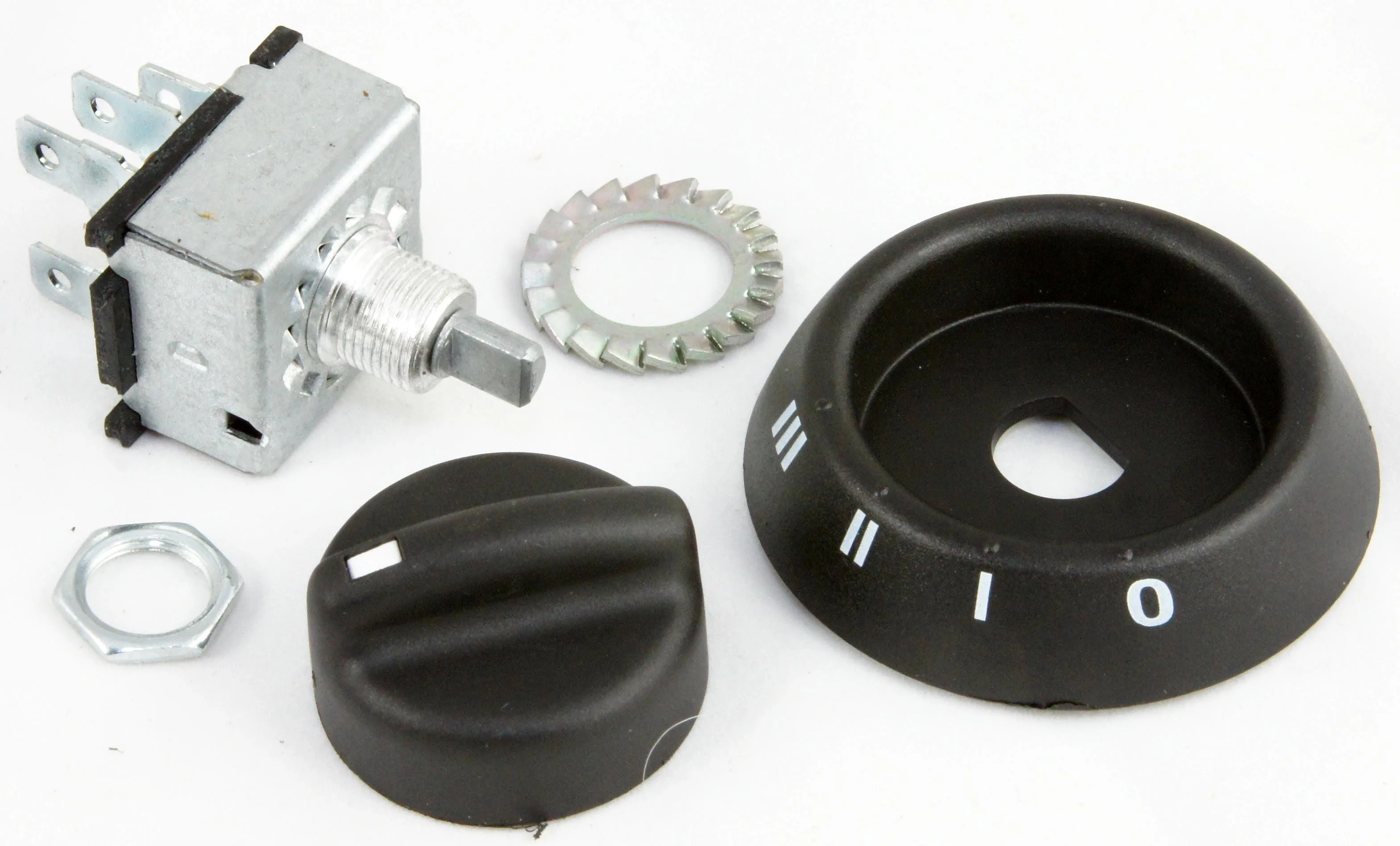

Plastic Knob and Bezel 3 Speed Rotary Heater Fan Switch
This 4 position, fan switch will run your 3 speed heater fan without complicated relay wiring.
Fits in 11mm hole. 1/4" Spade terminals. 55m dia bezel, 23mm front projection, 30mm rear projection.
It also has a live out terminal for a warning light or compressor control system.

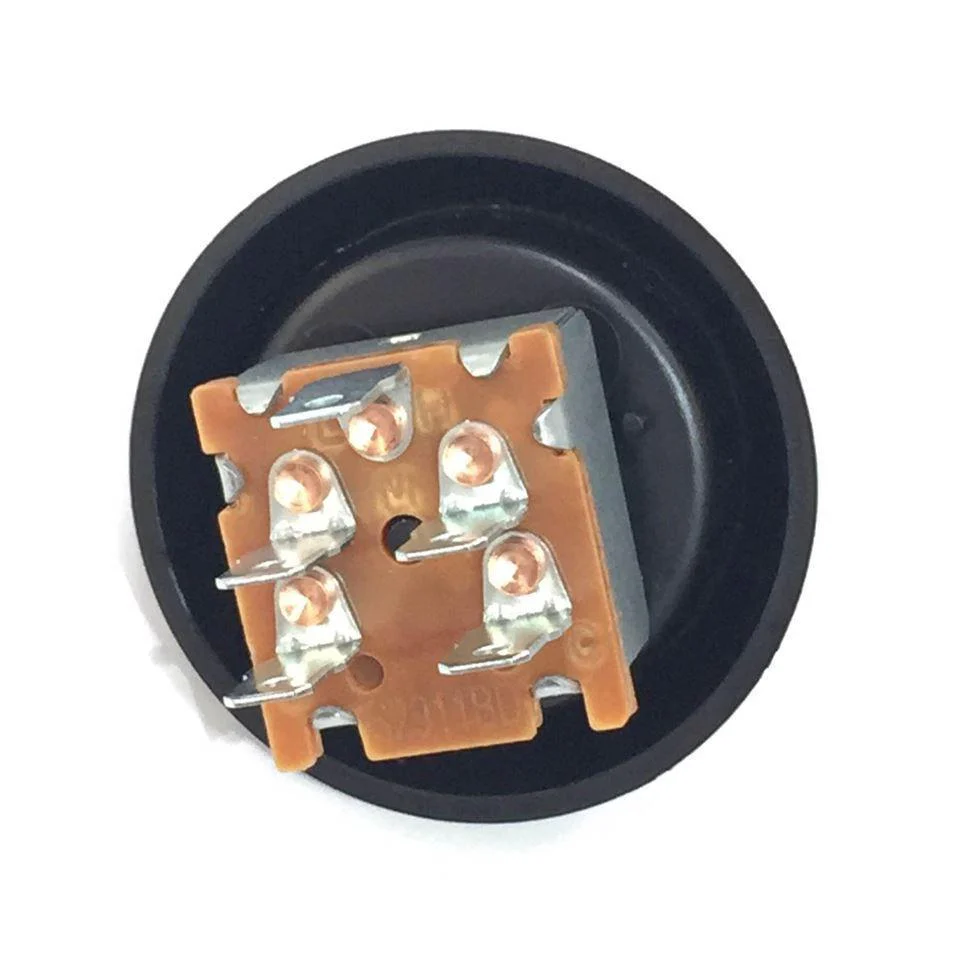

Wiring Connections B-Live feed to switch, L-Speed 1, M-Speed 2, H-Speed 3, C-Live out in any on position (e.g on warning light)
Rated for 20 amps.
Note: Your motor must have windings for three speed operation.
3 SPEED FAN SWITCH #SWFAN2
