Pressed Aluminium Fuel Swirl Pot Surge Tank

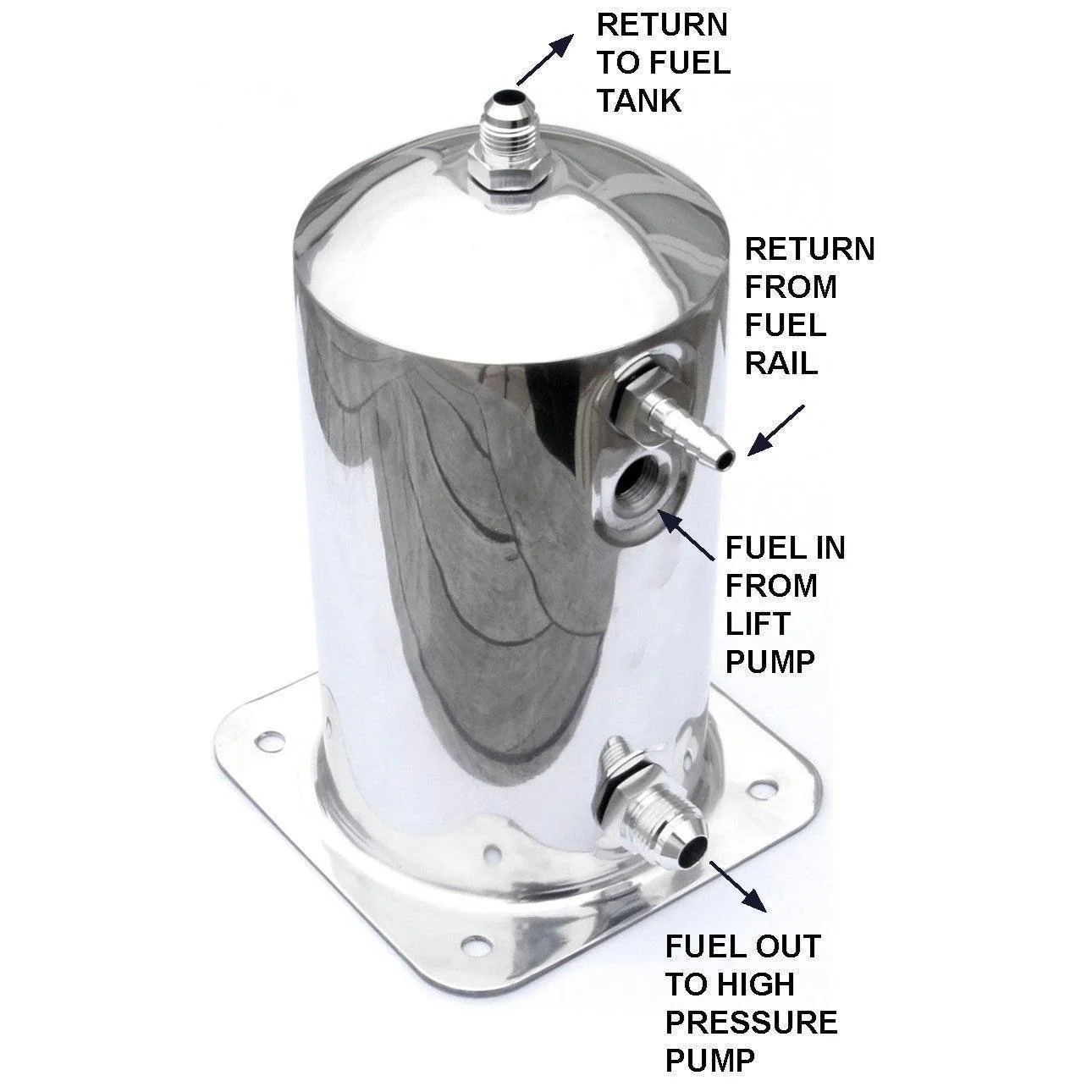

This very clever surge tank is manufactured mostly from one piece of 3mm aluminium sheet.
The only weld is on the closing plate on the base so no welds are visible when it's mounted.

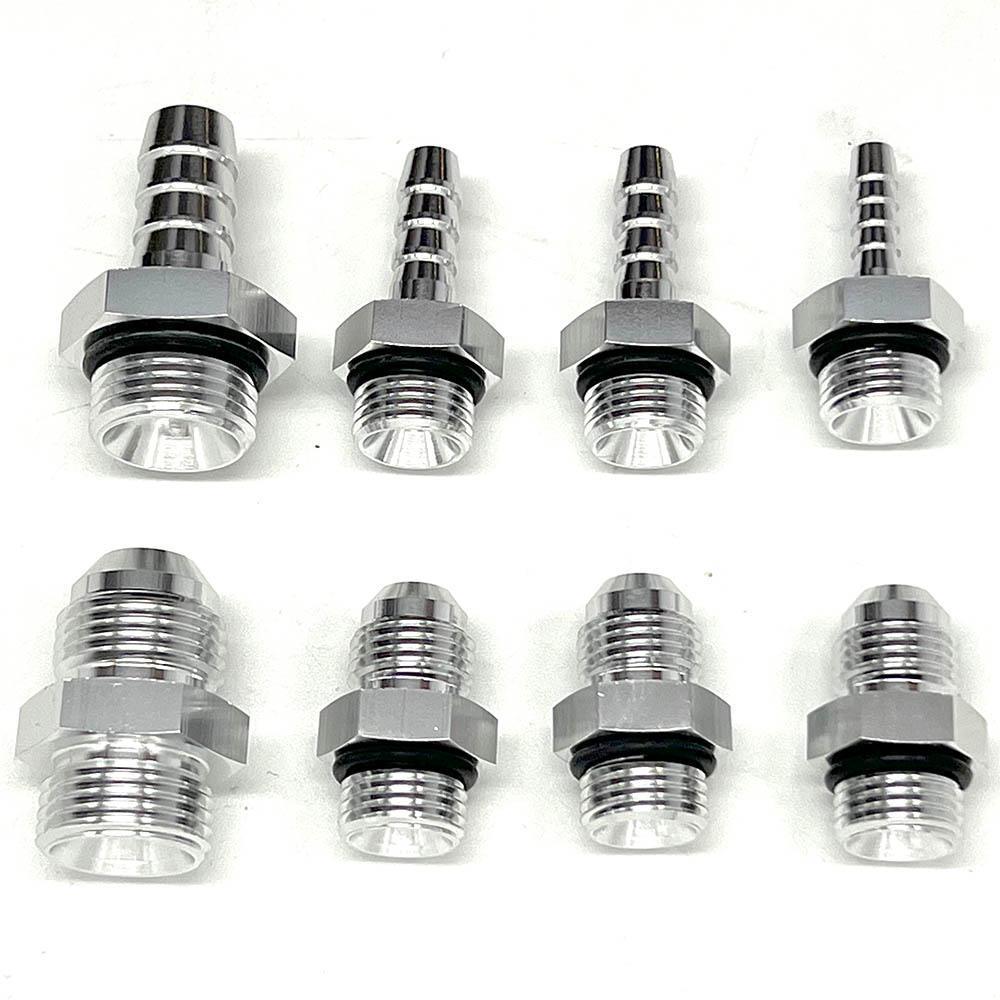

A selection of eight 'O' ring fittings is included:
1 x 6mm Hose tail, 2 x 8mm Hose tail, 1 x 12mm Hose tail
3 x AN6 (9/16" UNF), 1 x AN8 (3/4" UNF)
Internal threads in tank. 1 x 3/4" UNF 3 x 9/16" UNF.
Height (without unions fitted) 195mm.
Diameter 108mm.
Base 130mm square with 4 x 8mm fixing holes on 100mm square.
Capacity 1.5 Litres.
Weight (including all unions) 520 gms.
FUEL SURGE TANK #SURGE
