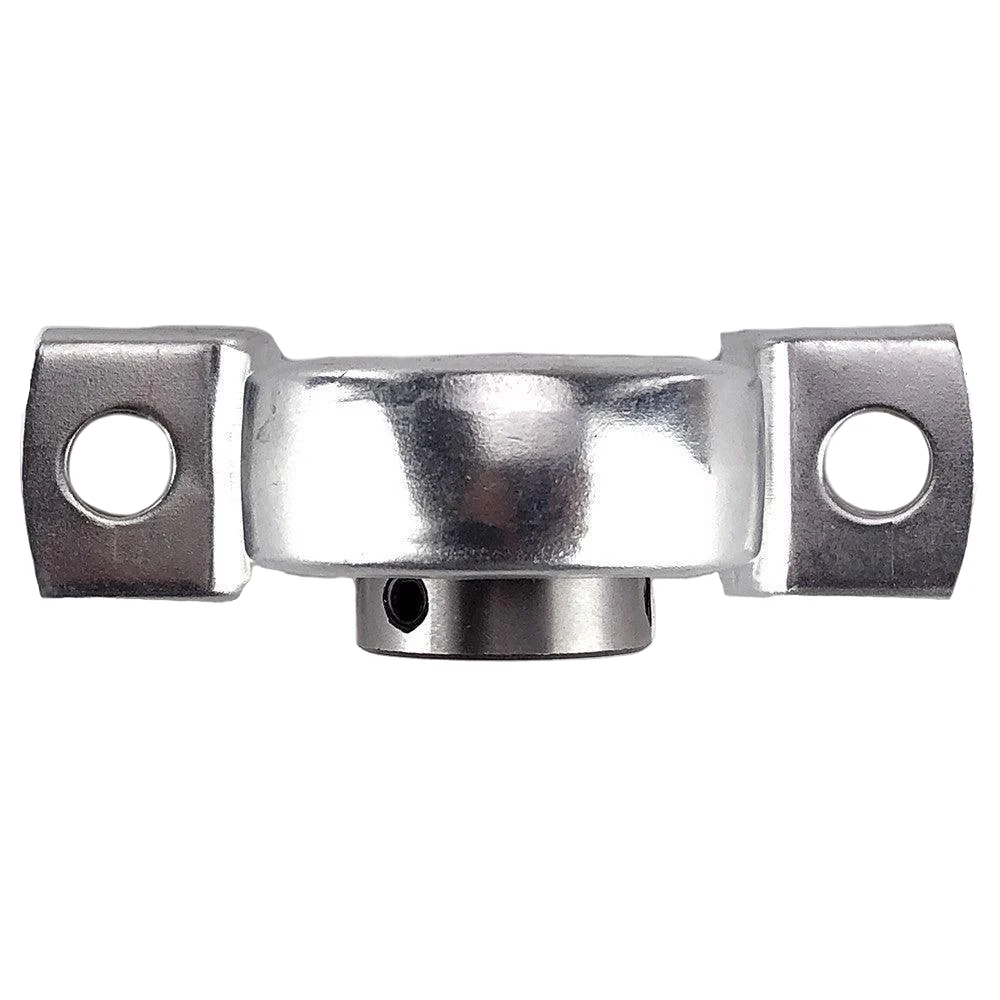

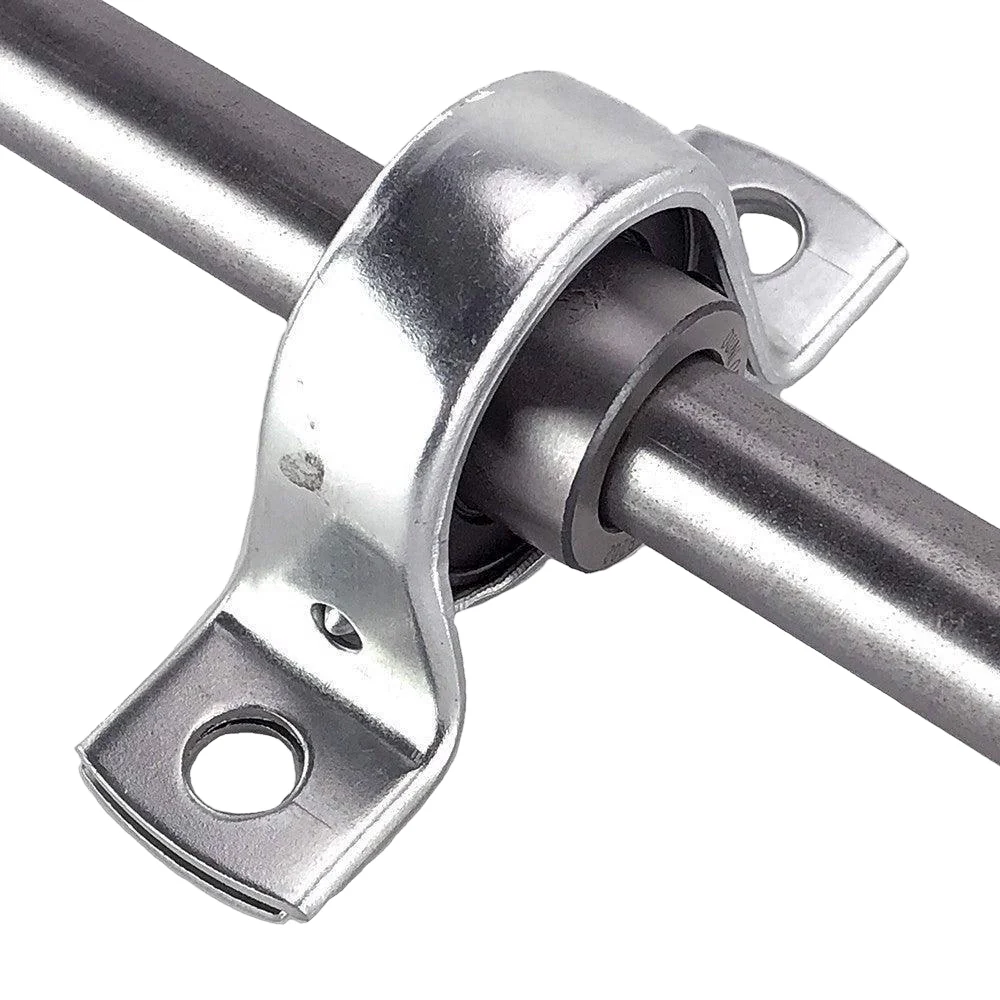

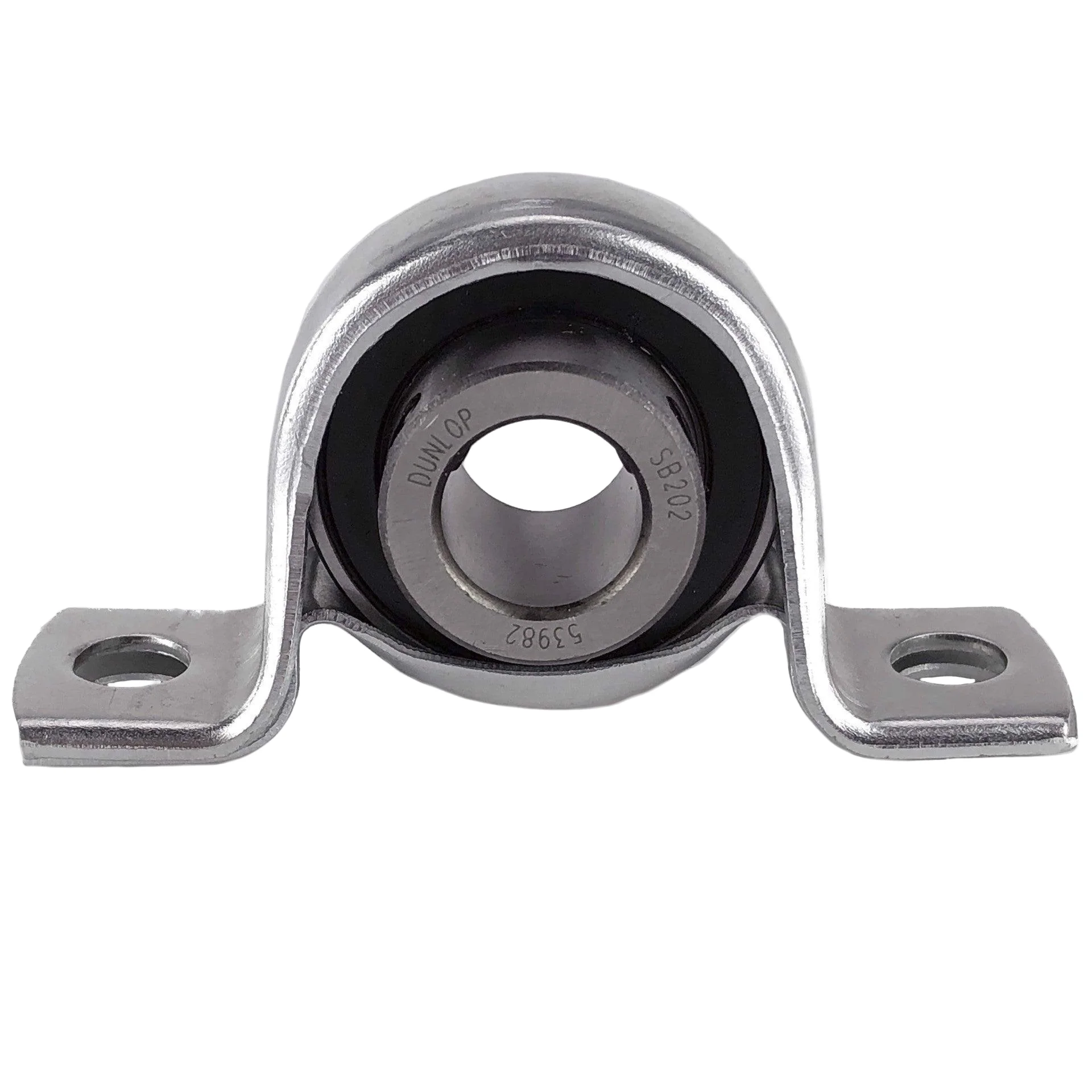

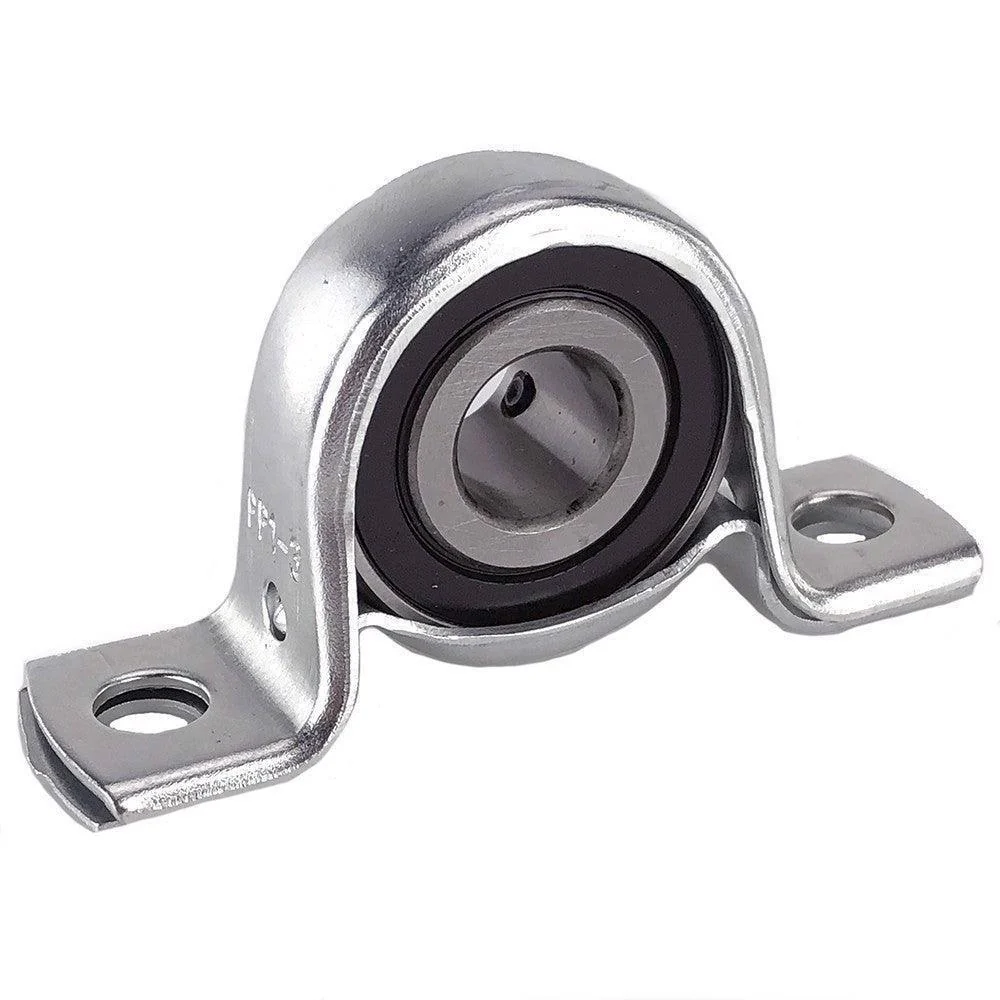

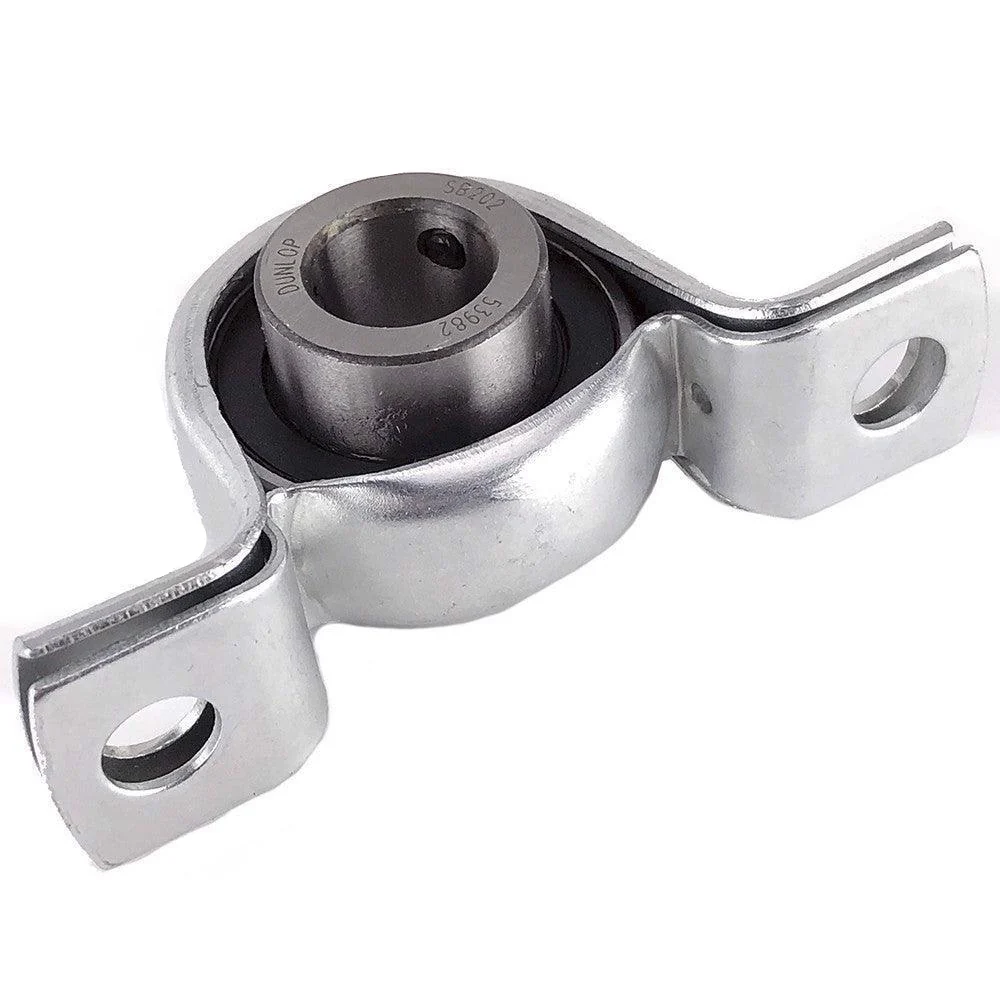

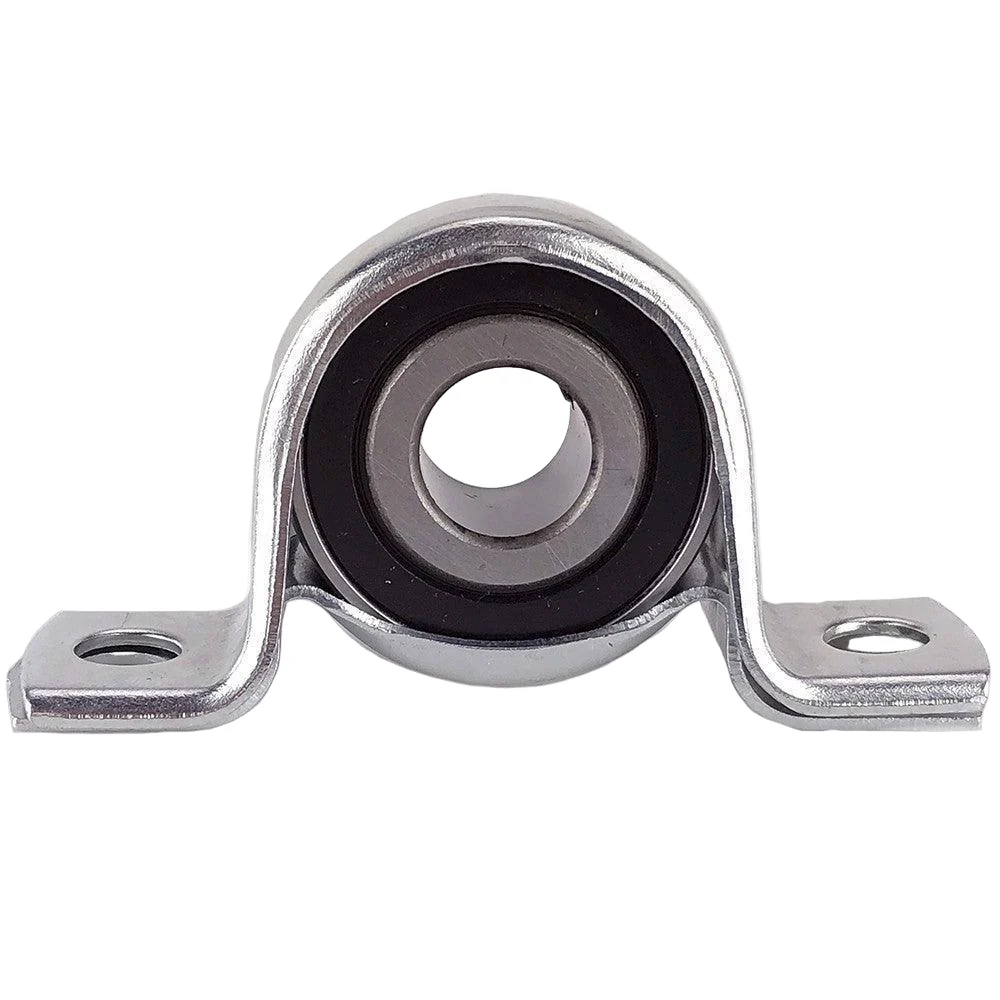

Pillow Blocks are used as floating supports for rotating shafts such as steering columns.

This one accepts a 15mm diameter shaft and has a sealed ball bearing with a spherical outer casing that can ‘rock’ up to 5.6 degrees in it’s plated, pressed steel housing.

Two grub screws secure the shaft to the bearing inner race.

Weight 142g.

Footprint 87mm x 25mm. 45mm high.

Two 9mm mounting holes at 68mm centres.

NOTE: SHAFT NOT INCLUDED

Two grub screws to secure the shaft to the bearing inner race.

NOTE: SOME STEERING COLUMNS ‘OSCILLATE’ WHEN TURNING.

THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.

ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORT WITH A PILLOW BLOCK ROTATES ONLY ON IT’S OWN AXIS AND DOES NOT OSCILLATE.

PRESSED STEEL CASE PILLOW BLOCK 15mm I.D. #PIL153
