12V or 24V.

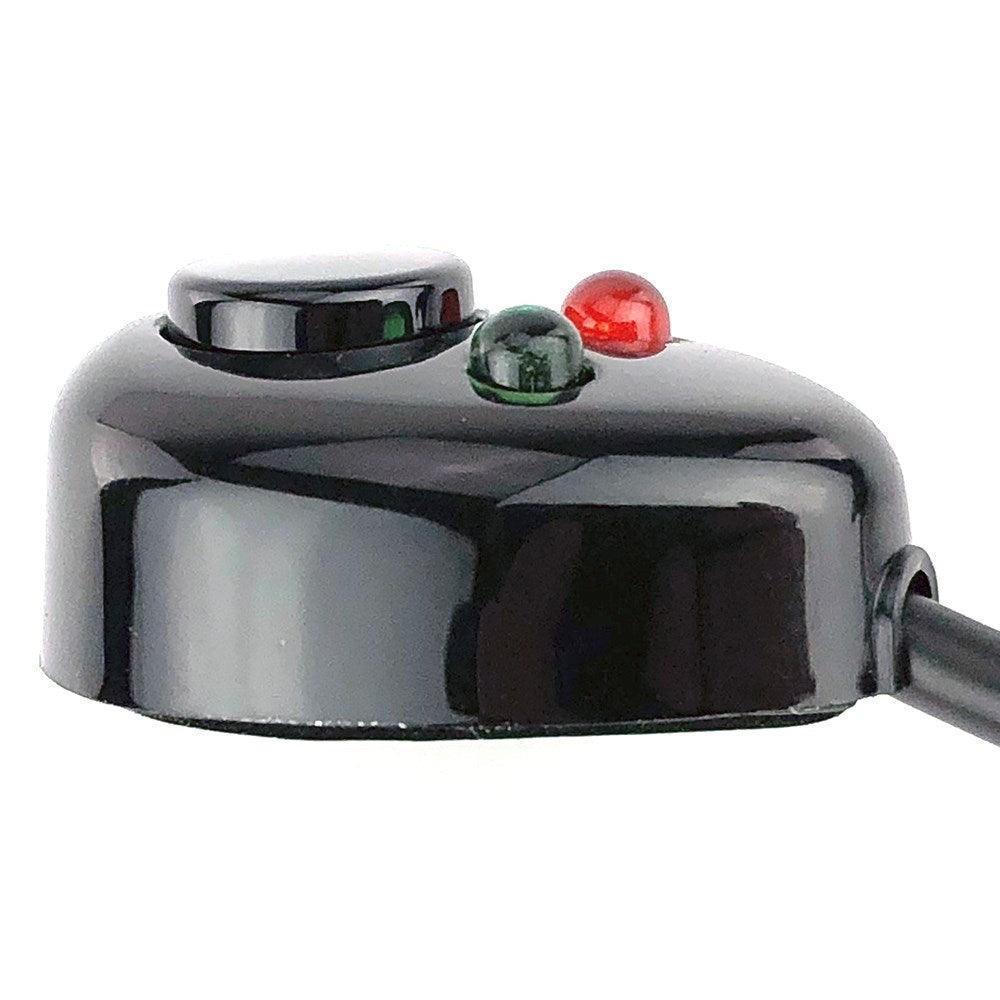

Whenever there is power to this switch one LED is always on,

Red: when the switch is ‘off’ or Green when the switch is ‘on’.

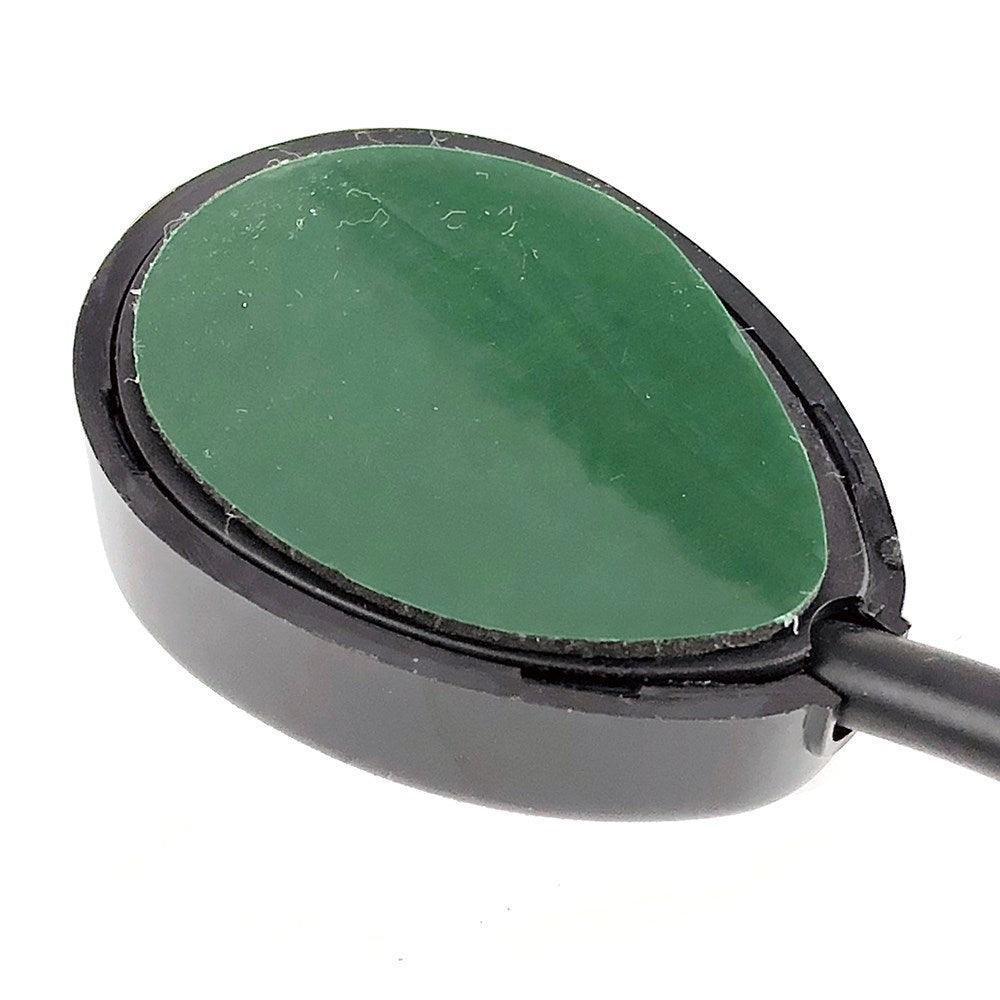

Self adhesive pad for quick and easy fixing.

Moulded nylon housing. Dimensions: 30mm x 40mm x 17mm high.

Pre-wired to a 900mm cable.

Switch rated: 1.0A at 12V DC so we recommend using a relay for most applications,

Weight 20gm.

Red wire - Supply +ve

White wire - Switched load

Black wire - Earth -ve

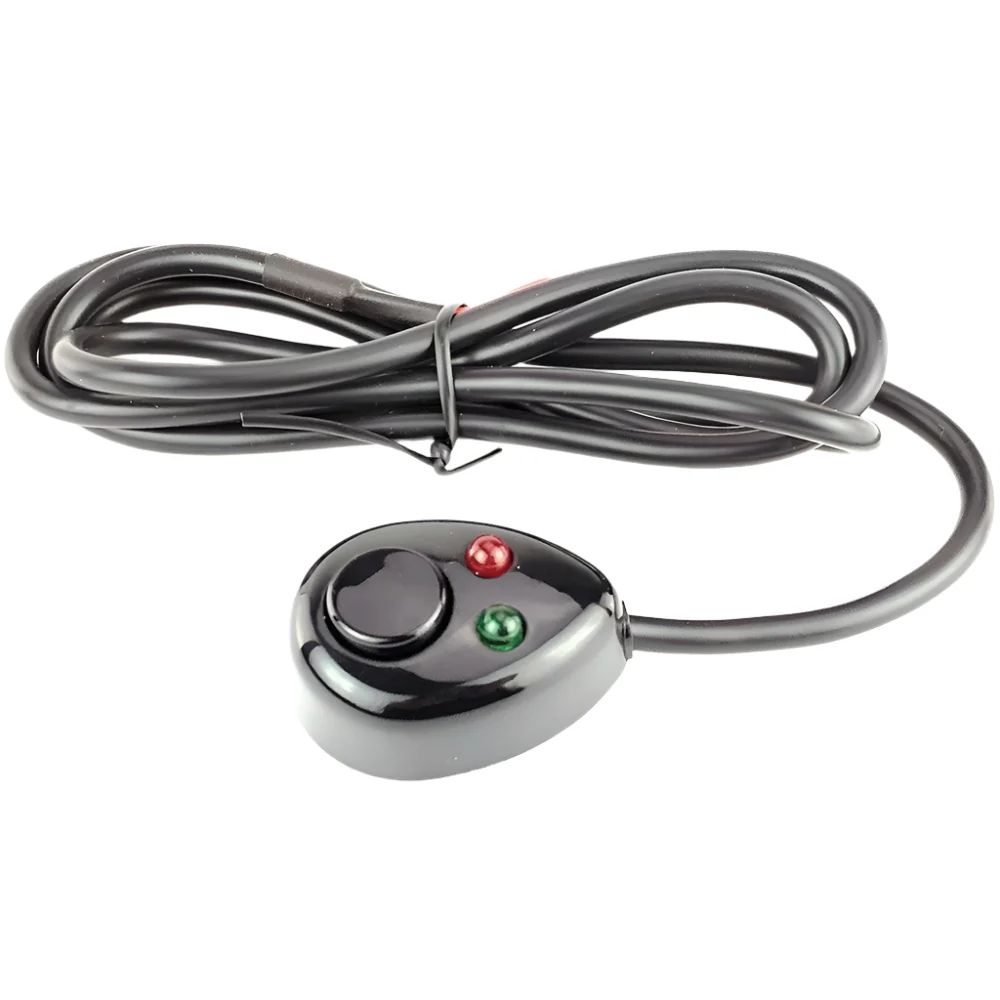

PUSH-ON PUSH-OFF SURFACE MOUNTED ILLUMINATED SWITCH #POPOSW
