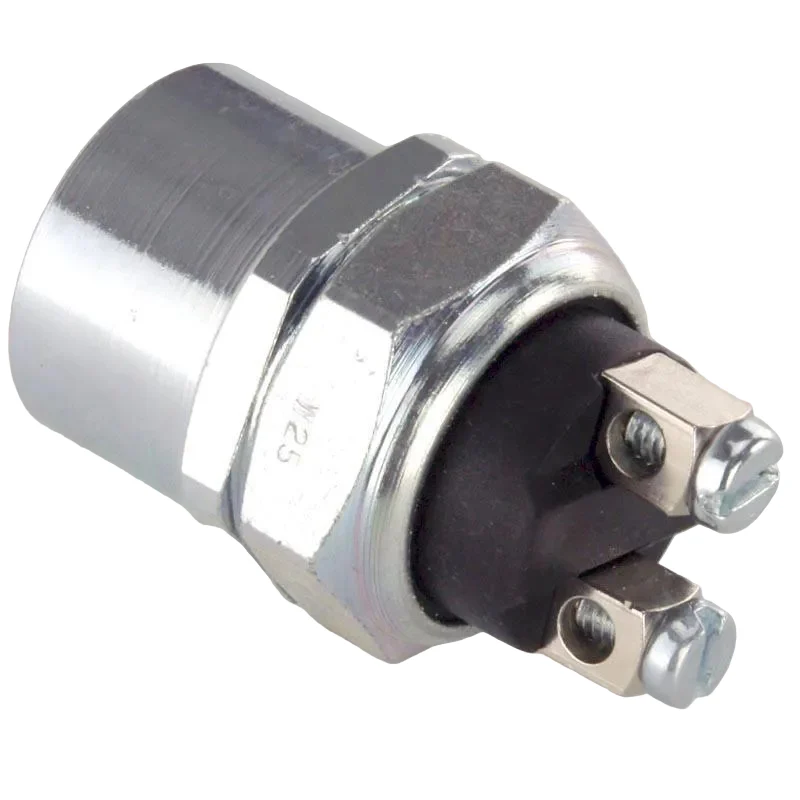

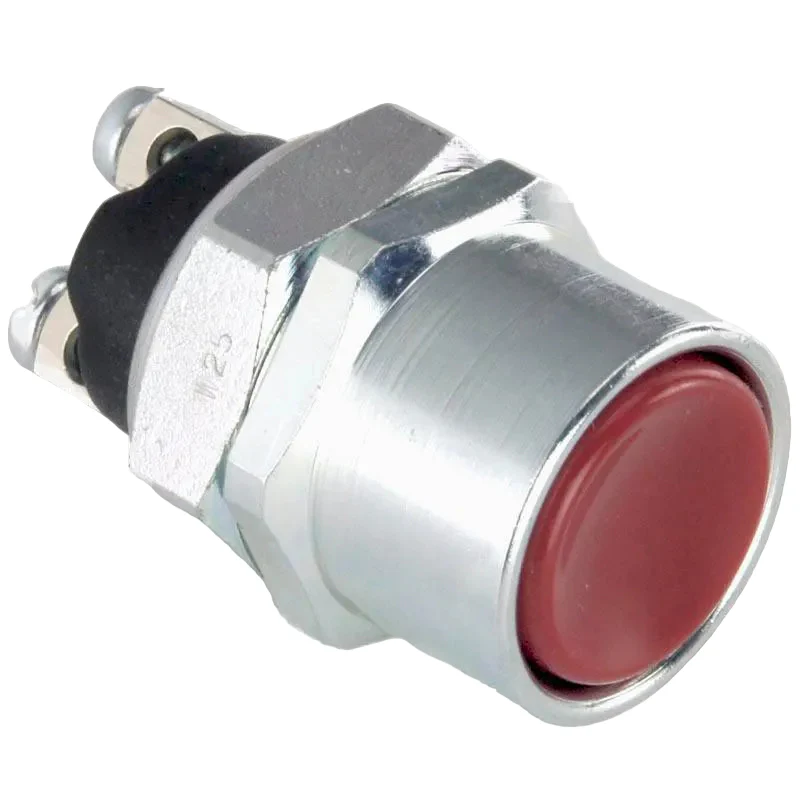

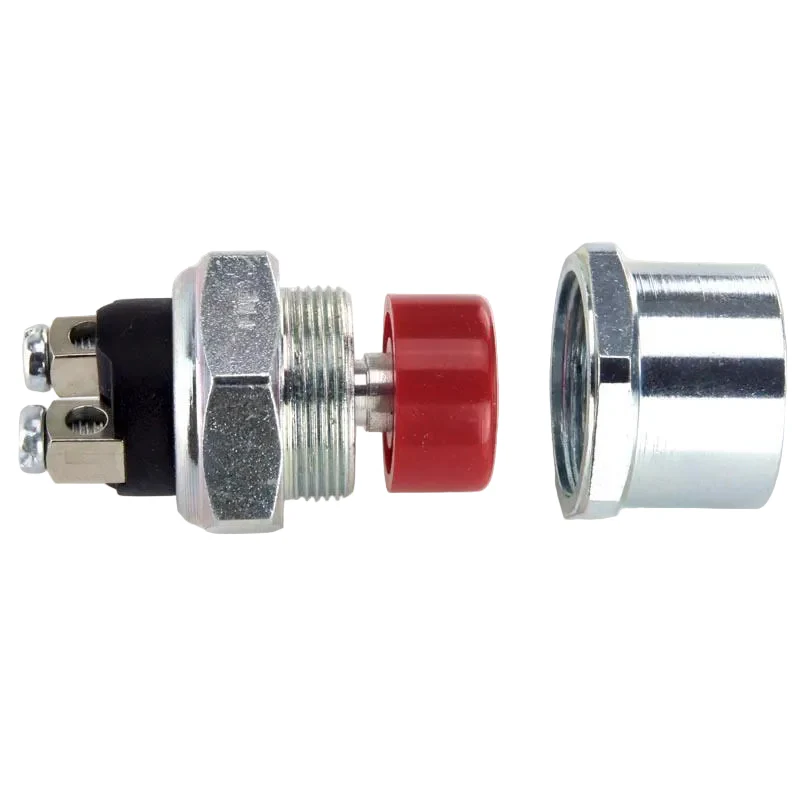

Shrouded Heavy Duty Red/Chrome Push Button Switch
A heavy -duty switch with a 20mm diameter shrouded red button.
The plated metal shroud is 25mm diameter and protrudes 20mm from the mounting surface.
The plated metal switch body has 26mm rear projection.
Fits in a 22mm diameter hole in a panel up to 3mm thick.
Momentary Action (Non-latching)
Screw terminals on rear.
27mm A/F hex on switch body and shroud.
25 Amp.
RED & CHROME PUSH BUTTON SWITCH #PBSWRC2
Original: $13.40
-65%$13.40
$4.69Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A heavy -duty switch with a 20mm diameter shrouded red button.
The plated metal shroud is 25mm diameter and protrudes 20mm from the mounting surface.
The plated metal switch body has 26mm rear projection.
Fits in a 22mm diameter hole in a panel up to 3mm thick.
Momentary Action (Non-latching)
Screw terminals on rear.
27mm A/F hex on switch body and shroud.
25 Amp.
RED & CHROME PUSH BUTTON SWITCH #PBSWRC2
