Beautifully made, high quality, stainless steel illuminated push button switches with RGB LED.

Can also be used as Warning Lights only

Momentary and Latching

Low profile, 2mm front projection

24.5mm Bezel Diameter, mount through a 22mm hole.

Rubber 'O' ring seal.

IP65 Rated.

Maximum panel thickness 9mm.

Double Pole - Normally Closed and Normally Open circuits.

20 amp rating.

Come complete with wiring connector with 160mm fly leads (these must be used as they are pre wired with resistors for the LED)

Wiring:- All switches have multi-colour illumination.

Connect wires for your colour choice.

White - Common
Yellow - Normally Open
Brown - Normally Closed
Black - Illumination Earth
Red - Red Illumination
Green - Green Illumination
Blue - Blue Illumination

Illumination colours can be combined to create different colours or connected to a simple 12v RGB Controller (available from Amazon or eBay and us soon)

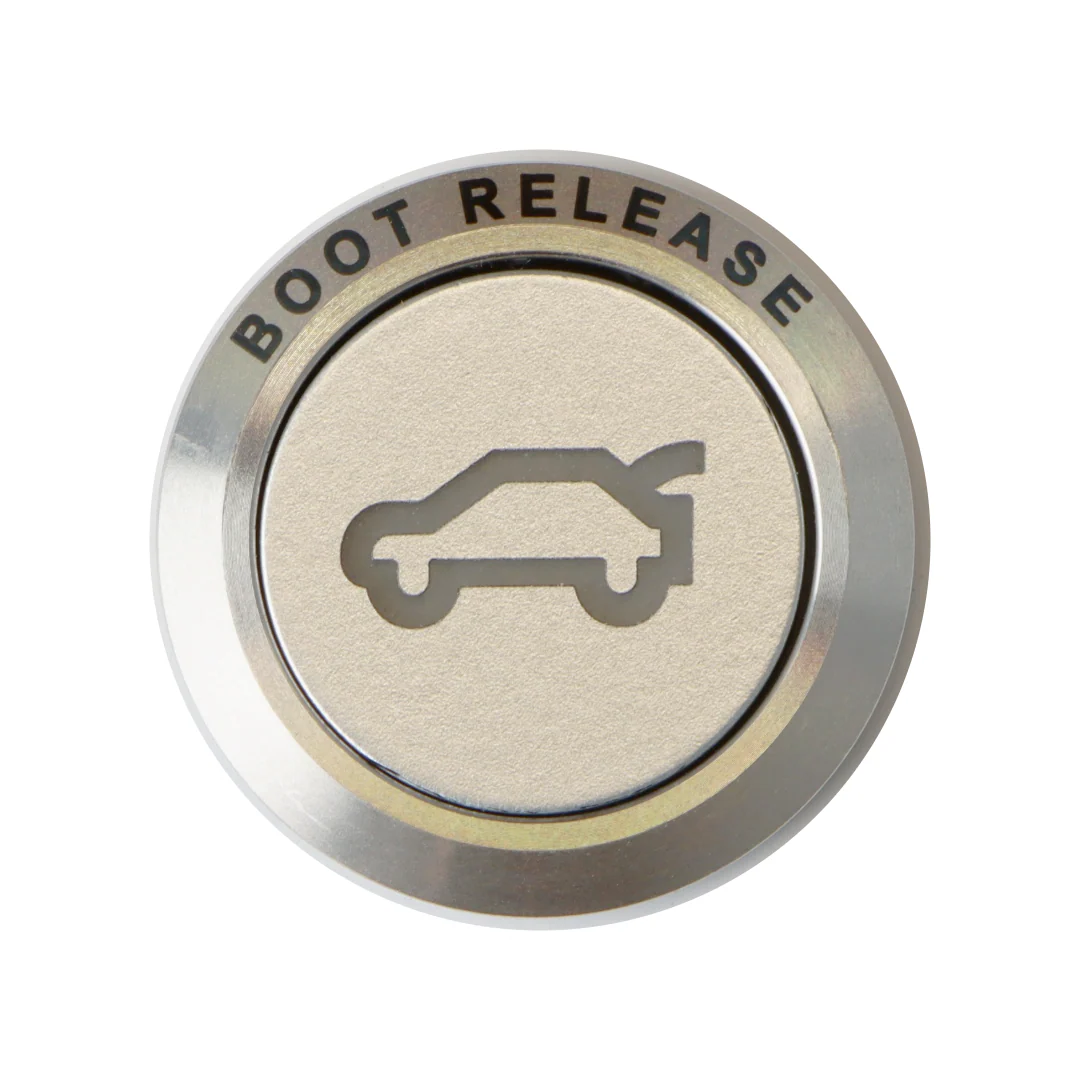

Stainless Steel 24mm Diameter Push Button With 12v RGB Illumination #SSPB
