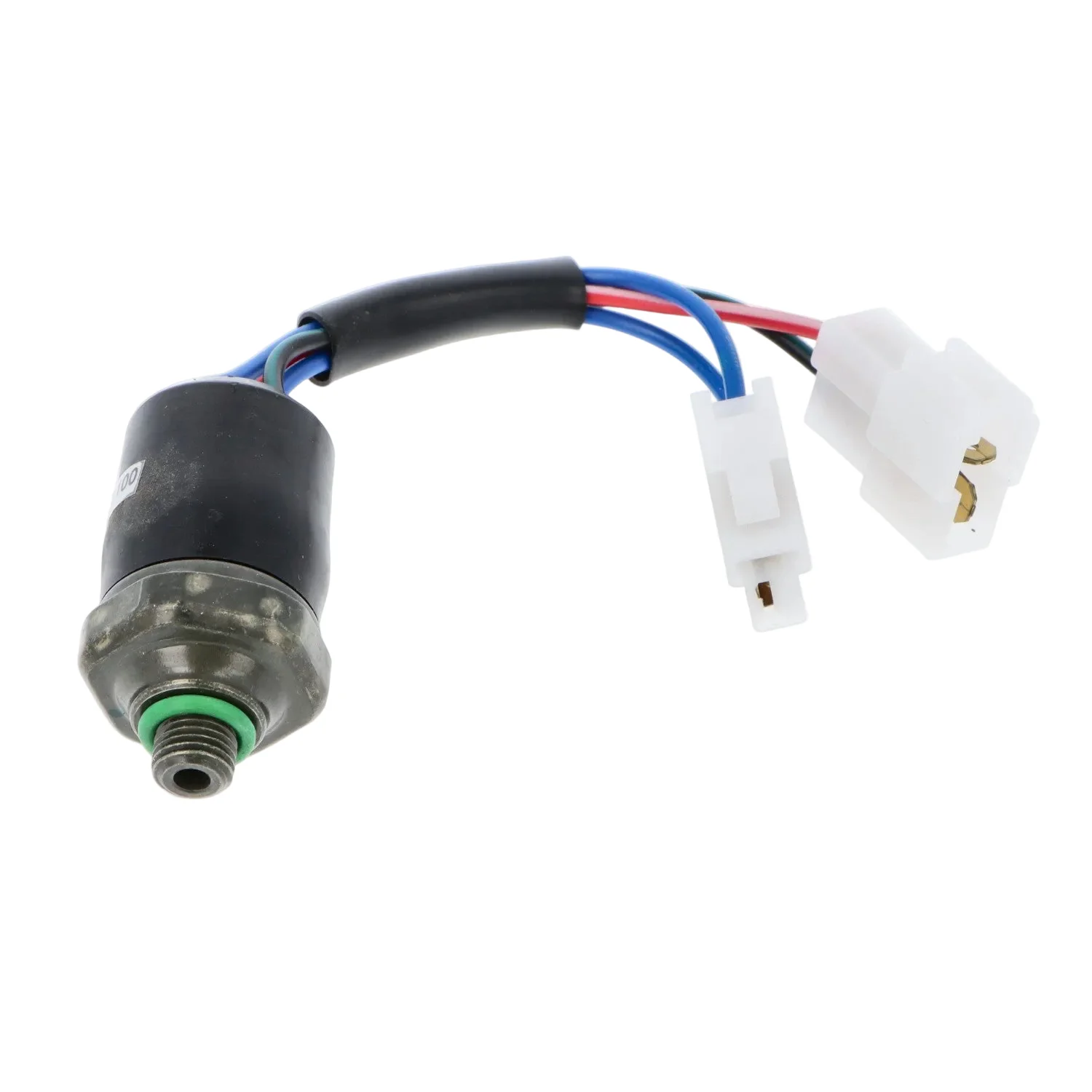

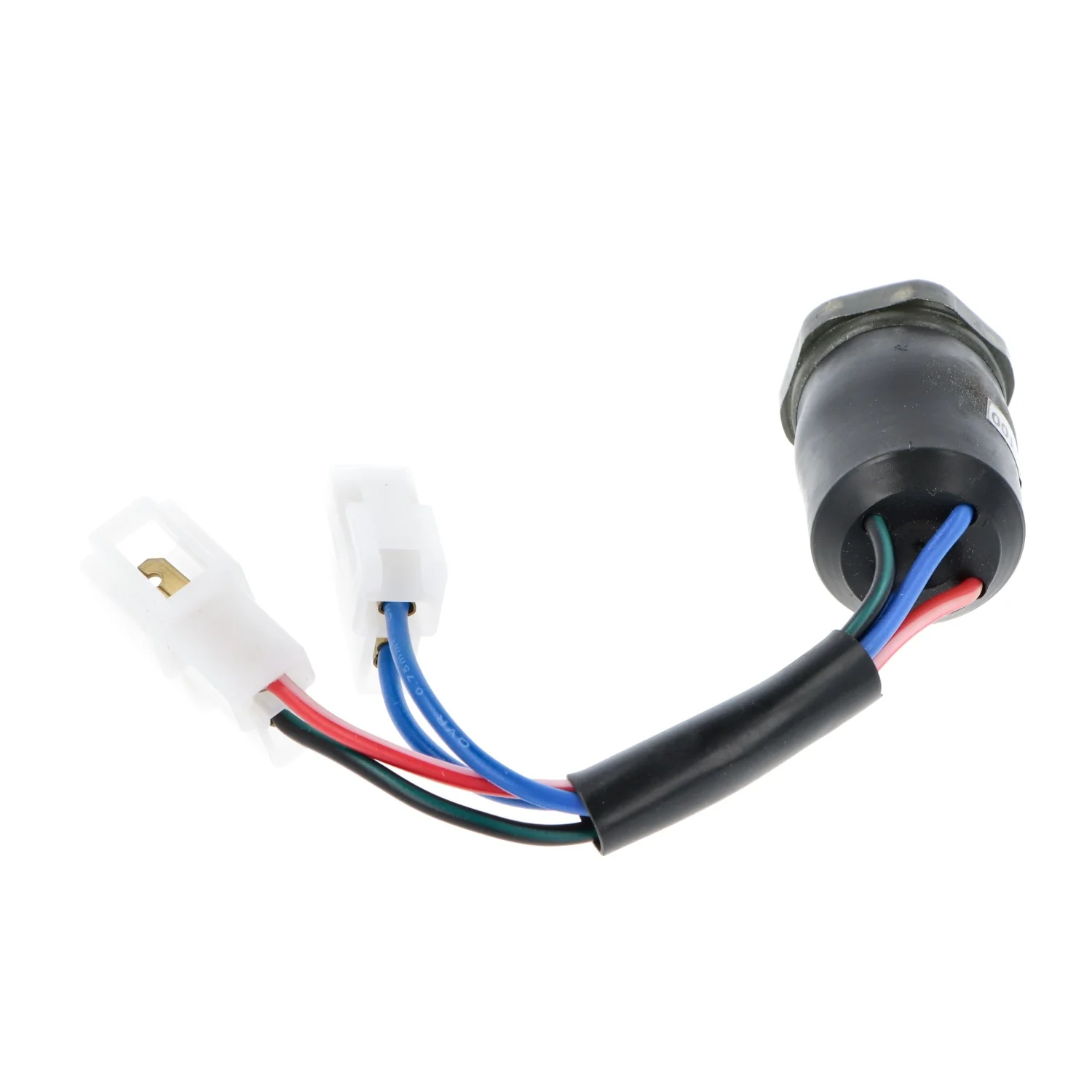

TRINARY SWITCH A three-function pressure switch for our Air Conditioning kit (Part no: #AIRCON)

The Blue wires will switch on a condensing-radiator fan (via a relay) whenever the Air-con is working and the other two wires provide a safety cut-out for the compressor if the pressure is either too high or too low.

Operating pressures: Low - 2Kg/Cm² Med. -16Kg/Cm² High - 24Kg/Cm²

100mm flyleads with 1/4" spade terminals.

Thread: 3/8 UNF

Weight 110gms

TRINARY SWITCH FOR AIR CON #TRINARY
