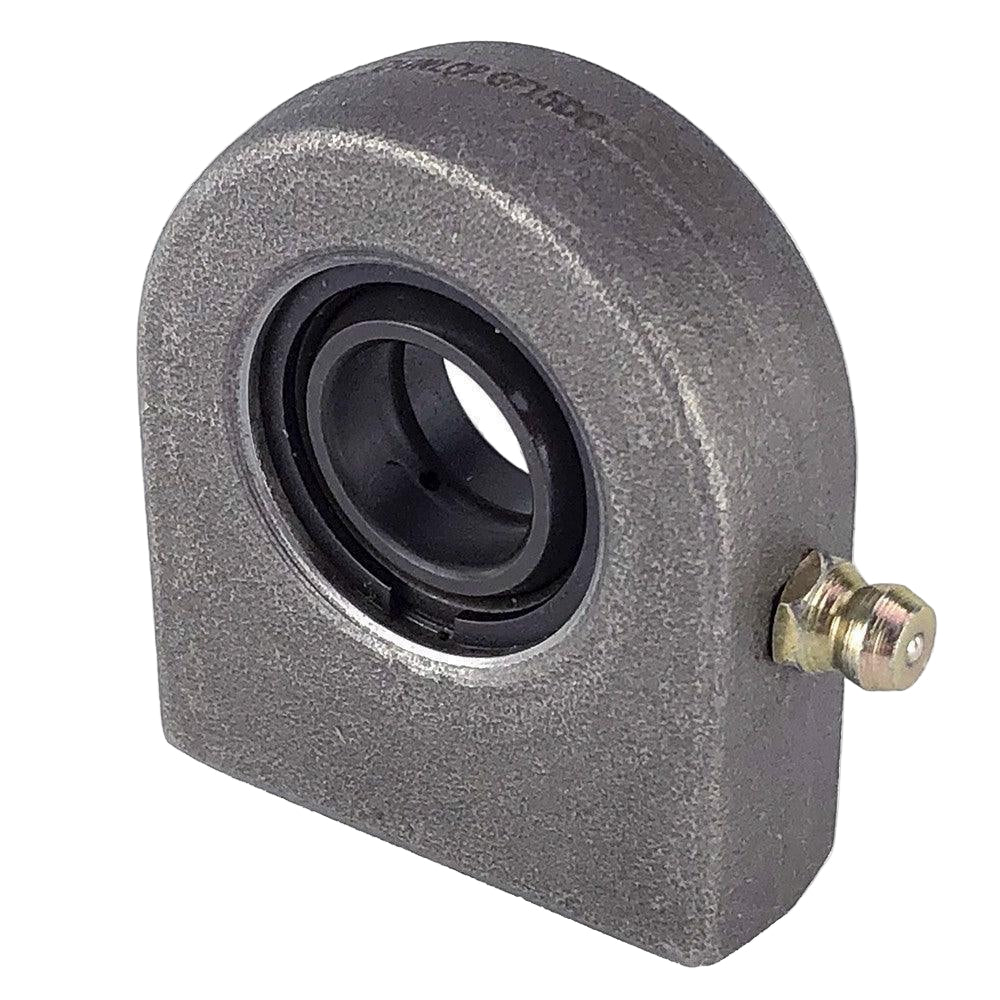

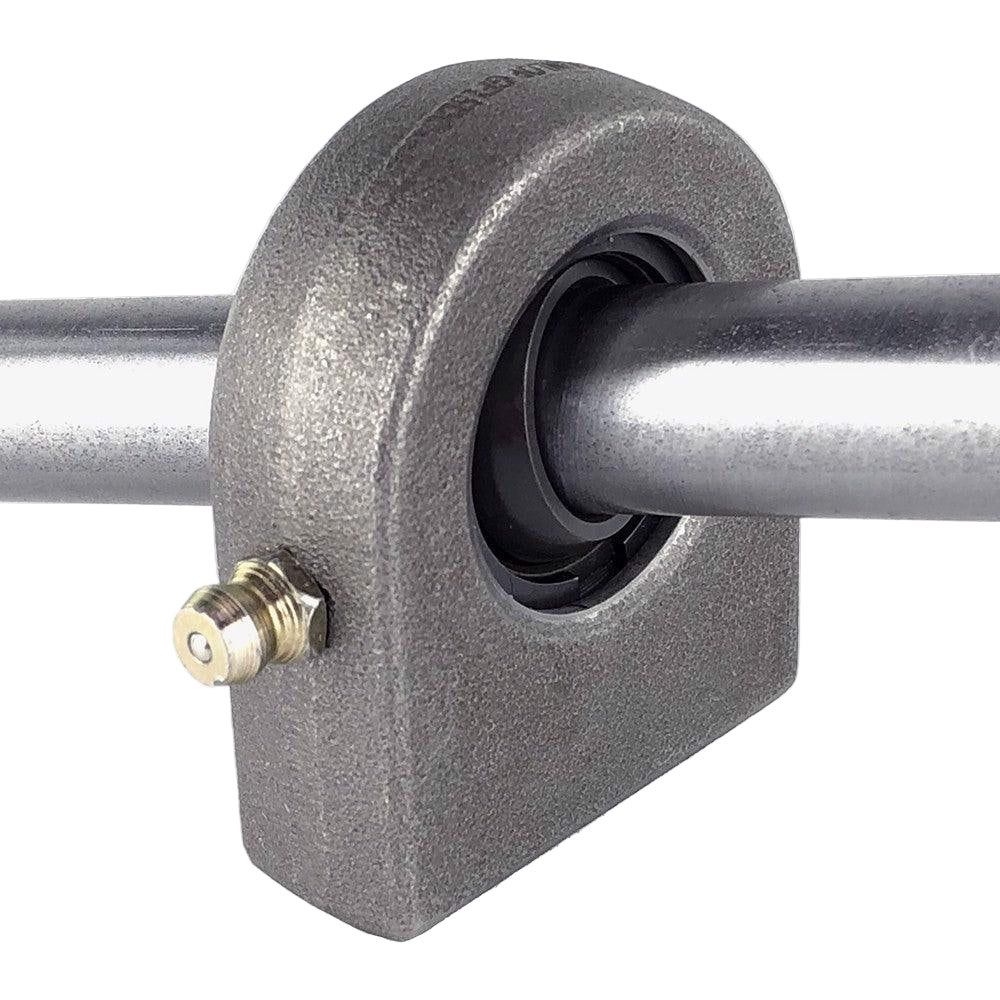

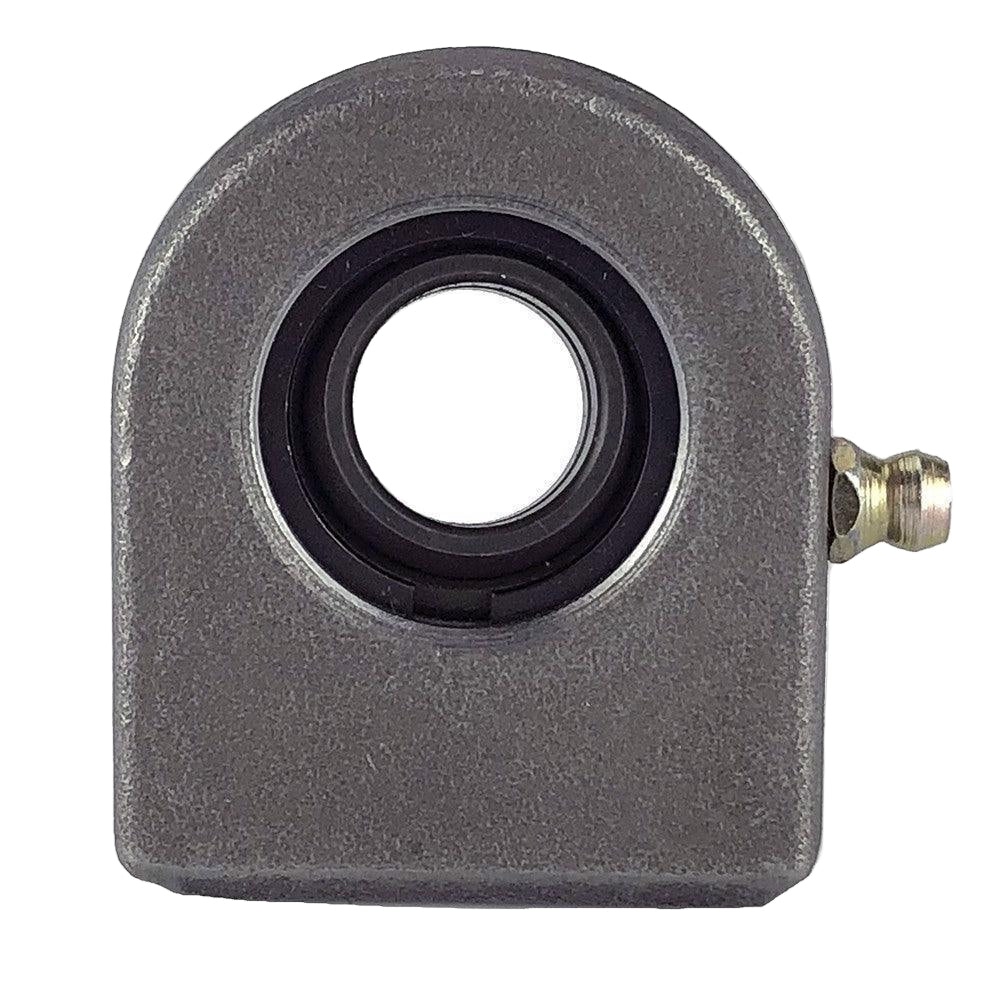

Pillow Blocks are used as floating supports for rotating shafts such as steering columns.

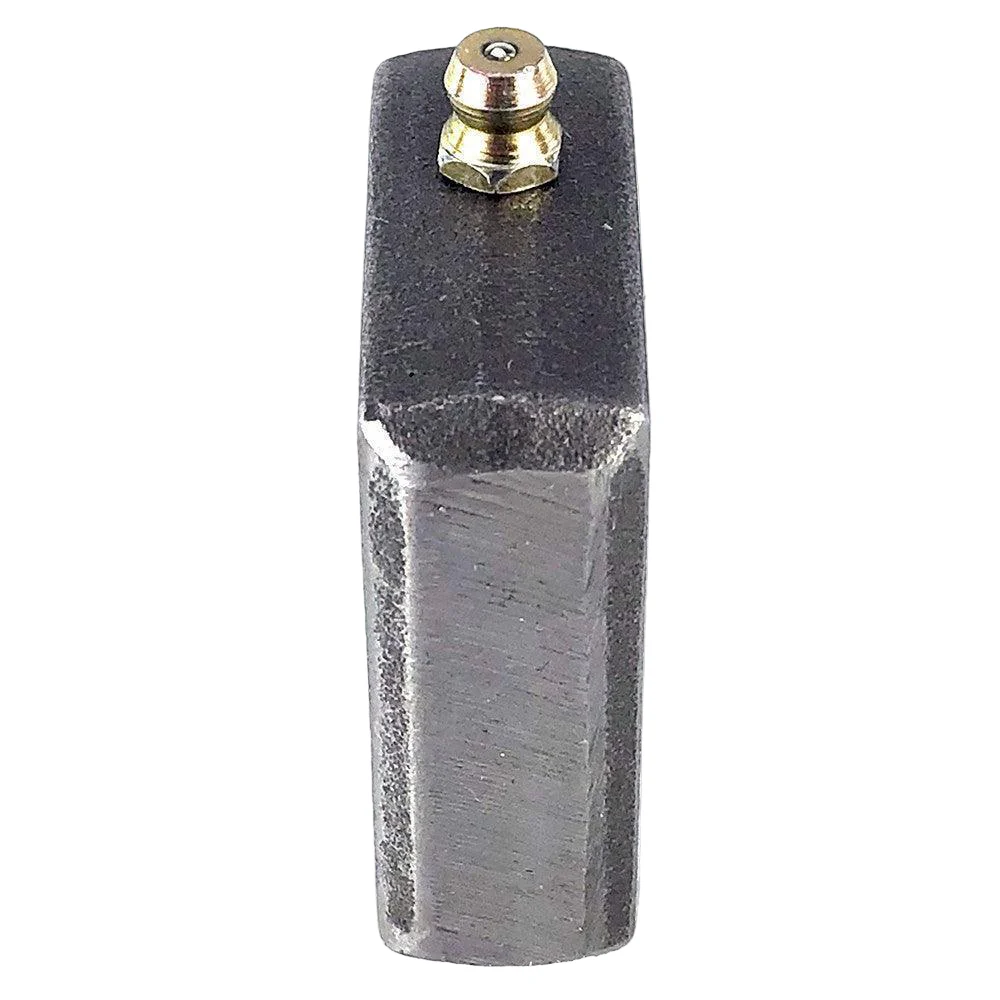

This one has a casing of forged steel with a chamfered base for welding onto a steel chassis or frame.

You could also drill and tap the steel housing for alternative mounting options.

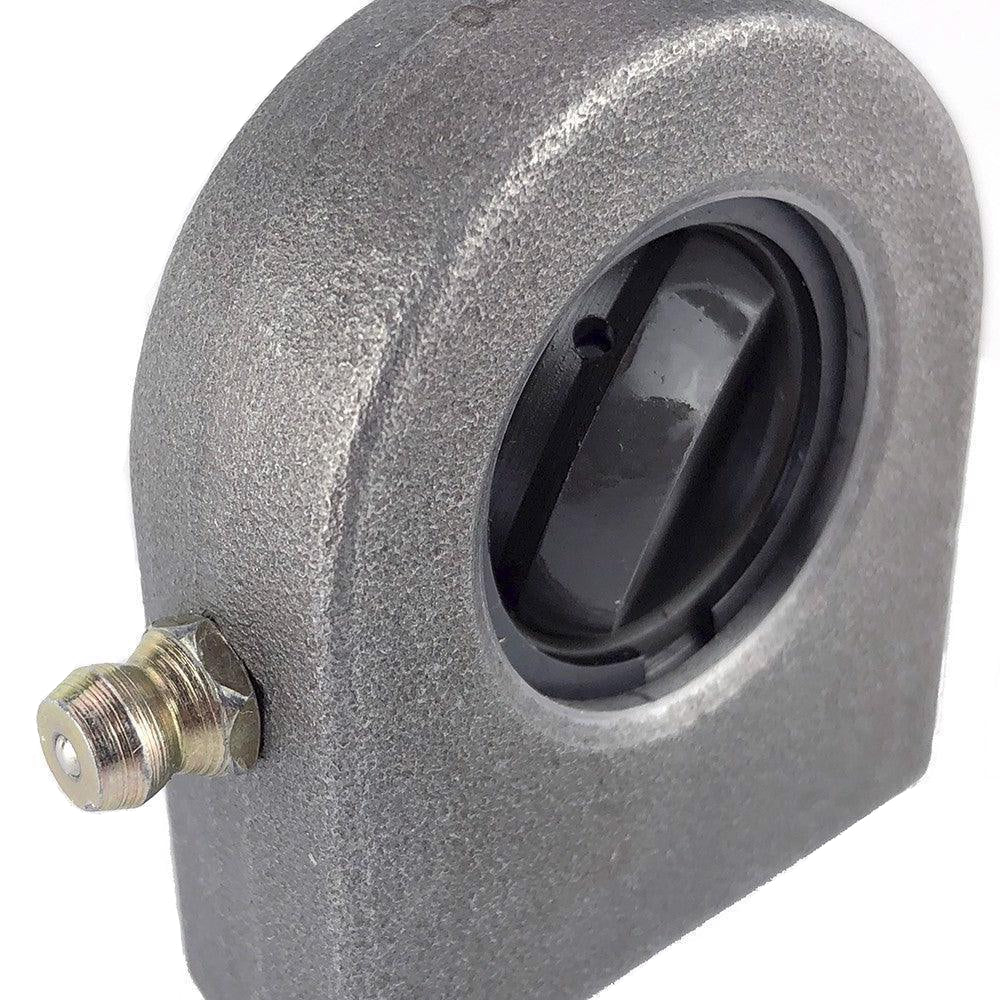

The hardened, inner, spherical bearing accepts a 15mm diameter shaft

which can ‘rock’ up to 44 degrees.

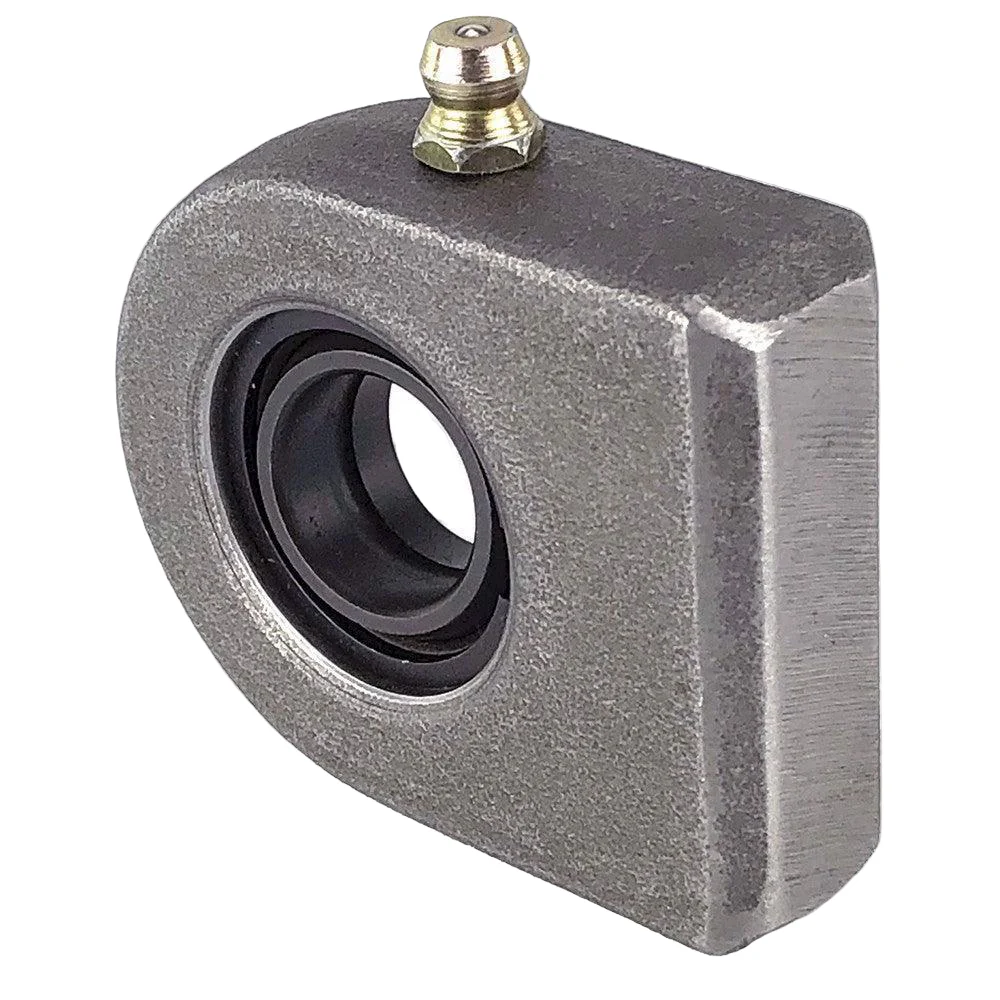

A grease nipple channels grease directly to the moving surfaces.

Size 53mm high x 45mm wide x 16mm thick.

Weight 220 gms.

NOTE: SHAFT NOT INCLUDED

SOME STEERING COLUMNS ‘OSCILLATE’ WHEN TURNING.

THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.

ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORT WITH A PILLOW BLOCK ROTATES ONLY ON IT’S OWN AXIS AND DOES NOT OSCILLATE.

WELDABLE FORGED CASEL CASE PILLOW BLOCK 15mm I.D. #PIL152
