Brake and Clutch Master Cylinder 0.5" (1/2") Bore without Reservoir

Product image 1
1 / 5

Brake and Clutch Master Cylinder 0.5" (1/2") Bore without Reservoir

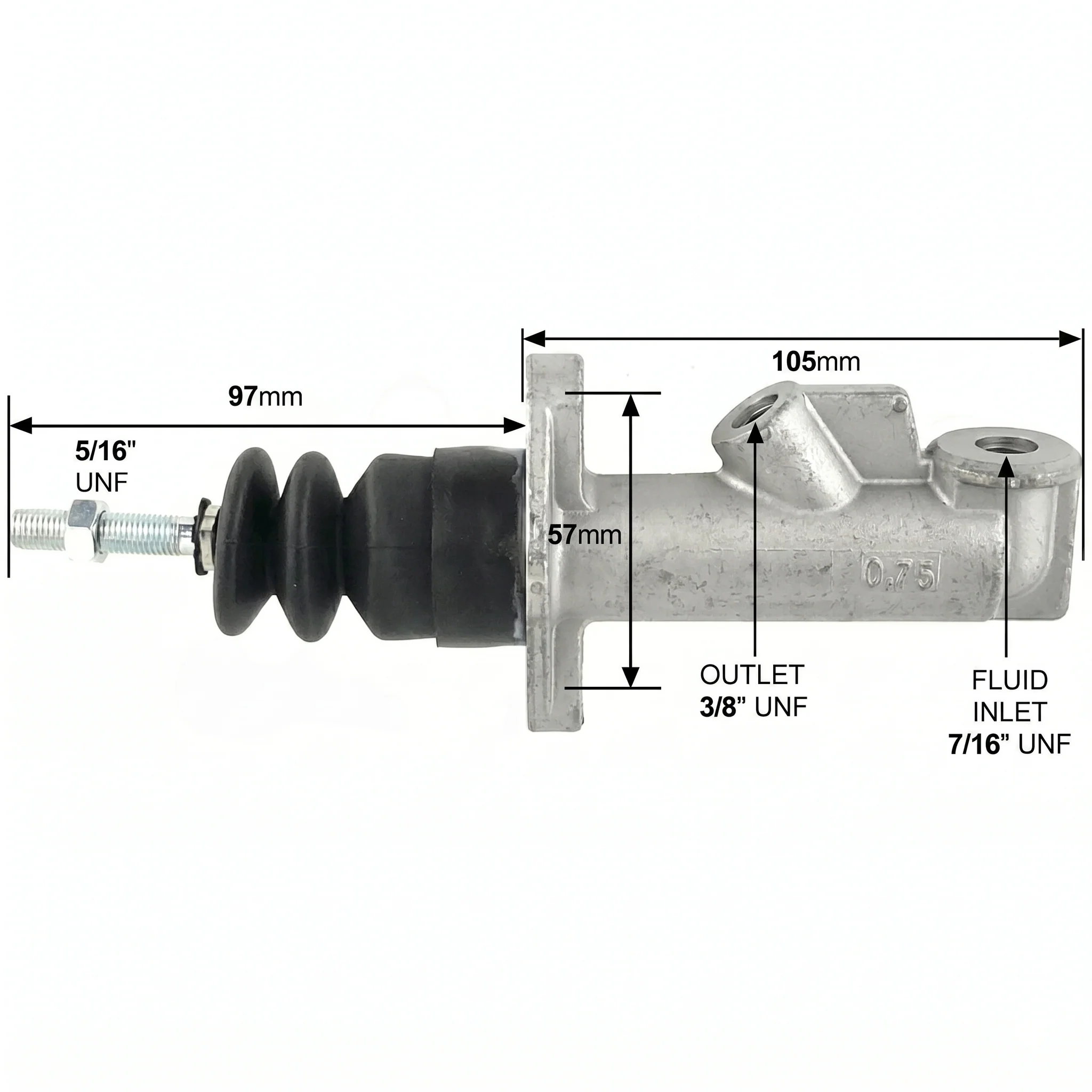

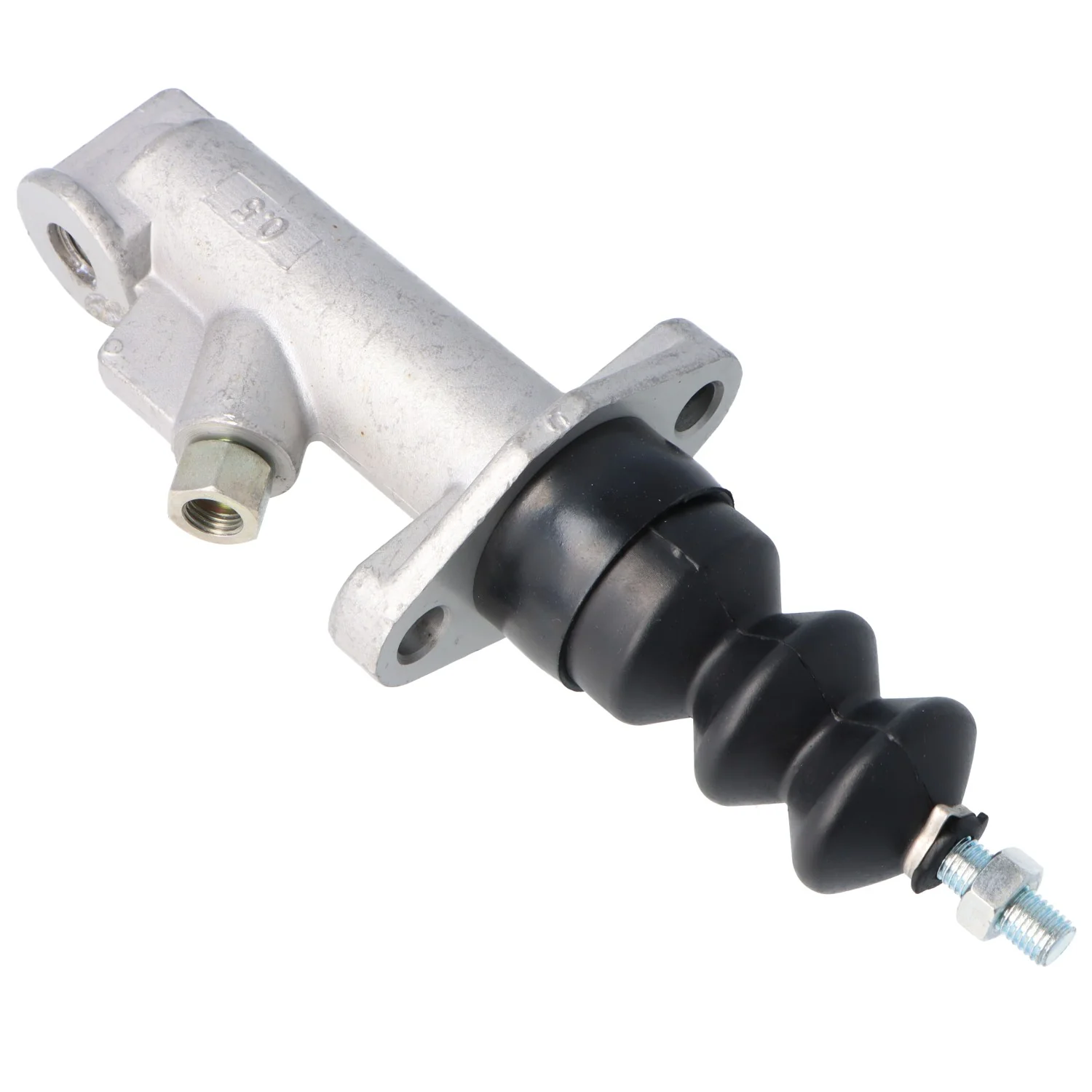

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF female outlet thread.

    • Overall Length 205mm.
    • Flange Height 76mm.
    • Flange Width 45mm.
    • 7/16" UNF female fluid inlet thread.
    • Stroke 1.15" (29mm).
    • Bore 0.5".

    BRAKE AND CLUTCH MASTER CYLINDER 0.5" (1/2") BORE WITHOUT RESERVOIR #MA5

$40.20
Brake and Clutch Master Cylinder 0.5" (1/2") Bore without Reservoir—
$40.20

Product Information

Shipping & Returns

Description

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF female outlet thread.

    • Overall Length 205mm.
    • Flange Height 76mm.
    • Flange Width 45mm.
    • 7/16" UNF female fluid inlet thread.
    • Stroke 1.15" (29mm).
    • Bore 0.5".

    BRAKE AND CLUTCH MASTER CYLINDER 0.5" (1/2") BORE WITHOUT RESERVOIR #MA5
