Brake and Clutch Master Cylinder 0.7" (11/16") Bore without Reservoir

Product image 1
1 / 5

Brake and Clutch Master Cylinder 0.7" (11/16") Bore without Reservoir

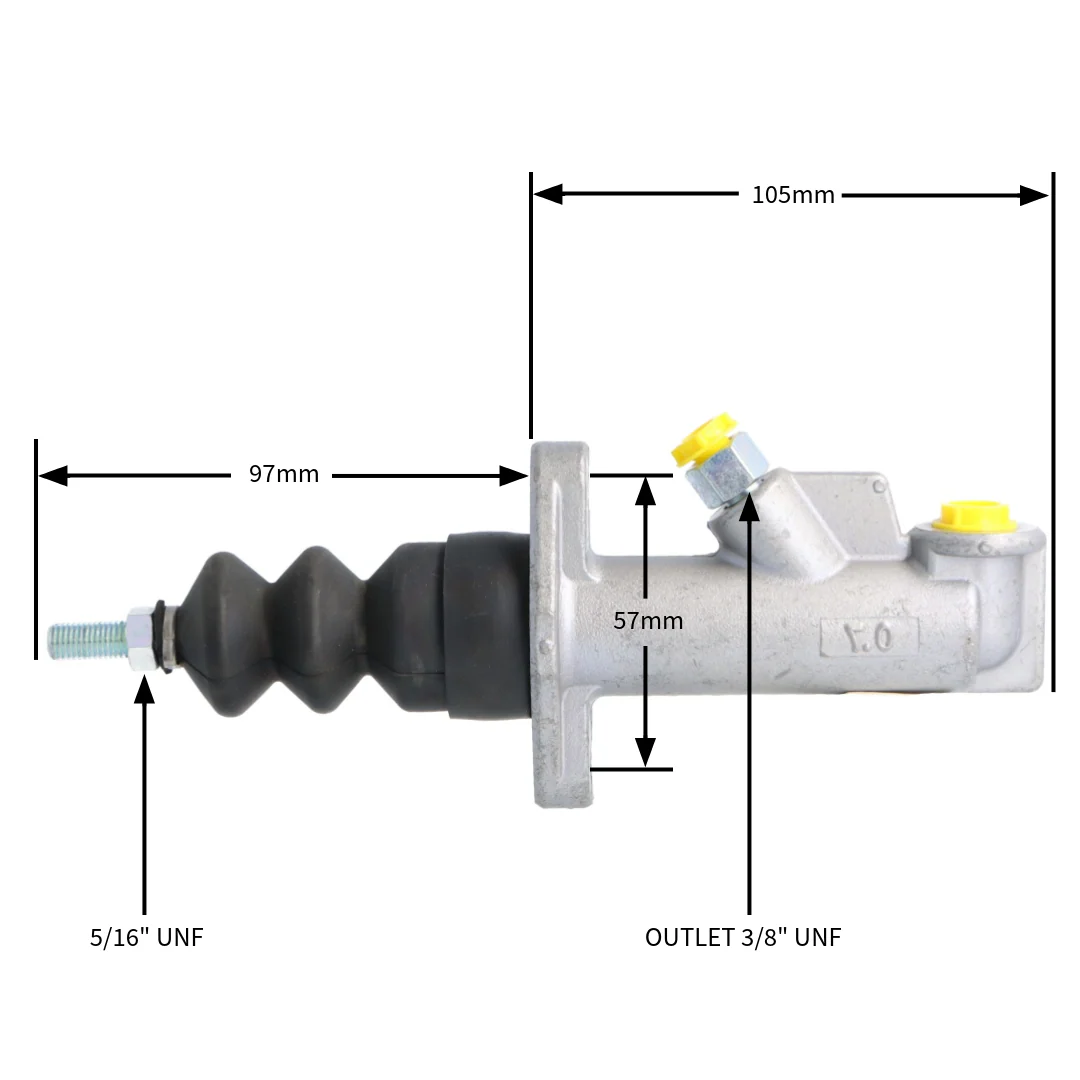

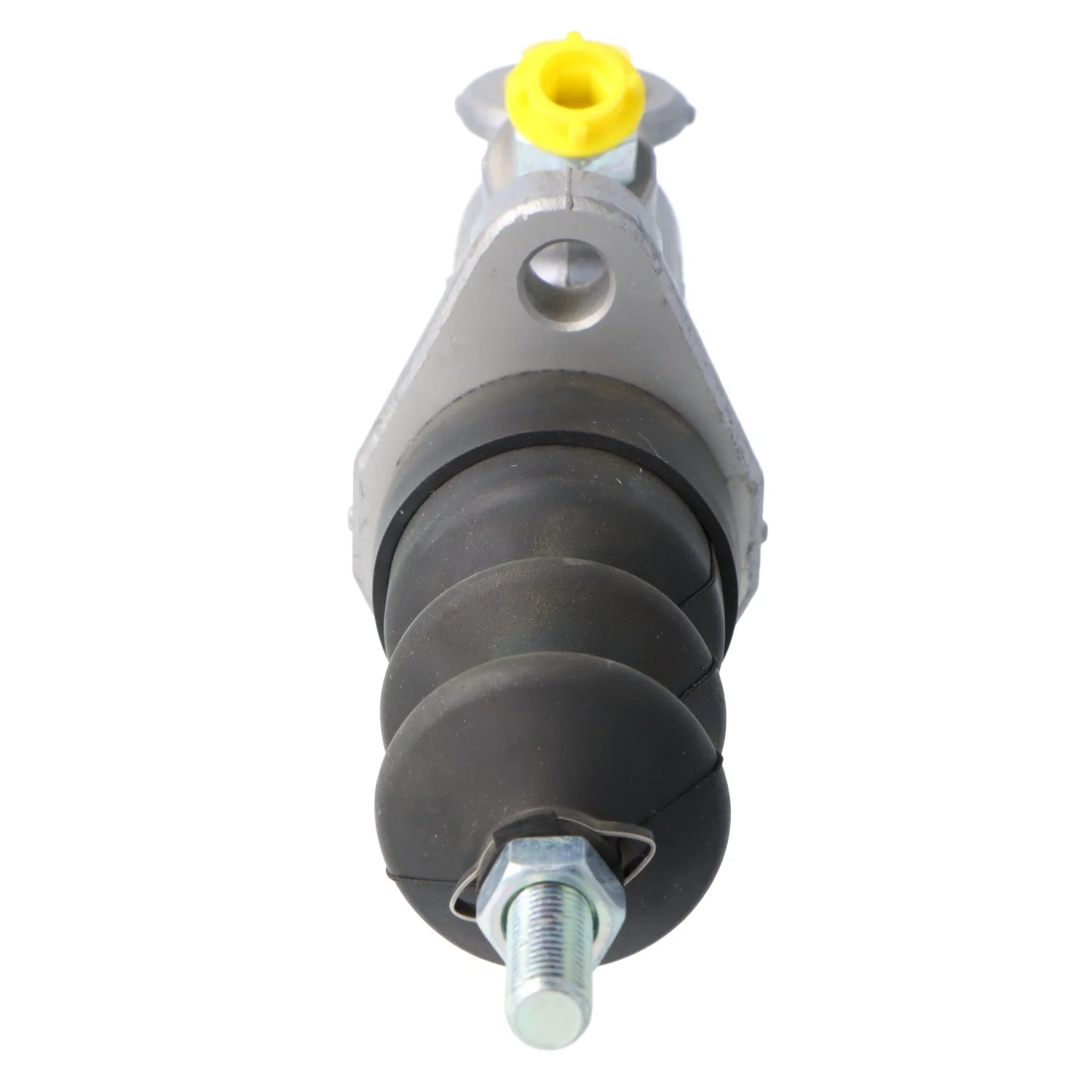

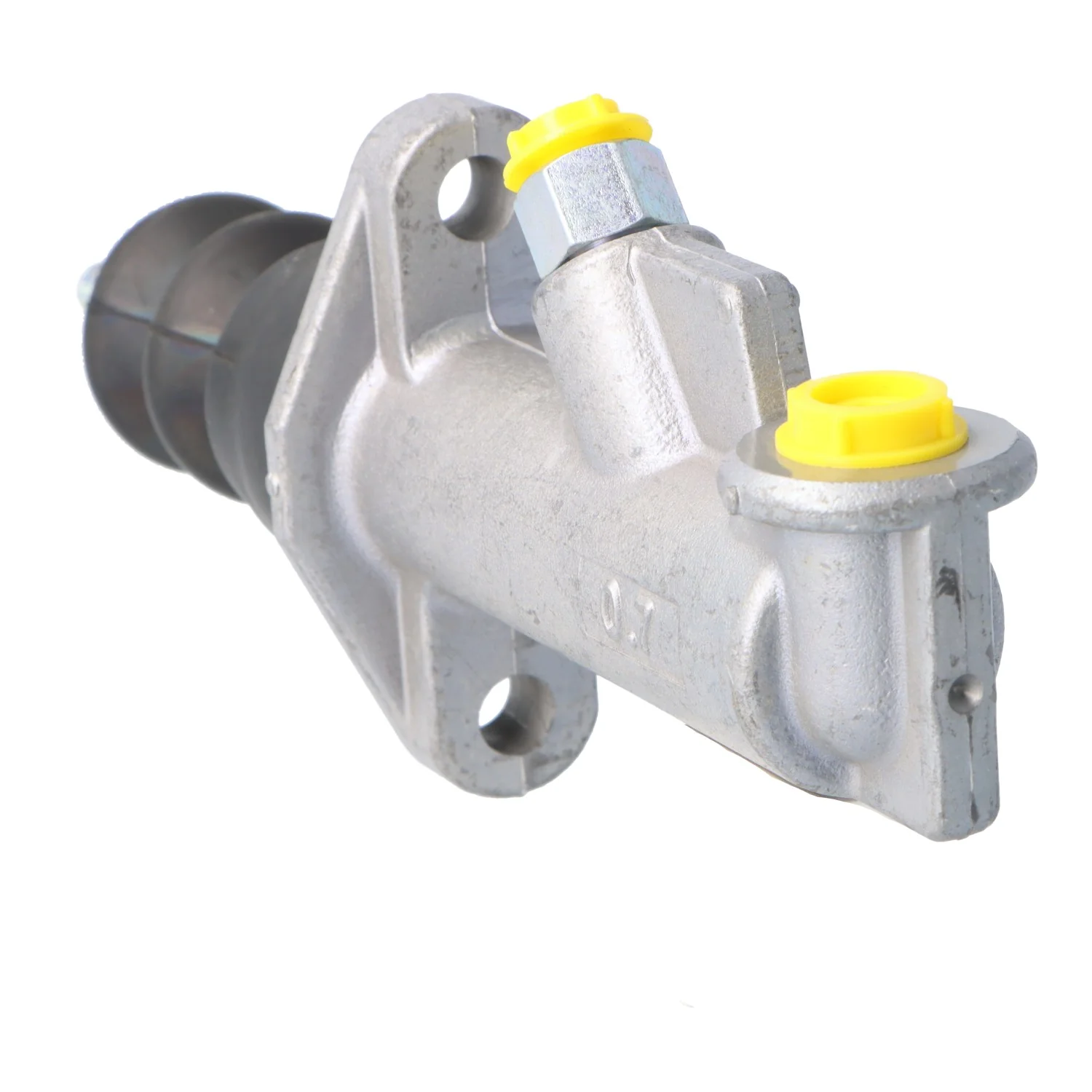

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF outlet thread.

  • Overall Length 205mm.
  • Overall Height 76mm.
  • Overall Width 43mm.
  • 7/16" UNF fluid inlet thread.
  • Bore 0.70".
  • Stroke 1.15" (29mm).
  • Moves 2.48cc of fluid per 1cm of piston travel.

BRAKE AND CLUTCH MASTER CYLINDER 0.7" (11/16") BORE WITHOUT RESERVOIR #MA7

$40.20
Brake and Clutch Master Cylinder 0.7" (11/16") Bore without Reservoir—
$40.20

Product Information

Shipping & Returns

Description

Girling style cast aluminium brake and clutch master cylinder.

5/16" UNF pushrod thread.

2 1/4" (57mm) mounting hole centres.

3/8" UNF outlet thread.

  • Overall Length 205mm.
  • Overall Height 76mm.
  • Overall Width 43mm.
  • 7/16" UNF fluid inlet thread.
  • Bore 0.70".
  • Stroke 1.15" (29mm).
  • Moves 2.48cc of fluid per 1cm of piston travel.

BRAKE AND CLUTCH MASTER CYLINDER 0.7" (11/16") BORE WITHOUT RESERVOIR #MA7
