55mm LED Fog Light With Clear Lens
RED WHEN LIT

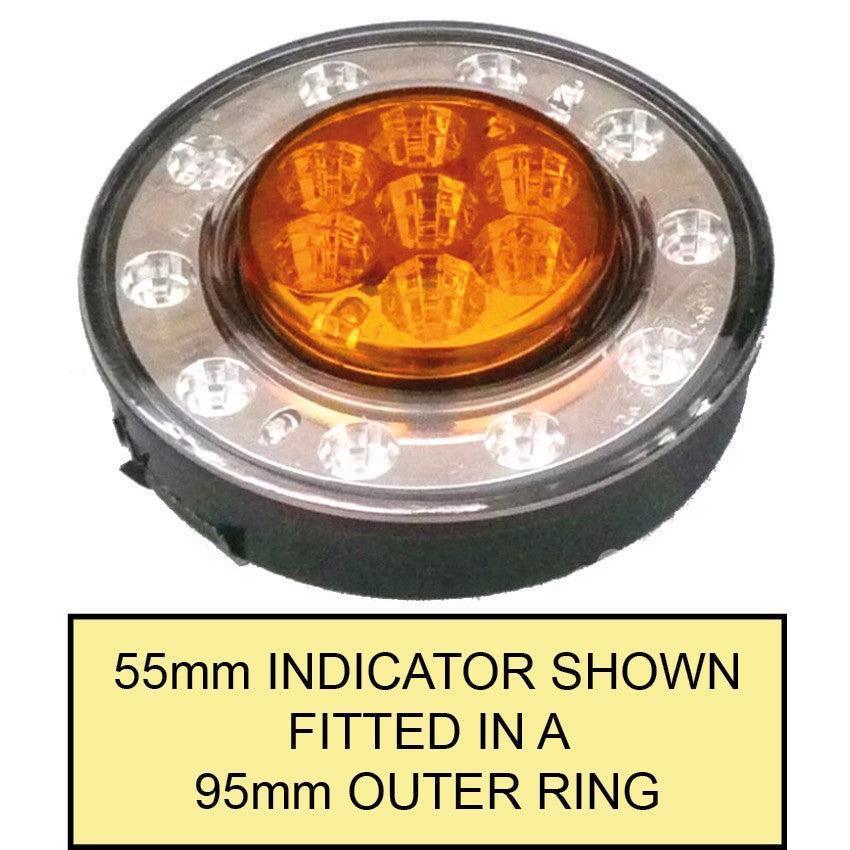

Use these 55mm diameter lamps either with the 95mm outer ring lampsĀ (shown in a picture below) or as stand-alone lamps.
In one picture below three are āfrenched-inā on the rear panel of a Raw Fulcrum.
They can also be surface mounted or rear-mounted through a 55mm hole.
They're very bright, āEā marked. and only 38mm front to back.
Rear Fog, Reverse and Daytime Running Light versions have an integral heat-sinkĀ and are 76mm front to back.
The backplate has three 5mm mounting holes on a 70mm PCD.
Sealed for life.
12 volt /24 volt.
4 Watt
White wire - Earth
NOTE: THE LIGHT EMITS FROM THE CENTRE LED.
THE RING OF SMALL LENSES AROUND THE EDGE DO NOT LIGHT.
SEE ILLUMINATED PICTURE
CLEAR LENS LED 55mm FOG LIGHT each #LED55RFC
