12 volt.

Reliable solid state internals, no electrical contacts to burn out, no bearings to wear and no diaphragms to perish.

Less than 2 amp current drain.

Will self prime up to 0.3mtrs lift.

Footprint 80mm x 80mm x 60mm high (without unions).

2 bolt fixing at 65mm centres. Union thread size 1/8" npt.

PIPE UNIONS NOT INCLUDED

Weight 469gm.

Operating temperature range -31 to +55 deg C.

Will pump from 3 psi to 4.5 psi.

Flow rate 113 ltrs/hour (30 US gal/hr.)

IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.

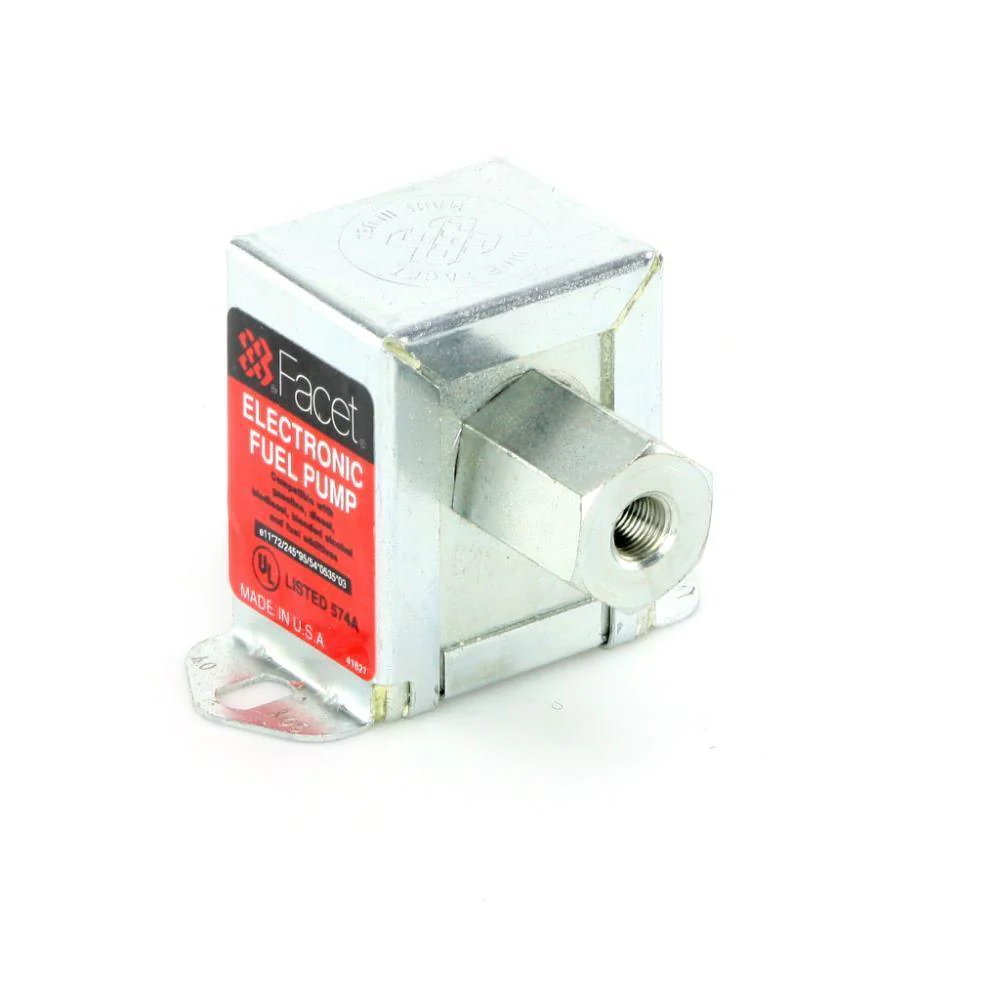

FACET ROAD SOLID STATE CUBE FUEL PUMP #FAC1
