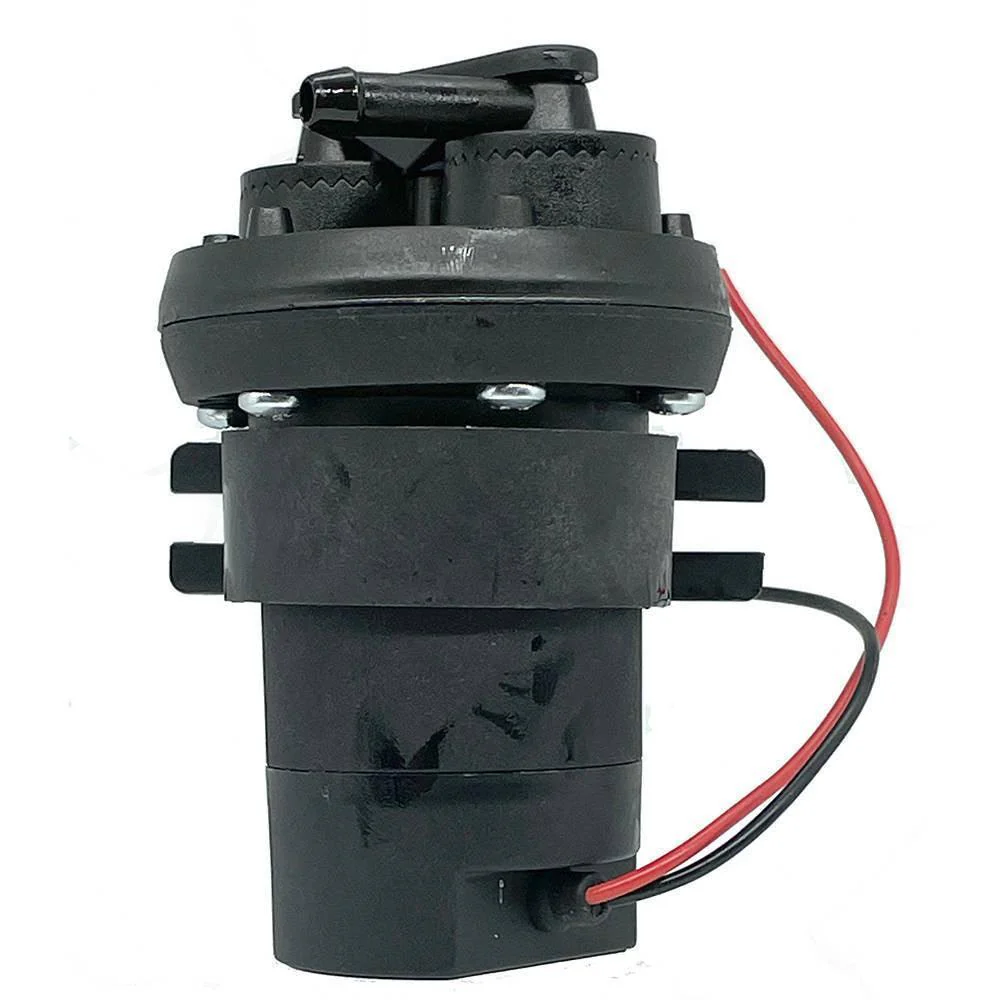

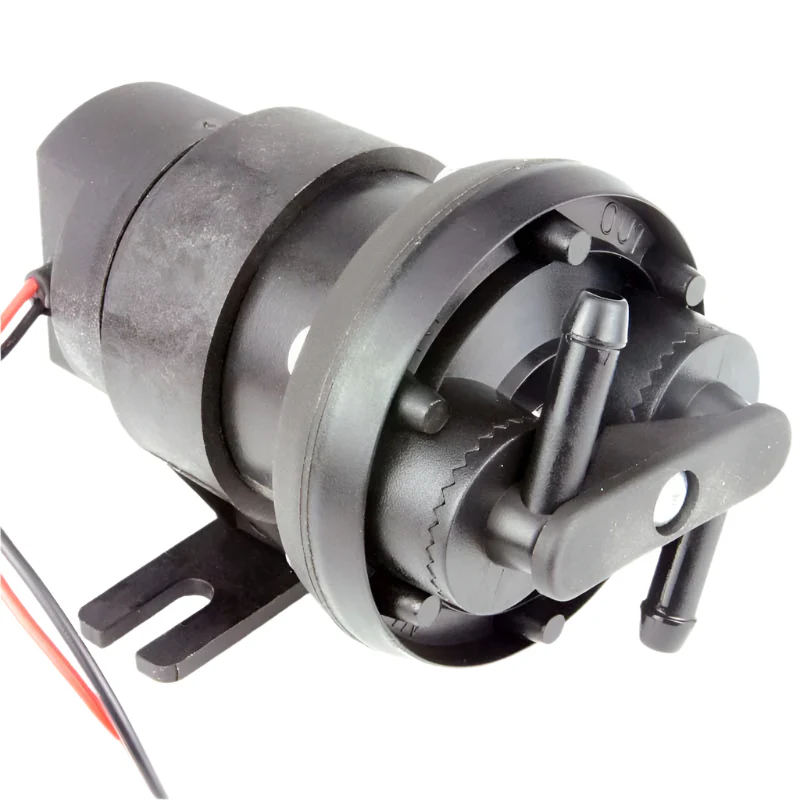

FUEL PUMP This excellent quality pump is now available in two versions.

This one (#FPUMPS) is a 'Suction' version best used for installation in your engine bay.

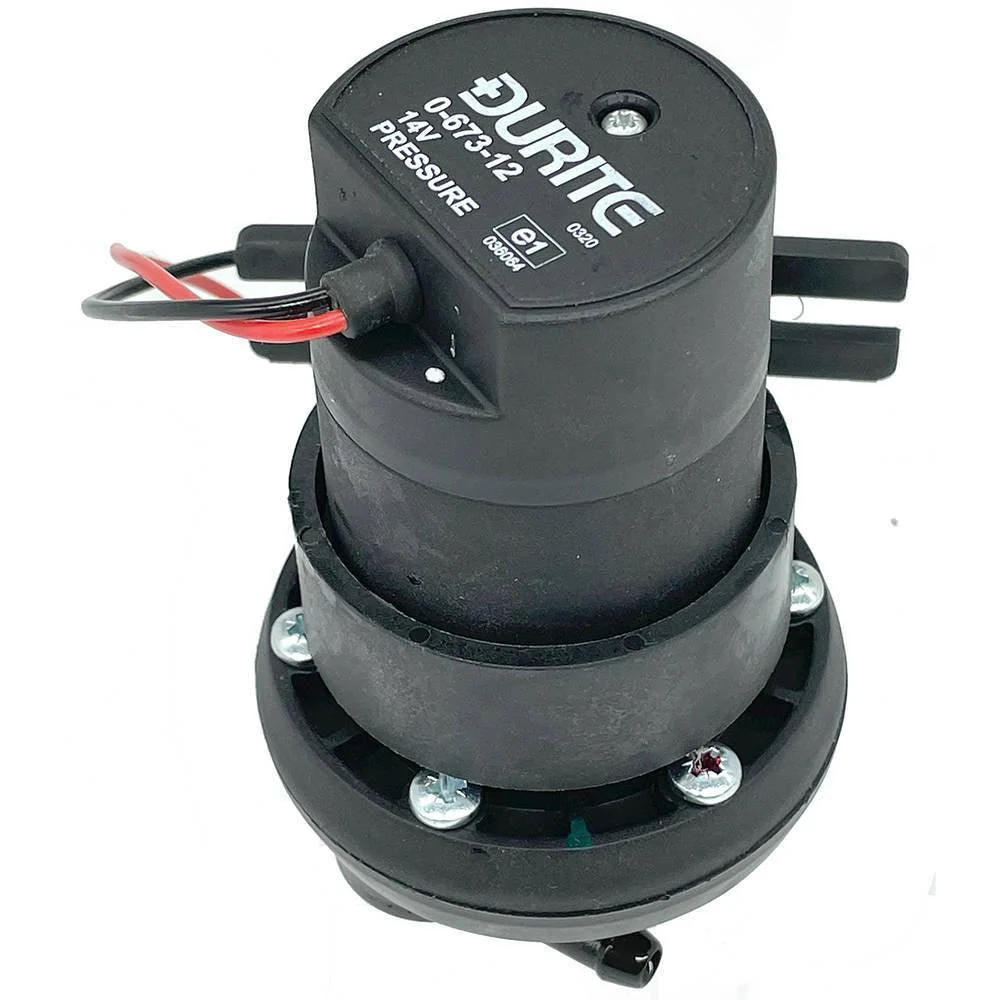

The other (#FPUMP) is a 'Pressure' version for mounting near the fuel tank.

12 Volt. Flow rate 125 Lt/hr. Integral 8mm swivelling inlet & outlet unions. Size 73mm x 128mm.

Mounting bracket & fixing screws included.

Made in Germany.

Not suitable for Bio Diesel. ECE Approved

NOTE: We always recommend the use of a pre-filter with all fuel pumps. Mount vertically with inlet/outlet at the top.

#FPUMPS Pressure 2.1 psi. Suction -2.8 psi.

IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.

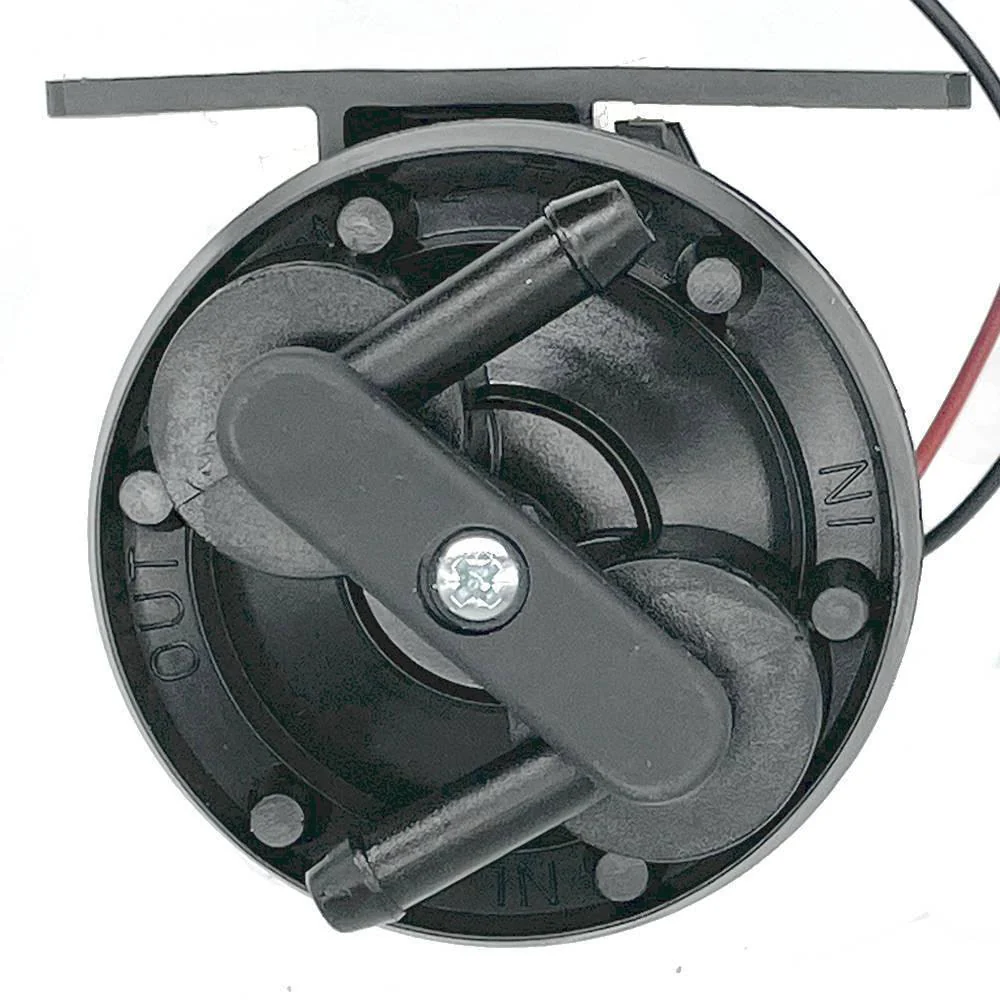

SPECIAL NOTE: WHEN ADJUSTING THE ANGLE OF THE INLET AND OUTLET, LIFT THEM CLEAR OF THE PUMP AND REFIT THE O RINGS TO THEM BEFORE TURNING  AND REFITTING TO AVOID DAMAGE TO THE 'O' RING.

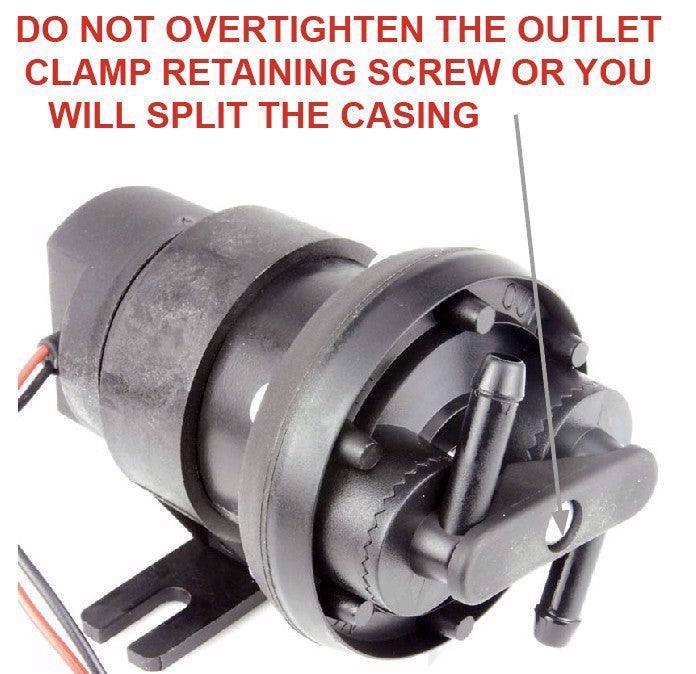

DO NOT OVERTIGHTEN THE OUTLET RETAINING SCREW OR YOU WILL SPLIT THE CASING

FUEL PUMP SUCTION #FPUMPS
