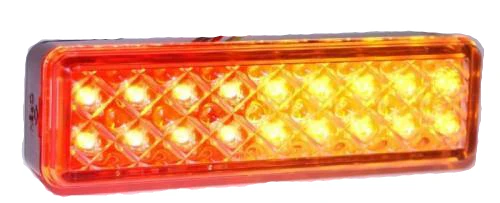

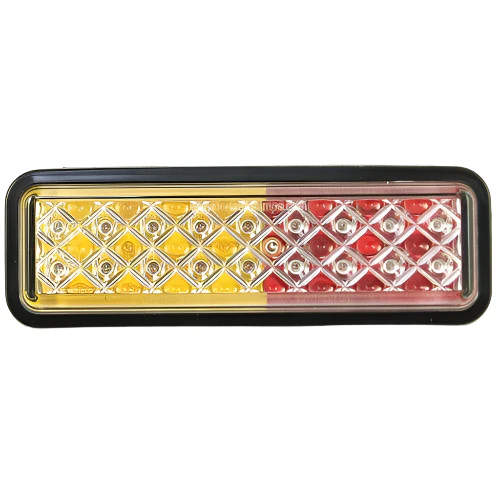

Grommet Mount LED Compact Rectangular Stop/Tail/Indicator 145mm

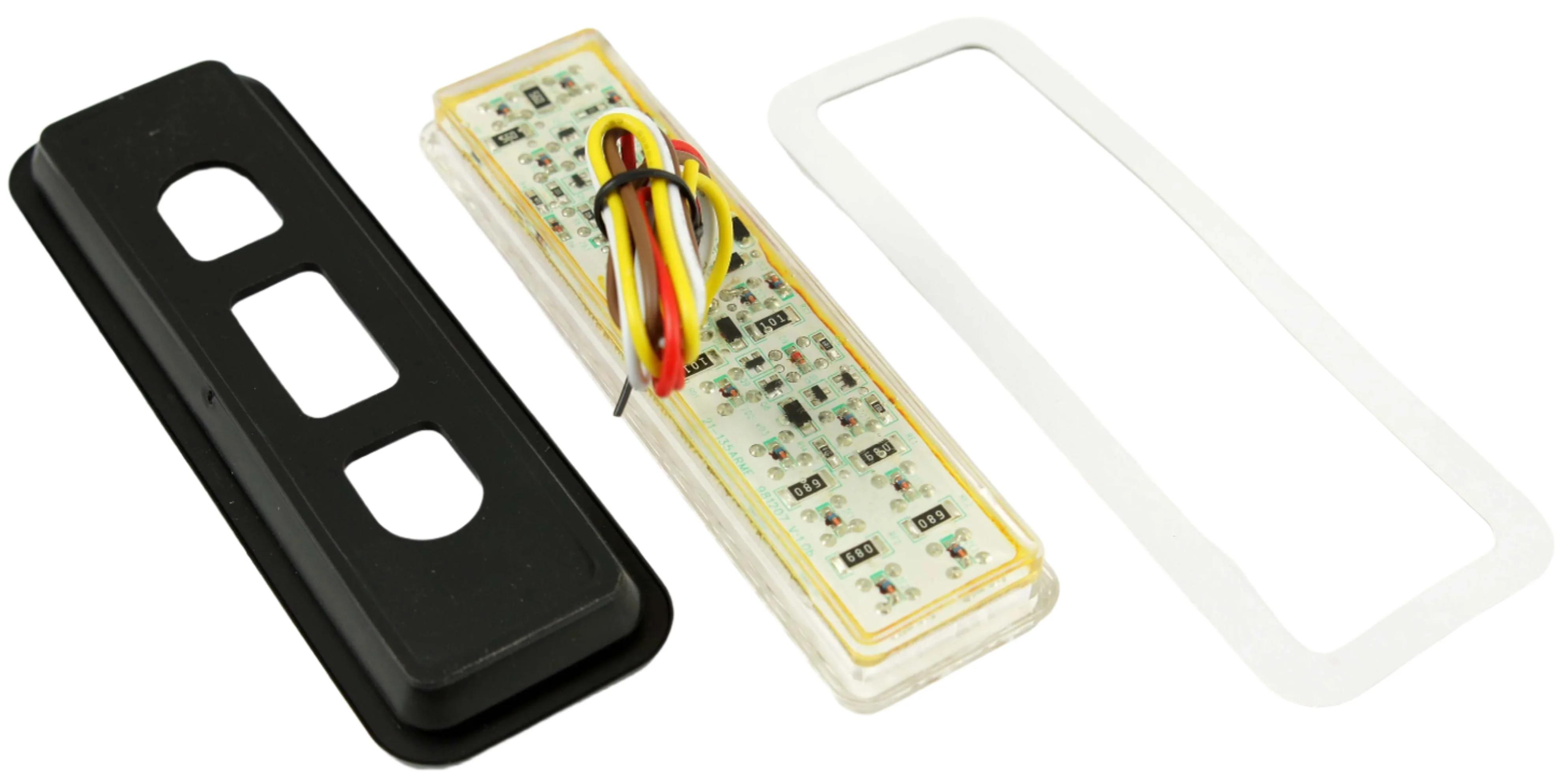

Hidden mounting. The rubber grommet/housing presses into an accurately cut hole in your panel - size 36mm x 132.8mm (card template included with each lamp.)
Note: maximum panel thickness 2mm. You can feather theĀ edge of your hole in thicker panels
The lamp unit is then simply pressed into the grommet locking it all in place.
Maximum overall dimensions 145mm (5Ā¾") x 48mm (1.9") x 21mm deep (0.82") 175mm pre-wired fly leads.
Front projection 10mm. Rear projection 9mm.
12volt to 24 volt.
LED COMPACT REARĀ STOP/TAIL/INDICATOR LIGHTS GROMMET MOUNTĀ #RL66
Original: $36.18
-65%$36.18
$12.66Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hidden mounting. The rubber grommet/housing presses into an accurately cut hole in your panel - size 36mm x 132.8mm (card template included with each lamp.)
Note: maximum panel thickness 2mm. You can feather theĀ edge of your hole in thicker panels
The lamp unit is then simply pressed into the grommet locking it all in place.
Maximum overall dimensions 145mm (5Ā¾") x 48mm (1.9") x 21mm deep (0.82") 175mm pre-wired fly leads.
Front projection 10mm. Rear projection 9mm.
12volt to 24 volt.
LED COMPACT REARĀ STOP/TAIL/INDICATOR LIGHTS GROMMET MOUNTĀ #RL66
