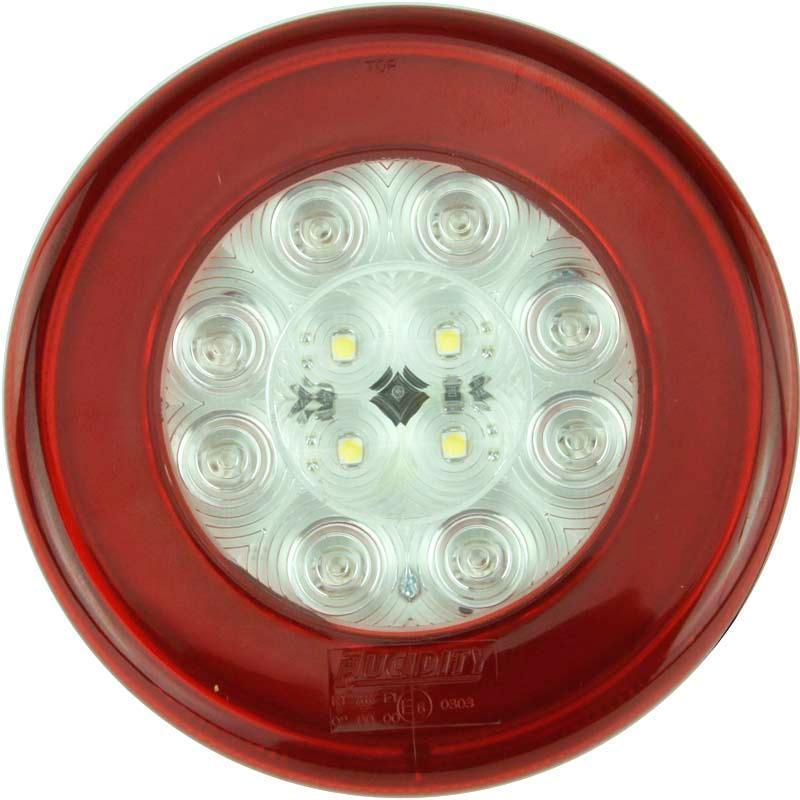

LED Rear Fog, Reverse and Tail Combo 104mm
E6' and F1 Marked. 12 volt or 24 volt.
The same matching tail light outer ring as #RL98
Lens 121mm diameter.
Can be surface mounted or bonded in a hole 104mm diameter.

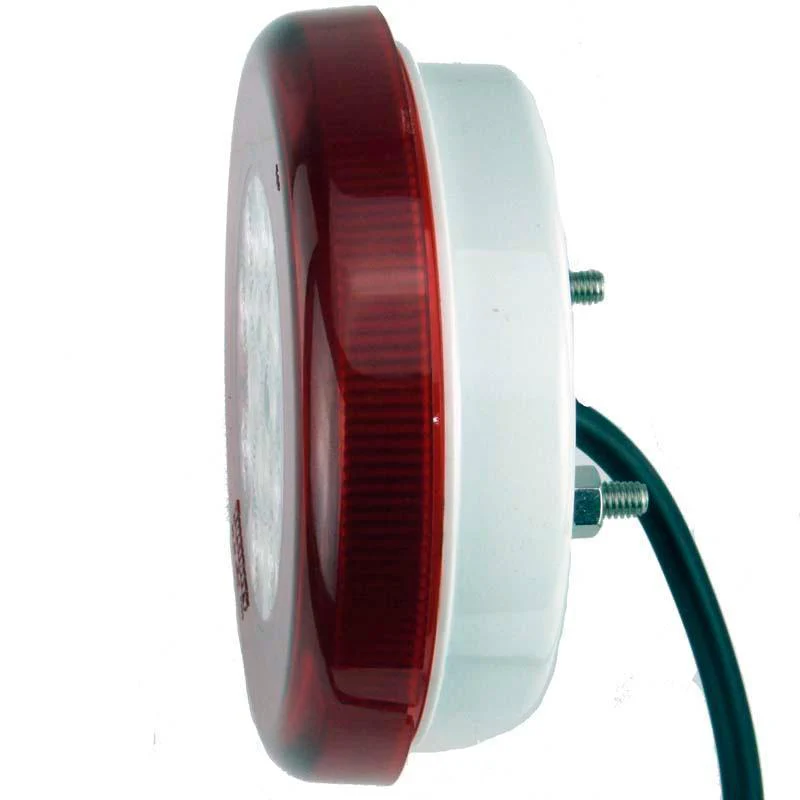

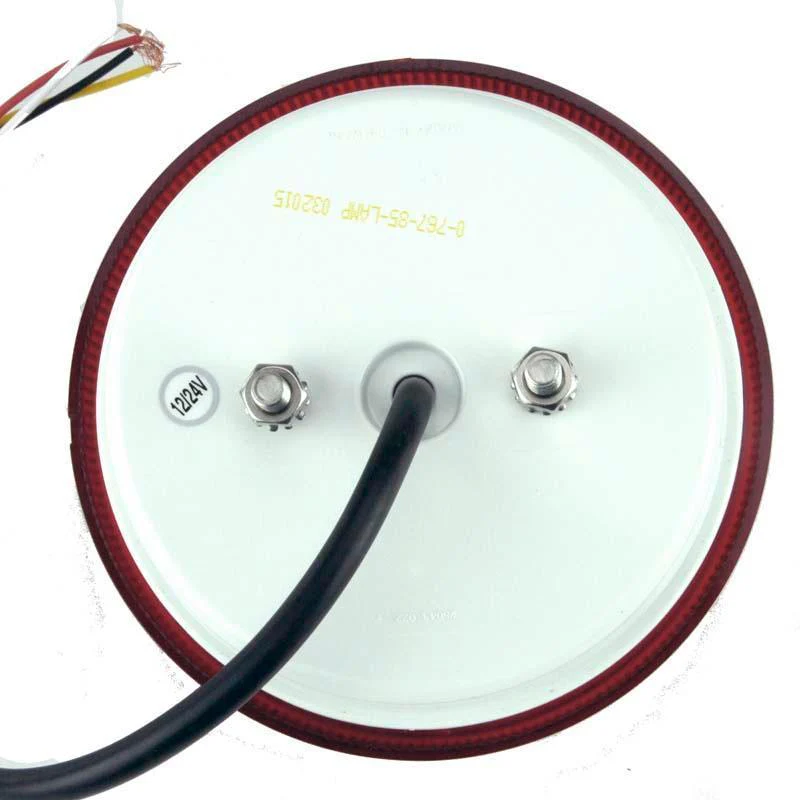

Two M6 mounting studs on the rear @ 44mm centres. 23mm front projection,
18mm rear projection (not including studs).
Weight 480gms. a pair. 300mm, 4 core flylead.Â
WIRING: WHITE - Earth, BLACK - Tail, Â RED - Rear Fog, YELLOW - Reverse
LED REAR FOG, REVERSE AND TAIL LIGHT COMBO pair #RL98RR
