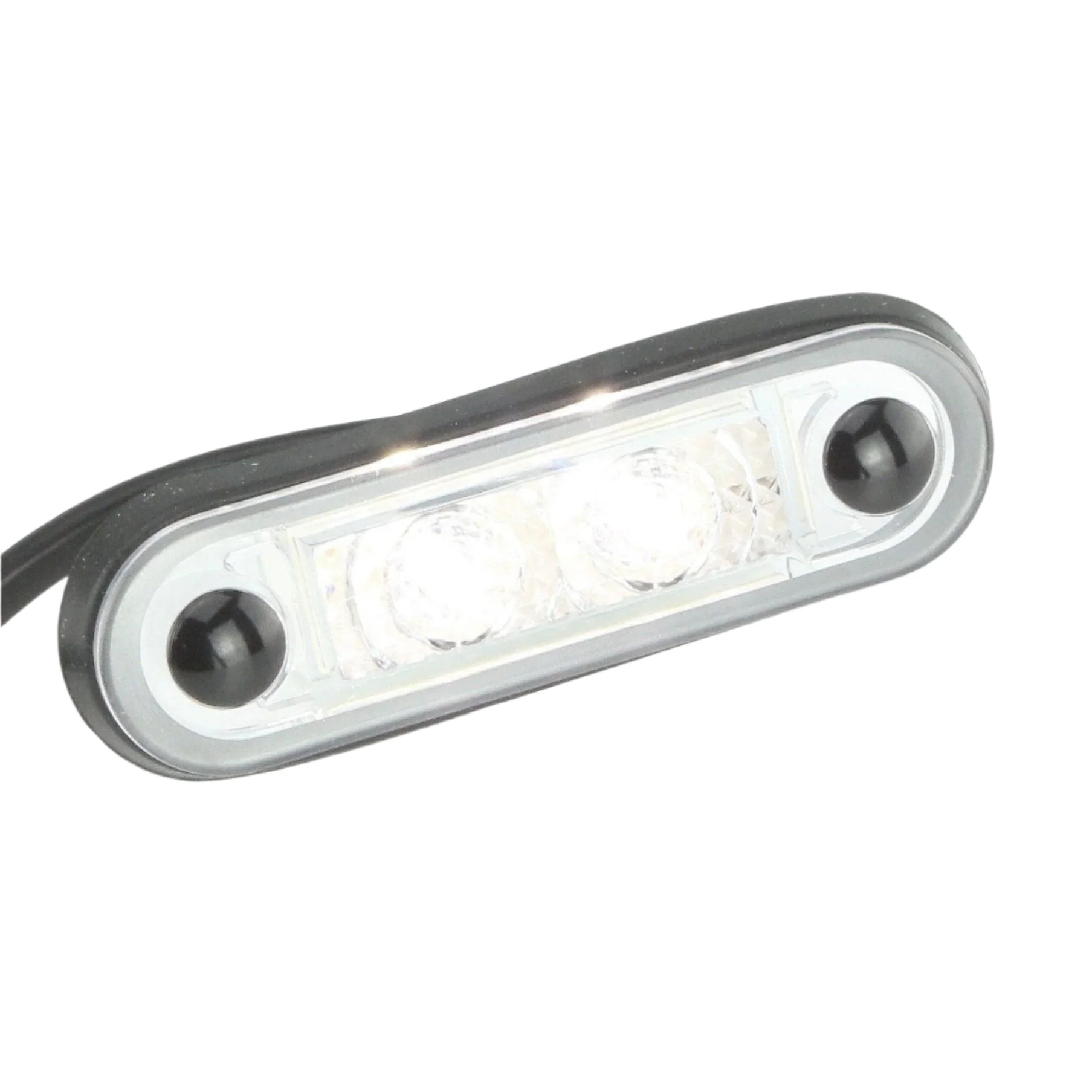

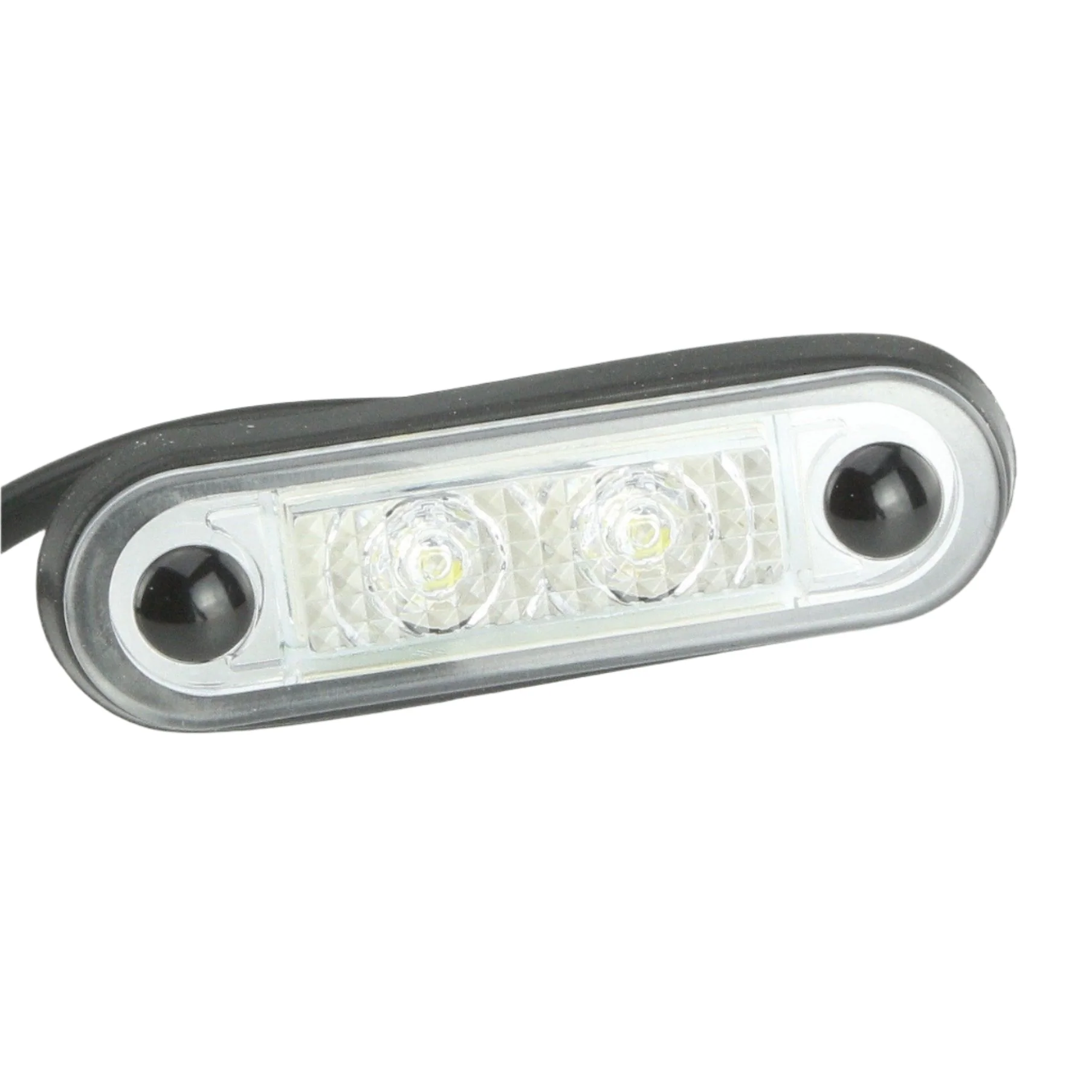

FLUSH MOUNTING WHITE LIGHT LED LAMP 'E9' Marked

Neat little lamp suitable for rear number plate, interior etc.

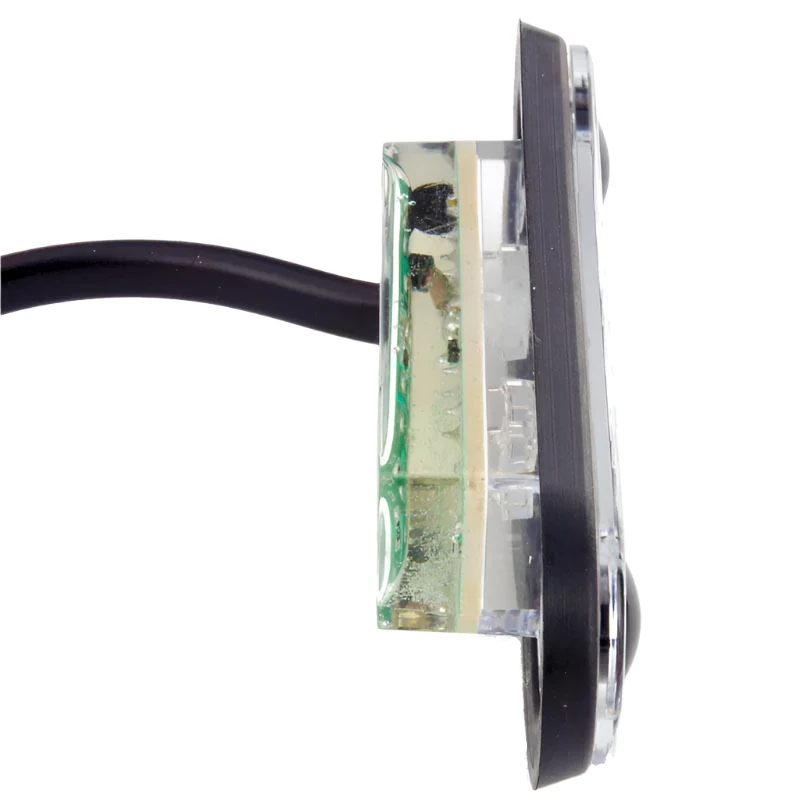

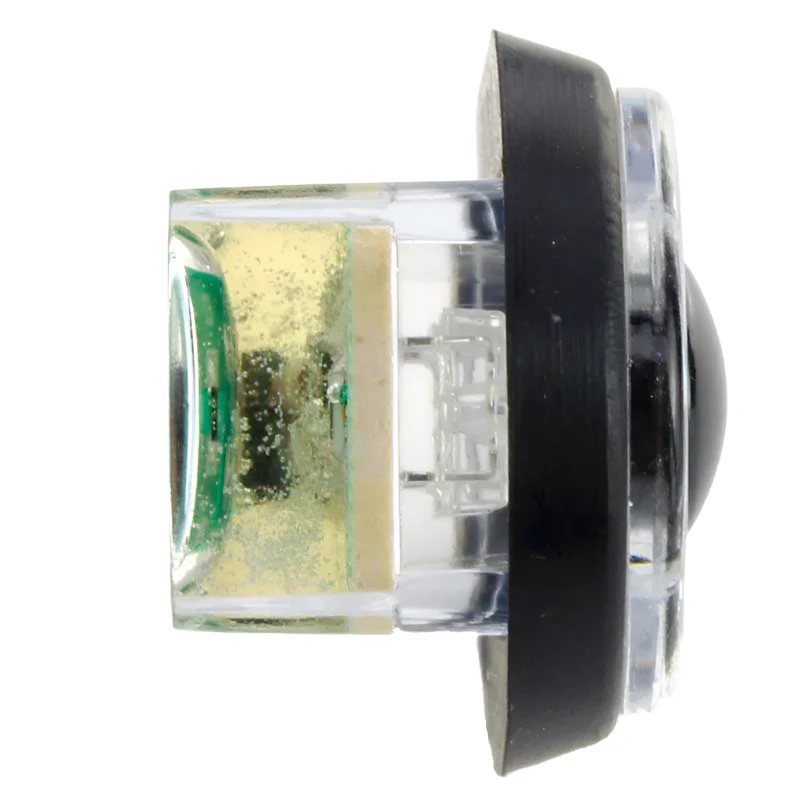

Just 25mm x 83mm with 6mm front projection and max. 12mm rear projection (not including cable).

Rear of lamp fits through a rectangular hole 17mm x 44mm.

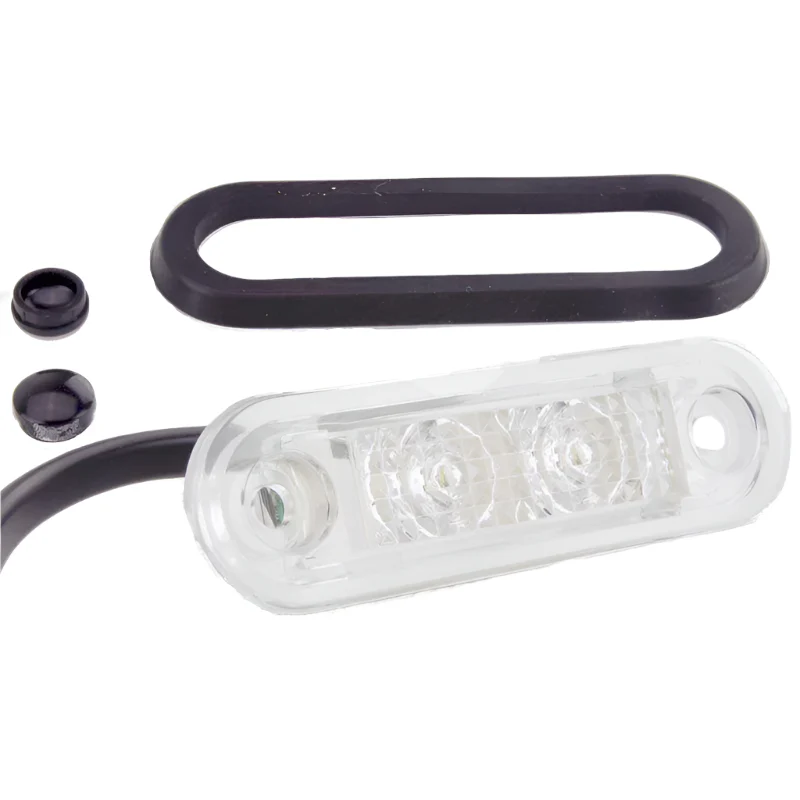

Sealed with a nice, chamfered rubber gasket and secured through two 4.3mm, counterbored holes at 57mm centres.

Black press-in caps cover the screws (screws not supplied) 500mm long flylead.

Weight 35gms.

WIRING:

WHITE = -12v.

BROWN = + 12v.

NOTE: Unusually, on this lamp, the 'E' mark is on the rear of the lamp and cannot be seen when installed.

LED REAR NUMBER PLATE LAMP #RNOLED9
