LED Side Repeater / Marker Lamp Clear Lens 83mm

Product image 1
1 / 5

LED Side Repeater / Marker Lamp Clear Lens 83mm

FLUSH MOUNTING AMBER LIGHT LED LAMP 'E9' MarkedĀ

Neat little lamp.

Suitable for side repeater, marker etc.

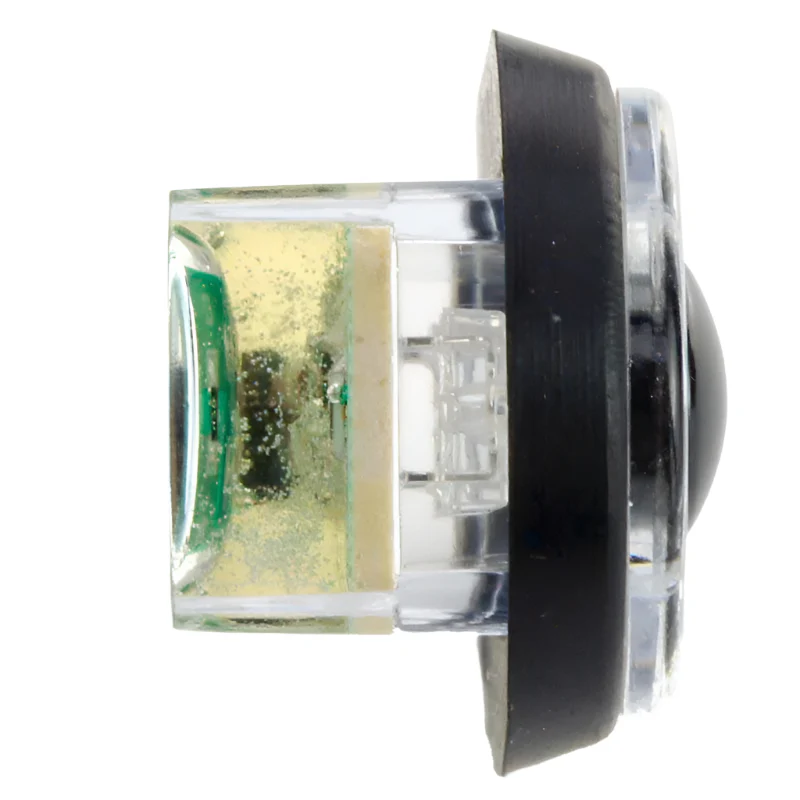

Just 25mm x 83mm with 6mm front projectionĀ and max. 12mm rear projection (not including cable).

Rear of lamp fits through a rectangular hole 17mm x 55mm.

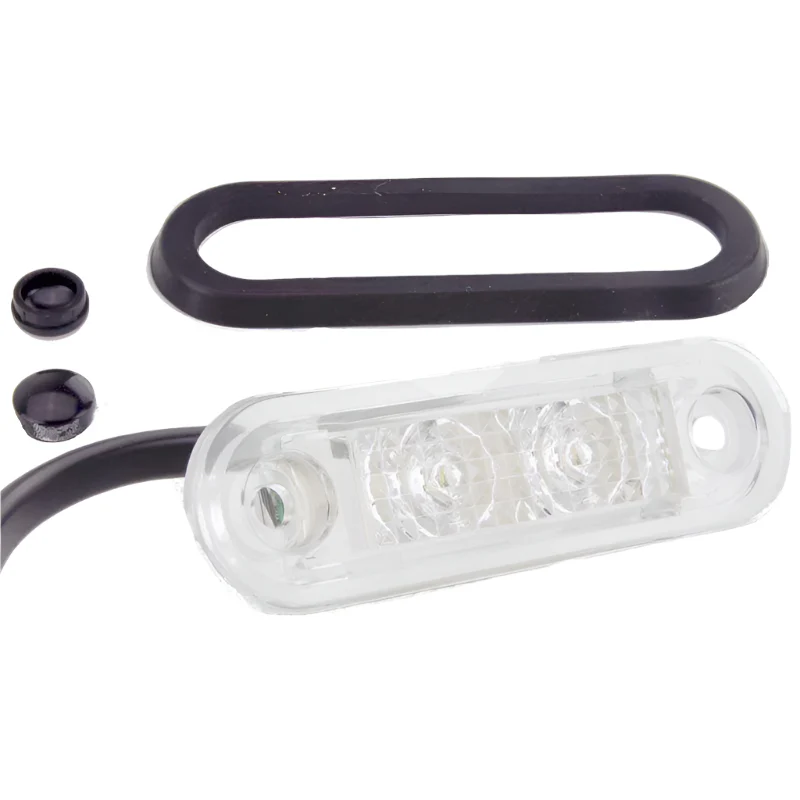

Sealed with a nice, chamfered rubber gasket and secured through two 4.3mm,Ā counterbored holes at 57mm centres.

Black press-in caps cover the screws (Screws not supplied).

500mm long flylead.

Weight 35gms.Ā

WIRING:

WHITE = -12v.

BROWN = +12v.Ā

NOTE:: Unusually, on this lamp, the 'E' mark is on the rear of the lamp andĀ cannot be seen when installed.

Sold Singly

LED SIDE REPEATER MARKER LAMP #SR13
