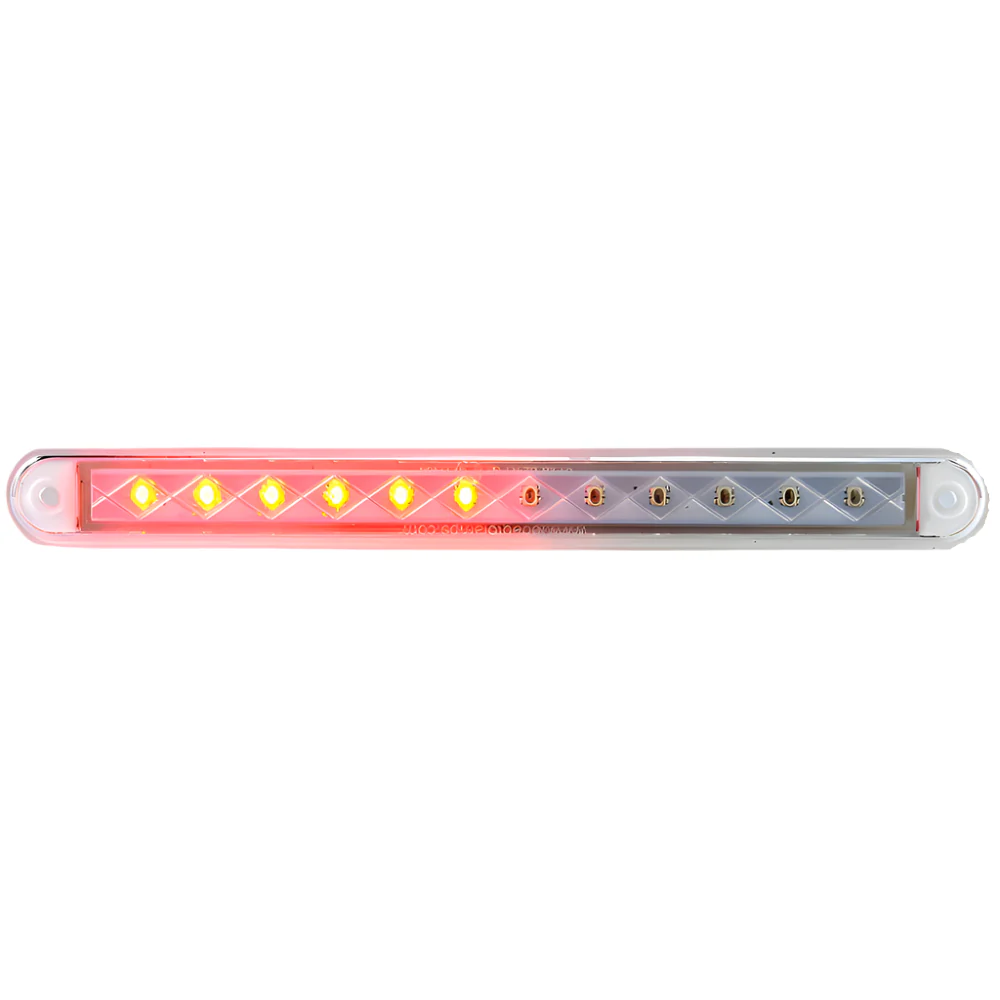

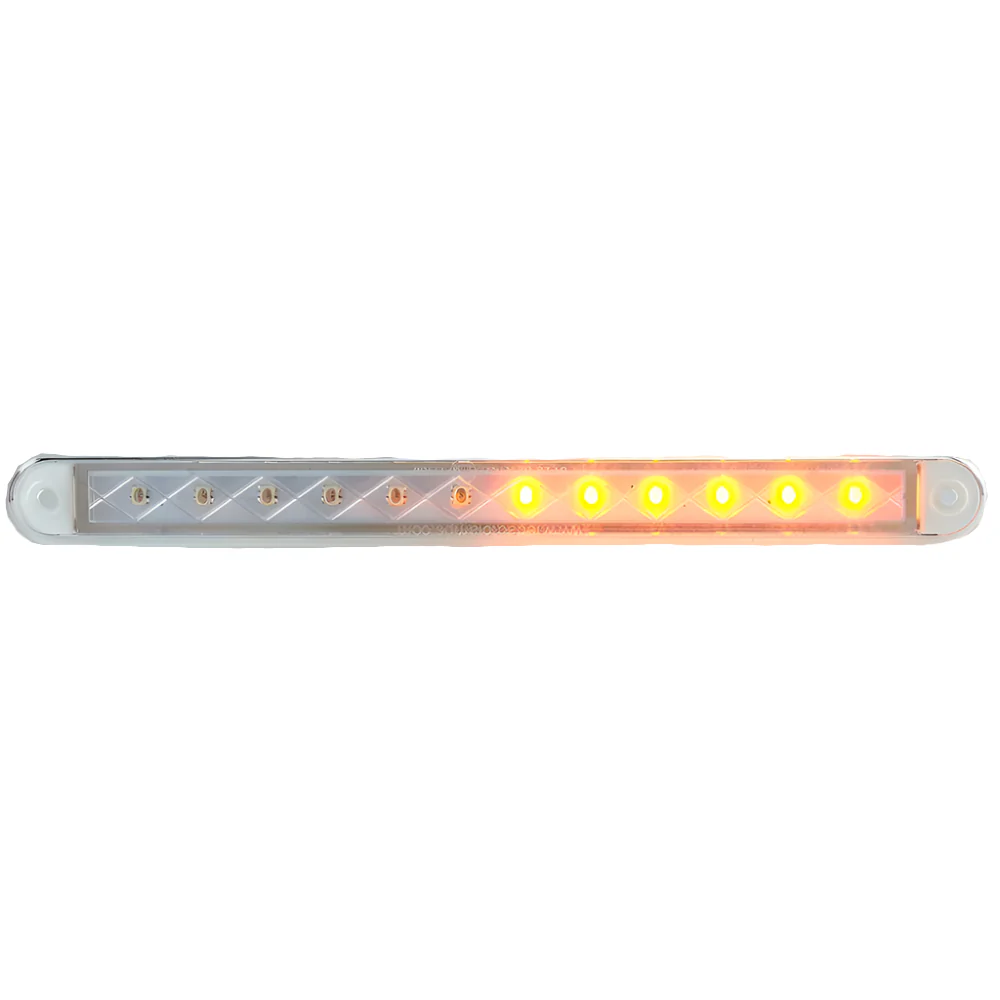

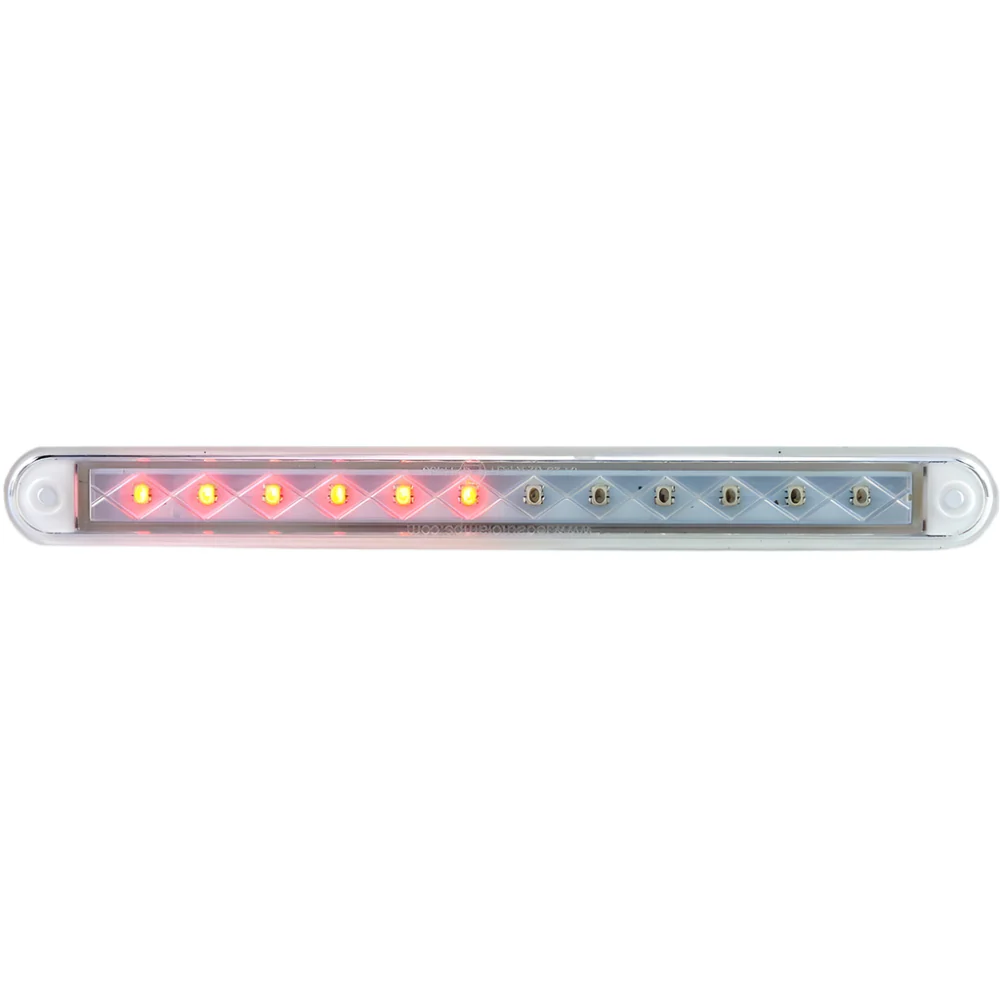

Stop, Tail and Indicator in one lamp.

Pre-wired with 400mm fly leads.

Supplied with a removable white silicone gasket / rear cover for weatherproofing.

Slightly concave by just a few millimetres so that, as you screw them in place they seal in the middle first then at the ends as you tighten the screws

24mm high.

5mm front projection.

18mm overall depth.

This one is 237mm long but 380mm is also available.

Two 4mm fixing holes at 215mm centres.

Fits in a cut-out 203mm x 18mm.

12 Volt

Current draw @13.8volts
Ind 0.18Amps
Stop 0.16Amps
Tail 0.04Amps

WIRING:

Brown - Tail

Red - Stop

Yellow - Indicator

White - Earth

237mm LED STOP AND TAIL INDICATOR STRIP LIGHT #LEDSTI237W
