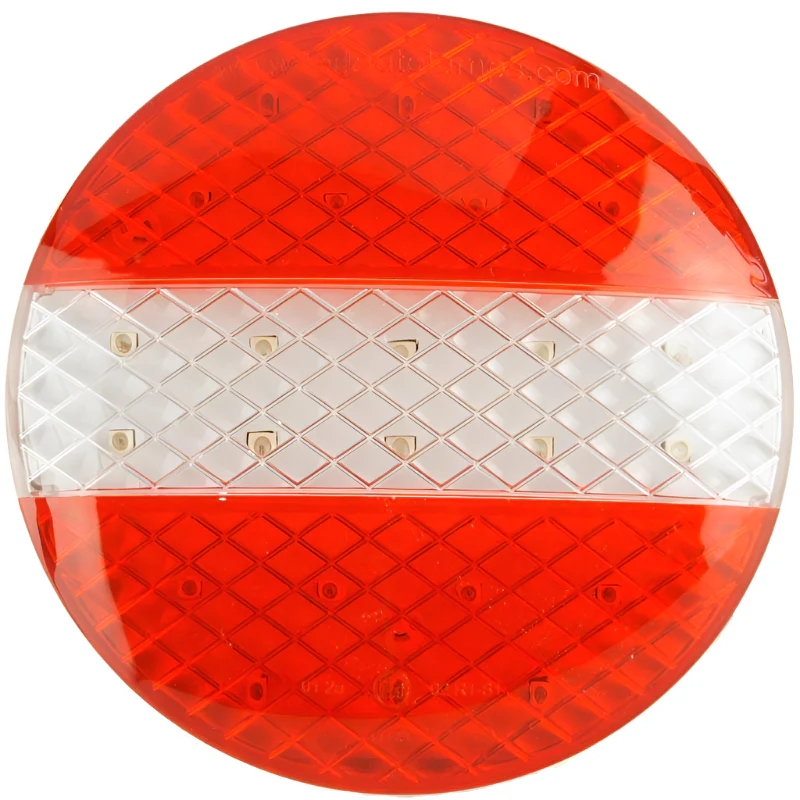

LOW PROFILE LED SURFACE MOUNT REAR LAMP 'E9' Marked.

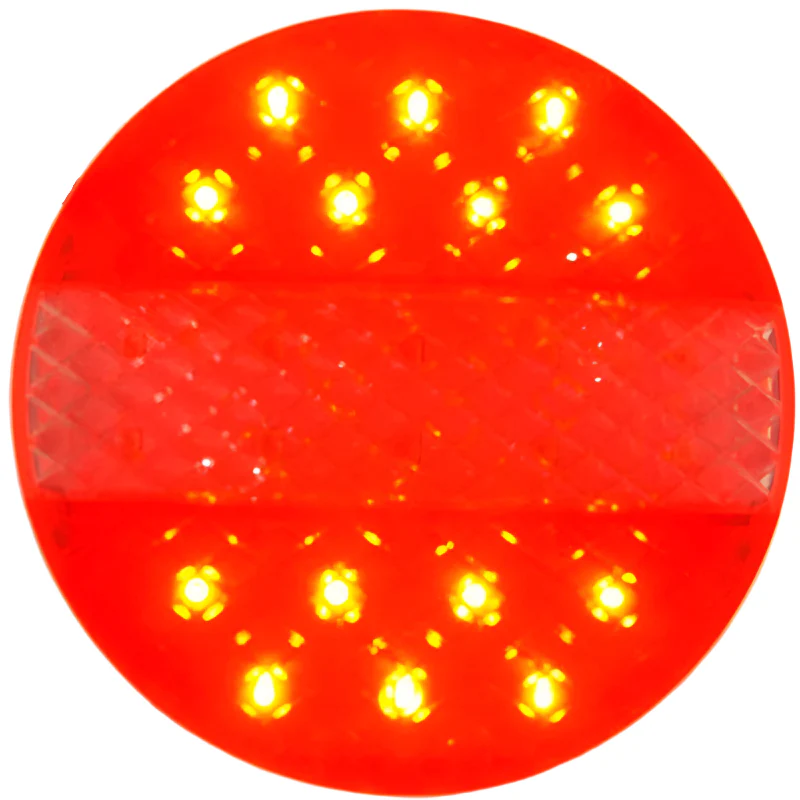

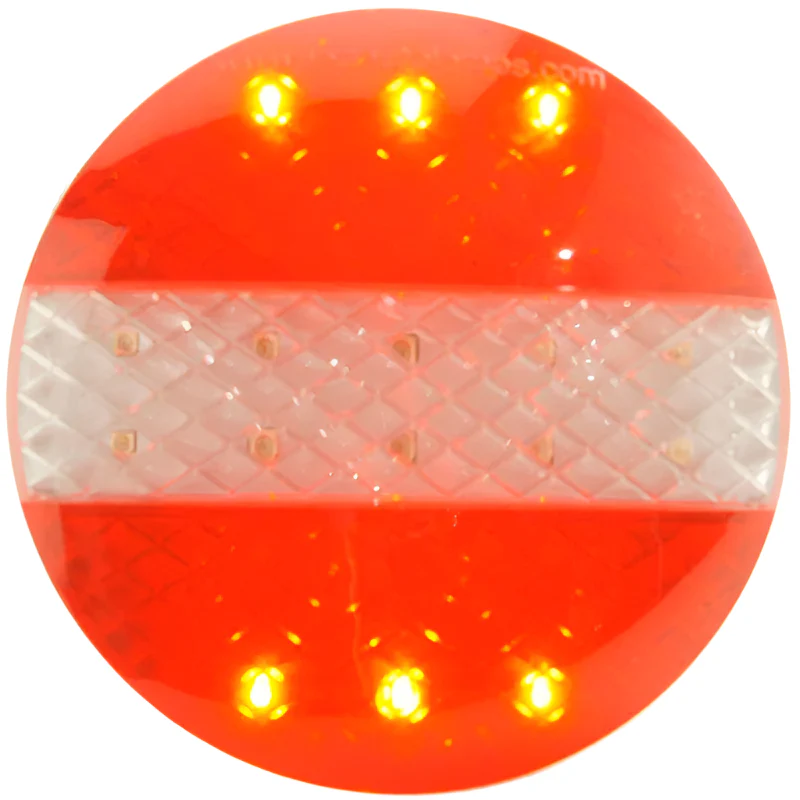

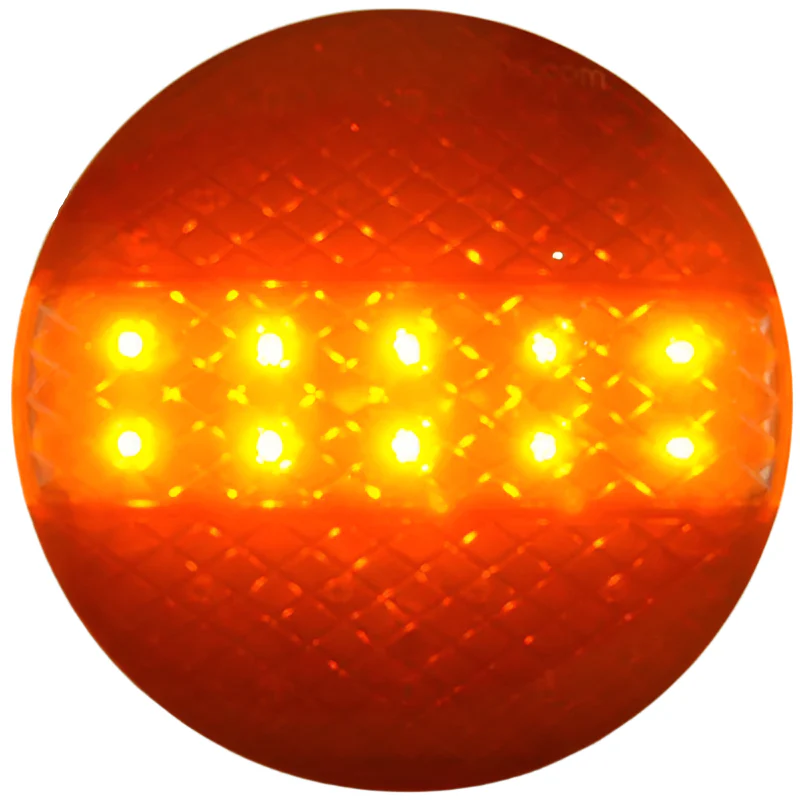

STOP, TAIL AND CLEAR-LENS INDICATOR

Sealed-for-life on a thin white base.

140mm diameter.

Front projection just 20mm.

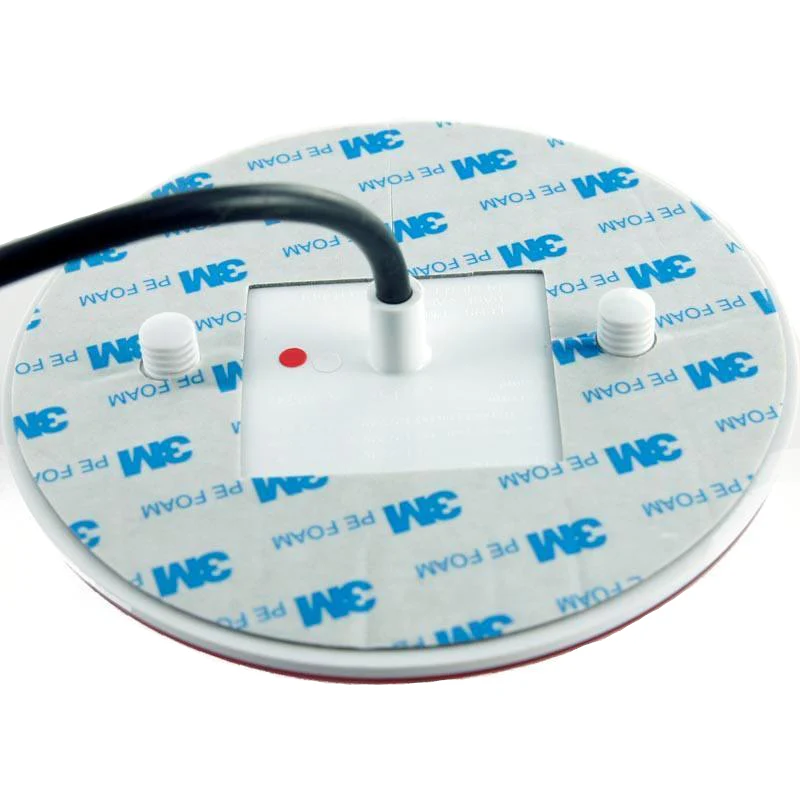

Fixes to rear panel with 3M double sided tape.

Two 10mm diameter locating pegs at 80mm centres.

400mm long flylead.

12 or 24 volt.

WIRING COLOURS:

WHITE - Earth

YELLOW - Indicator

BROWN - Tail

RED - Stop.

LOW PROFILE SURFACE MOUNT REAR LAMP PAIR #RL97
