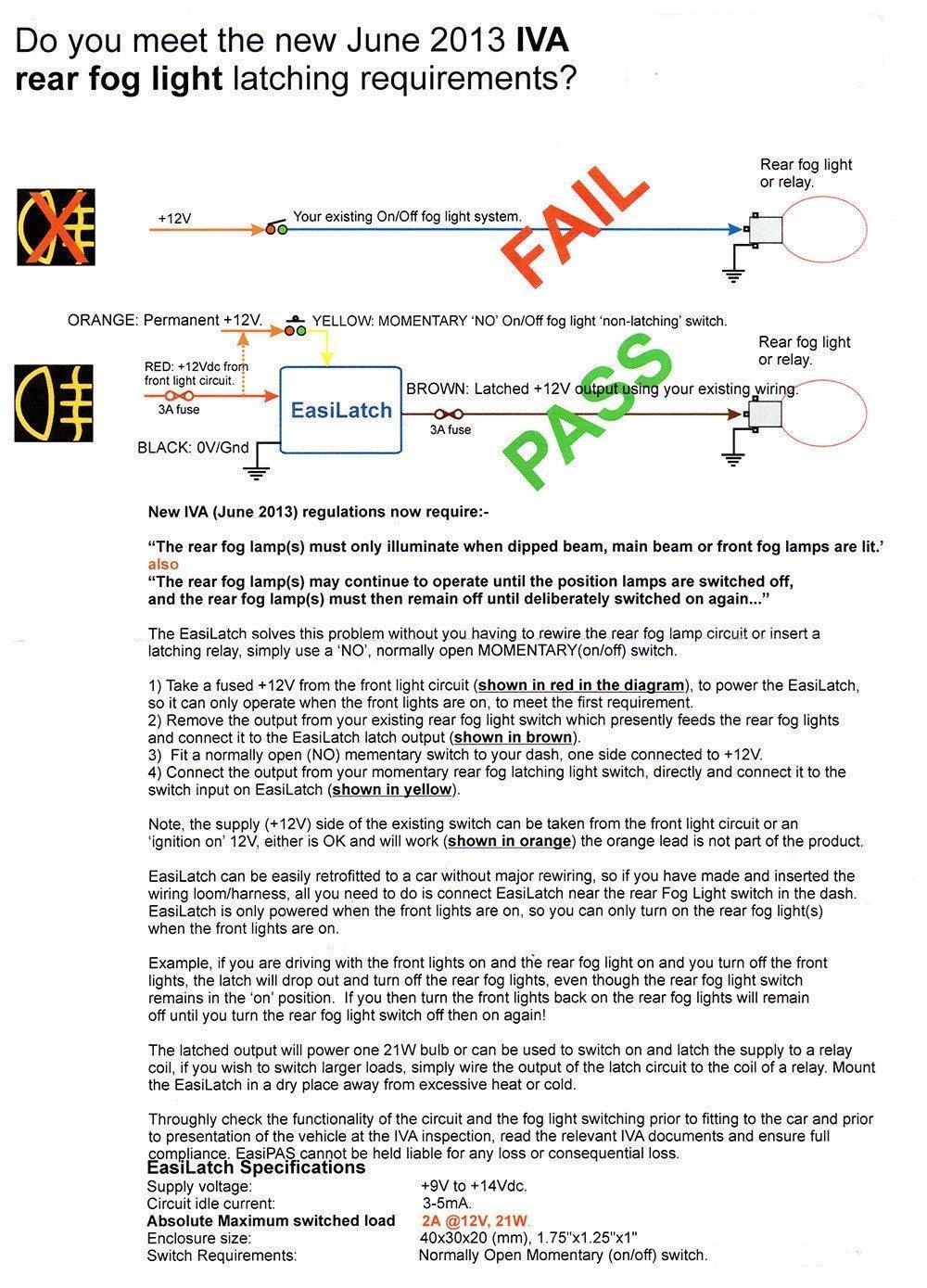

NEW IVA REAR FOG RULES

As of June 2013, the regulations governing the operation of Rear Fog Lights have been updated. Under the new rules, Rear Fog lamps are permitted to be illuminated only when the Dipped Beam, Main Beam, or Front Fog lamps are active. These lamps may remain on until the other lights are switched off. Importantly, once the other lights are turned off, the Rear Fog lamps must stay off, even if the other lights are activated again, until manually switched on. This change aims to prevent drivers from inadvertently using fog lights during clear conditions, which can cause visibility issues for other road users.

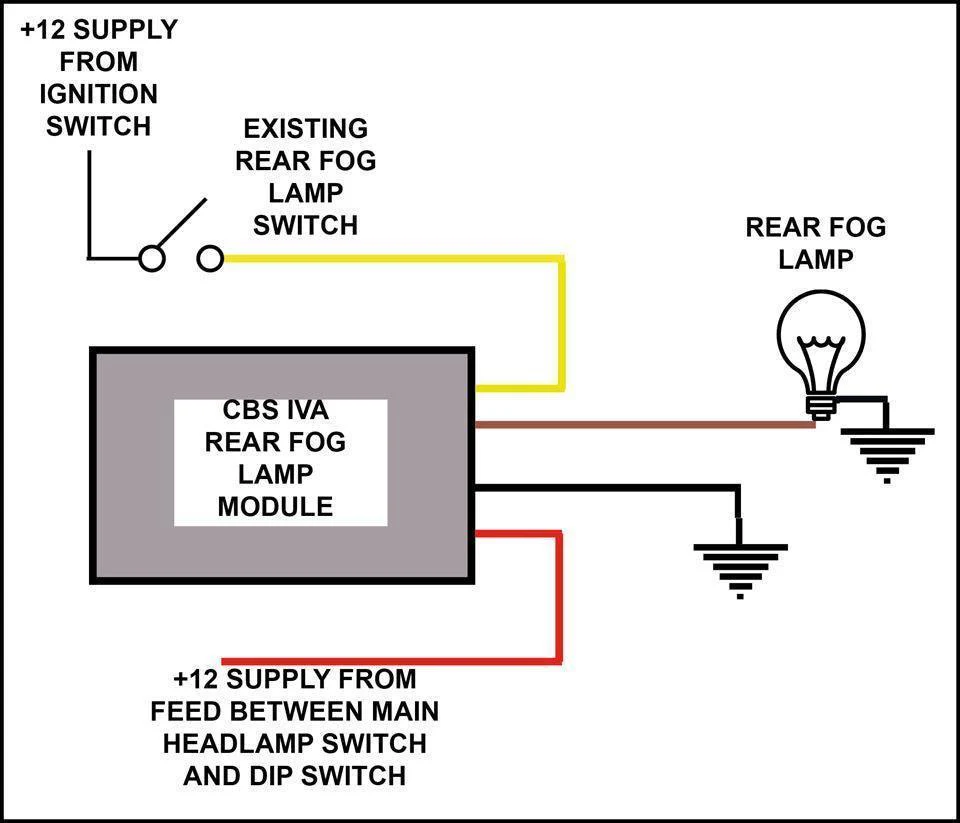

Installation is straightforward: simply connect the four wires of this compact module into your vehicle’s lighting circuit, and you will be in compliance with the new regulations. It’s that easy!

Key specifications include:

• Supply voltage: +9v to +14v dc
• Circuit idle current: 3 to 5 ma
• Maximum switched load: 2 Amps (1 x 21 watt bulb)

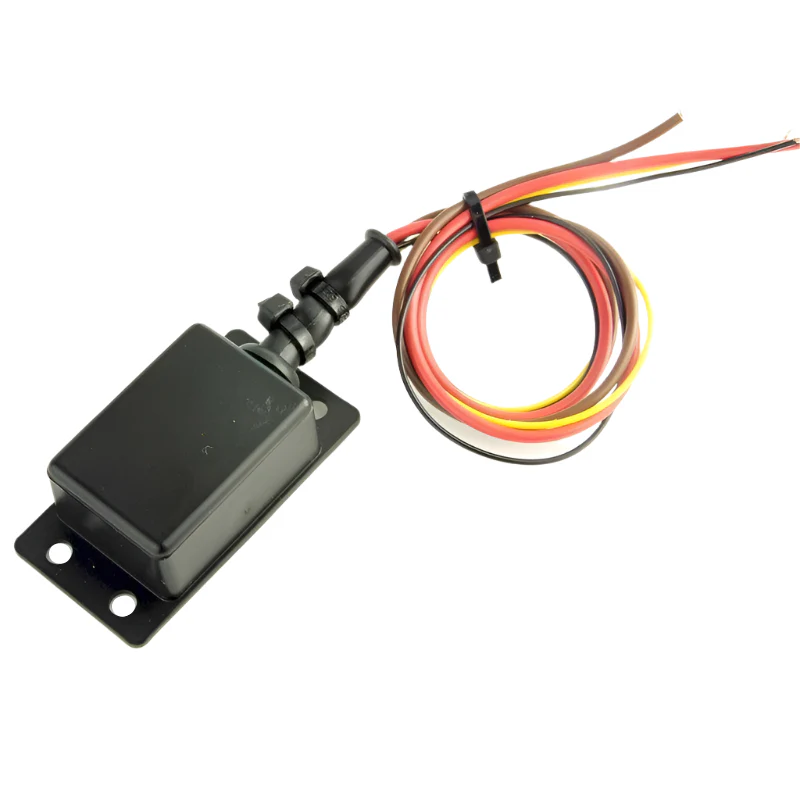

• Case size: 40mm x 30mm x 20mm

This innovative Rear Fog Light Controller is designed for both standard and momentary switches, ensuring versatility for various vehicle setups. With its compact design and easy installation, it’s an essential addition for any driver looking to adhere to the latest traffic regulations while enhancing road safety.

If you are using this module with a switch that has built in illumination/warning you may need an additional relay to control the earth of that lamp.  Please contact us for a wiring diagram in that case.

REAR FOG LIGHT CONTROLLER FOR LATCHING SWITCH #RFLATCH

REAR FOG LIGHT CONTROLLER FOR MOMENTARY SWITCH #RFLATCHM

Stay compliant and ensure your vehicle is equipped with the latest safety features with this essential Rear Fog Light Controller.
