Silicon Diode
Diodes are, effectively, a one-way valve for electrical circuits.
They are often used in automotive wiring circuits - for instance, to electrically separate two switches that have the same function.
For example, the headlamp switch and the stalk headlamp flasher so both can, independently, operate the same lights.
Voltage: Max reverse voltage 50 volts.
Max forward voltage 0.9 volts.
Current: Max forward current 10A Max leakage current 25µA.

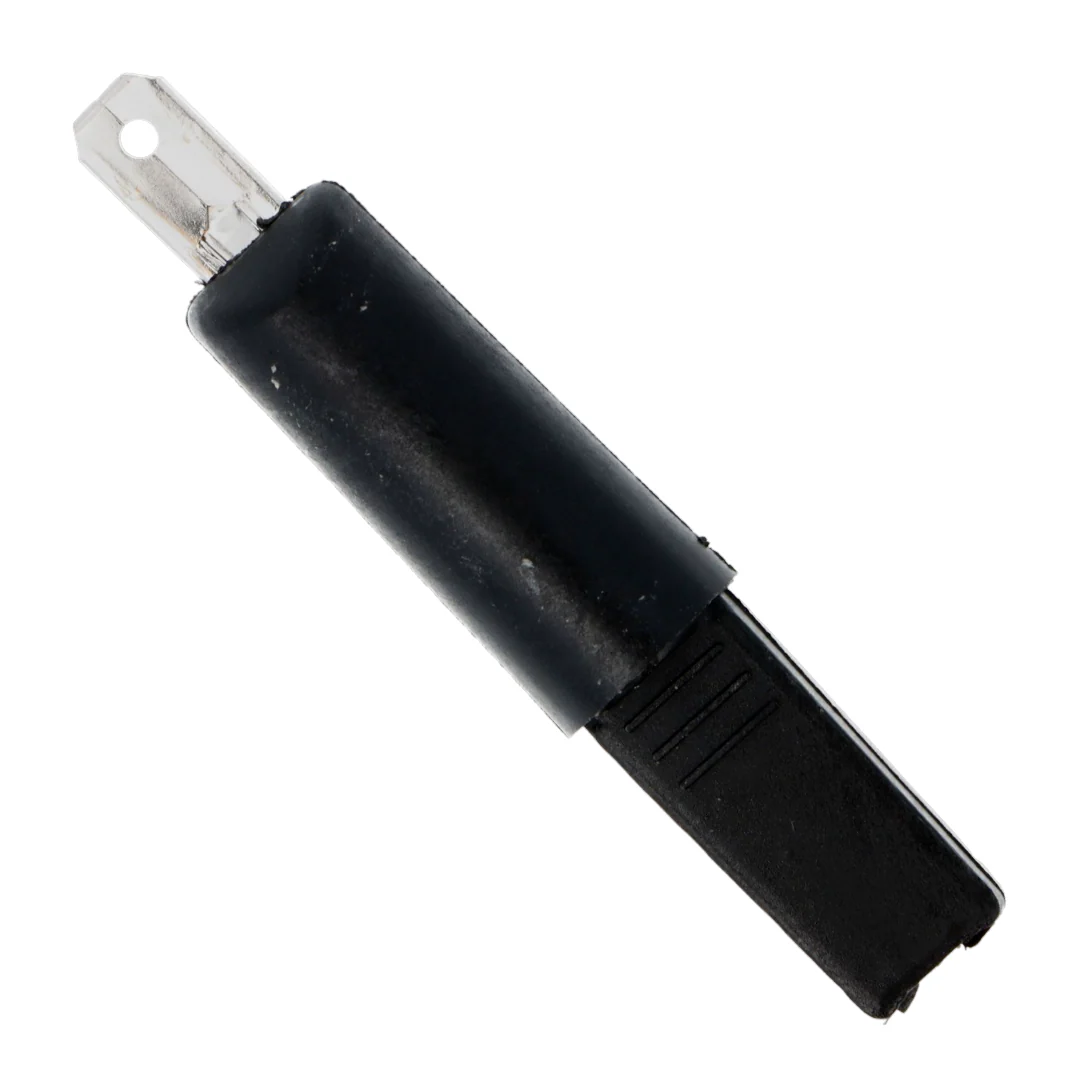

Nylon case. Length 63mm. Diameter 12mm.

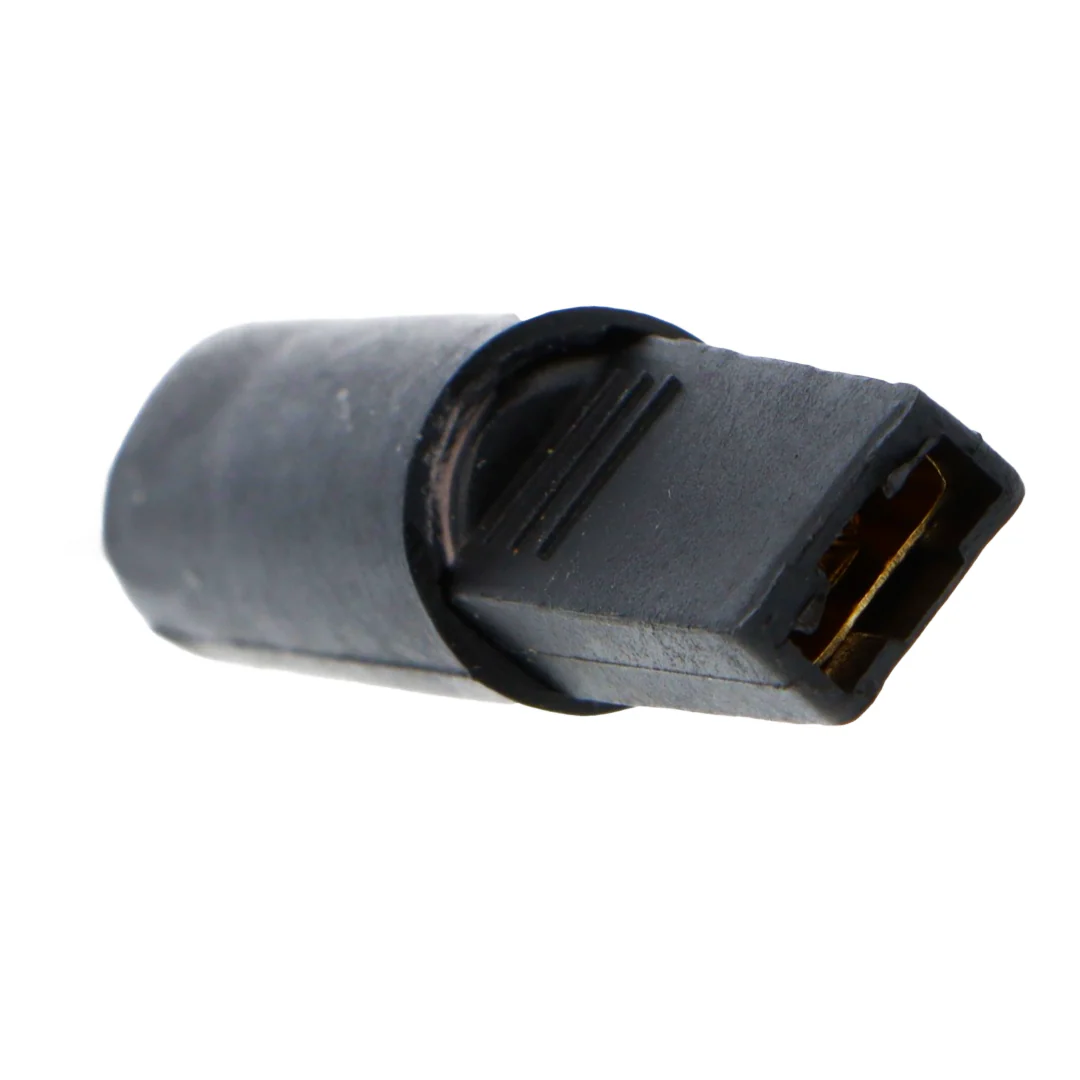

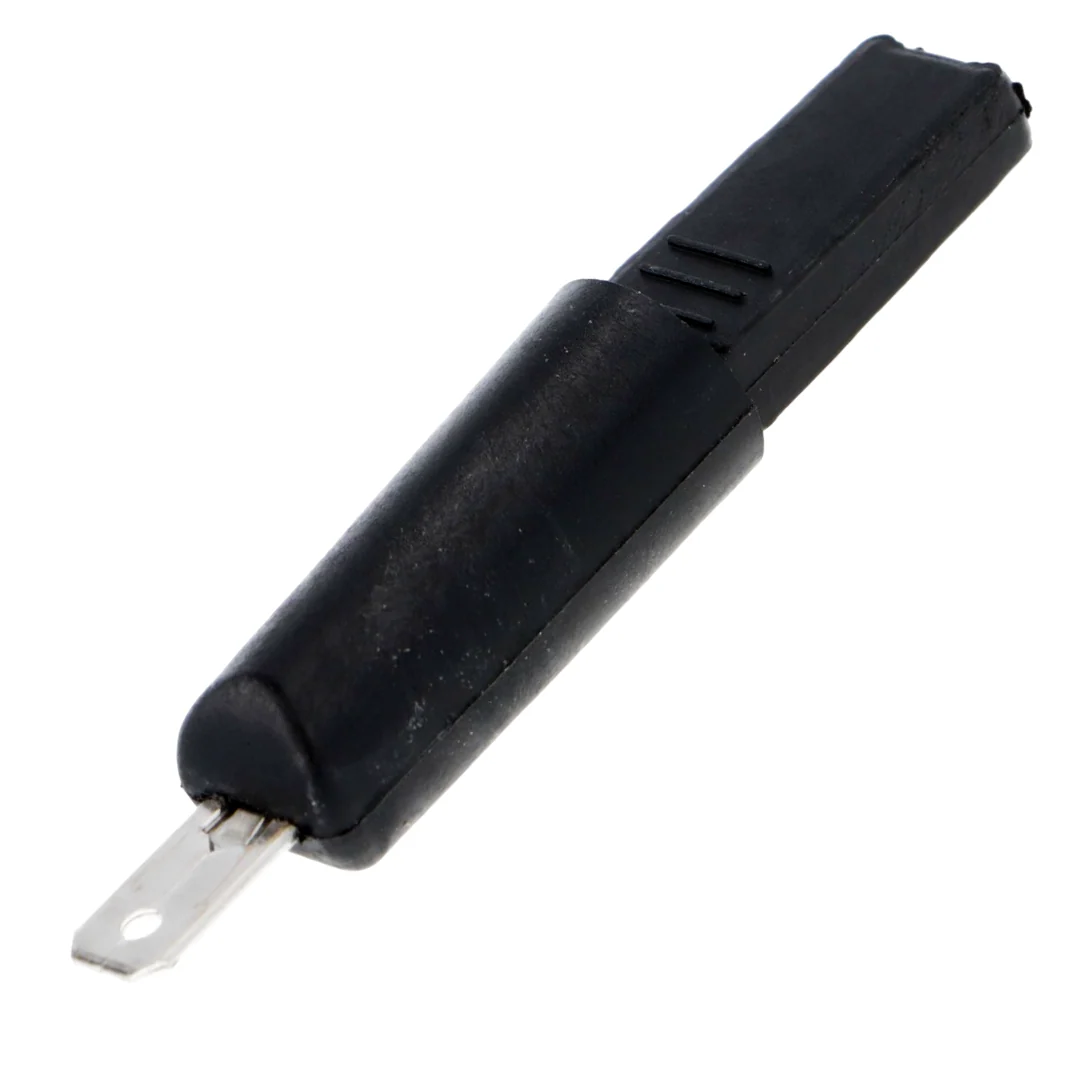

Termination: Anode 6.3mm spade terminal. Cathode 6.3mm female push-on spade terminal.
Weight: 5g
UNIVERSAL 10 AMP 50 VOLT IN-LINE SILICON DIODE #UID
Original: $4.69
-65%$4.69
$1.64Product Information
