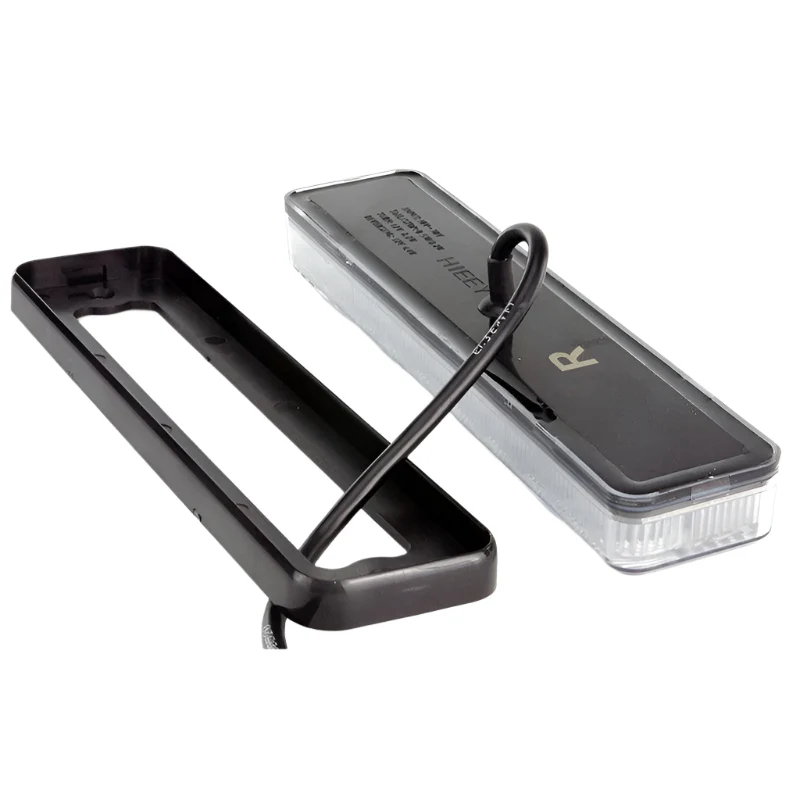

Hidden mounting. The moulded black plastic housing is surface-mounted to your panel and the LED lamp unit just snaps into it.

Maximum overall dimensions 200mm (8") x 50mm (2") x 28mm deep (1.12").

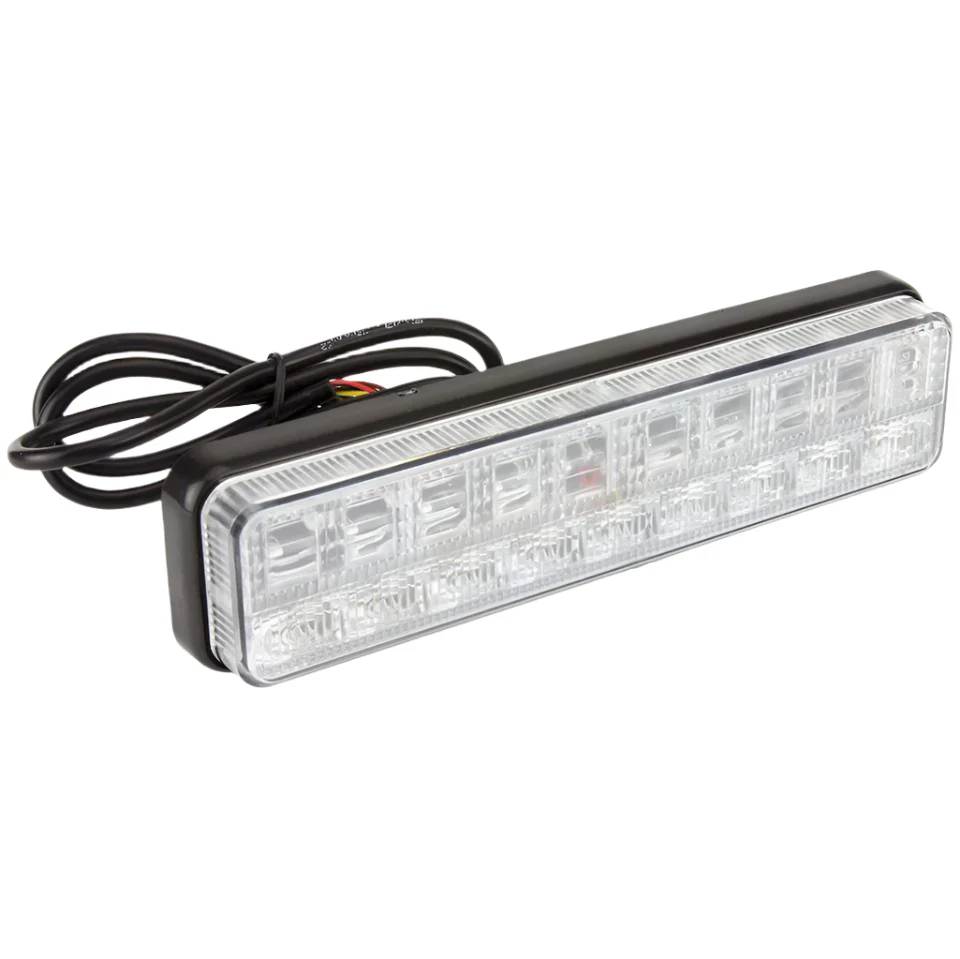

800mm pre-wired fly leads.

'E4' marked for Vertical or Horizontal mounting.

Two 6mm mounting holes @ 175mm centres.

Works on 10 volt to 30 volt supply.

Weight 460gms pair.

Connections:

White - Earth

Red - Stop

Brown - Tail

Black - Reverse

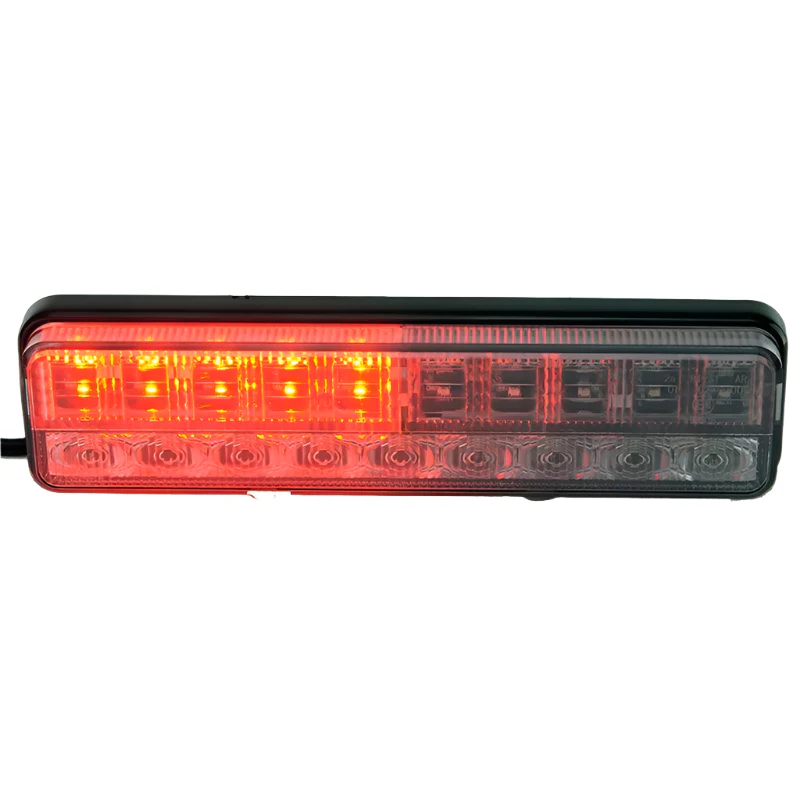

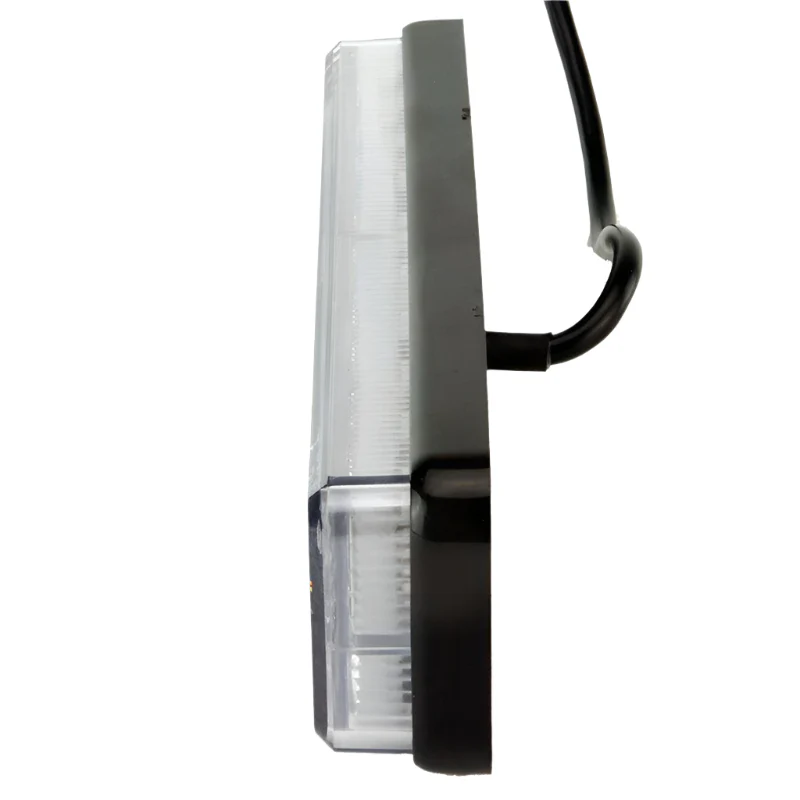

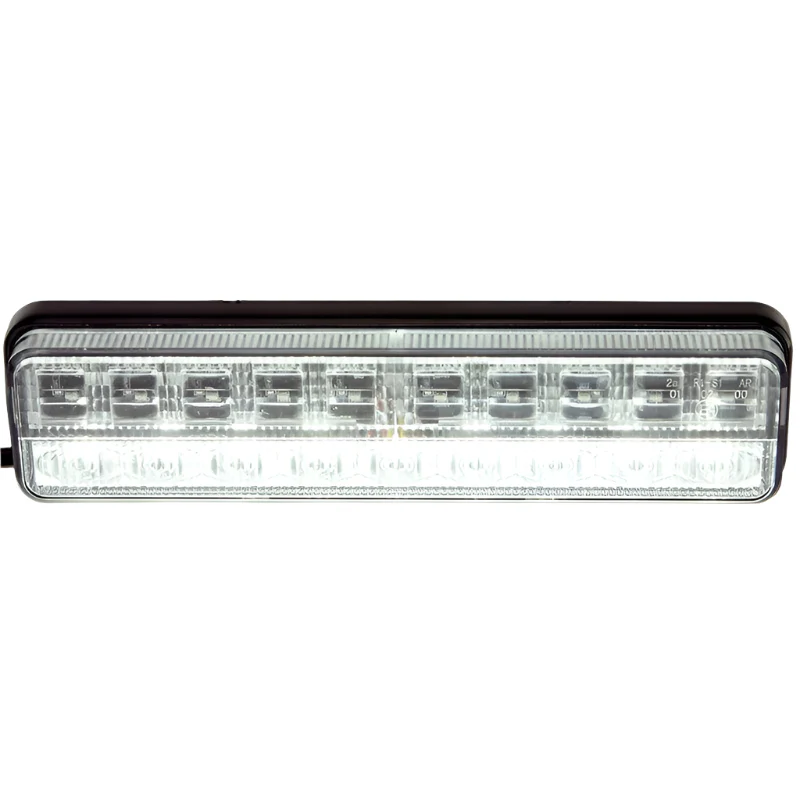

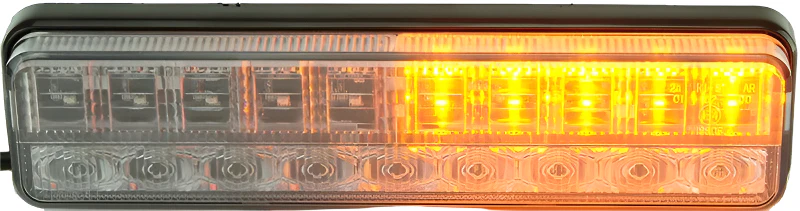

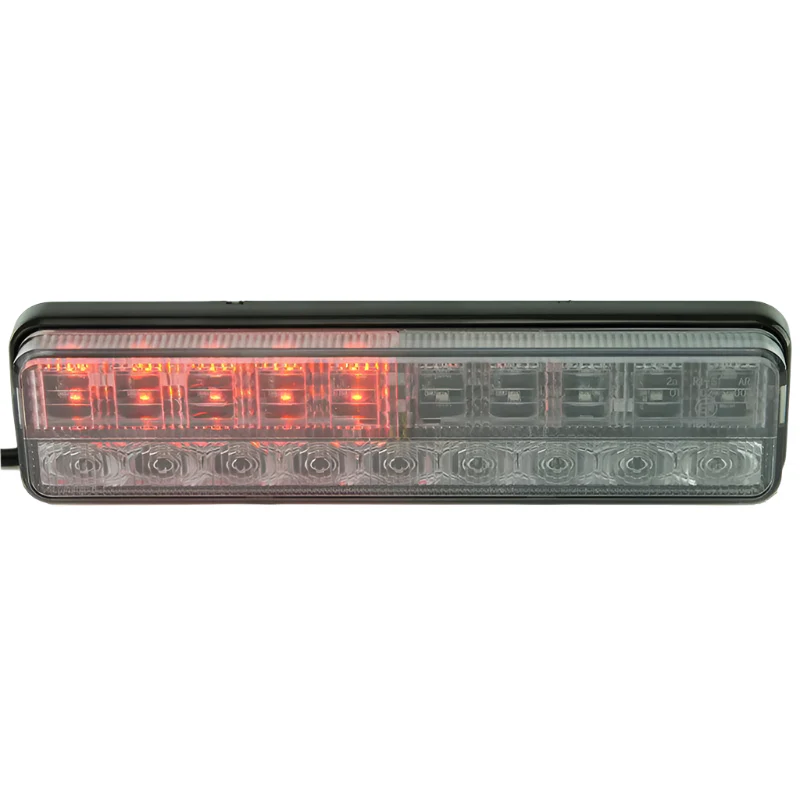

SLIMLINE LED STOP/TAIL/INDICATOR/REVERSE LAMP PAIR #RL103
