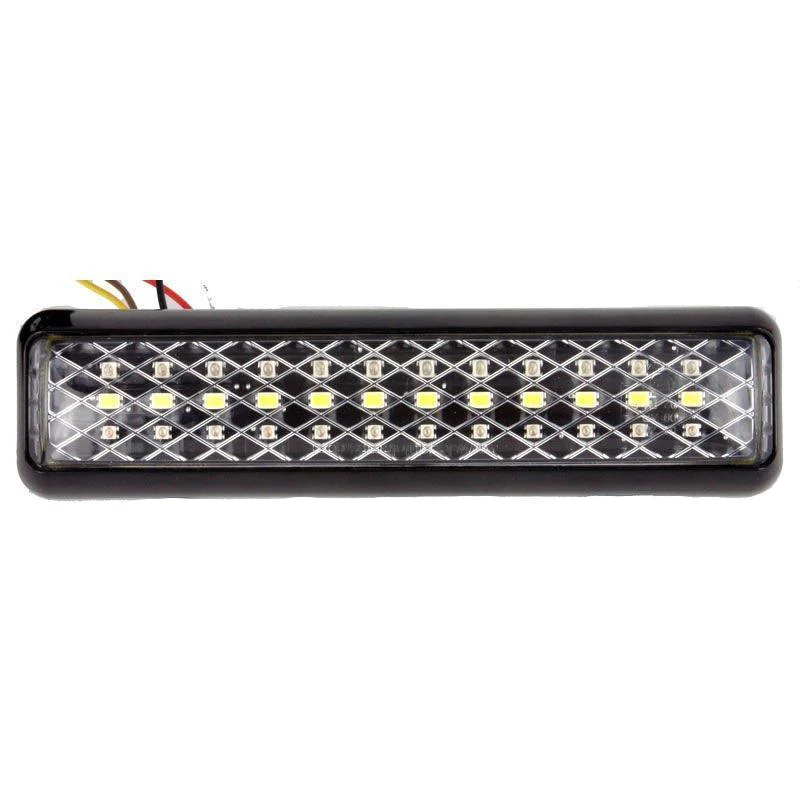

Slimline LED Rectangular Stop/Tail/Indicator/Reverse 200mm
Hidden mounting.

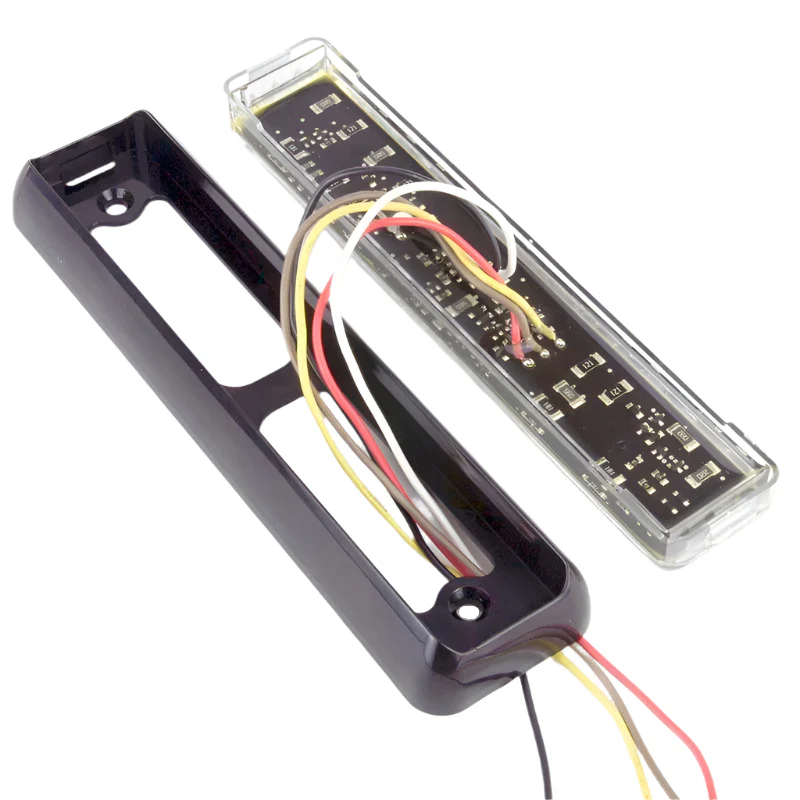

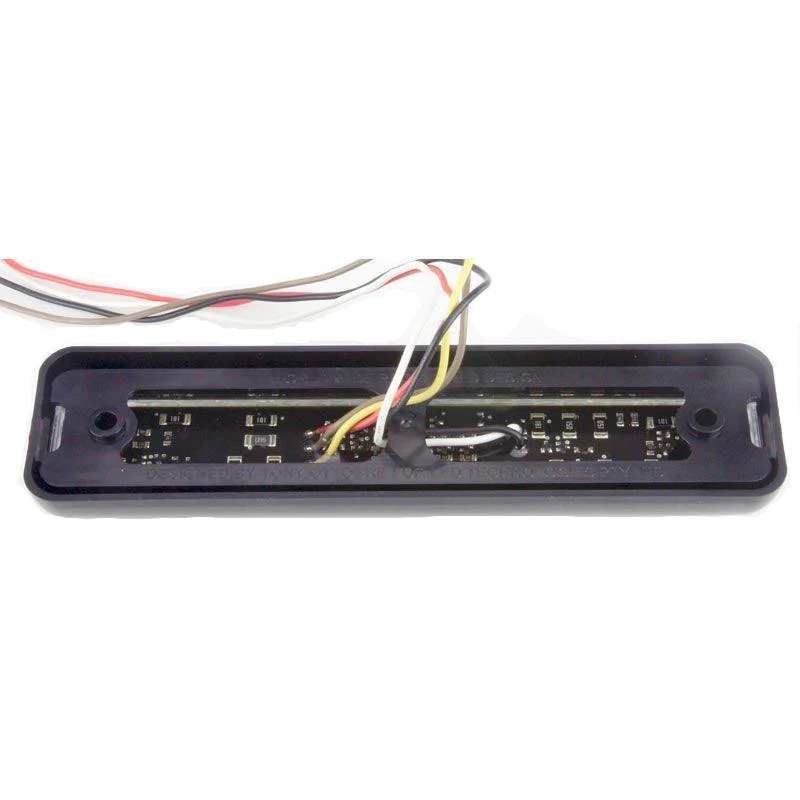

The moulded black plastic housing is surface-mounted to your panelĀ and the LED lamp unit just snaps into it.
'E9' Marked.
Maximum overall dimensions200mm (8") x 50mm (2") x 28mm deep (1.12") 380mm long pre-wired fly leads.
Two 6mm mounting holes @ 160mm centres.
12 volt to 24 volt.Ā
Weight 150gms each.Ā
Wiring:
White - Earth
Yellow - IndicatorsĀ
Red - StopĀ
Brown - TailĀ
Black - Reverse
SLIMLINE LED STOP/TAIL/INDICATOR/REVERSE LAMP #RL99
Original: $65.66
-65%$65.66
$22.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hidden mounting.
The moulded black plastic housing is surface-mounted to your panelĀ and the LED lamp unit just snaps into it.
'E9' Marked.
Maximum overall dimensions200mm (8") x 50mm (2") x 28mm deep (1.12") 380mm long pre-wired fly leads.
Two 6mm mounting holes @ 160mm centres.
12 volt to 24 volt.Ā
Weight 150gms each.Ā
Wiring:
White - Earth
Yellow - IndicatorsĀ
Red - StopĀ
Brown - TailĀ
Black - Reverse
SLIMLINE LED STOP/TAIL/INDICATOR/REVERSE LAMP #RL99
