'E9' marked.

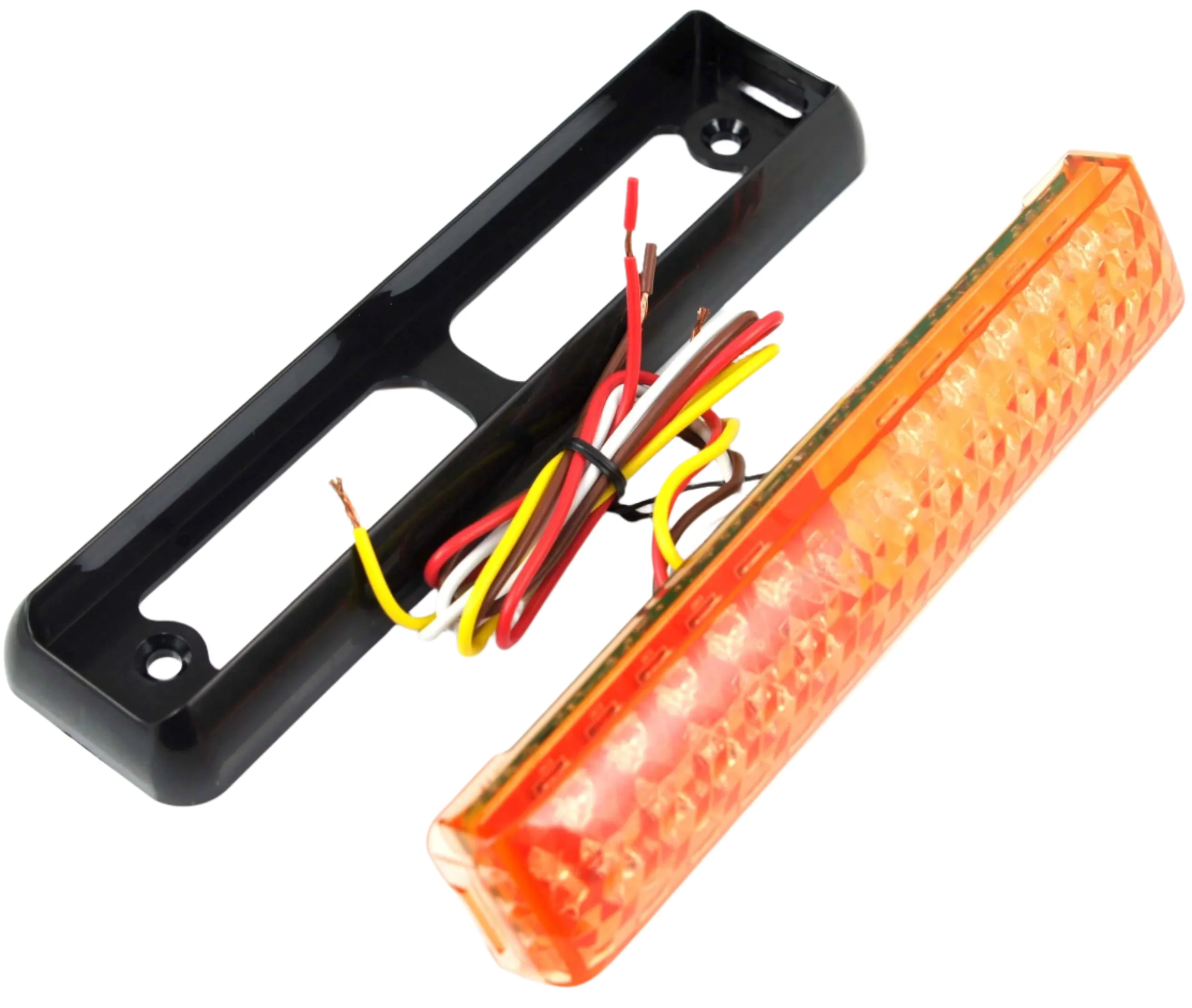

Hidden mounting. The moulded black plastic housing is surface-mounted to your panel and the LED lamp unit just snaps into it.

Maximum overall dimensions 200mm (8") x 50mm (2") x 28mm deep (1.12") 380mm pre-wired fly leads.

Two 6mm mounting holes @ 160mm centres. 12 volt to 24 volt.

Connections:

White - Earth

Yellow - Indicator

Red - Stop

Brown - Tail

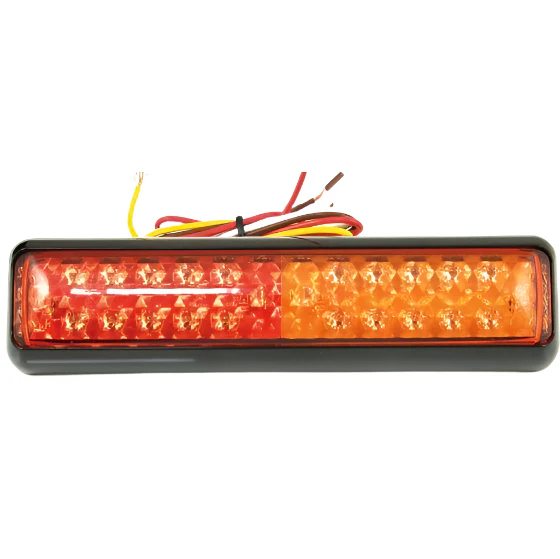

SLIMLINE LED STOP/TAIL/INDICATOR LAMP #RL71
